Digital amplifier 4x100W
DX-4.100 V4
Car 4-channel digital amplifier, which has the sound quality to a whole different level. It features expanded and advanced HPF/LPF filters external wired BassBoost remote and dramatically improves speaker performance. Fixed channel separation of 60 dB.

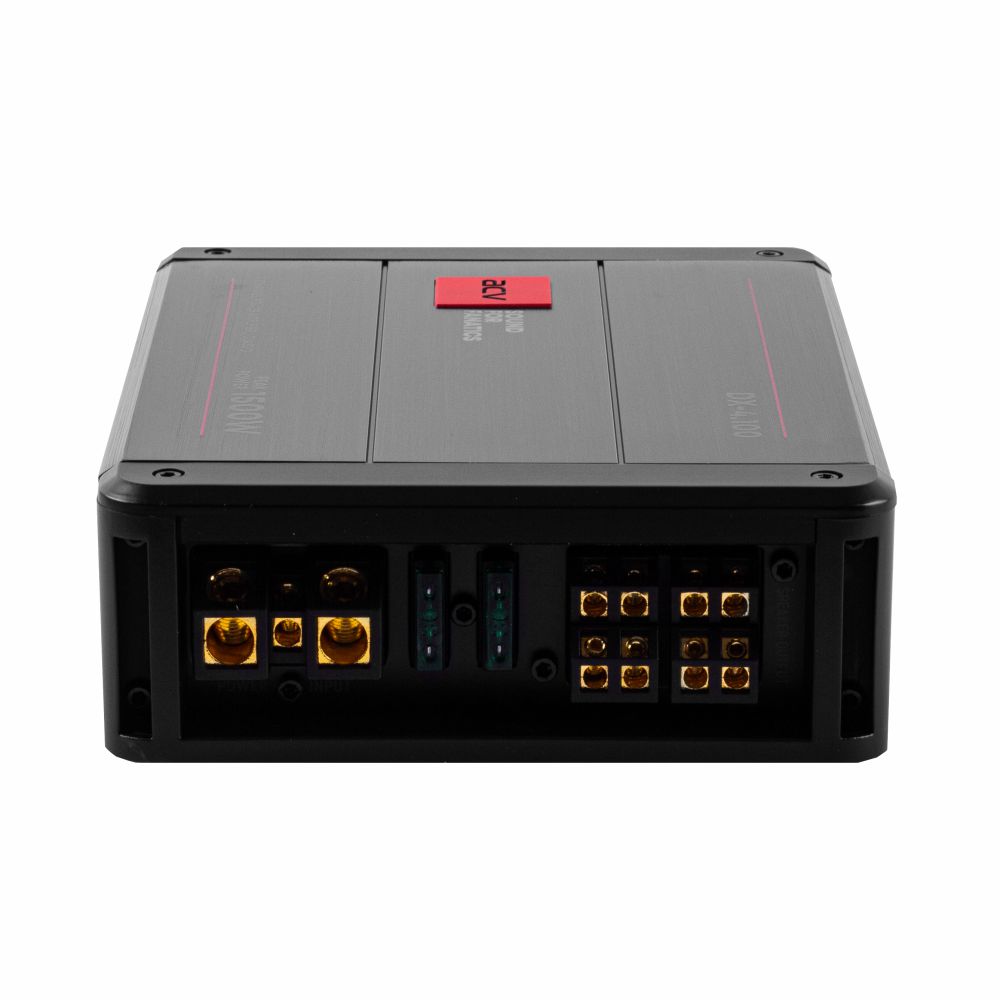

Four-channel amplifier with fully digital circuitry and double-sided PCB, powerful and compact. Designed for true high quality sound reproduction with very low distortion and wide frequency range. Conveniently positioned speaker and power connectors ensure easy installation and lossless connectivity. The device is made in a compact body, demonstrates stable operation at loads of 2 and 4 ohms.
Multilevel system of protection against overheating and care for protection. An amplifier like this is a great way to expand your audio system on a tight budget and get a really decent result!
Device Features
Digital Amplifier (Class D)
Ultra-compact body size
Stable operation at a load of 4 Ohm and 2 Ohm
Latest High Efficiency Circuitry
FR-4 Double Layer PCB
Multilevel protection system
SMD Surface Mount Technology
External bass boost remote (V2, V3, V4)
Expanded filters up to 8kHz with simultaneous operation (bandpass) (V2, V3, V4)
Equipped with high-level inputs (V1, V3, V4)
Specifications
Model Features
- Stable operation at loads: 2 and 4 ohms
- Bass Boost: 0-6-12 dB
- Fuse rating: 40 A
- Frequency range: 10 Hz ~ 30 kHz
Sound Reproduction
- Peak Power: 1500 W
- Nominal Power @ 4 Ohms: STEREO 100 W x 4, MOHO bridged: 300 W x 2
- Nominal Power @ 2 Ohms: STEREO 150 W x 4
- Sensitivity: 200 mV
- Signal-to-Noise Ratio: >91 dB
- Total Harmonic Distortion (THD) @ 1 kHz (4 Ohms): 0.07%
Power Supply
- Operating Voltage: 12V - 14.4V DC
Channel Separation
- Channel Separation: >45 dB
- Low Pass Filter: 10 Hz ~ 8 kHz
- High Pass Filter: 10 Hz ~ 8 kHz
- Number of Channels: 4/3/2
General Characteristics
- Dimensions: 145 x 52 x 195 mm

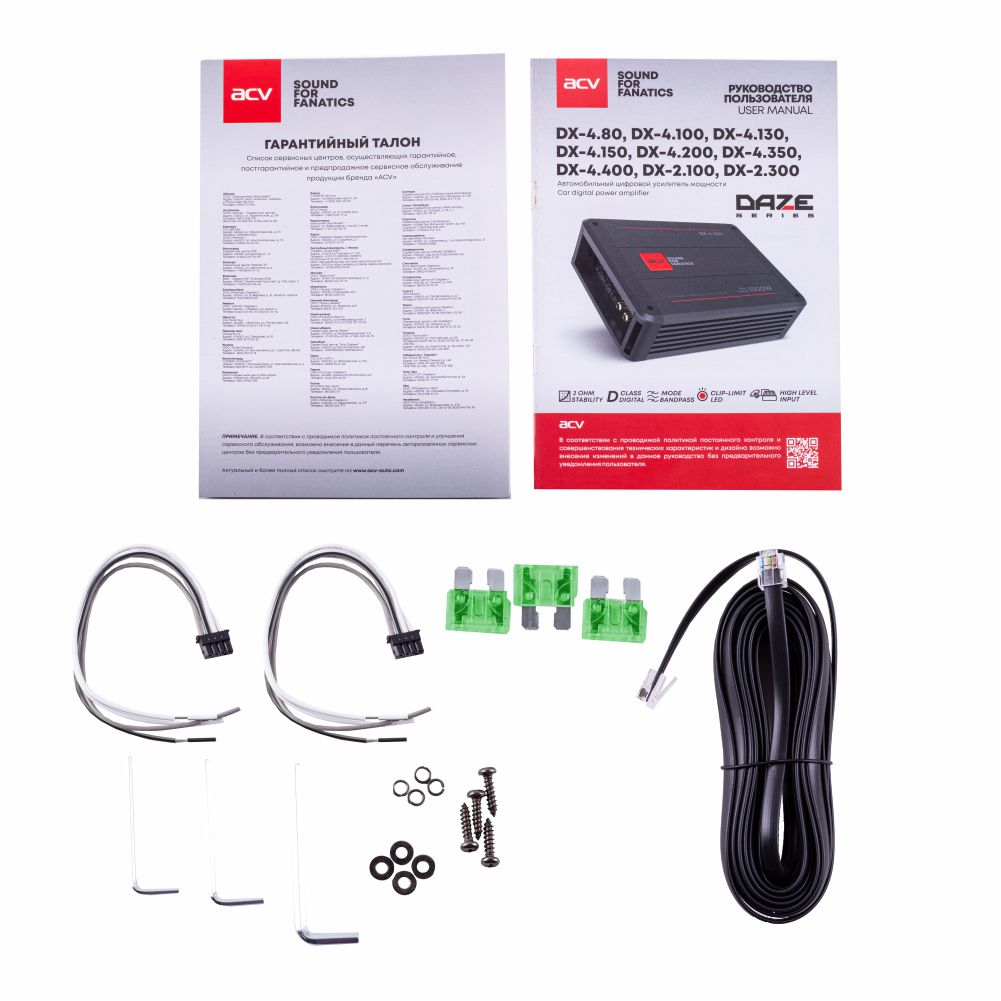

DX 4CH & 2CH V4 Manual.pdf
