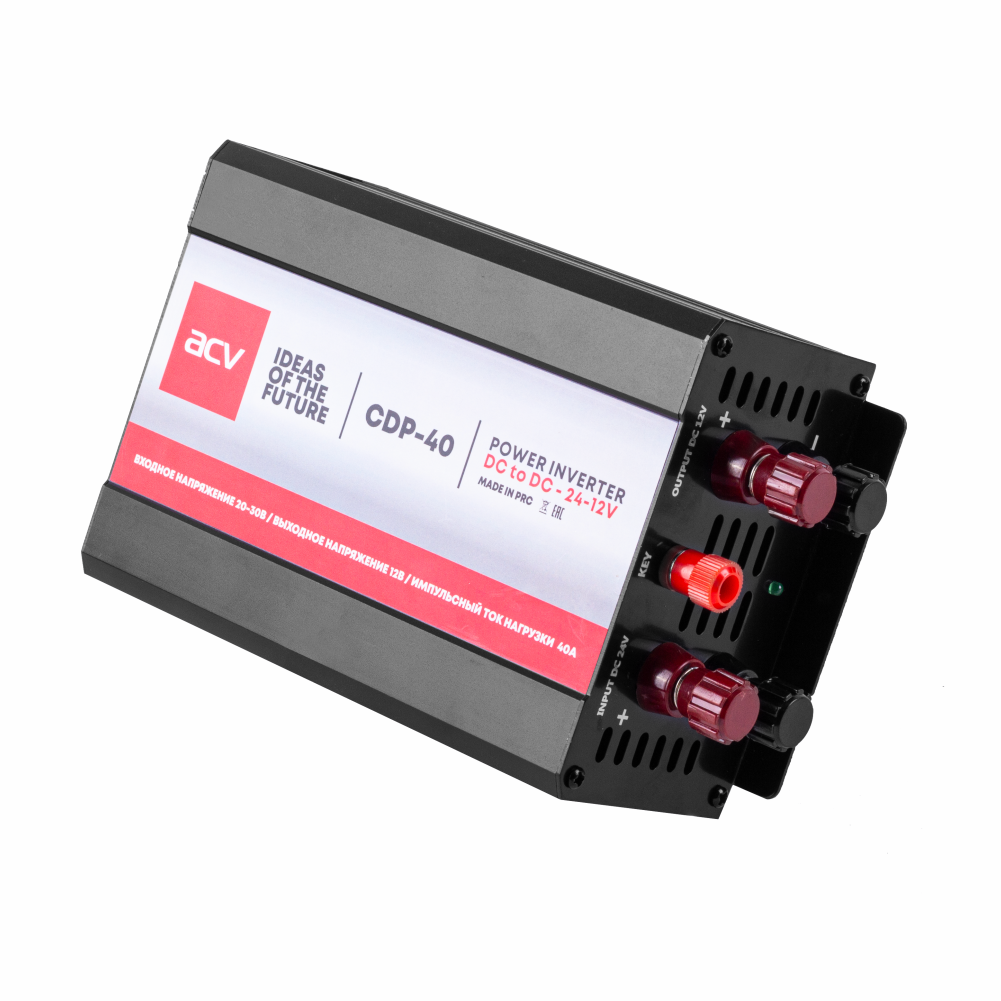

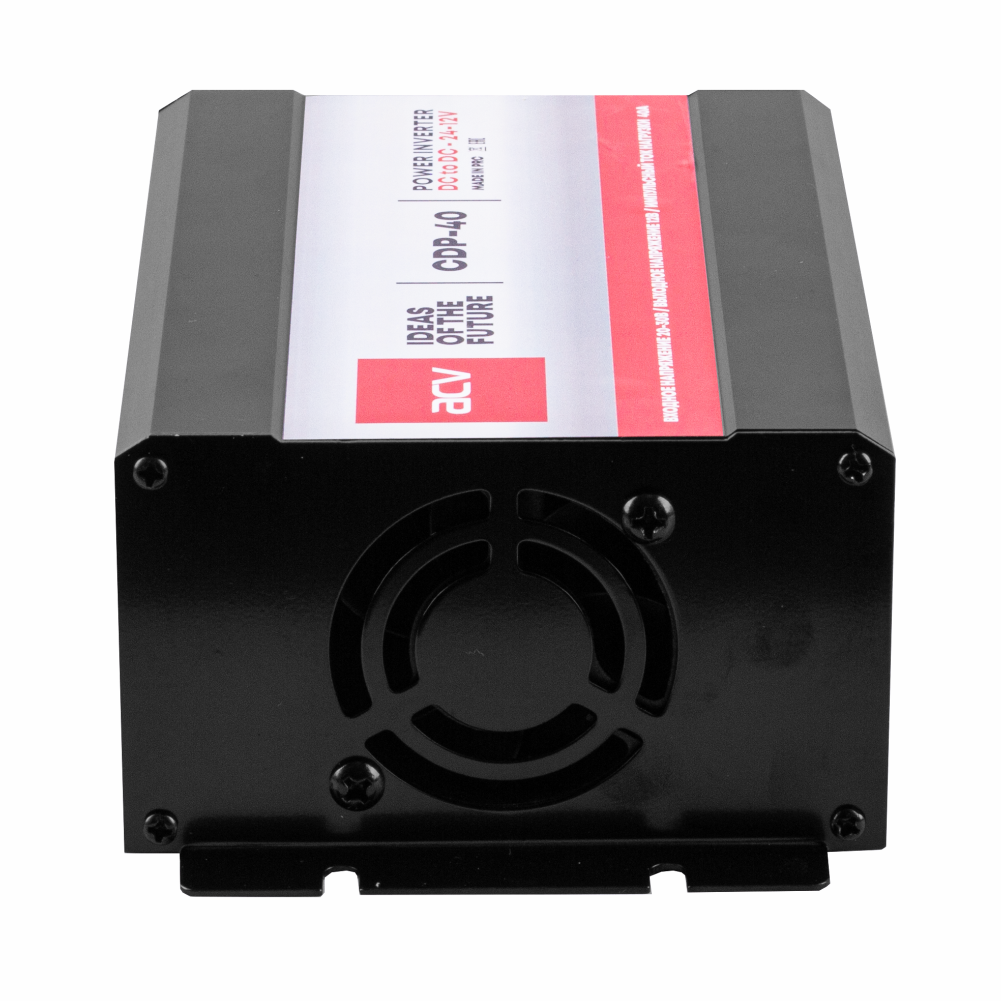

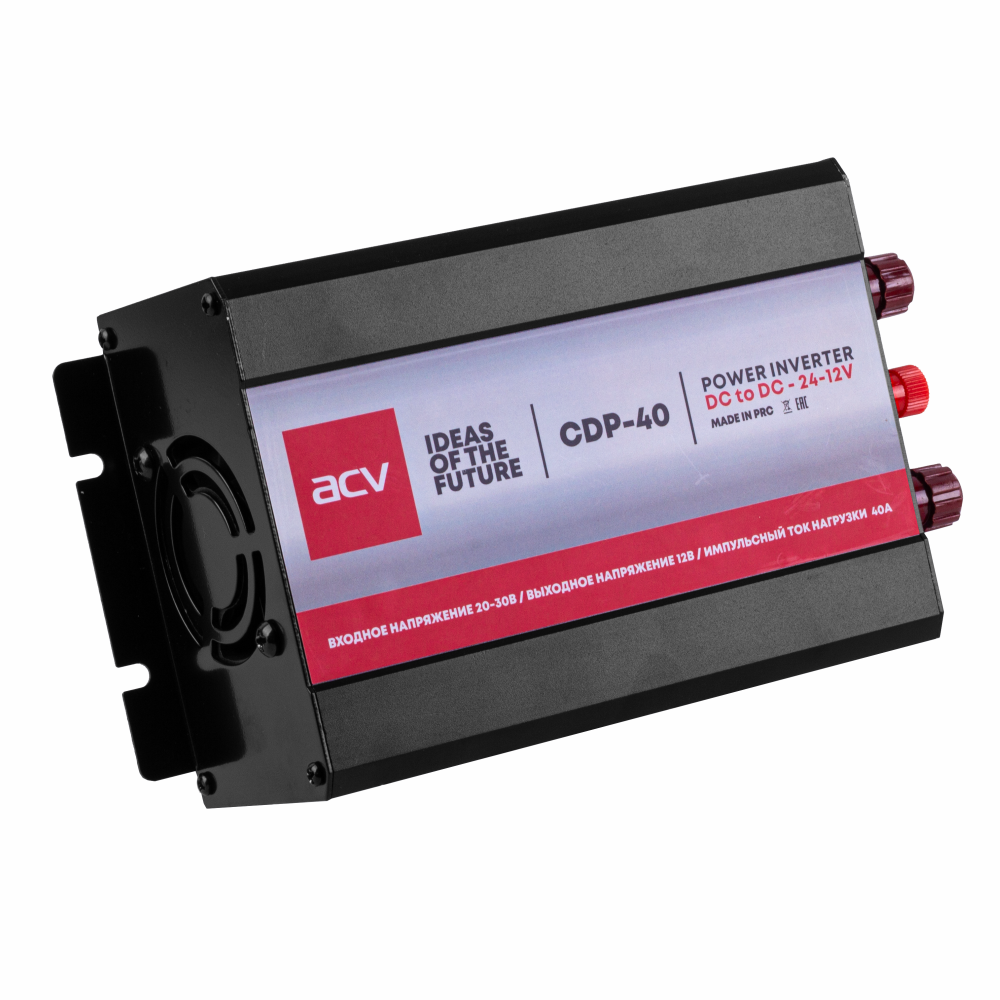

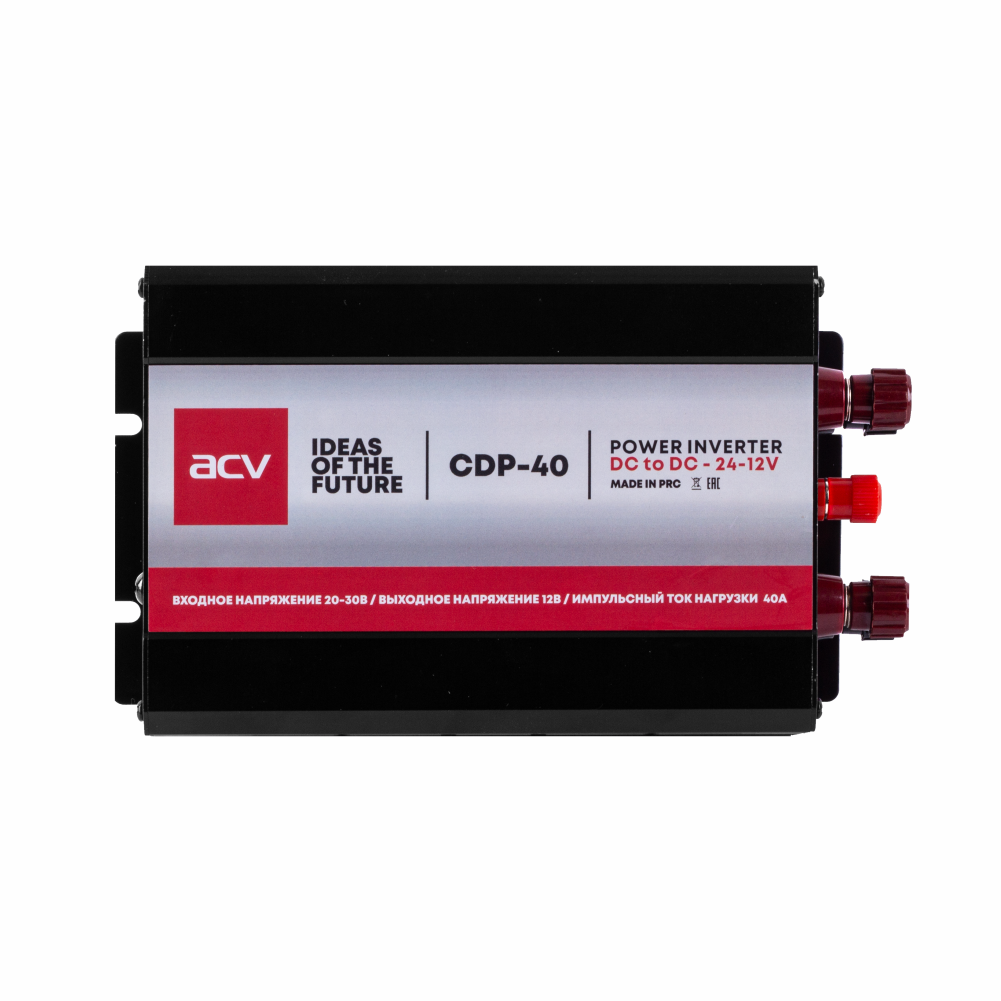

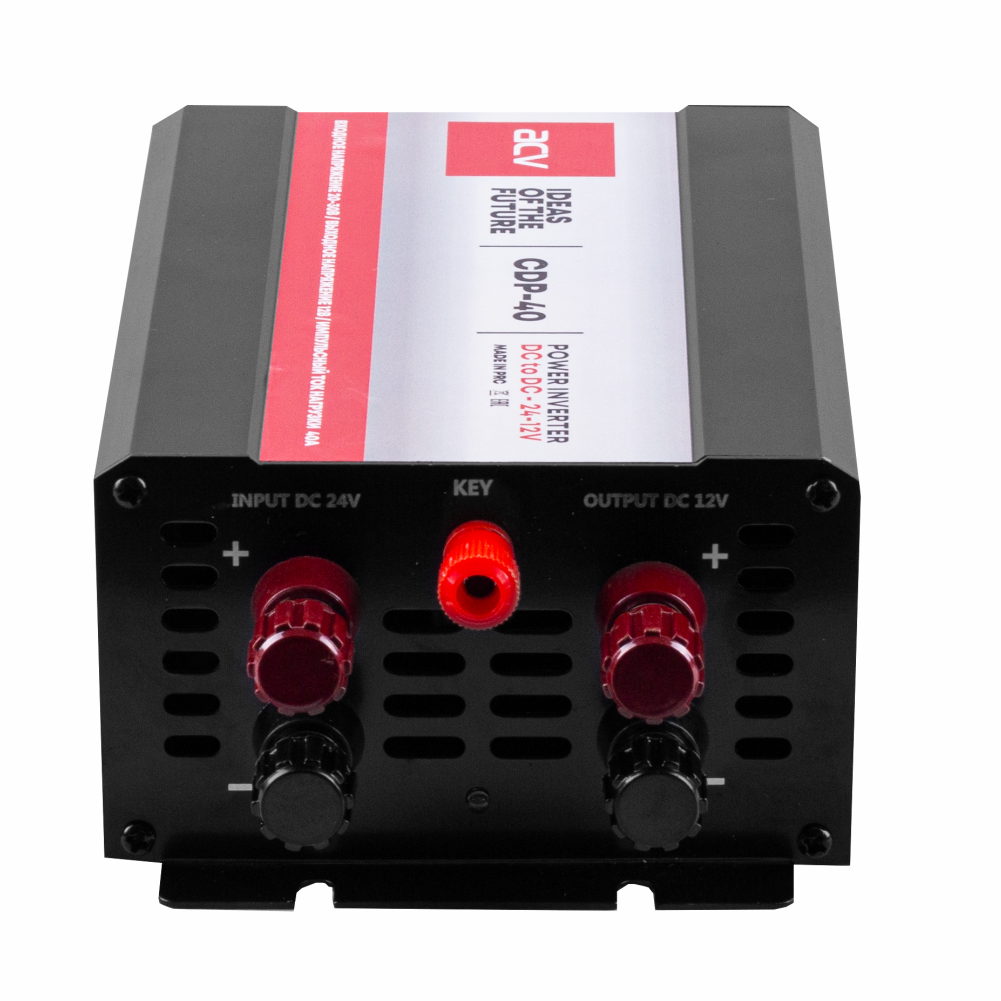

A voltage converter designed to work in ATC equipment systems, it converts the voltage of the 24V on-board network into a constant voltage of 12V. The scope of application of this switching equipment extends to 12 V energy consumers, these are radio tape recorders, radio stations, television signal receivers, etc.

The inverter is a linear voltage regulator, therefore it does not interfere with the operation of radio stations and radio receivers.

Features

• Product portability, small size
• Does not interfere with car radio stations or receivers
• Easy to connect
• LED indication informs about turning on the device
• Anodized case for durability
• Short circuit protection
• Overload protection: the inverter will shut down when power supply> 30V DC
• Overheating protection: the inverter will shut down at temperature> 65 ℃
• Reverse polarity protection: in case of polarity reversal, the fuse on the inverter housing will blow, which you will need to replace yourself with a new one with the appropriate rating

Specifications

Model features

• Maximum surge current: 40A
• Maximum efficiency: 90%
• Output voltage: 12V

General details

• Input voltage: 24V
• Output voltage: 12V
• No-load current: 0.4A
• Weight: 850g

Power

• Protective shut-off: overtemperature 65 ±5℃
• Overload protection: automatic reset
• Short-circuit protection: 35A Fuse
