Universal car multimedia system on Android
AD-9006 DSP
Car multimedia system on Android 13 with Apple Carplay and Android Auto and built-in 4G LTE modem. Playable of all popular file formats.
ACV AD-9006 DSP will allow you to move to a whole new level of smartphone connectivity and entertainment thanks to the built-in Wi-Fi modem supporting 5GHz frequency and 4G LTE. Even at high speeds, the receiver will provide stable Internet access and will always be online.

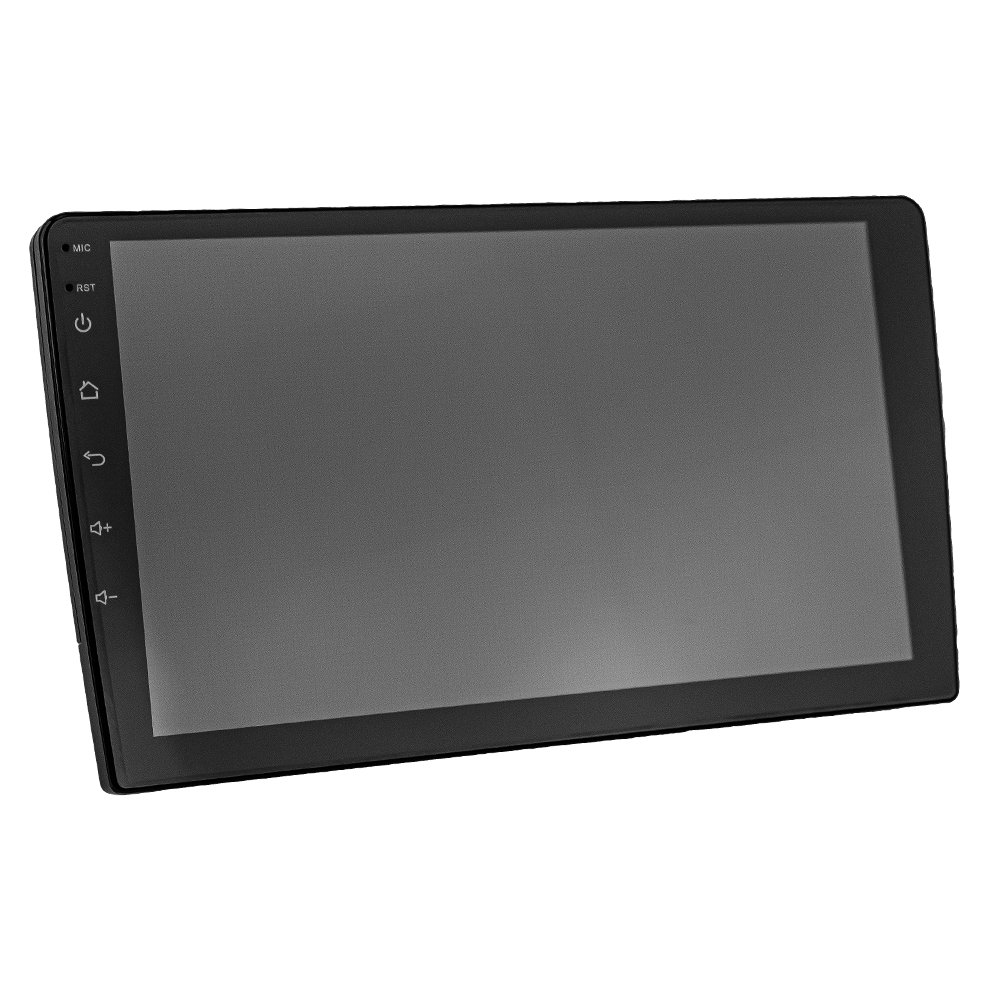

The model is equipped with a new powerful eight-core processor and Android 13 OS. Ultra-thin case with universal mount. Bright, high-contrast, high-definition QLED display with capacitive touch control and a resolution of 1280x720 pixels. Seven-color lighting will allow you to choose the best option for the interior of any car.

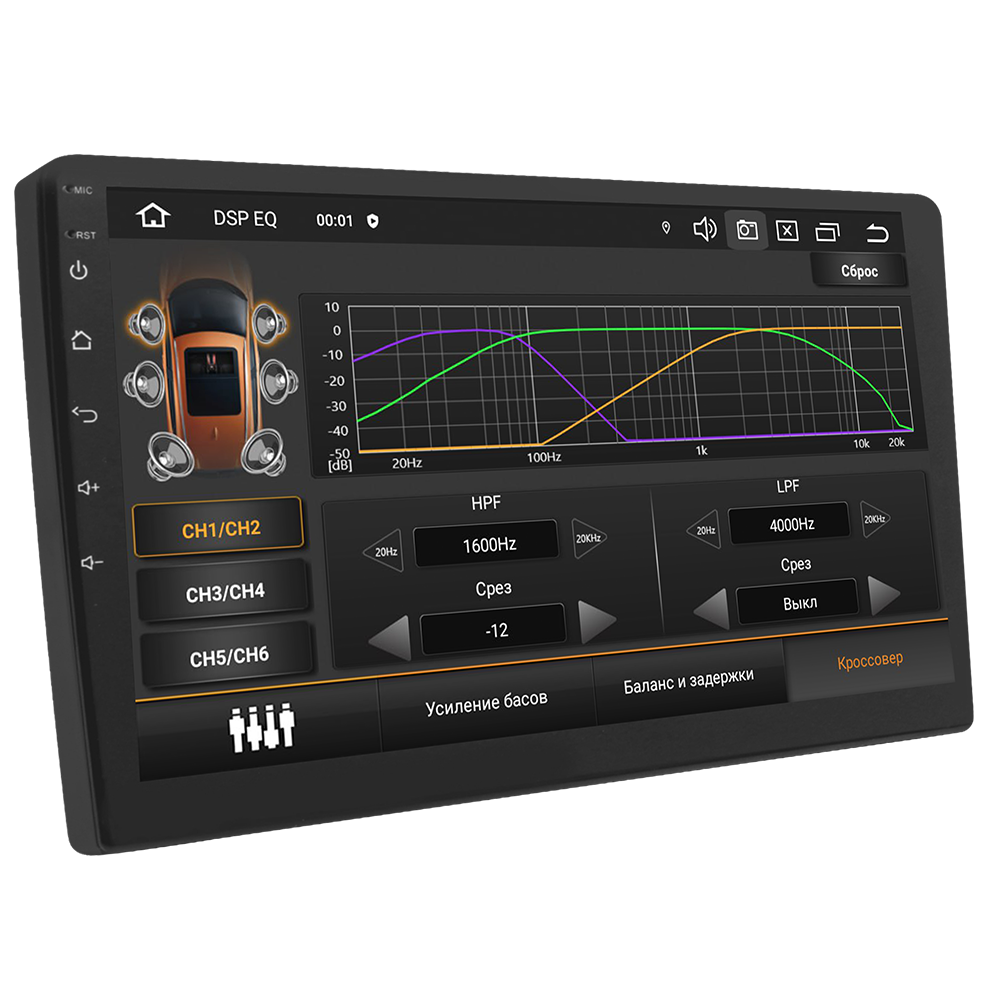

DSP - ADVANCED CAR SOUND IN YOUR CAR
In addition to FLAC support, the receiver offers modern audio playback technologies to the delight of audiophiles. A 16-band equalizer with Q factor adjustment and preset modes allows you to customize high-quality sound. Possibility of forming different acoustic configurations.
The availability of the Play Market using an integrated 4G modem and the receiver’s memory expanded to 128 GB provides the consumer with the opportunity to use a huge number of free and paid applications. You can expand the functionality of the device according to your preferences and use additional services on the go. The receiver is equipped with two USB slots and supports the option of connecting an AHD rear view camera and a front camera.
BLUETOOTH AND BT MUSIC
You can make calls while driving or listen to your favorite playlists from your smartphones in excellent quality. The receiver supports A2DP, AVRCP protocols. In the BT Music menu you can scroll through tracks, pause, play.
APPLE CARPLAY И ANDROID AUTO (ZLINK)
ZLINK is a smarter and safer way to use your smartphone while driving, and supports Apple CarPlay and Android Auto. Get directions, send and receive messages, talk on the phone and listen to your favorite music. You can do all this right on your device.
The settings available to the user allow you to adapt the device to individual preferences, both in terms of communication sound quality and in a wider range. You can control the receiver using the control buttons on the steering wheel using the learning steering interface function.
Specifications
System Specifications
- Operating system: Android 13
- Processor: Octa-core 2.0 GHz 64 bit MediaTek Helio P22 Cortex-A53 ARM 12 NM
- ROM: 128 GB
- RAM: 6 GB
Audio Specifications
- Impedance: 2-4-8 ohms
- Equalizer: 16-band graphic equalizer with Q factor adjustment
- DSP: Asahi KASEI AK7604
Model features
- Bluetooth: Yes
- Wireless range: 5-7 m
- Additionally: WiFi/GPS/GLONASS/3G/4G (LTE) support
Media Player
- Frequency range: 20-20000 Hz
- Supported audio formats: MP3, WMA, WAVE, FLAC, AAC
- Supported video formats: WMV, MPEG4, MOV, MPEG1/2, H.264, DivX codecs, etc.
General Specifications
- Standard size: 2 DIN
- Languages: Russian, English, Chinese, etc.
- Operating temperature range: -10... +60 °C

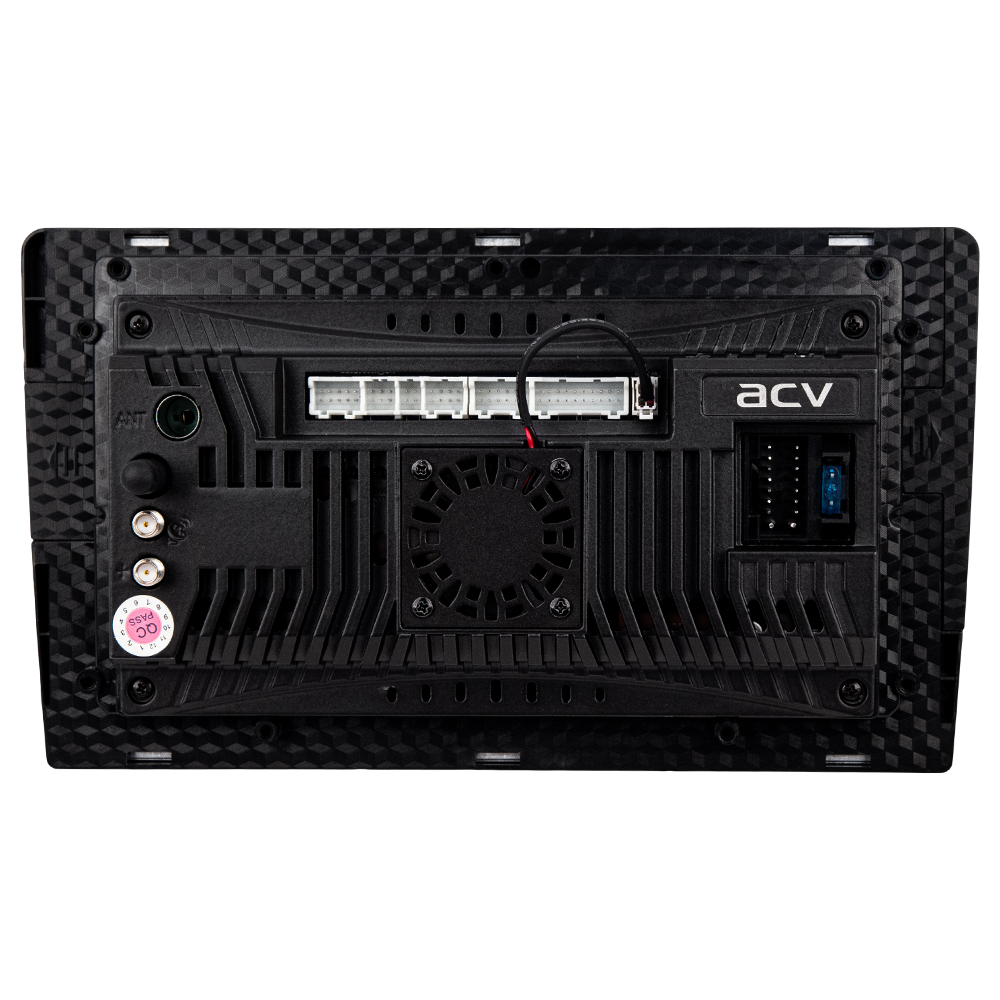

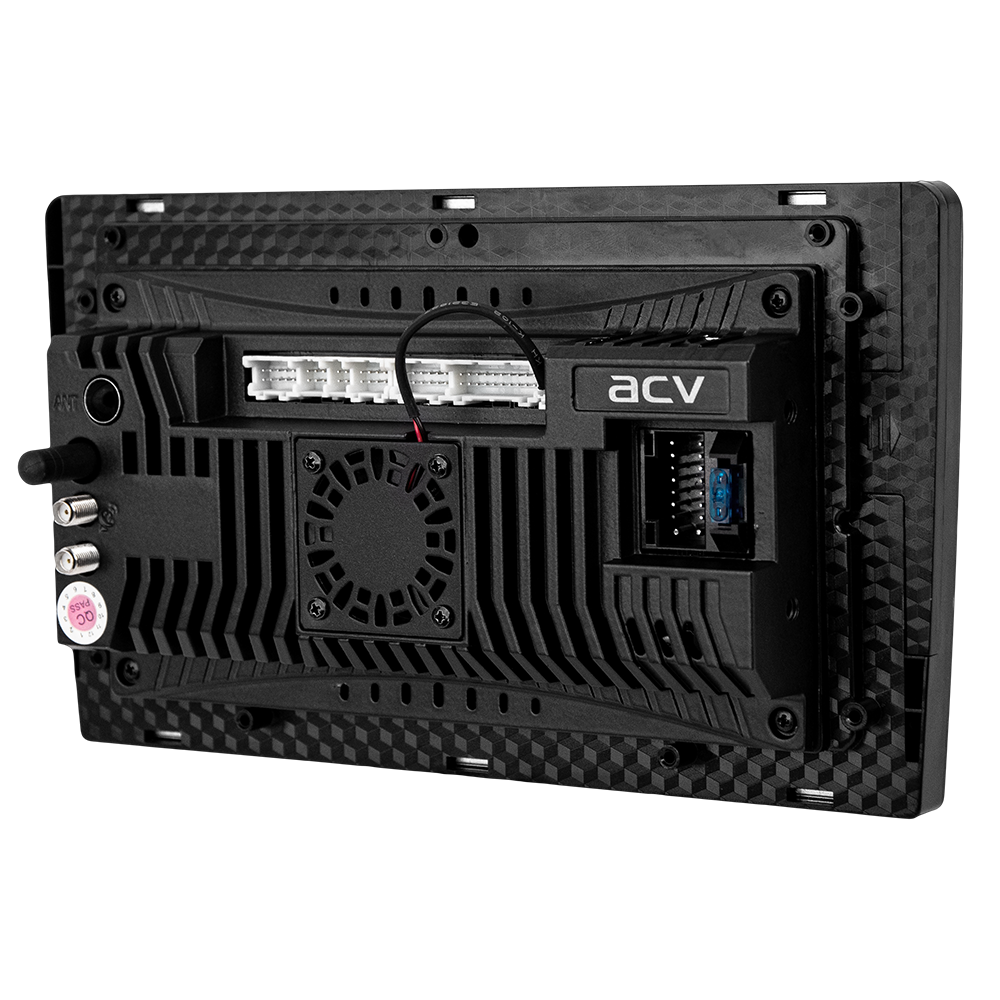

Inputs/outputs
- Outputs: 6 RCA stereo audio outputs, video output
- Inputs: AUX, USB
Radio Specifications
- Radio sensitivity: 15 mV
- Operating frequencies: FM 87.5-108.0 MHz, AM 522-1620 kHz
- Intermediate frequency: 10.7 MHz
- Number of memory cells for storing tuned radio stations: 30
- Radio signal to noise ratio: 48 dB
- Frequency range: 20Hz-15kHz

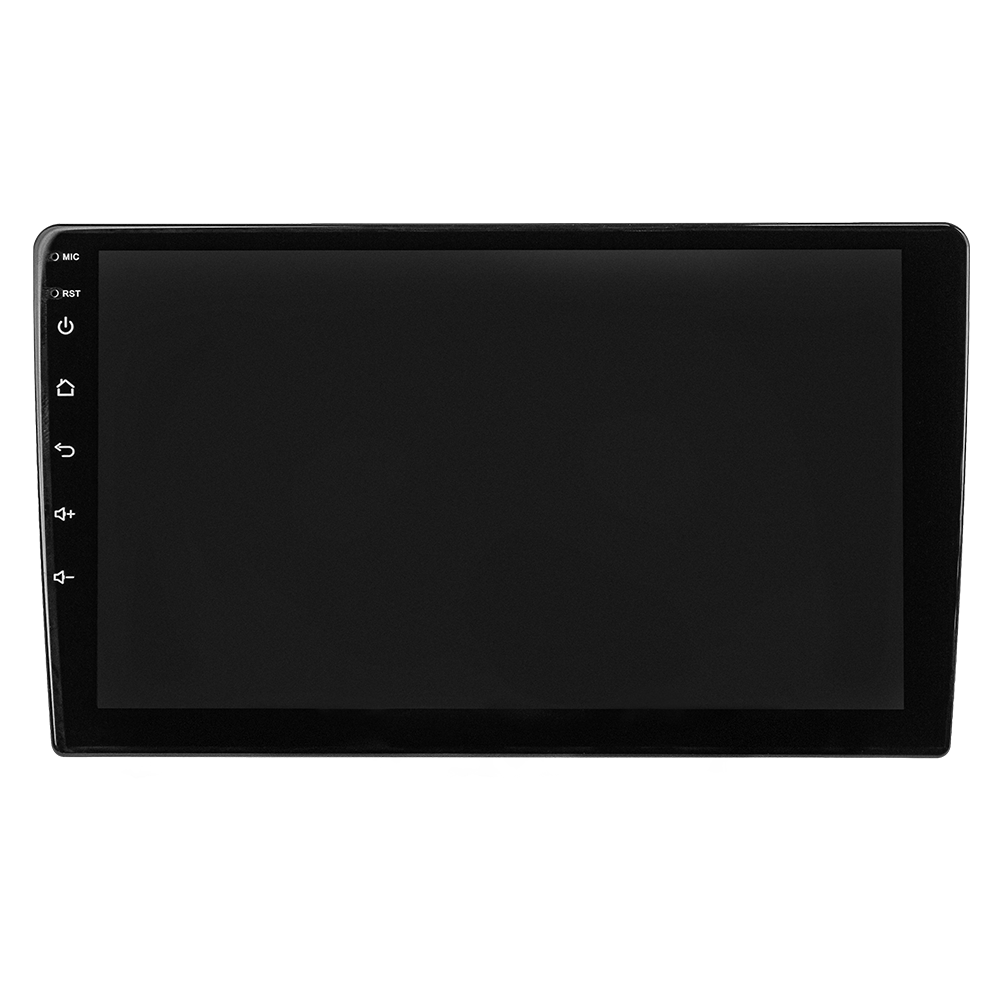

Screen Specifications
- Screen diagonal: 9 inches
- Screen Type: QLED
- Screen resolution: 1280x720
