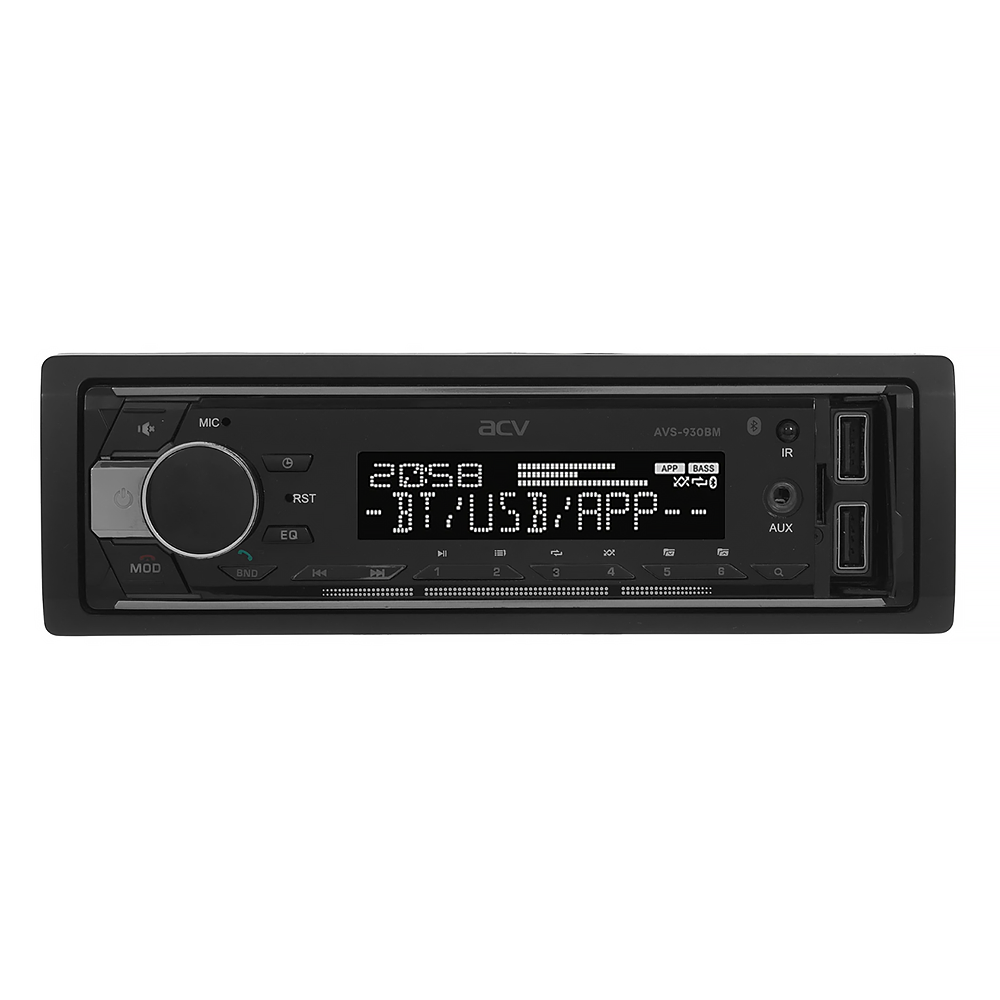

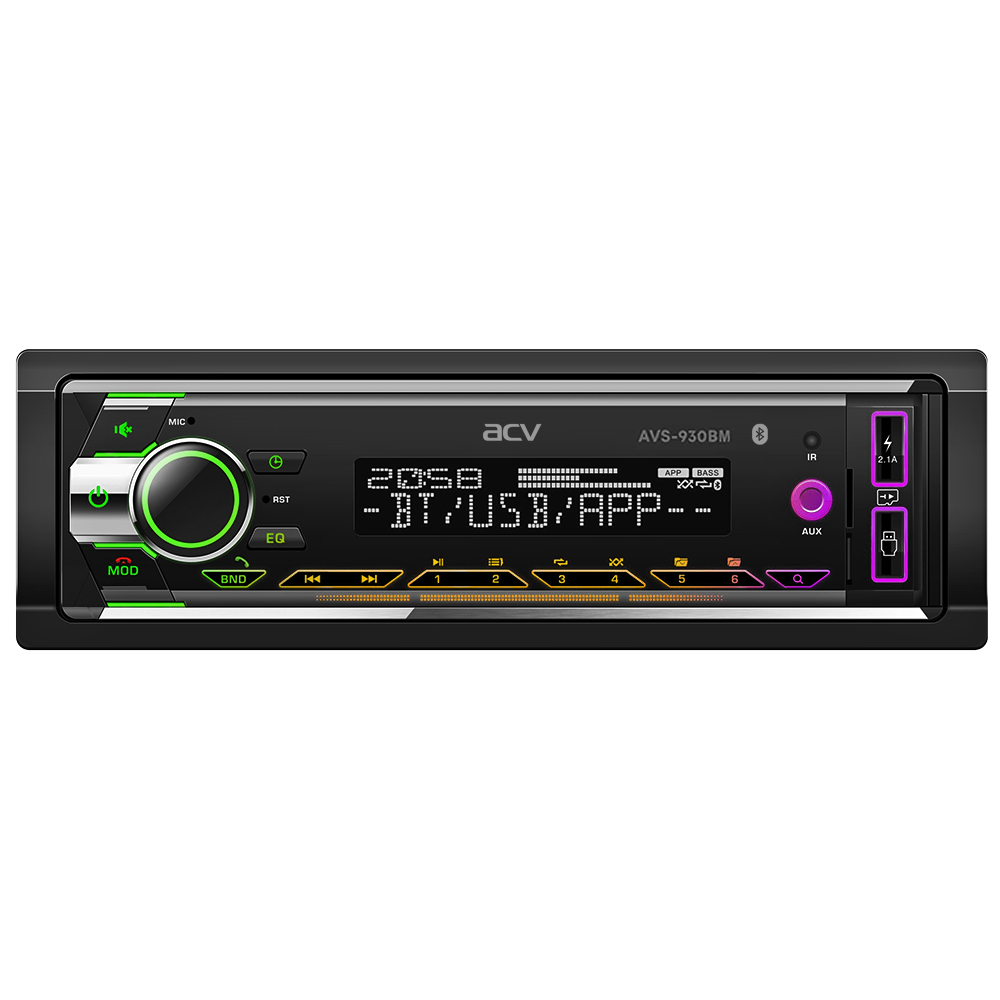

Car Receiver with BLUETOOTH, USB, MULTICOLOR Backlight
AVS-930BM
A car receiver with a modern Bluetooth module. Equipped with a built-in amplifier with a maximum power of 4x50W, 3 pare RCA stereo audio outputs, supports MP3/WMA audio from USB and SD media.
This car radio contains the most advanced features and options for reading and playing audio files in high quality. The reliable device with MULTICOLOR backlight buttons supports the most popular audio sources: USB and SD digital media. The digital FM tuner provides high-quality reception of stations without interference, they can be tuned in automatically or manually. When reading media, information from ID3 tags is displayed on the screen of the receiver: the name of the album, song, artist, etc.
Bluetooth module supports A2DP, HFP protocols. PBAP for high quality content playback and hands-free phone calls.
Playing sound
The car receiver is equipped with a built-in amplifier with a maximum power of 4x50 W, which is quite enough to reproduce audio at the desired level. You will get good volume when playing audio, the ability to build an auto sound system of any architecture thanks to RCA outputs. In addition to four presets of the equalizer, the radio has a balance of right and left, front and rear acoustic components, changing the bass, treble and other options. This receiver will make car travel more comfortable and interesting.
Features of the model
Bluetooth: Yes
Wireless radius: 5-7m
Optional: Bluetooth: A2DP, HFP (ver. 4.0), PBAP
Media player
File system: FAT16 / 32
Audio signal to noise ratio: 85dB
Frequency Range: 20Hz-20KHz
Supported audio formats: MP3, WMA, FLAC
Stereo separation: 80 dB
Play sound
Peak power: 4x50 W
Impedance: 4-8 ohms / channel
Equalizer: 4 Presets, 1 User Bass / Treble tone control ± 8dB
Radio
Radio sensitivity: 15mV
Working Frequencies: FM 87.5-108 MHz
Intermediate frequency: 10.7 MHz
Number of memories for storing tuned radio stations: 18
Radio signal to noise ratio: 65dB
Frequency Response Range: 30Hz-15KHz
General characteristics
Size: 1 DIN
Languages: Russian, English, Chinese, etc.
Operating temperature range: -10 +60 ° С
Weight: 0.5KG
Dimensions: 178x90x50mm
Inputs / outputs
Outputs: 3RCA stereo audio outputs
Inputs: AUX (mini Jack 3.5 mm), USB - input, SD card reader, external microphone input
Built-in module BLUETOOTH for using the Hands-Free function and listening to music. Bluetooth technology ensures safety and comfort while driving. Bluetooth protocols supported: A2DP, HFP (ver. 4.0), PBAP
2 USB slots. One for connecting external charging devices to the radio (up to 2.1 A). The second is for playing audio files
Used to connect SD 2.0 (SDHC, Secure Digital High Capacity) memory cards with FAT16 / 32 file systems
Designed to connect smartphones and MP3 players through the headphone jack and use them as a signal source
The radio is equipped with an equalizer with presets, which allows you to correct frequency (sound settings) when playing music.
Audio encoding format, which has the advantage of compact file sizes, when encoding, you can set the bitrate and control the quality of audio content
An audio codec developed by Microsoft for storing and broadcasting audio information. It has good compression properties.
The vertically polarized VA LCD display with wide viewing angles provides superior content visualization and readability in all conditions.
Built-in radio module provides high-quality reception of stations in the FM range
Three pairs of RCA audio line outputs. Front, Rear, Subwoofer
Maximum output power: 4x50 W
External microphone input
Remote control
