The ACV SW Series shallow mount subwoofers feature proven and reliable technology for reproducing low bass in a car.

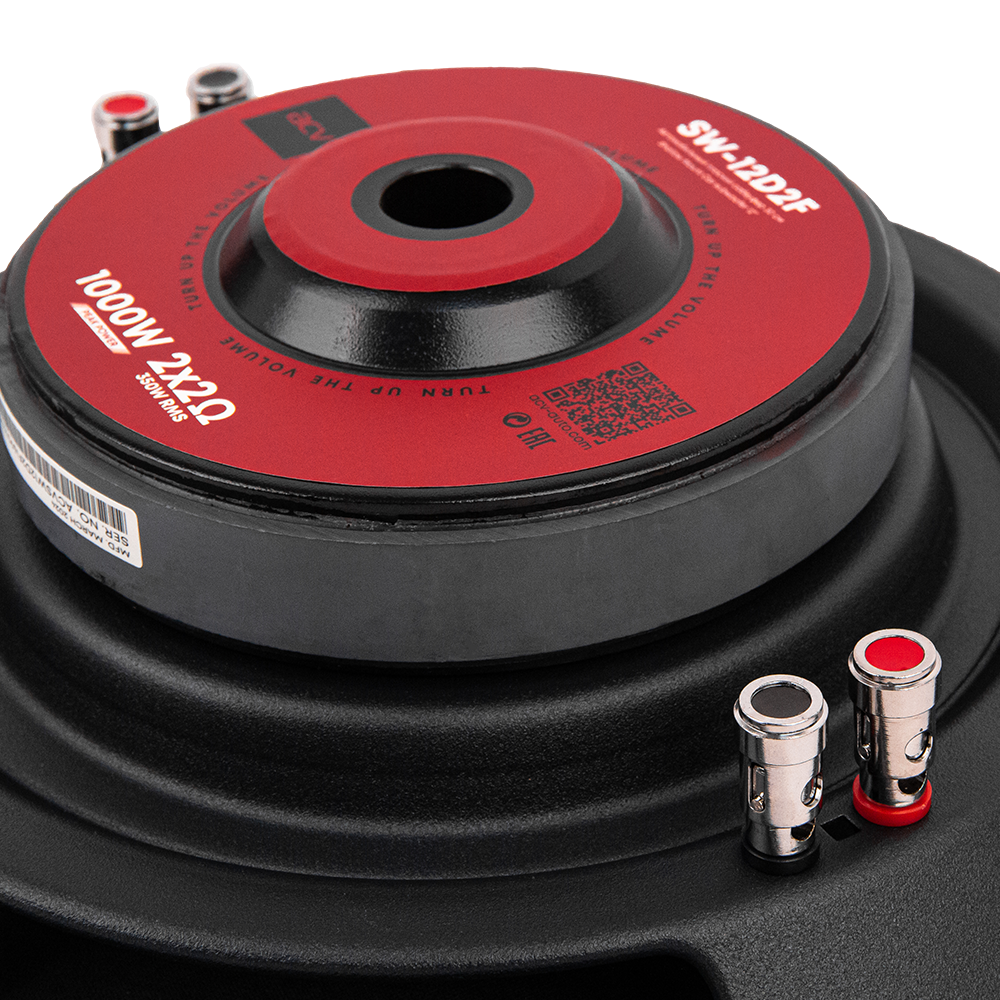

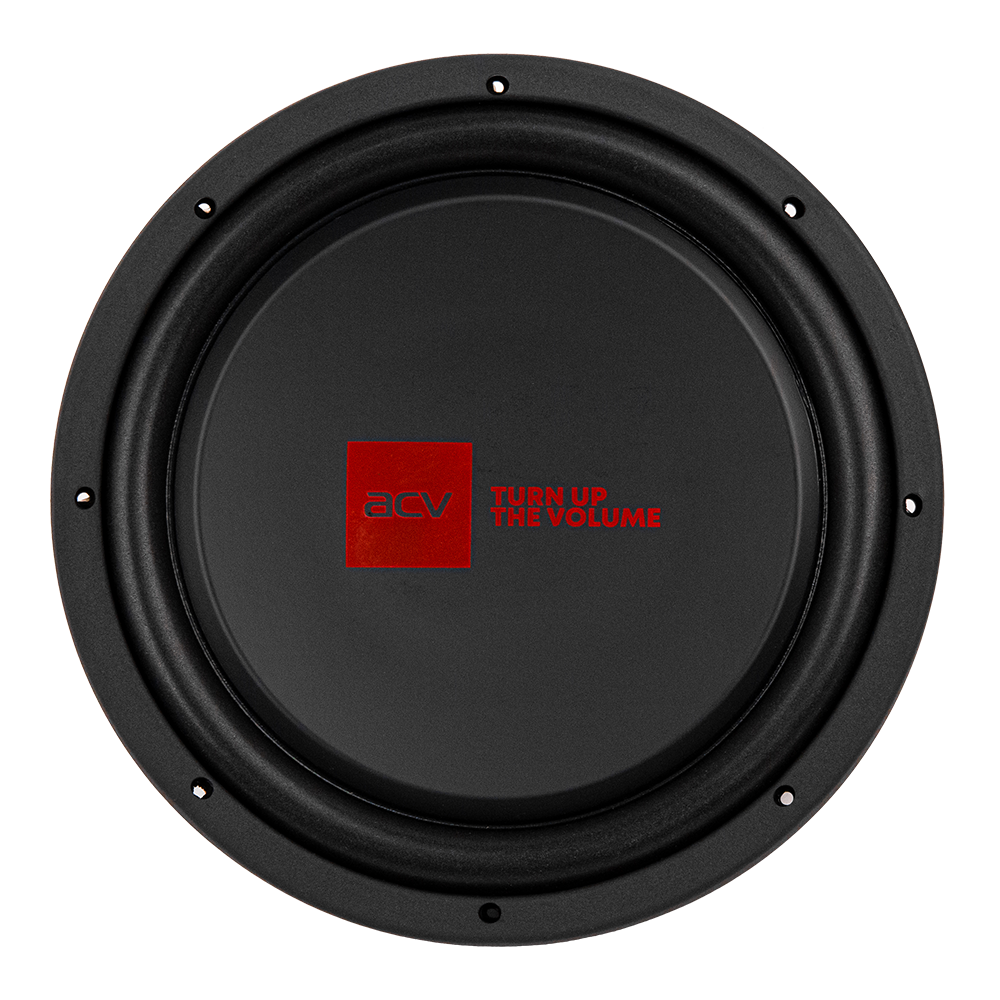

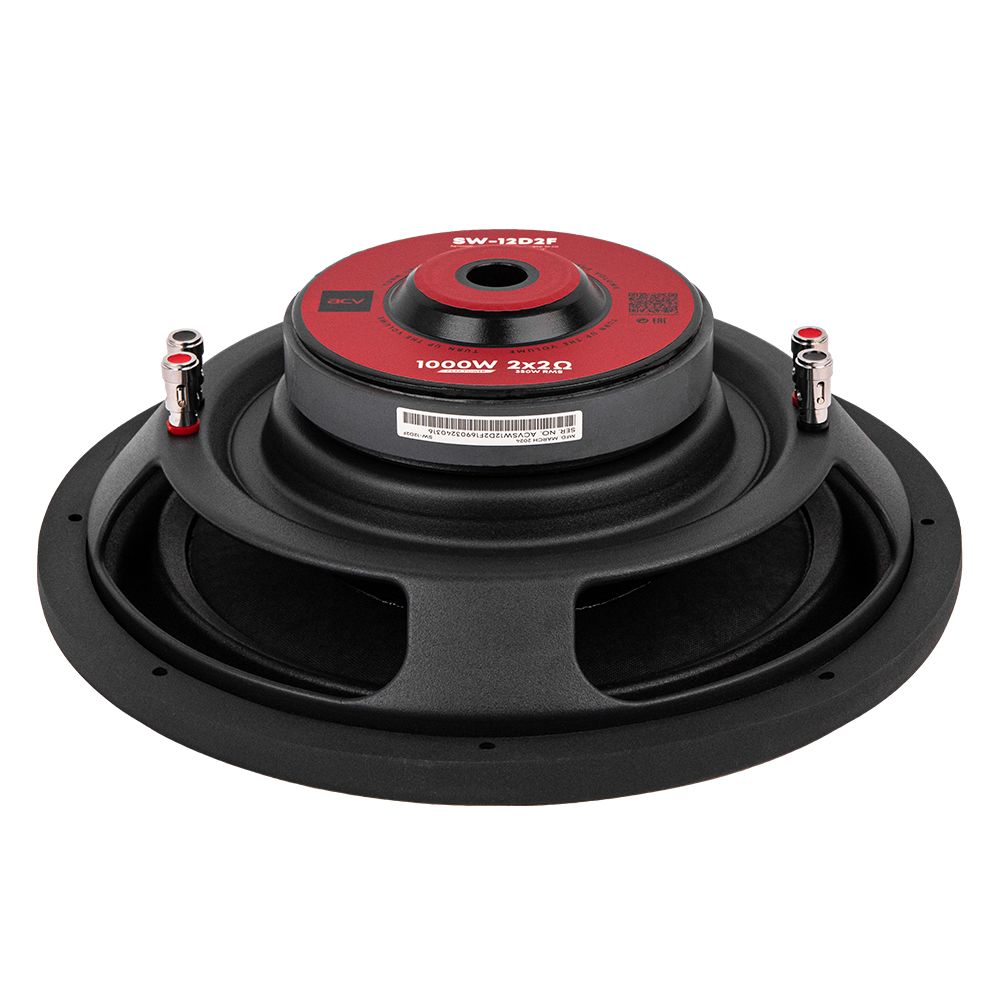

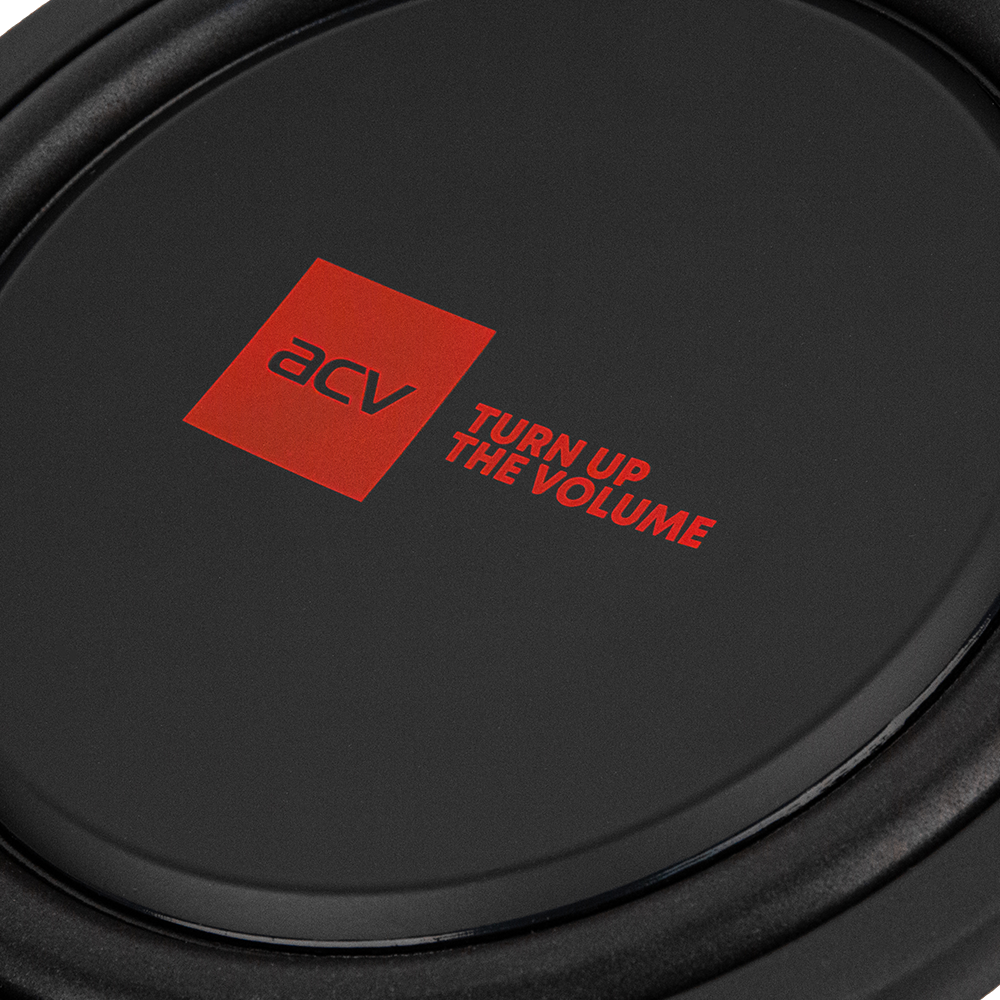

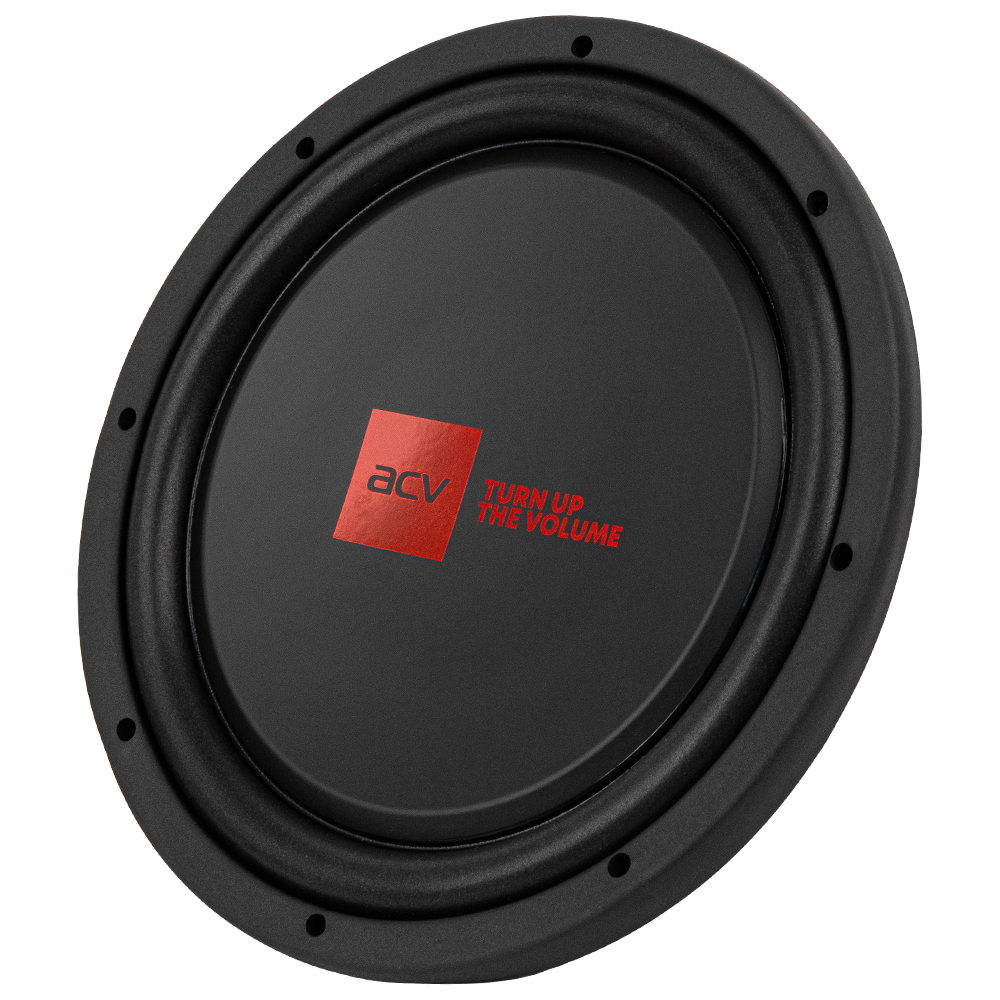

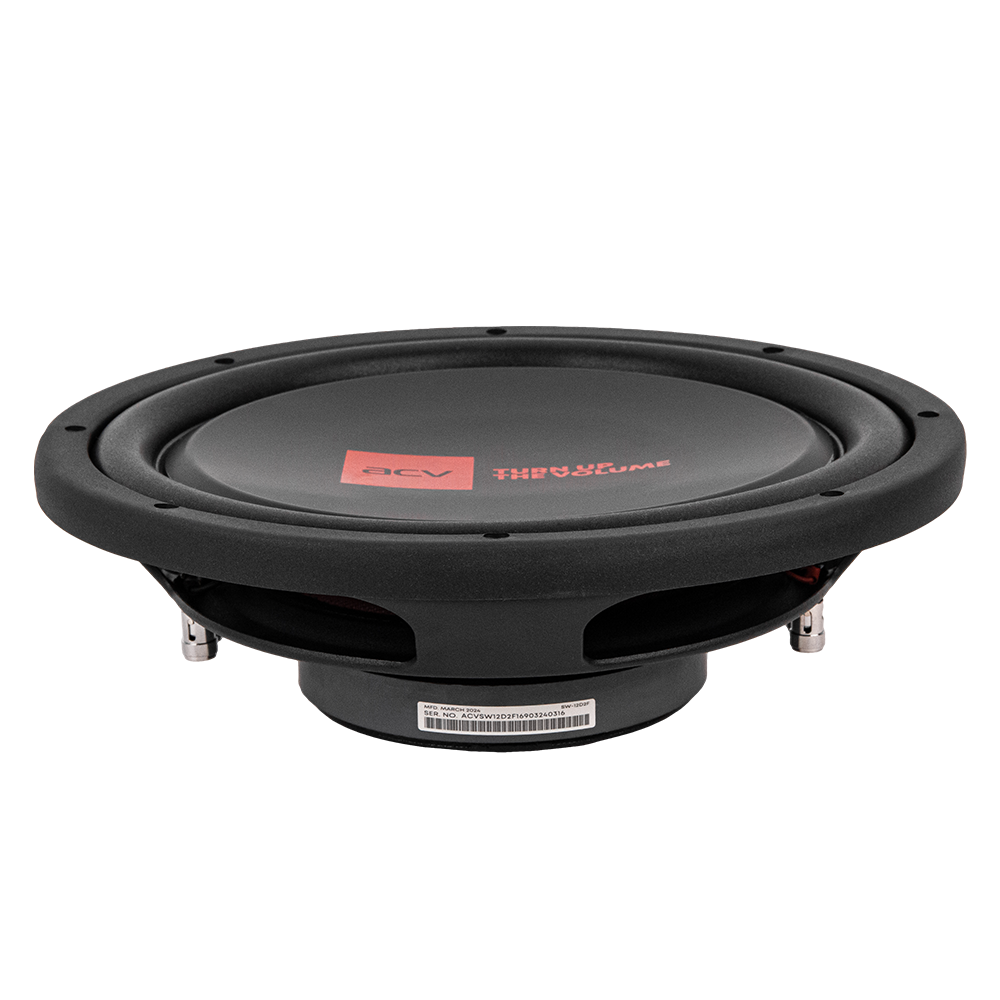

Rigid and lightweight non-pressed cellulose cone, high quality ferrite magnet weighing 36 ounces total, high temperature dual 2" coils, stitched leads, spring-loaded terminals. High quality assembly and strict quality control of each unit at all stages of production. The SW-12D2F can easily be called the best entry-level subwoofer. Shallow mount subwoofers are perfect choice when you need to add powerful bass in limited space.

Excellent electro-acoustic characteristics allow the SW-12D2F to be installed in any type of enclosure. At the same time, the model successfully competes in price in the car audio market. Incredible endurance, performance and very tight bass - just what your car needs.

Specifications

Sound

• Peak power: 1000 W
• RMS power: 350W
• Sensitivity: 88dB/SPL
• Impedance: 2×2Ω Ohm

Features

• Voice coil: 2 inches
• Cone: non-pressed cellulose
• Suspension material: Foam rubber
• Magnet: Ferrite 45 Oz
• Frequency range: 30-500Hz

General details

• Basket: Stamped steel
• Subwoofer size: 12" (30 cm)
• Mounting hole diameter: 281 mm
• Installation depth: 93 mm
• External diameter: 320 mm
• Speaker terminals: Spring-loaded terminals

TS parameters

• Revc=1.000 Ohm
• Fms=42.2 Hz
• Sd= 539.1cm
• BL=5.9 Tm
• Qms=6.24
• Qes=1.2
• Qts=1.0
• Nref=0.22%
• Spl: (1m/2,83V) 88dB
• Vas=37.2 Ltr
• Cms=0.09mm/N
• Mms=155.8gr
• Le=0.44mH
• Lp=3.8mH
• Cp=7336.2uF
