The car monoblock ACV MC-1.500D has a high level of power and allows you to unleash the full potential of a subwoofer in a car. It is equipped with a Low pass filter and Bass Boost remote for control, and handles the 10-300 Hz frequency range. The powerful monoblock for impressive bass that delivers outstanding performance. To do this, it has all the necessary specs - the ability to work at 1, 2 and 4 ohms, a reliable heat-sink for cooling and two fuses of 30 A.

Specifications

650W @ 1Ω is the power that will play out a powerful middle-end subwoofer and deliver a great bass experience to both passengers and nearby people. With it, your subwoofer will show all its effectiveness and make everything around you enjoy bass sound.

The amplifier has a frequency range of 10 Hz to 300 Hz. It is designed to amplify the power of low-frequency speakers, which makes the sound more vibrant. To cut off excess frequencies, there is a Low-pass filter of 35-250 Hz, the system has an excellent input sensitivity and a signal-to-noise ratio of 100 dB. Even at the highest loads, the amplifier does not distort.

Connection

The main area of application of monoblocks is the connection of subwoofers, they make the low frequencies rich and expressive and bring to the car acoustics that deep bass that true music lovers strive for.

1 channel amplifier allows you to drive a subwoofer to add LF frequency range in sound scene.

Stable operation under 1 Ohm load lets your amplifier work continuously at high loads and with high performance.

Class D in accordance with the latest technological solutions will allow you to obtain the highest quality sound from any acoustic systems.

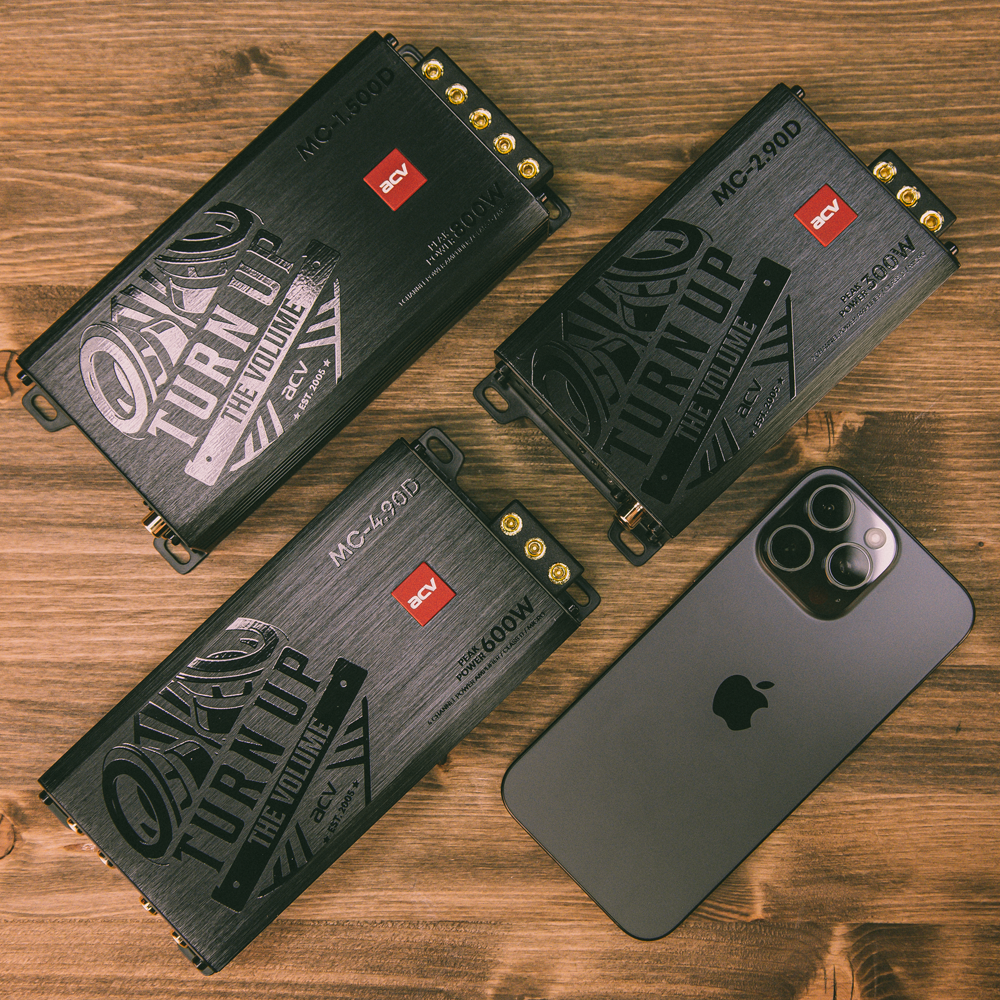

Ultra-compact sizes of the device 160x85x38 mm (LхWхH) gives opportunity to save space in your car significantly.

Clip detector - allows you to detect signal distortion when adjusting the sensitivity level Gain.

Specifications

Features

• Stable work under load: 1 Ohm
• Bass Boost: 0-18dB (smooth)
• Fuse rating: 2 x 30A
• Frequency range: 10Hz ~ 300Hz

Parameters

• Peak power: 800W
• Rated power at 4 Ohm: 300W x 1
• Rated power at 2 Ohm: 500W x 1
• Rated power at 1 Ohm: 650W x 1
• Sensitivity: 200mV
• Signal to noise ratio: >100dB
• Harmonic Distortion: (THD) @ 1kHz (40m): 0.05%

Channel separation

• Low pass filter: 35 - 250Hz
• Number of channels: 1

General details

• Dimensions: 160 x 85 x 38 mm

Power supply

• Working voltage: 12V - 16V DC
