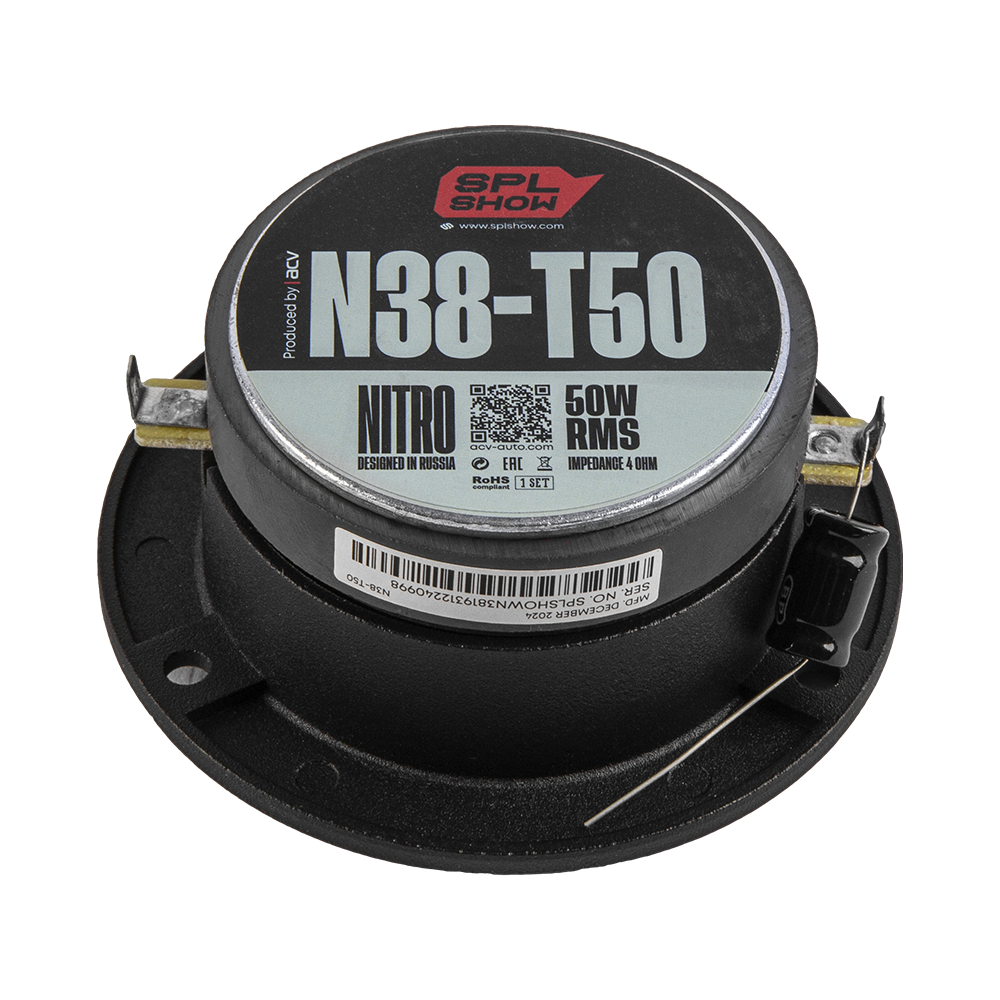

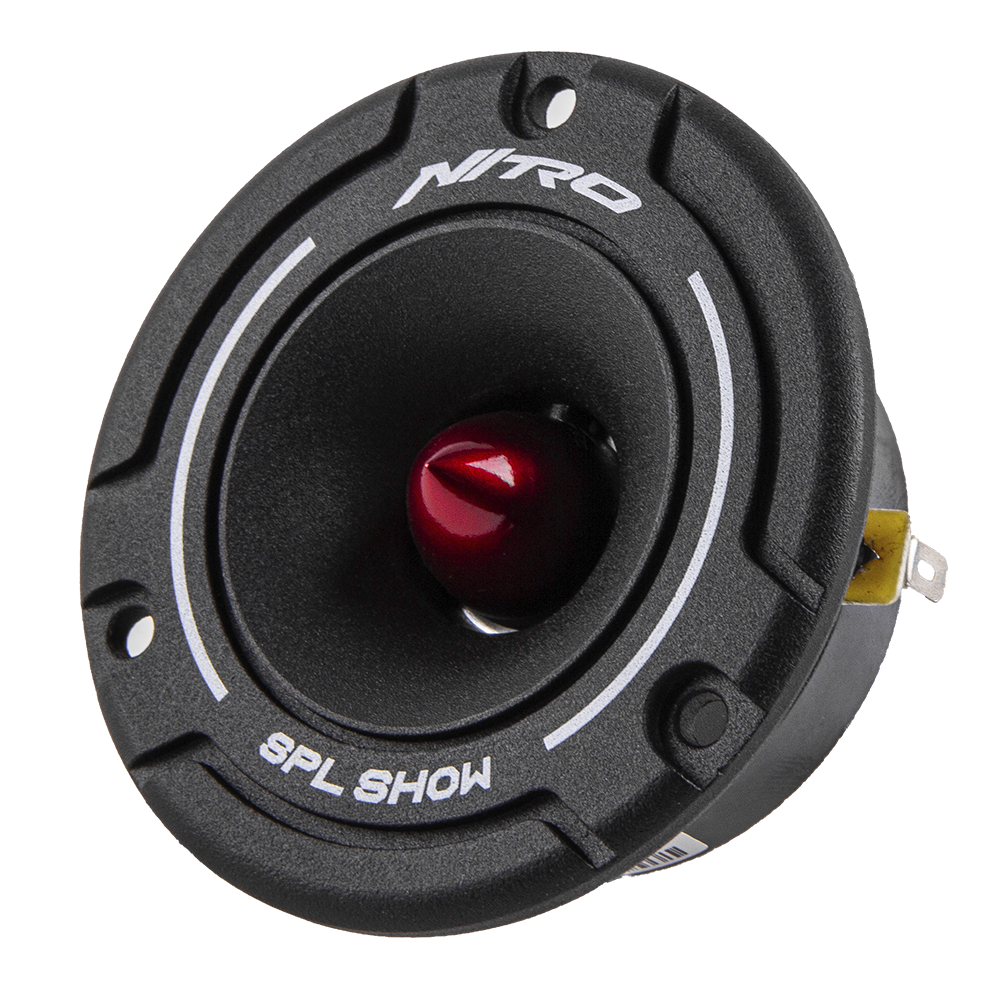

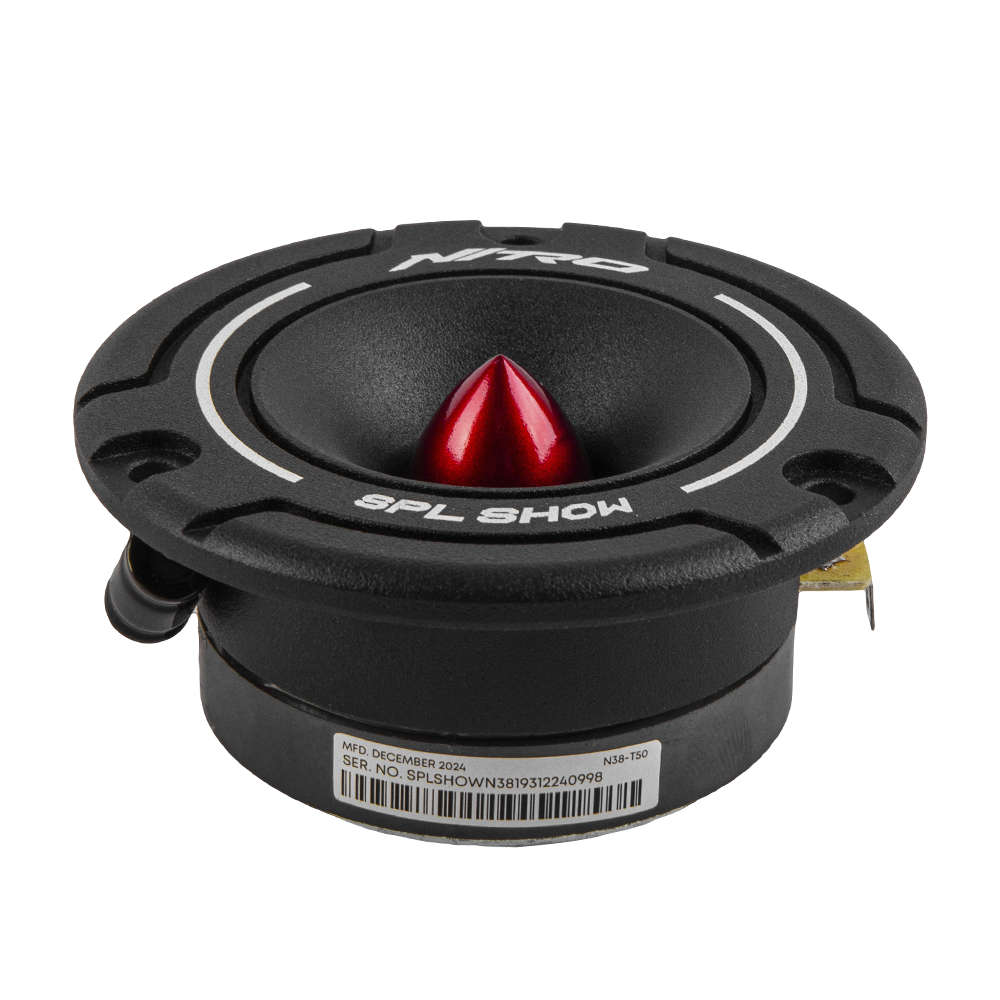

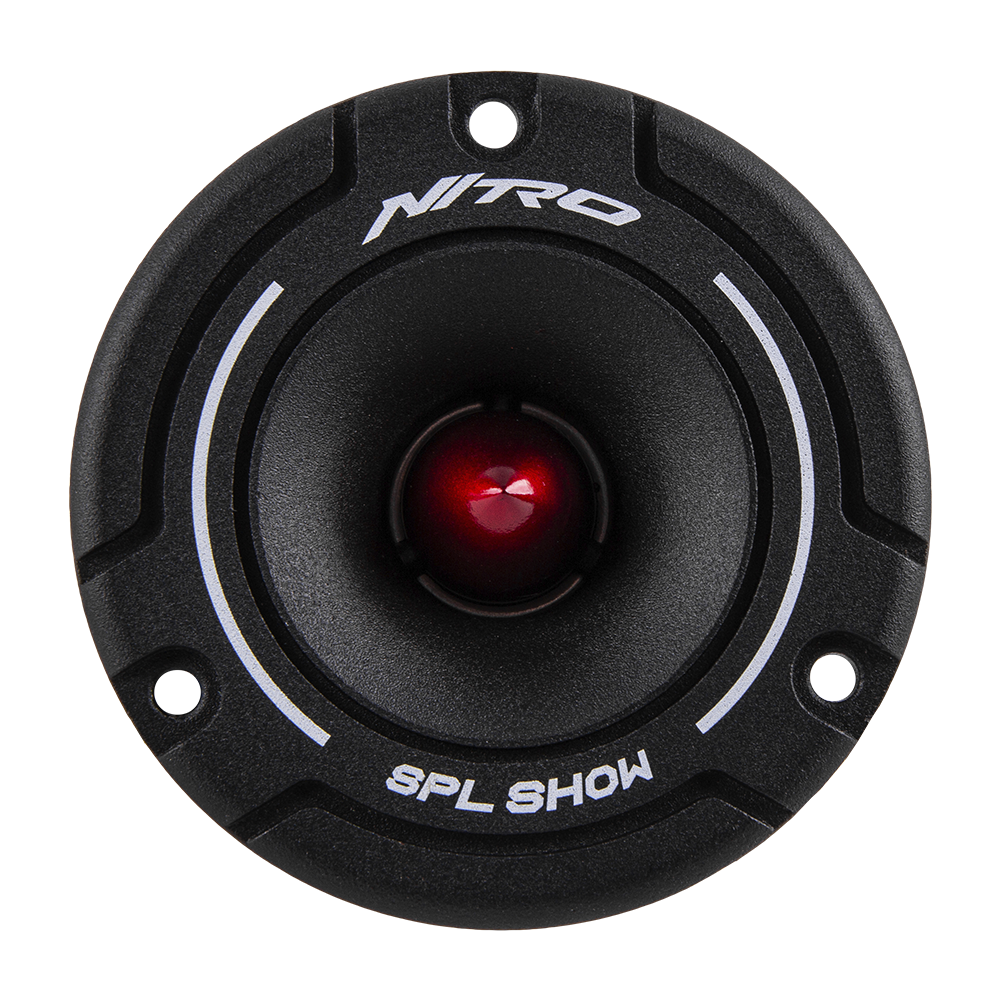

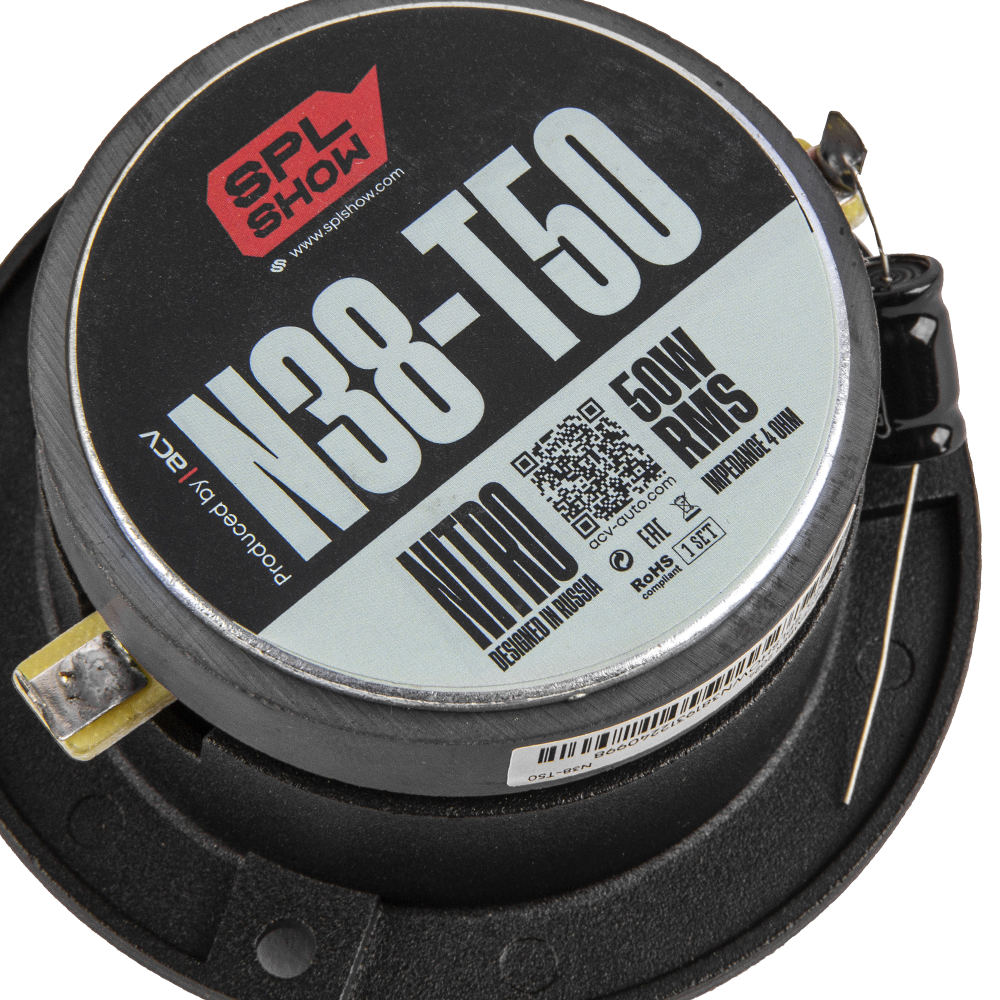

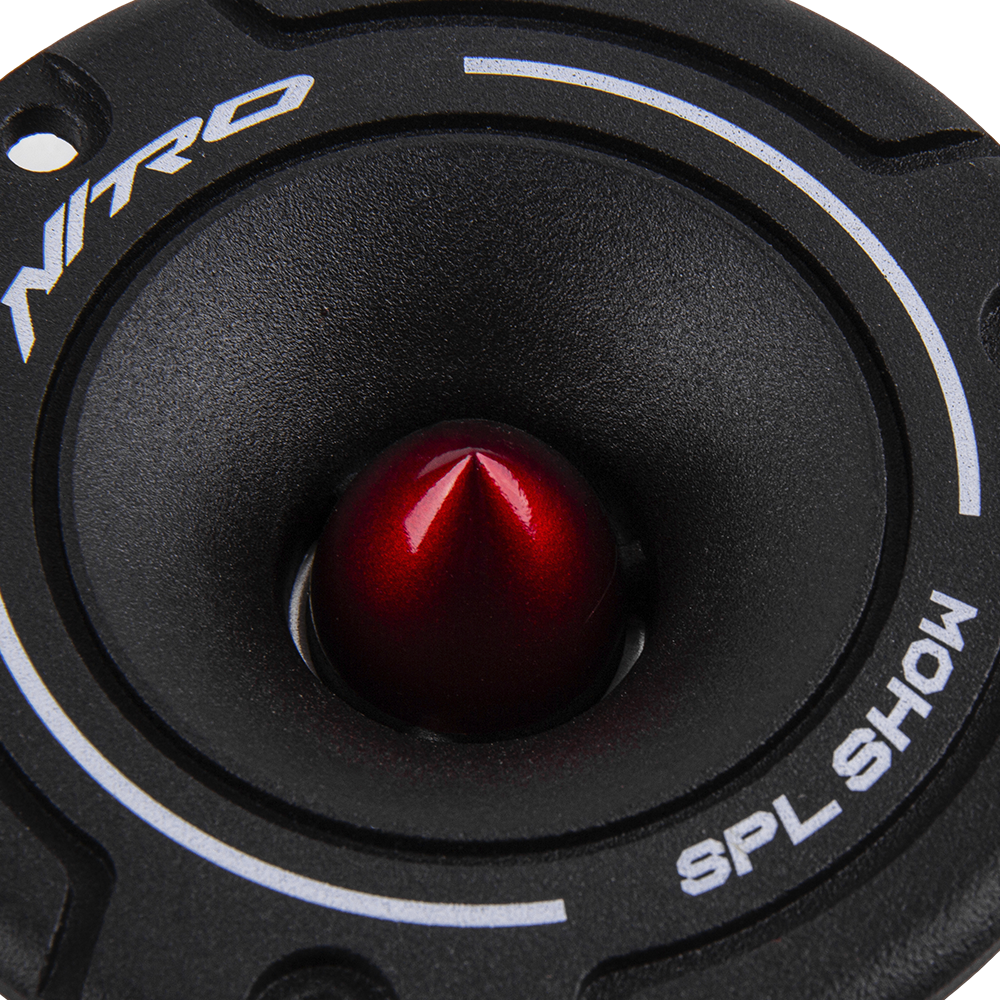

SPL SHOW 3.78" HF speaker
N38-T50
A tremendous power super bullet tweeter of SPL SHOW NITRO series designed especially for those who need to reach serious acoustic pressure levels. The design uses ferrite magnets and an ultra-lightweight aluminum membrane.
N38-T50 is the anodized 25 mm die-cast aluminum tweeter for really loud high frequencies. Rated power 50W, the speaker has a double performance margin, so it copes with intense and prolonged loads. The NITRO series is distinguished by its unbeatable price and memorable new design. The N38-T50 tweeter is excellent for continuous SPL loads.
The tweeters are equipped with high density ferrite magnets and are housed in anodized die-cast aluminum bodies. The ultra-lightweight aluminum diaphragm delivers superior treble, making them loud, clear and detailed.
With a high sensitivity of 103dB, these tweeters provide an amazing SPL. Frequency range 2000-20000 Hz, nominal impedance 4 ohms.
High sensitivity and superb punch due to the special speaker construction.
Super lightweight voice coil wounded with flat aluminum wire on KSV former for unheard-of thermal and mechanical capability.
Significant efficiency of magnetic system under high SPL loads.
High-strength material that is not subject to corrosion, which retains its stability at high temperatures and contributes to high-quality reproduction of the entire high-frequency spectrum without distortion.
Specifications
Sound reproduction
- Installation depth: 46 mm
- RMS power: 50W
- Sensitivity: 103 dB
- Impedance: 4 ohms
Model features
- Voice coil: Flat aluminum wire wound, 25 mm
- Membrane: Ultra-light aluminum membrane, D25 mm
- Magnet: High-density ferrite magnet
- Frequency range: 2000-20000 Hz
General details
- Speaker size: 3.78" (9.6 cm)
- Basket: Cast aluminum with anodized finish
- Mounting hole diameter: 86 mm
- Installation depth: 46 mm
- Overall depth: 45 mm
- External diameter: 96.3 mm
N38-T50_Manual.pdf
