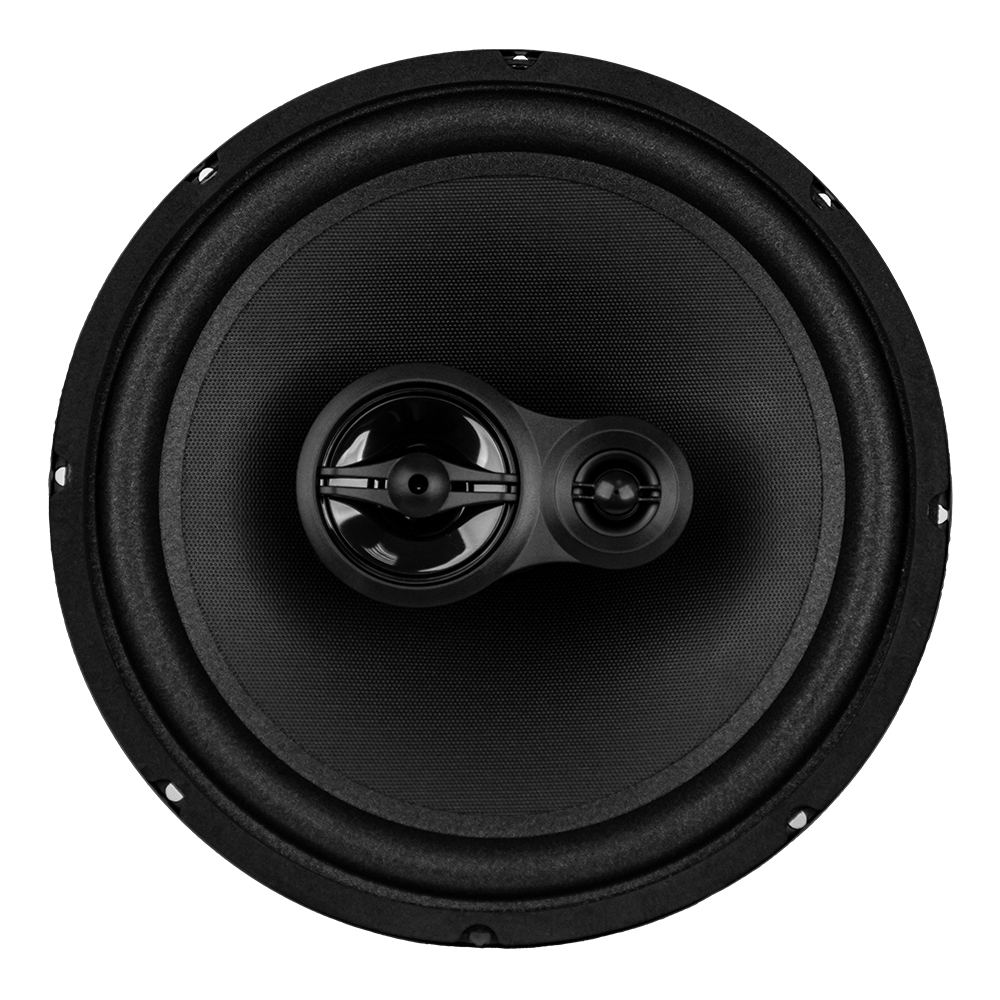

Coaxial acoustics 10" 160 W
PB2503G
Coaxial acoustics of the PB series are distinguished by great efficiency, volume, depth of sound. Among the advantages of these speakers are ease of installation, low price and excellent performance.
Top 10-inch PB series coaxial speakers provide your car with high-quality sound with crisp highs, detailed mids and tangible lows.

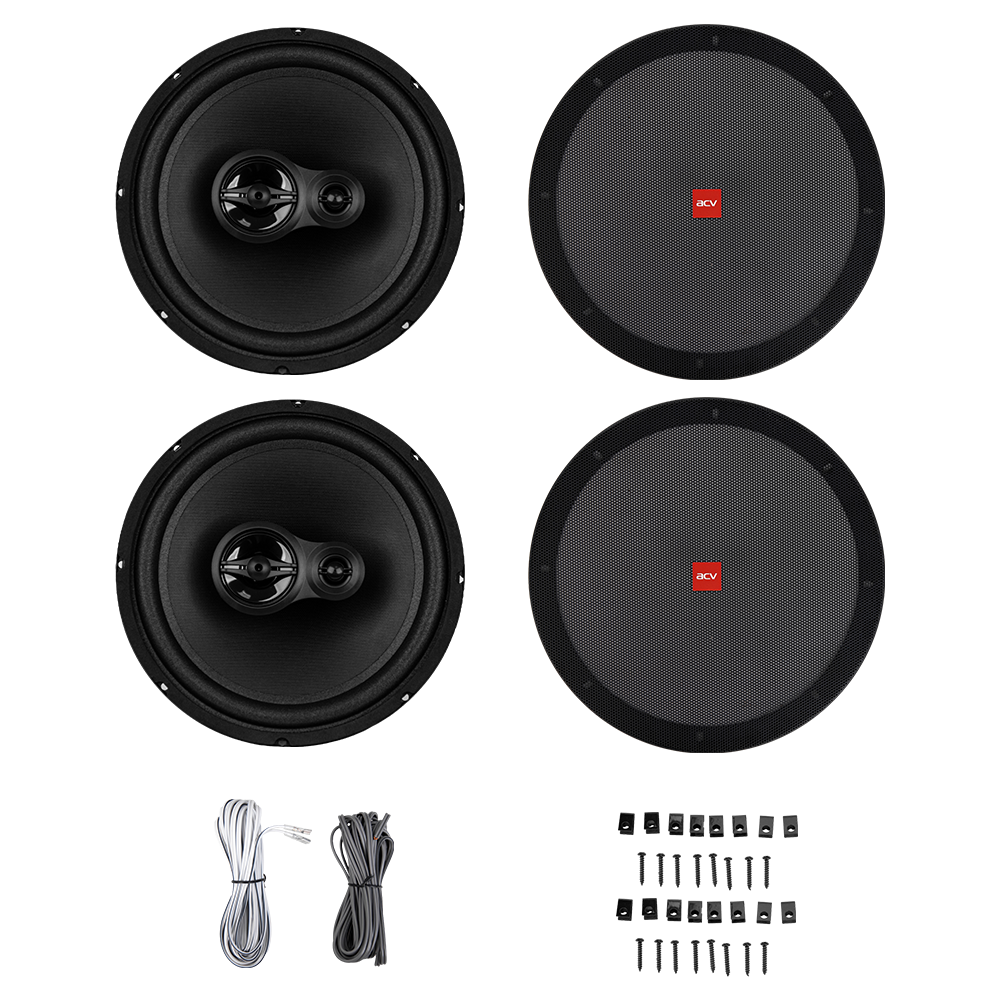

As standard, the set includes two speakers designed for rear installation, but the scope of coaxial is not limited only to this. If necessary, the system can be an addition to component acoustics, in which case such speakers are installed on the rear shelf and play the role of midrange.

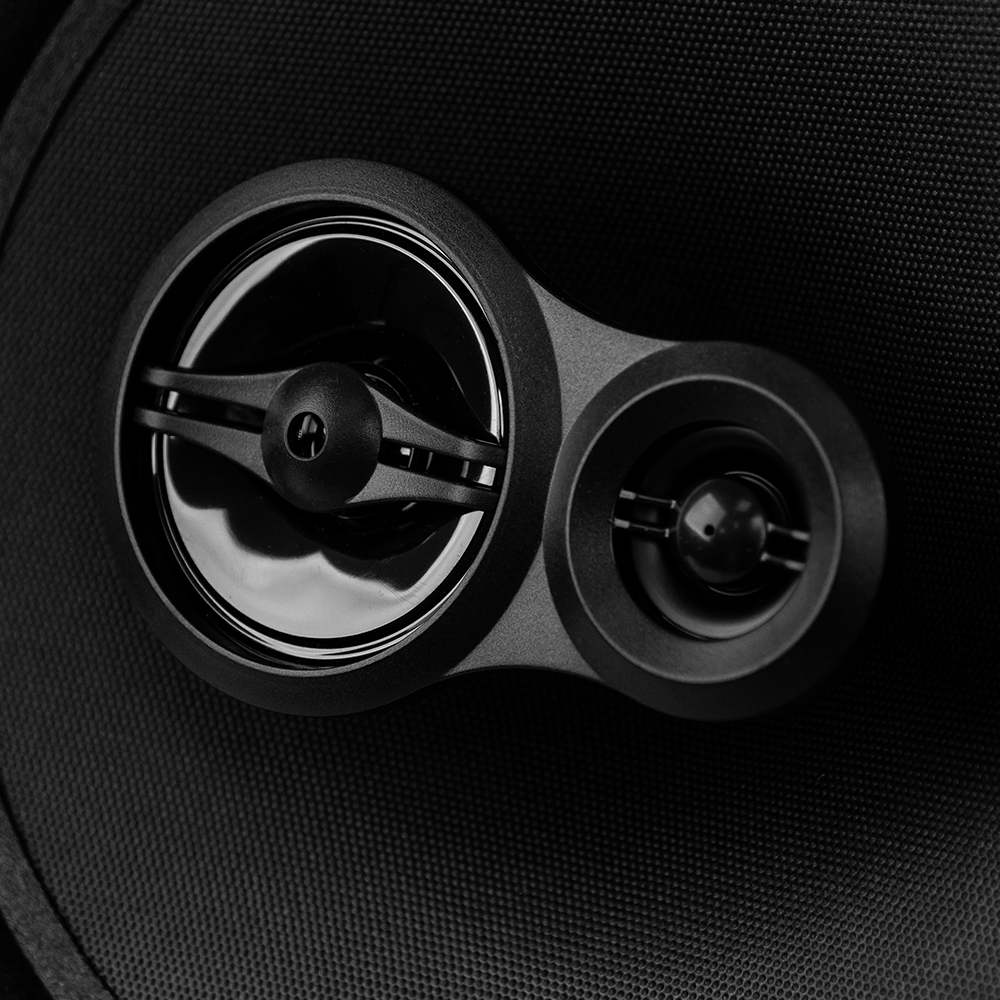

In a three-way midbass system, tweeters and woofers are located on the same plane in a single basket. These elements reproduce their own sound ranges, which are separated by a built-in crossover. The acoustics cover a wide frequency range of 30Hz -20000Hz and have an excellent sensitivity for their class.

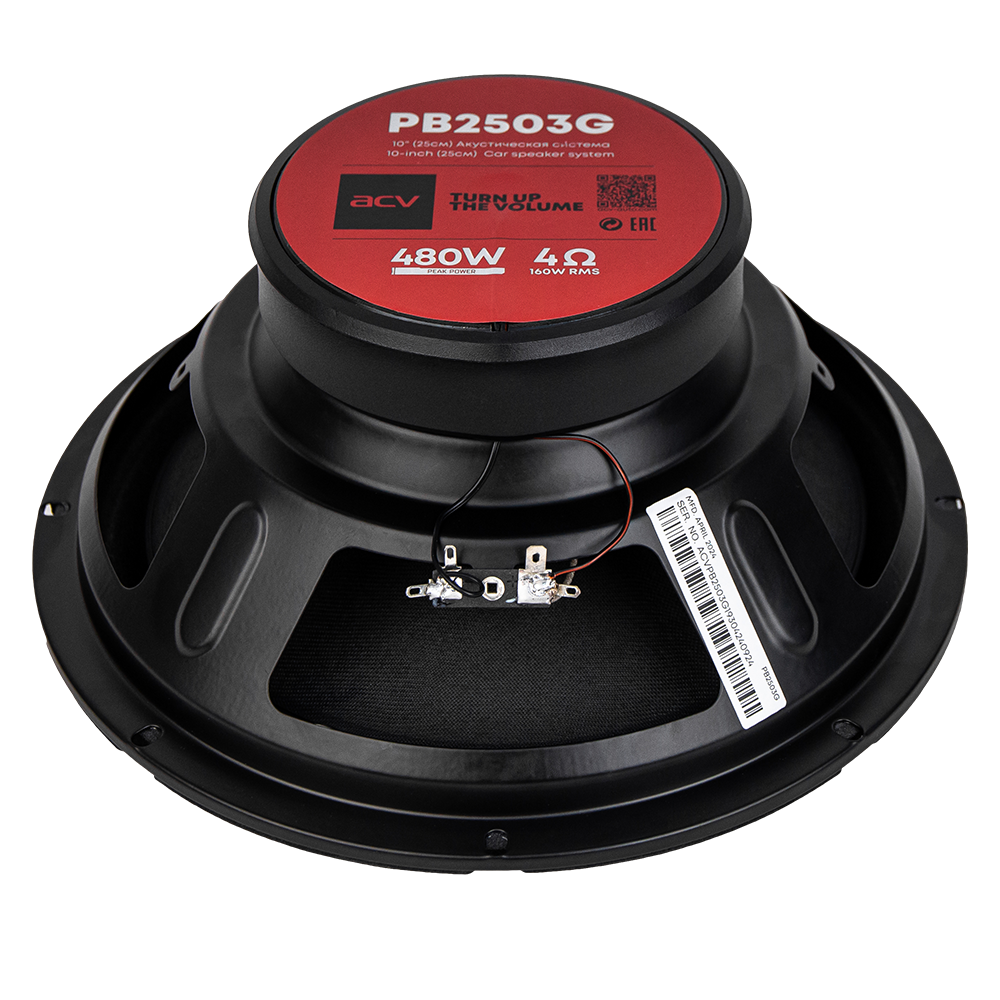

The acoustics feature black paper cones, wide foam rubber surrounds that provide sufficient amplitude of movement when reproducing sound, the Kapton voice coil diameter is 30 mm and 56 mm and 25 mm Mylar tweeters. The use of a Kapton (KSV) voice coil frame significantly increases the performance and service life of the speakers. All components are placed in reliable steel baskets.
Specifications
Sound playback
- Peak power: 480W
- Rated power: 160W
- Sensitivity: 93 dB/W/m
- Impedance: 4 ohms
Features of the model
- Voice coil: KSV 30 mm
- Cone: Black paper cone with foam rubber surround

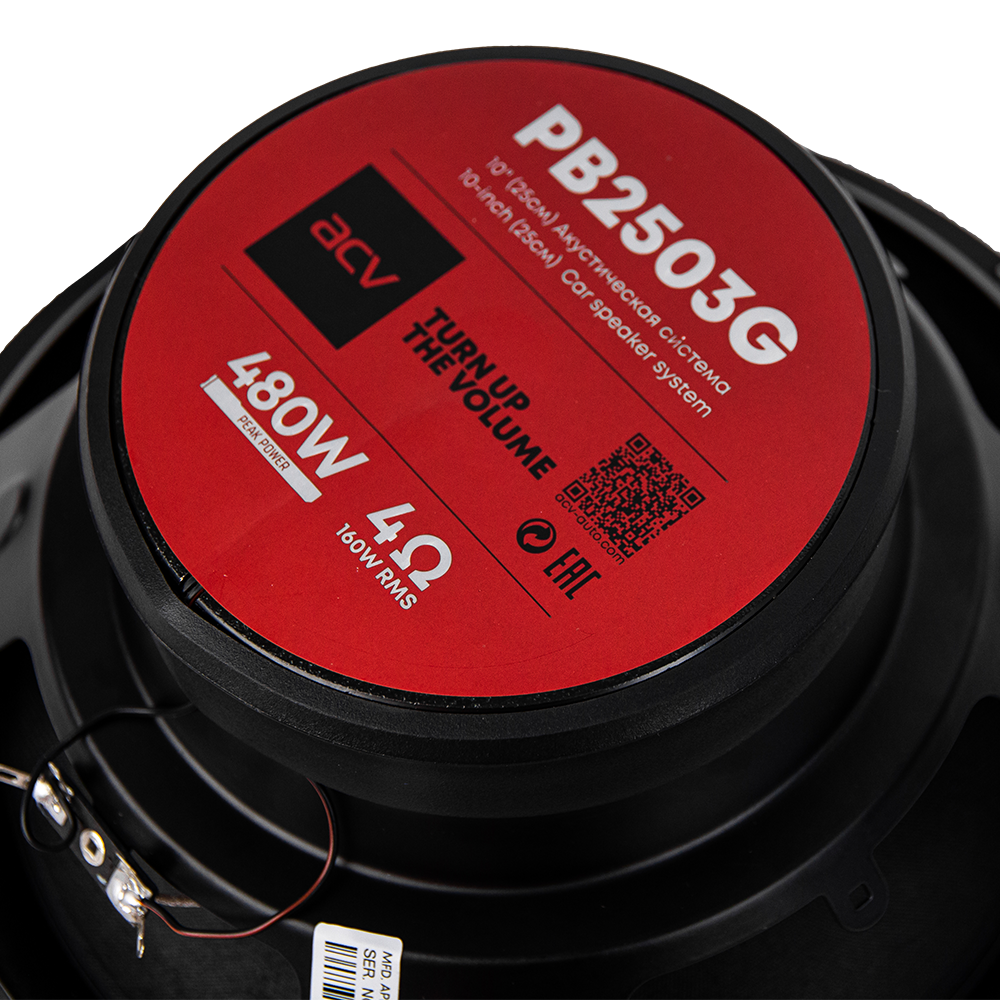

- Magnet: 30 oz
- Frequency range: 30 - 20,000Hz
General details
- Type: 3-way
- Speaker size: 10" (25 cm)
- Basket: Steel
- Operating temperature range: -35 +55 °C
