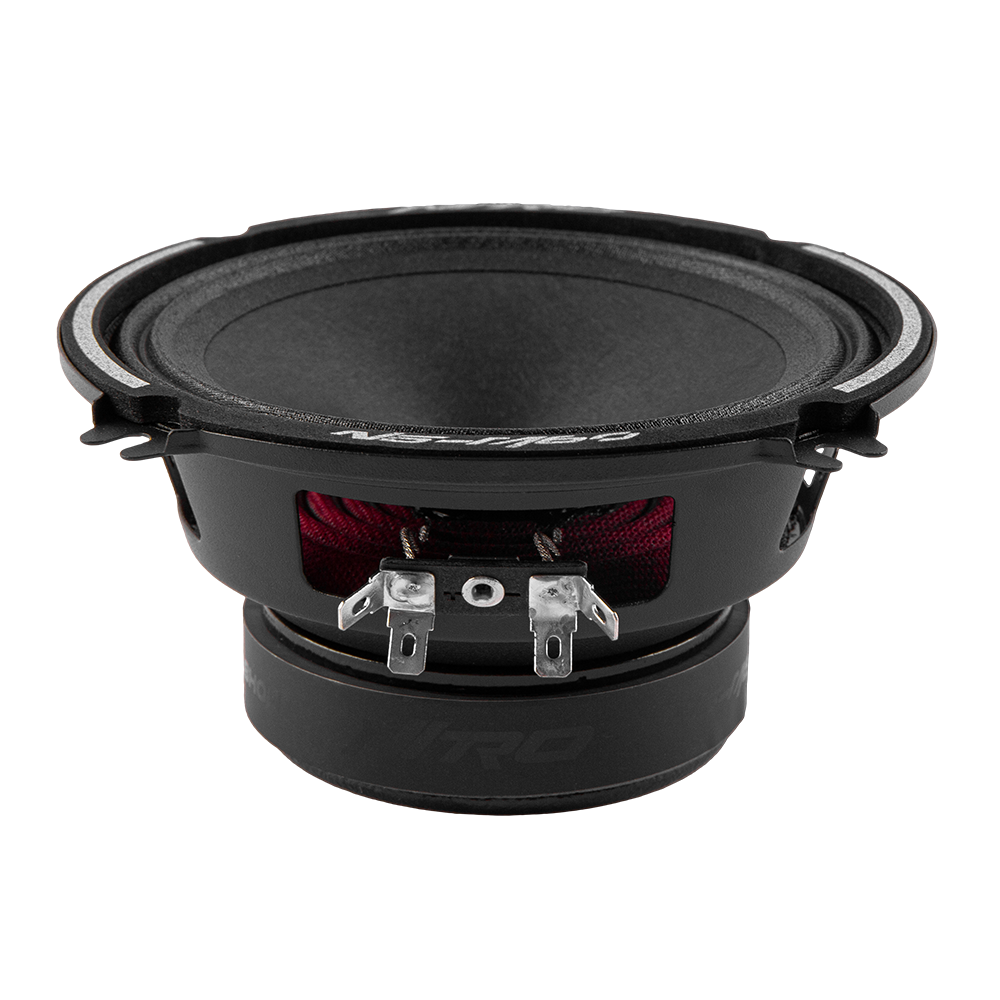

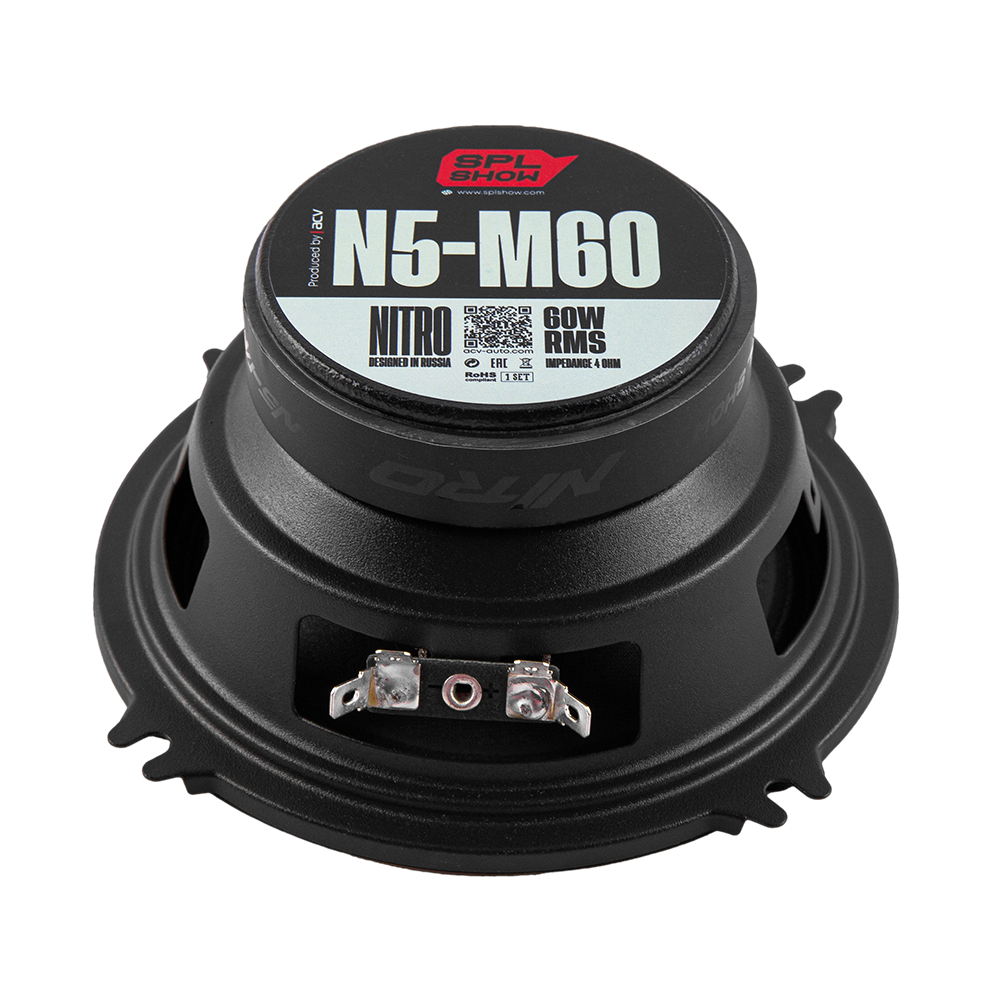

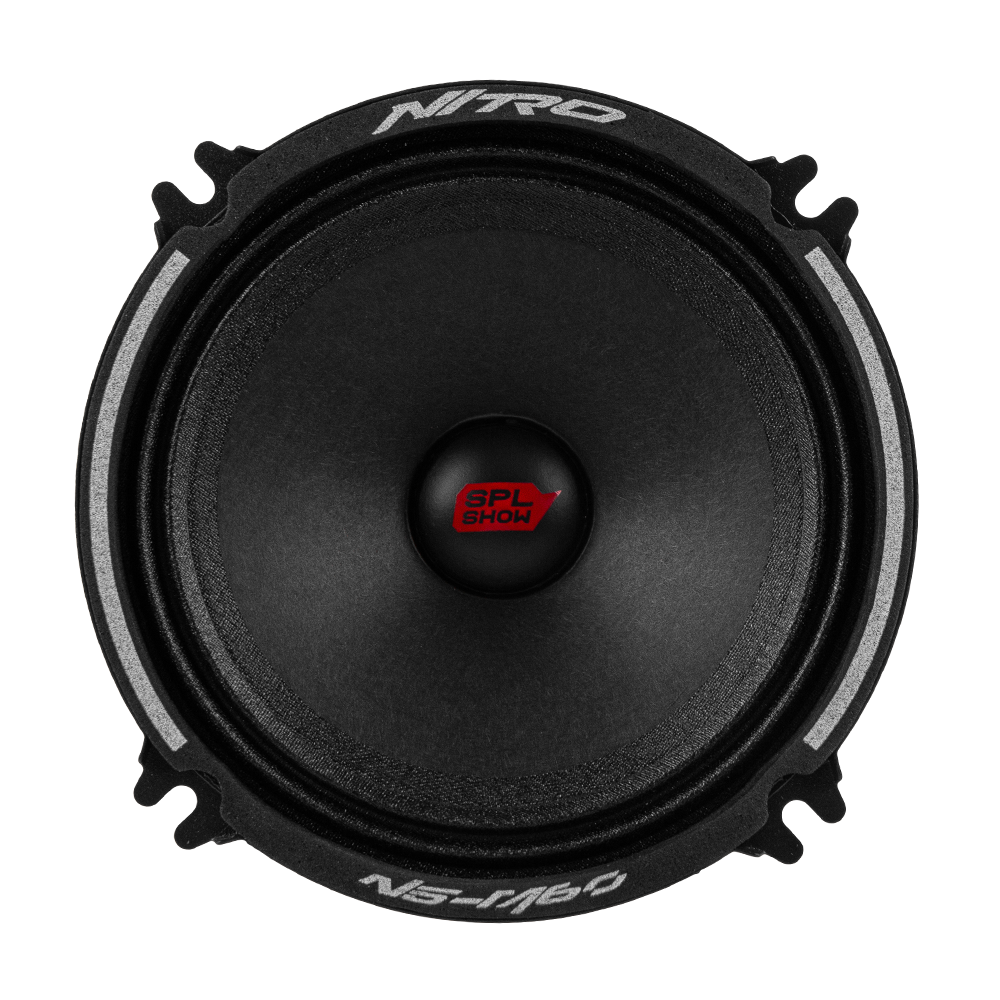

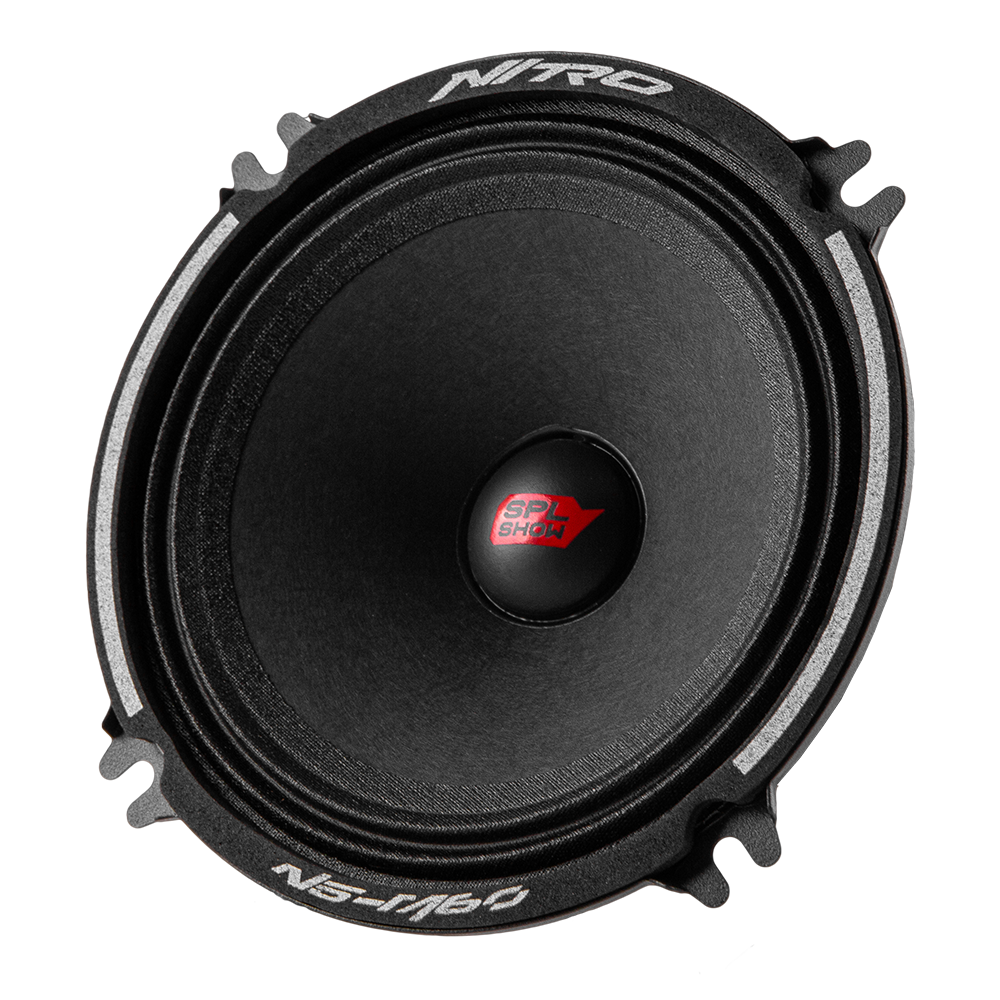

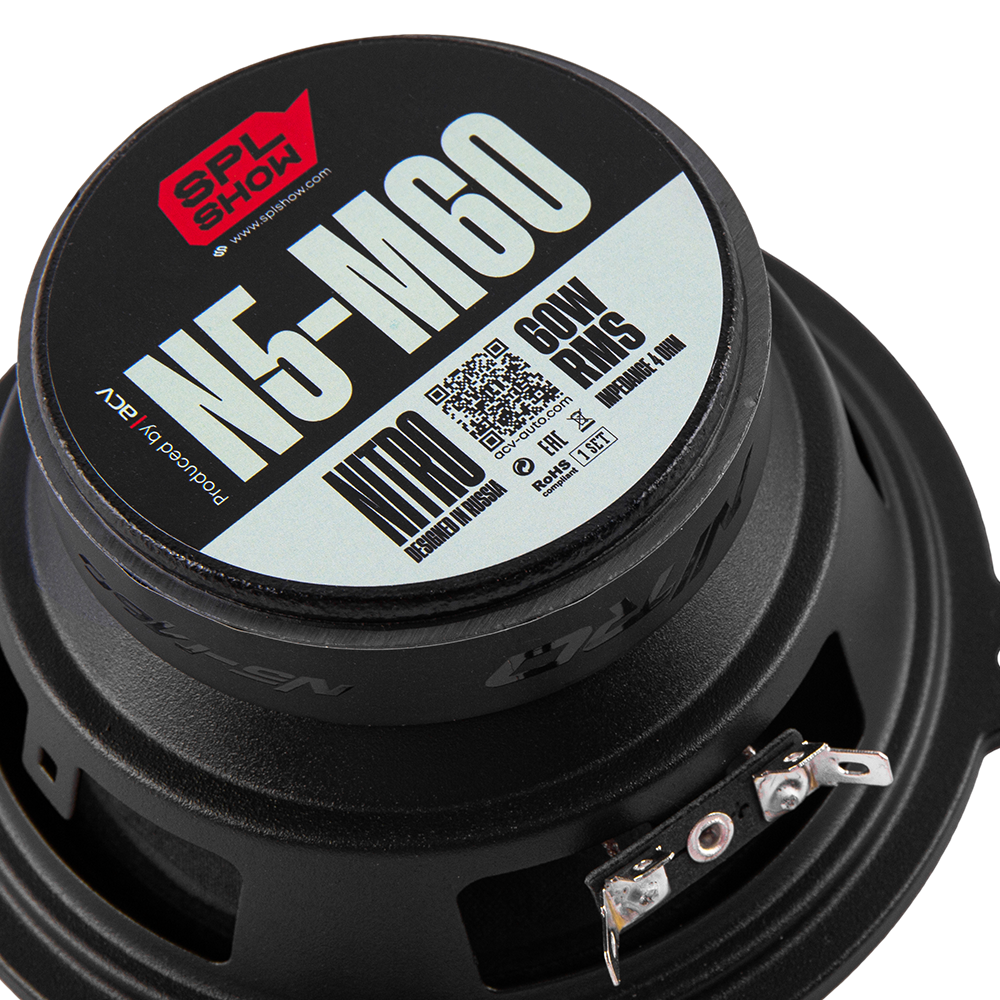

All parameters of speaker system of NITRO-series have been selected with great attention to both sound and overall reliability, the ability to withstand tangible loads for a long time. The enlarged voice coil allows very serious power to be pumped into the speaker.

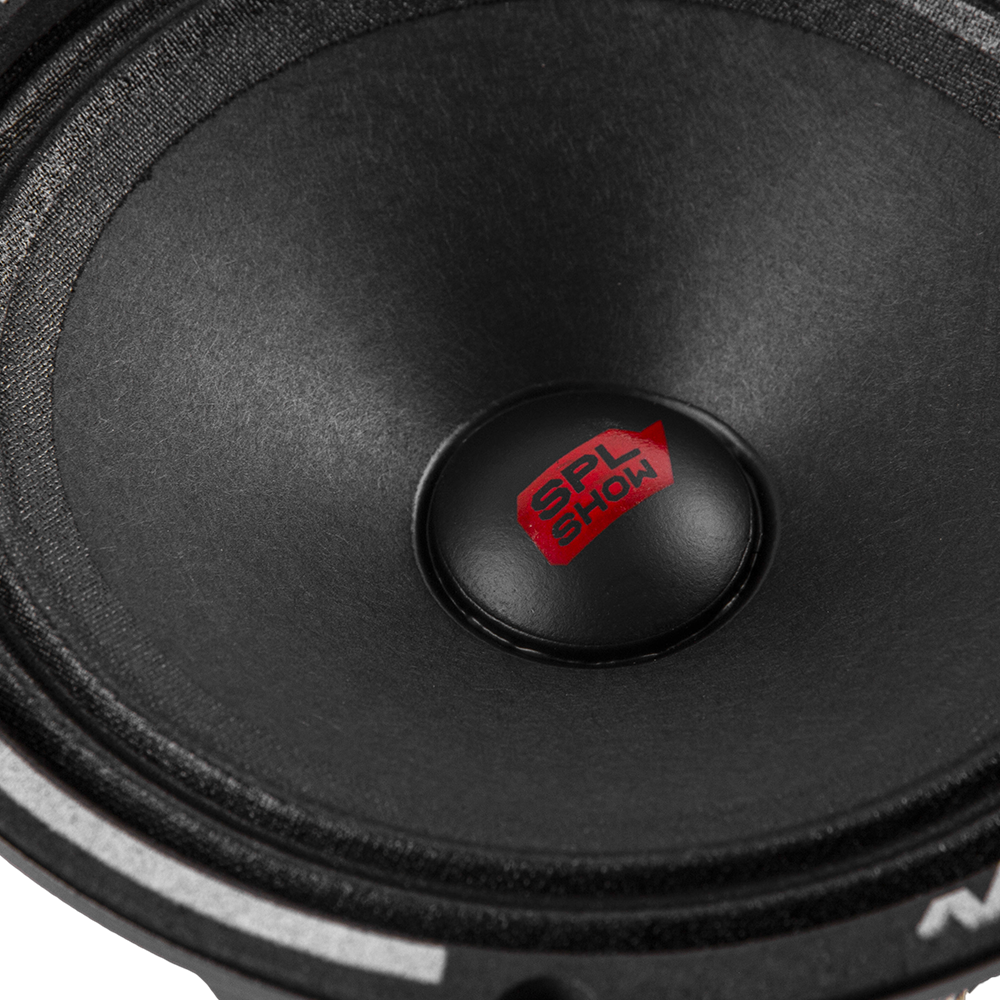

Mid-range drivers with large ferrite magnets are designed for loud fronts and fierce everyday life. The diffusers are made of medium density cellulose, traditional for the "stage". The material is light but not very harsh on its own, providing a clear sound and good punch.

The speakers are made in stamped steel baskets, they play clean and loudly, the sound quality is excellent in its price segment! Among the advantages of this model, it should be noted: the brightest MF and high sound detail, significant endurance due to a powerful magnetic system, as well as a small mounting depth, which will allow you to install speakers in any car.

High efficiency loudspeaker
Speakers can play loud even with a car head unit without an extra amplifier.

Ferrite ring
Significant efficiency of magnetic system under high SPL loads.

Double layer high temperature KSV
Double layer high temperature copper voice coil, wound on KSV former for unheard-of thermal and mechanical capability.

High sensitivity
High sensitivity and superb punch due to the special speaker construction.

Specifications

Features of the model

• Voice Coil: KSV 25 mm
• Cone material: Pressed paper
• Edge material: Cloth
• Magnet: Ferrite/80x32x15mm/11 Oz
• Frequency range: 140 - 12000 Hz

Parameters

• Rated power: 60W
• Sensitivity: 92 (±1) dB
• Impedance: 4 Ω

General details

• Number of ways: 1-way
• Speaker size: 5.25" (13 cm)
• Basket material: Stamped steel
• Mounting hole diameter: 124 mm
• Mounting depth: 61 mm
• Total depth: 64 mm
• Outer diameter: 133 mm

THIEL-SMALL PARAMETERS

• Revc 3 Ohm
• FS 166Hz
• SD 88.2cm²
• BL 3.3Тm
• Le 0.00
• QES 1.44
• QMS 4.07
• QTS 1.06
• SPL 92dB
• VAS 2.0L
• CMS 0.19µm/N
• ММS 4.9g
• Xmax 1.0mm
