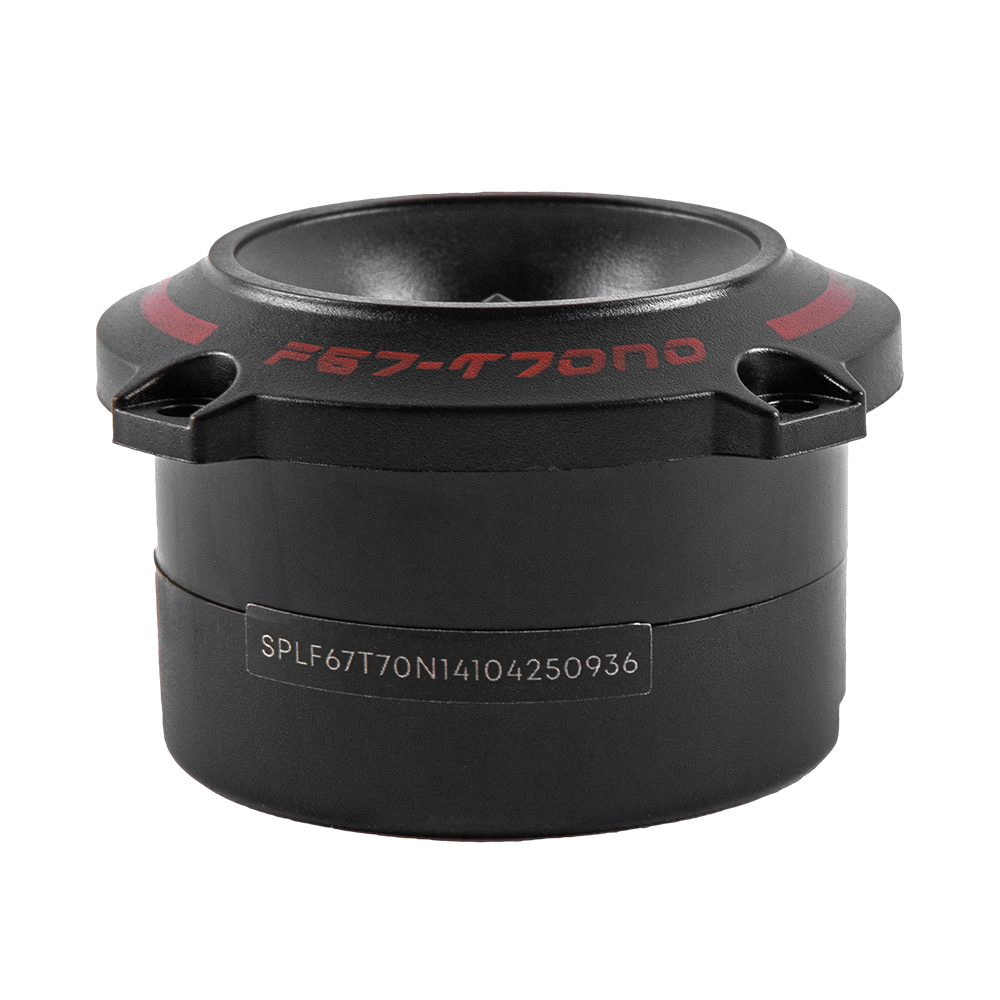

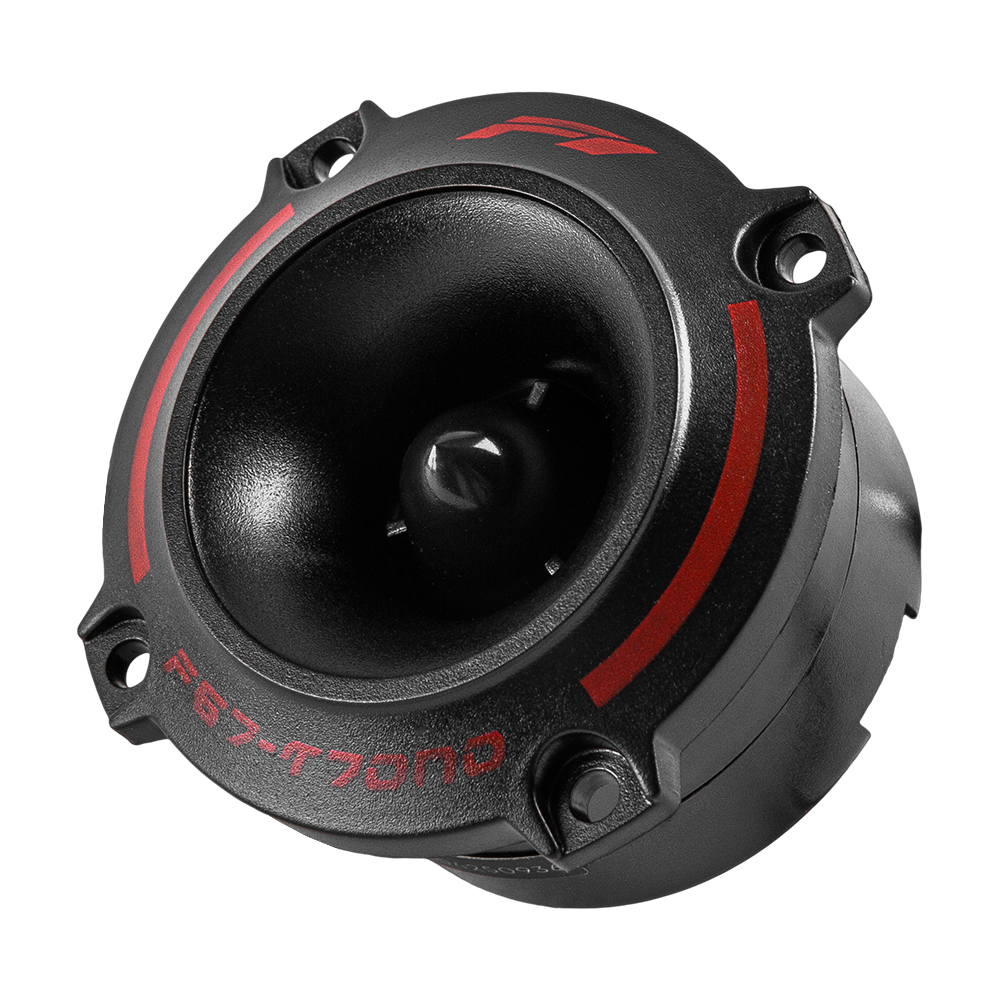

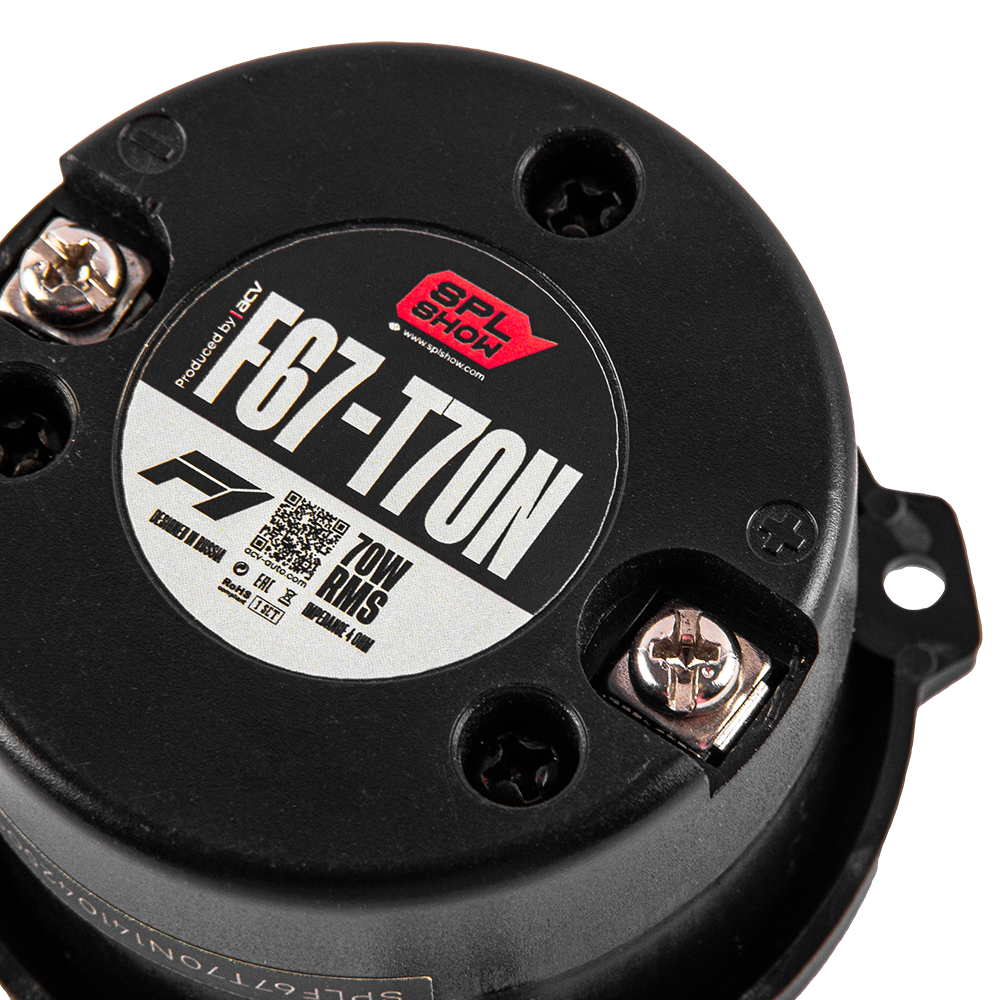

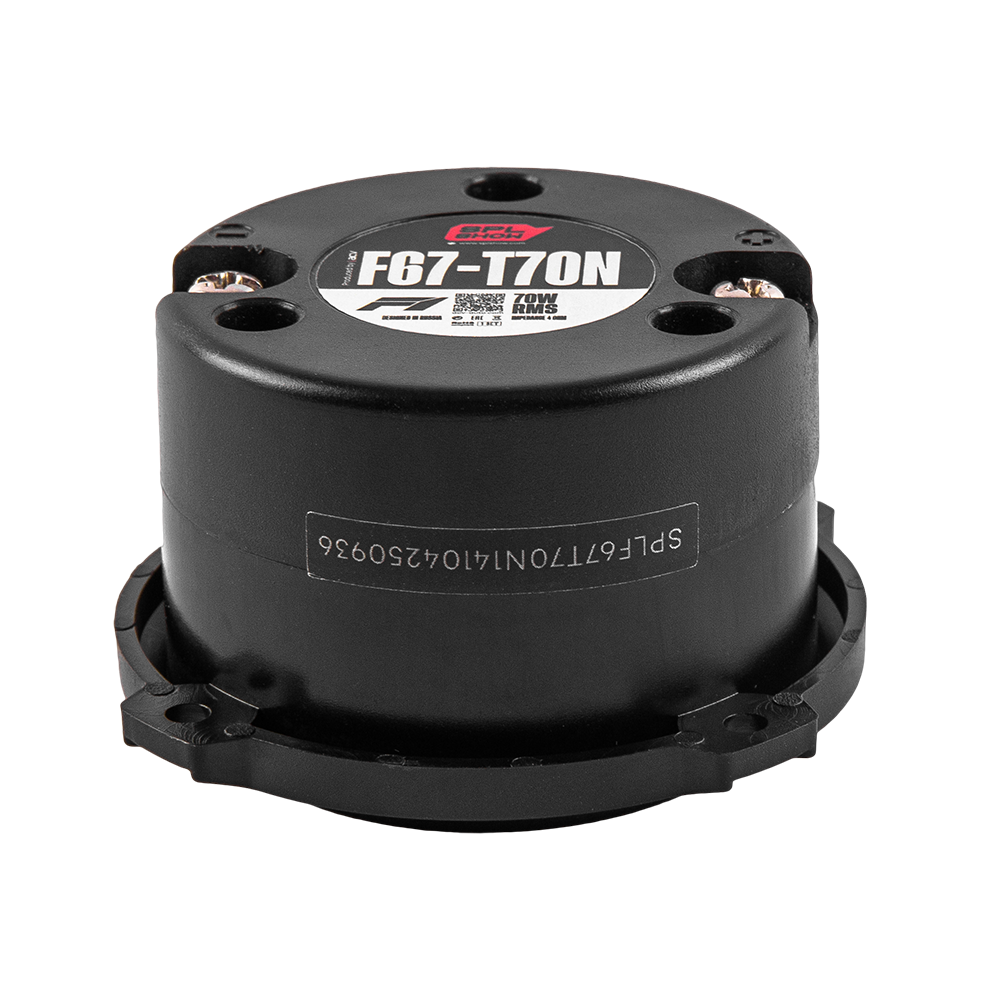

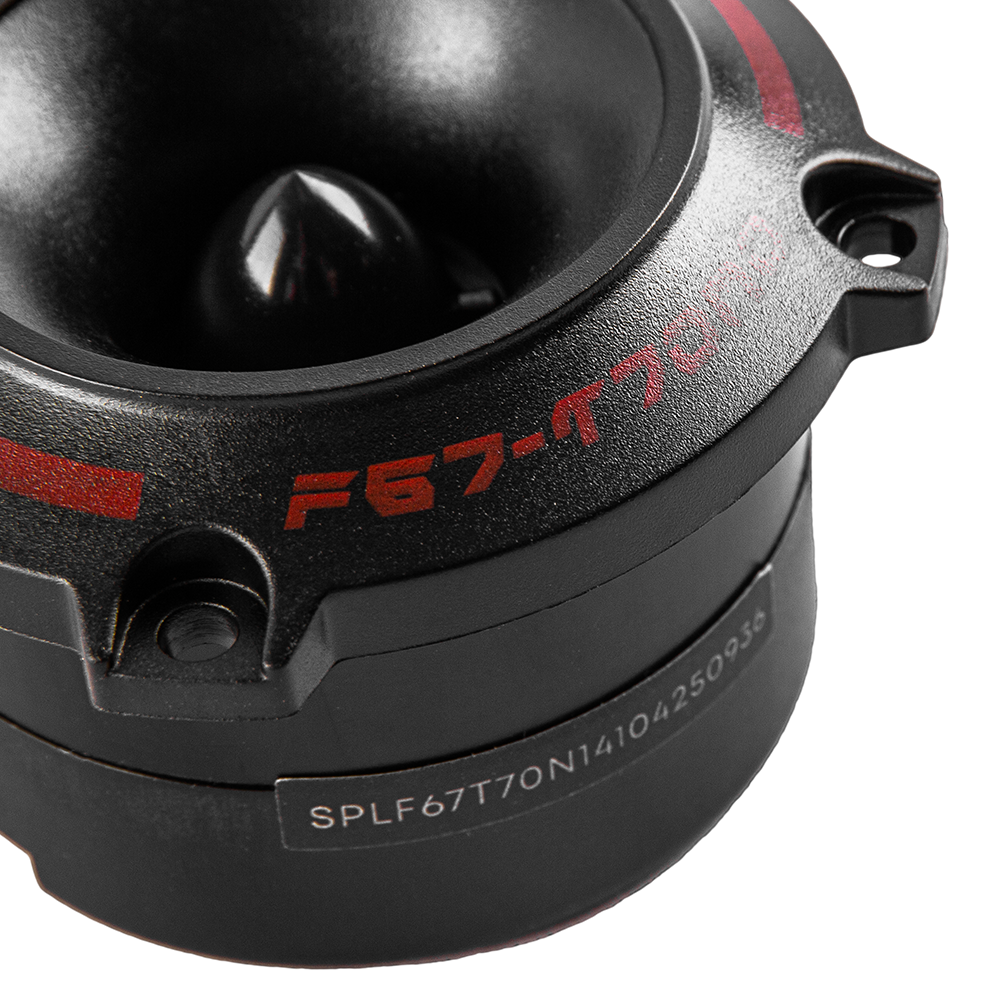

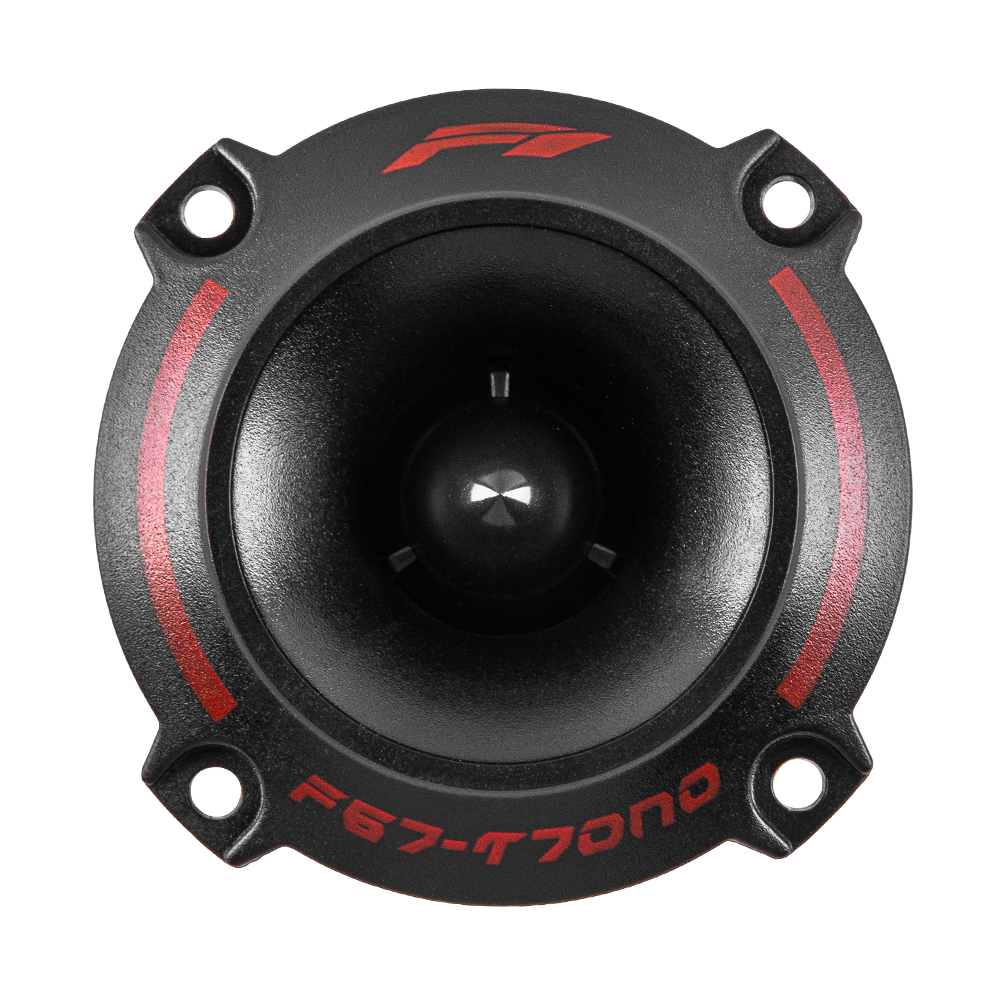

SPL SHOW 2.6” HF speaker
F67-T70N
A tremendous power neodymium horn tweeter of SPL SHOW F67-T70N which was designed especially for those who need to reach serious acoustic pressure levels. The design uses ferrite magnets and an ultra-lightweight aluminum membrane.
F67-T70N is compact tweeter for really loud high frequencies. Rated power 70W, the speaker has a double performance margin, so it copes with intense and prolonged loads. The F1 series is distinguished by its unbeatable price and memorable new design. The F67-T70N tweeter is excellent for continuous SPL loads.
The tweeters are equipped with powerful neodymium magnets of class N-38 and have compact sizes for fast and easy installation. The ultra-lightweight aluminum diaphragm delivers superior treble, making them loud, clear and detailed.
With a high sensitivity of 105dB, these tweeters provide an amazing SPL. Frequency range 3000-20000 Hz, nominal impedance 4 ohms.
Powerful neodymium magnets of class N38 which deliver maximum efficiency of the speaker system.
Double layer high temperature voice coil with diameter 1-inches on KSV former for outstanding thermal and mechanical capability.
The enclosure has quite compact dimensions, which makes possible to install it in almost any car and save a lot of space.
High sensitivity and volume due to the special speaker construction.
Specifications
Sound reproduction
- Installation depth: 32.3 mm
- RMS power: 70W
- Sensitivity: 105 dB
- Impedance: 4 Ohm
Model features
- Voice coil: CCAW wire wound on KSV former, 25 mm
- Membrane: Ultra-light aluminum membrane, D25 mm
- Magnet: Neodymium N-38H
- Frequency range: 3000-20000 Hz
General details
- Speaker size: 2.6" (6.7 cm)
- Basket: plastic
- Mounting hole diameter: 58 mm
- Installation depth: 32.3 mm
- Overall depth: 43 mm
- External diameter: 67 mm
SPL SHOW F67-T70N Manual.pdf
