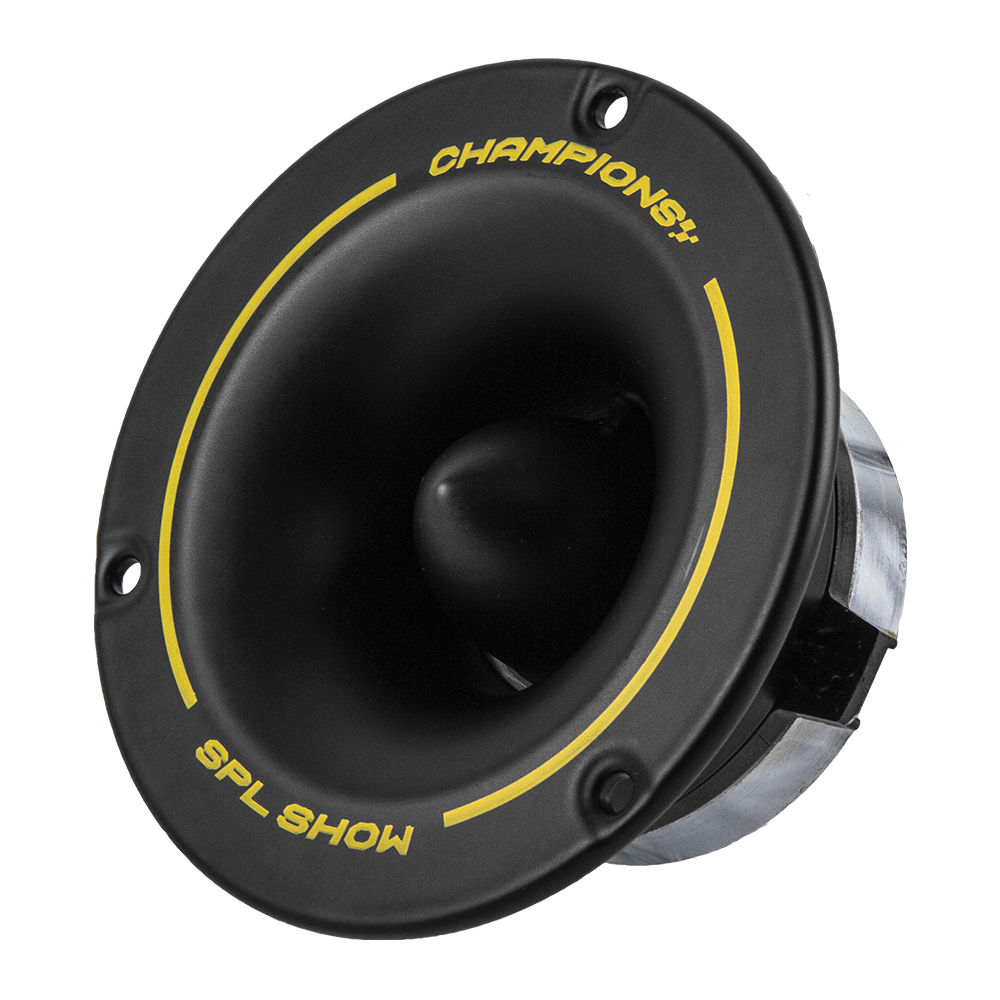

The SPL SHOW C100-T50N Champions series HF speakers provide high-quality sound and real volume that you have been waiting for. With them, you can upgrade your acoustic system beyond imagination or implement a professional-level project for car audio competitions. The amazing power of the Champions HF speakers leaves any competitors behind.

Despite the compact dimensions of 100 mm, the SPL SHOW HF speakers are capable of a lot. They reproduce the frequency range of 2500 Hz ~ 20 kHz, are made on powerful neodymium magnets of class N38 and allow for perfect control at high power and maximum performance. Thanks to the high sensitivity of 109 dB SPL, they provide the required sound pressure and are ready to cope with long and intense loads for a long time.

The C100-T50N horn speakers use top materials that make them the best on the market: each speaker is equipped with the most powerful neodymium magnets of class N38, which provide the highest magnetic flux density and the most effective force in the voice coil. The dual-layer high-temperature voice coil with a diameter of 32.5 mm wound with copper-clad aluminium wire on a KSV frame provides unprecedented thermal and mechanical properties. The high-strength cast aluminum body is not subject to corrosion, does not lose its stability at high temperatures, which contributes to high-quality reproduction of the entire spectrum of high frequencies without distortion.

Neodymium magnet N38 grade
Acoustics C100-T50N features the most powerful neodymium magnets of N38 grade available, delivering ultimate magnetic flux density and maximum effective voice coil force.

Double layer high temperature KSV
Double layer high temperature voice coil with diameter 1.28-inches on KSV former for outstanding thermal and mechanical capability.

Die-cast aluminum body
High-strength material that is not subject to corrosion, which retains its stability at high temperatures and contributes to high-quality reproduction of the entire high-frequency spectrum without distortion.

High sensitivity
High sensitivity and volume due to the special speaker construction.

Specifications

Sound reproduction

• Rated power: 50 W
• Sensitivity: 109 dB
• Impedance: 4 Ohm

Model features

• Voice coil: KSV 2-layer wound with CCAW wire (KSV), Ø32,5 mm (1.28 inches)
• Diaphragm: Polyimide
• Magnet: Super strong neodymium N-38H
• Frequency range: 2500 - 20000 Hz

General details

• Installation depth: 43.5 mm
• Speaker size: 4" (10 cm)
• Basket: Die-cast aluminum
• Mounting hole diameter: 74 mm
• Mounting depth: 43.5 mm
• Total depth: 47.5 mm
• Outer diameter: 100 mm
