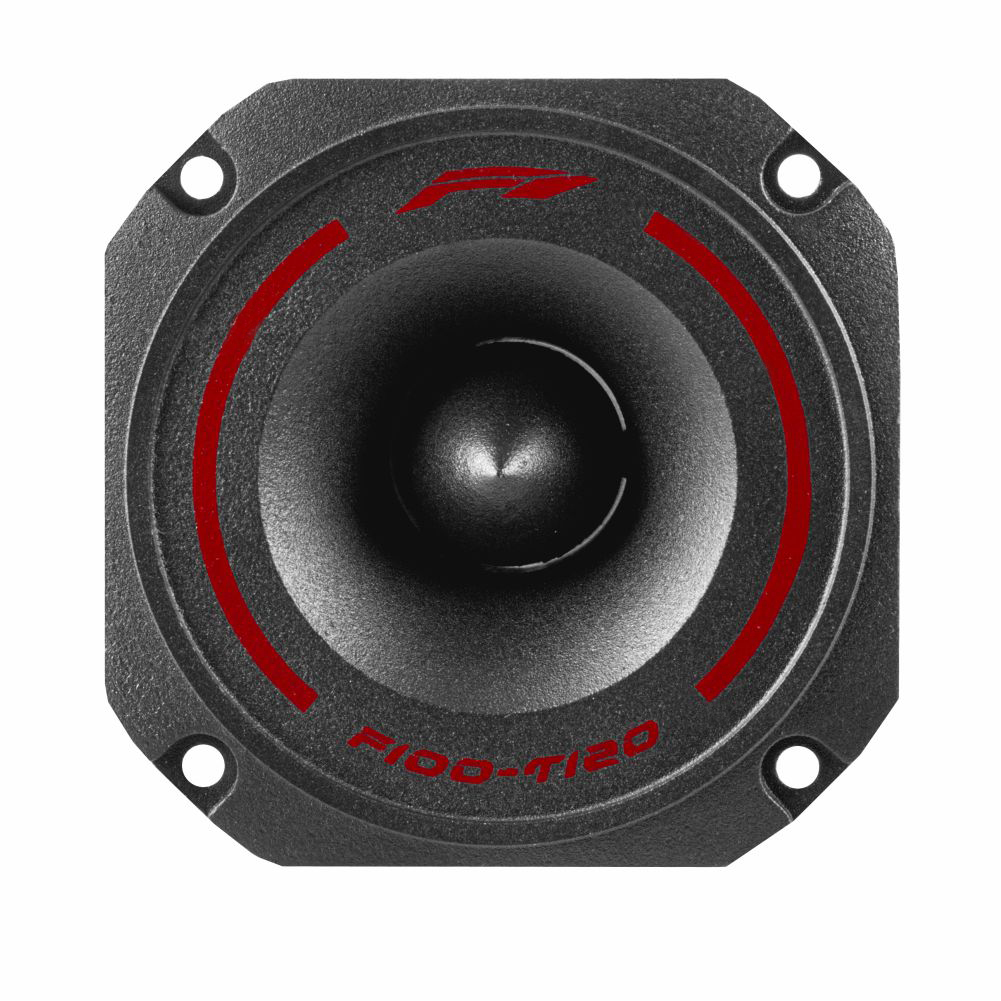

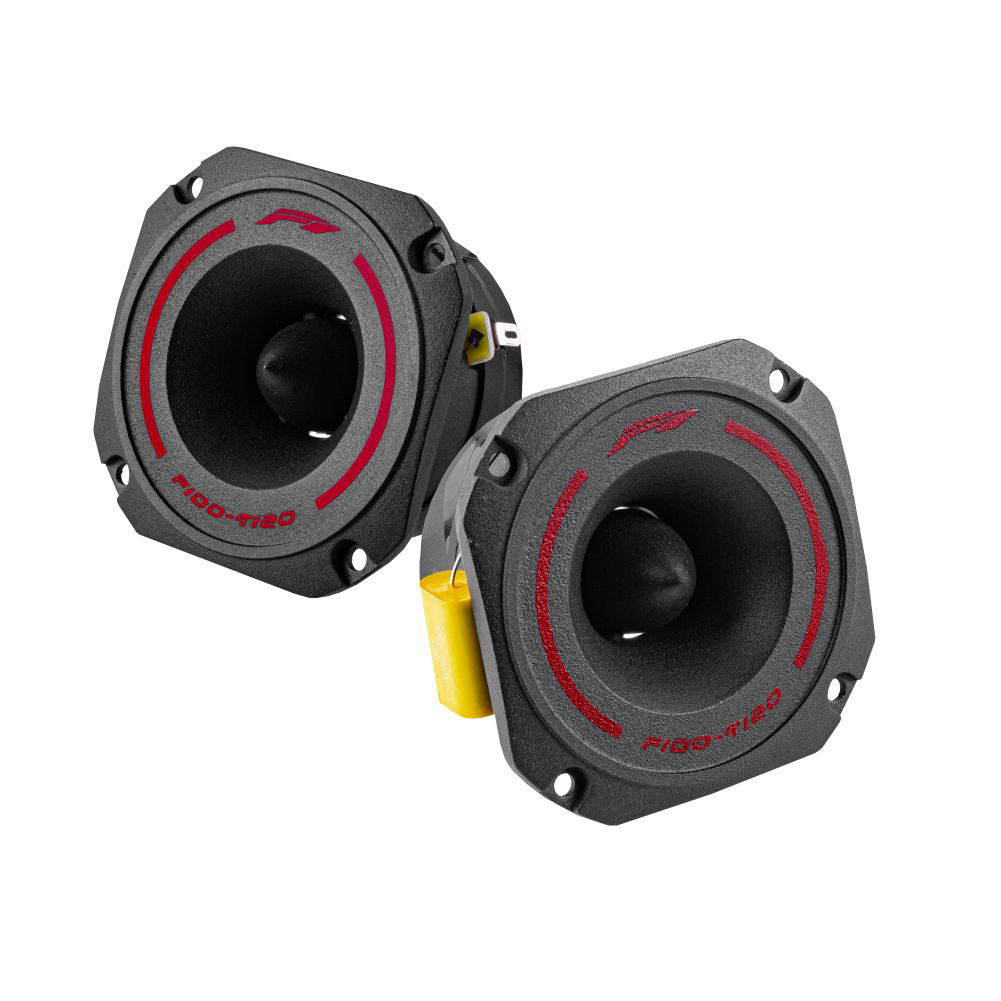

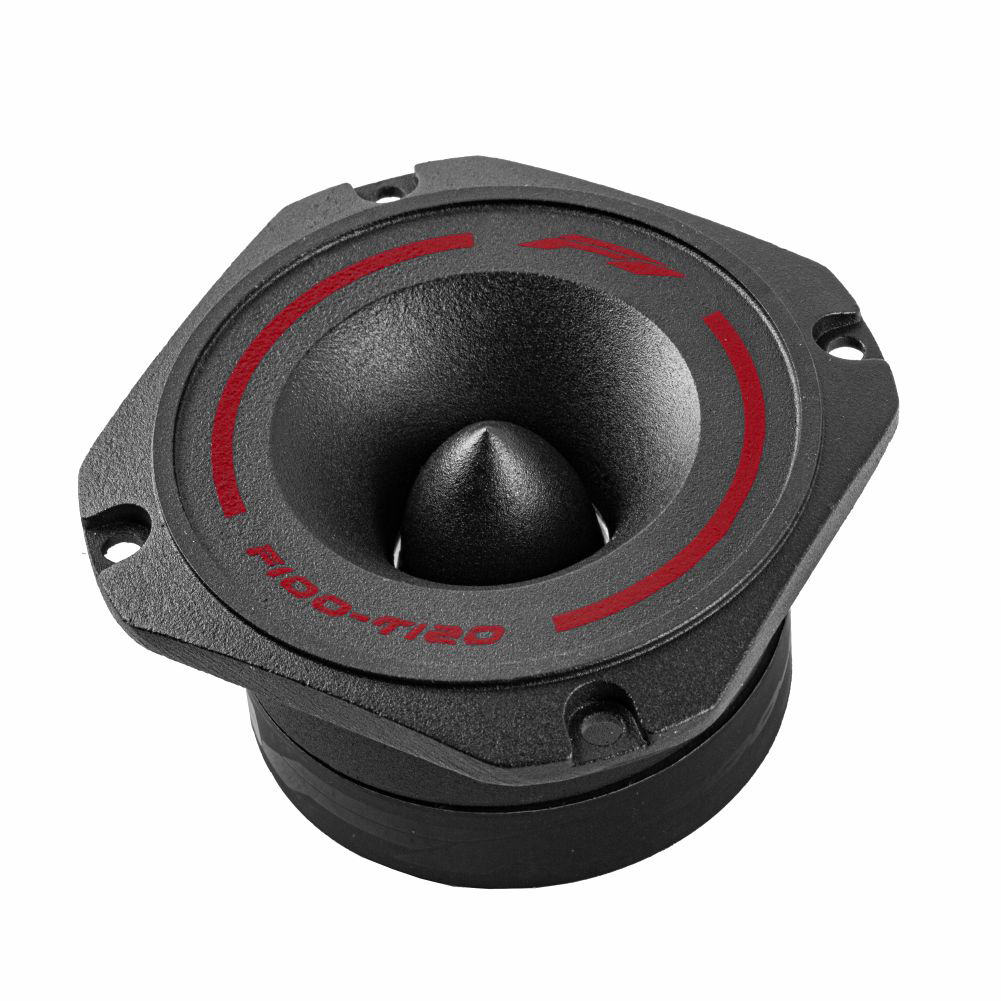

SPL SHOW 3.4" HF speaker
F100-T120
A tremendous power super bullet tweeter of SPL SHOW F1 series designed especially for those who need to reach serious acoustic pressure levels. The design uses ferrite magnets and an ultra-lightweight aluminum membrane.

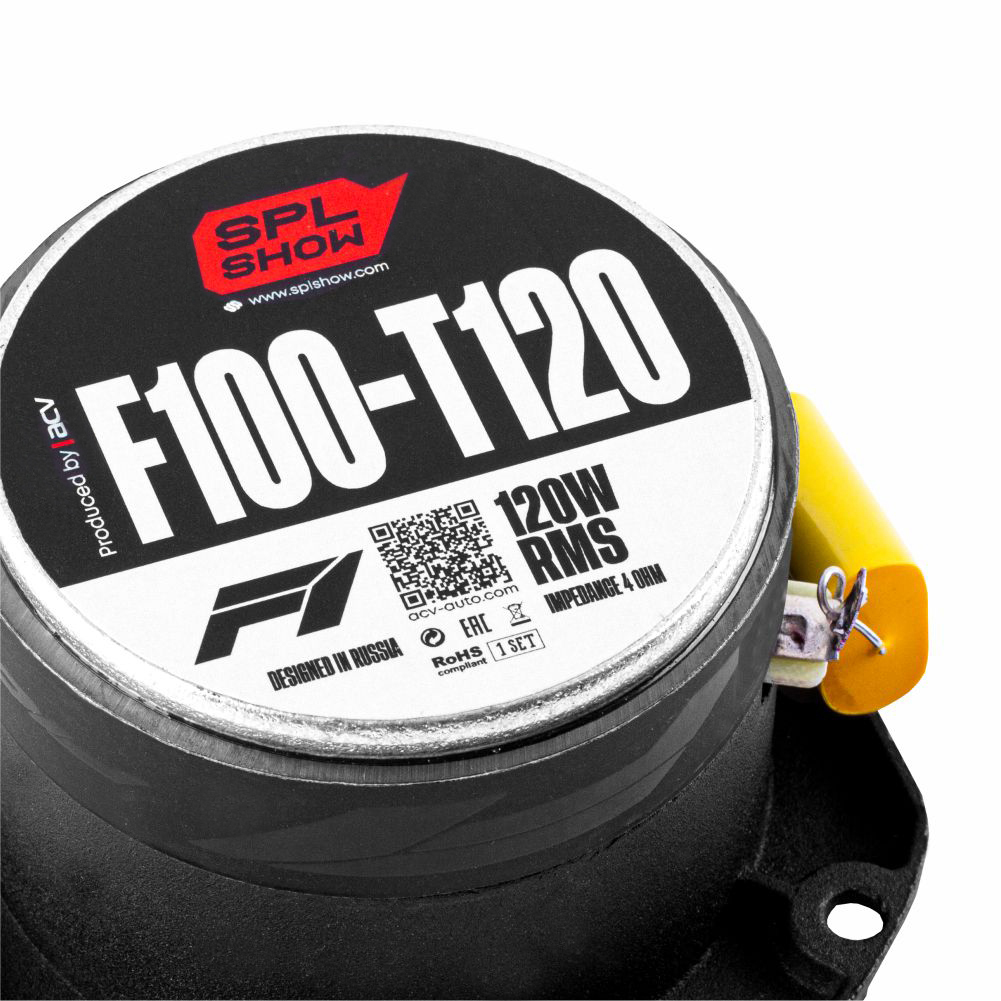

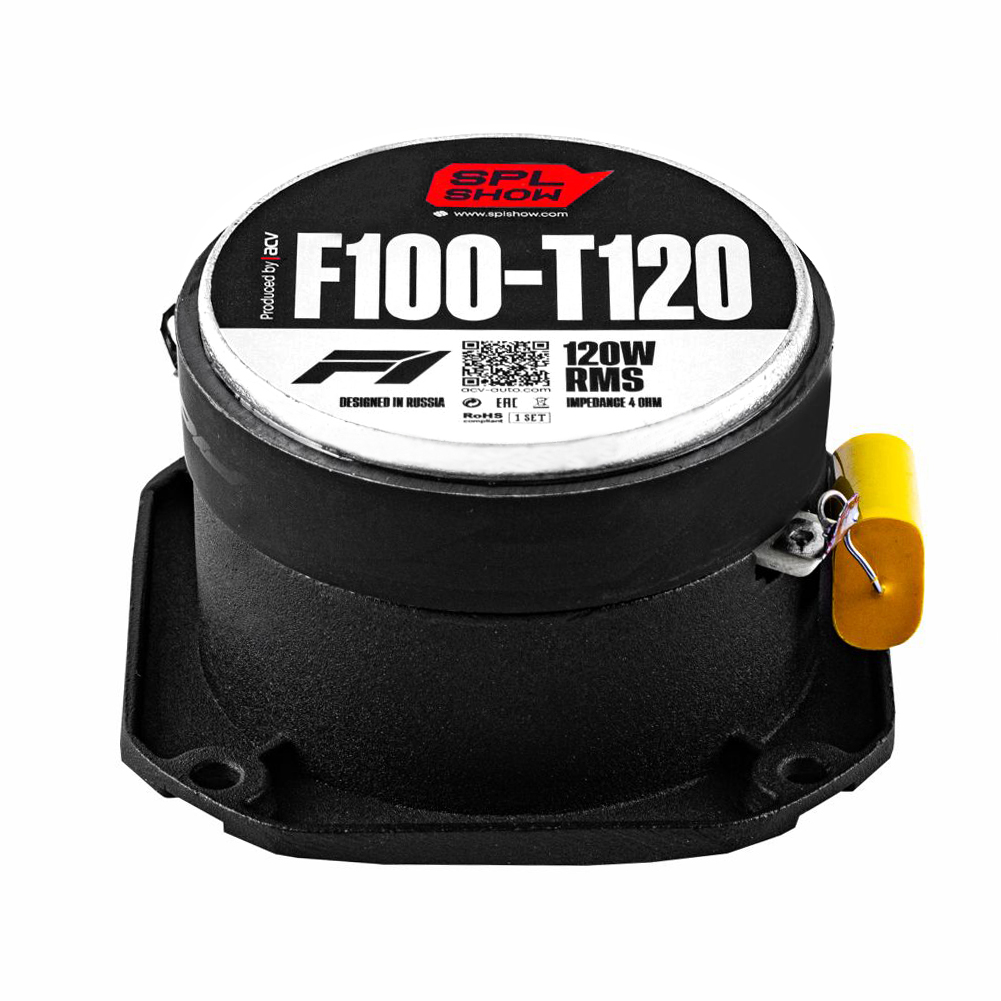

F100-T120 is the anodized 25 mm die-cast aluminum tweeter for really loud high frequencies. Rated power 120W, the speaker has a double performance margin, so it copes with intense and prolonged loads. The F1 series is distinguished by its unbeatable price and memorable new design. The F100-T120 tweeter is excellent for continuous SPL loads.
The tweeters are equipped with high density ferrite magnets and are housed in anodized die-cast aluminum bodies. The ultra-lightweight aluminum diaphragm delivers superior treble, making them loud, clear and detailed.
With a high sensitivity of 106dB, these tweeters provide an amazing SPL. Frequency range 3500-20000 Hz, nominal impedance 4 ohms.
High sensitivity and superb punch due to the special speaker construction.
Super lightweight voice coil wounded with flat aluminum wire on KSV former for unheard-of thermal and mechanical capability.
Significant efficiency of magnetic system under high SPL loads.
High-strength material that is not subject to corrosion, which retains its stability at high temperatures and contributes to high-quality reproduction of the entire high-frequency spectrum without distortion.
Specifications
Sound reproduction
- Installation depth: 45 mm
- RMS power: 120W
- Sensitivity: 106 dB
- Impedance: 4 ohms
Model features
- Voice coil: Flat aluminum wire wound, 25 mm
- Membrane: Ultra-light aluminum membrane, D25 mm
- Magnet: High-density ferrite magnet
- Frequency range: 3500-20000 Hz
General details
- Speaker size: 3.4" (8.6 cm)
- Basket: Die-cast aluminum with anodized finish
- Mounting hole diameter: 72 mm
- Installation depth: 45 mm
- Overall depth: 51 mm
- External diameter: 86 mm
SPL SHOW F100-T120 Manual.pdf
