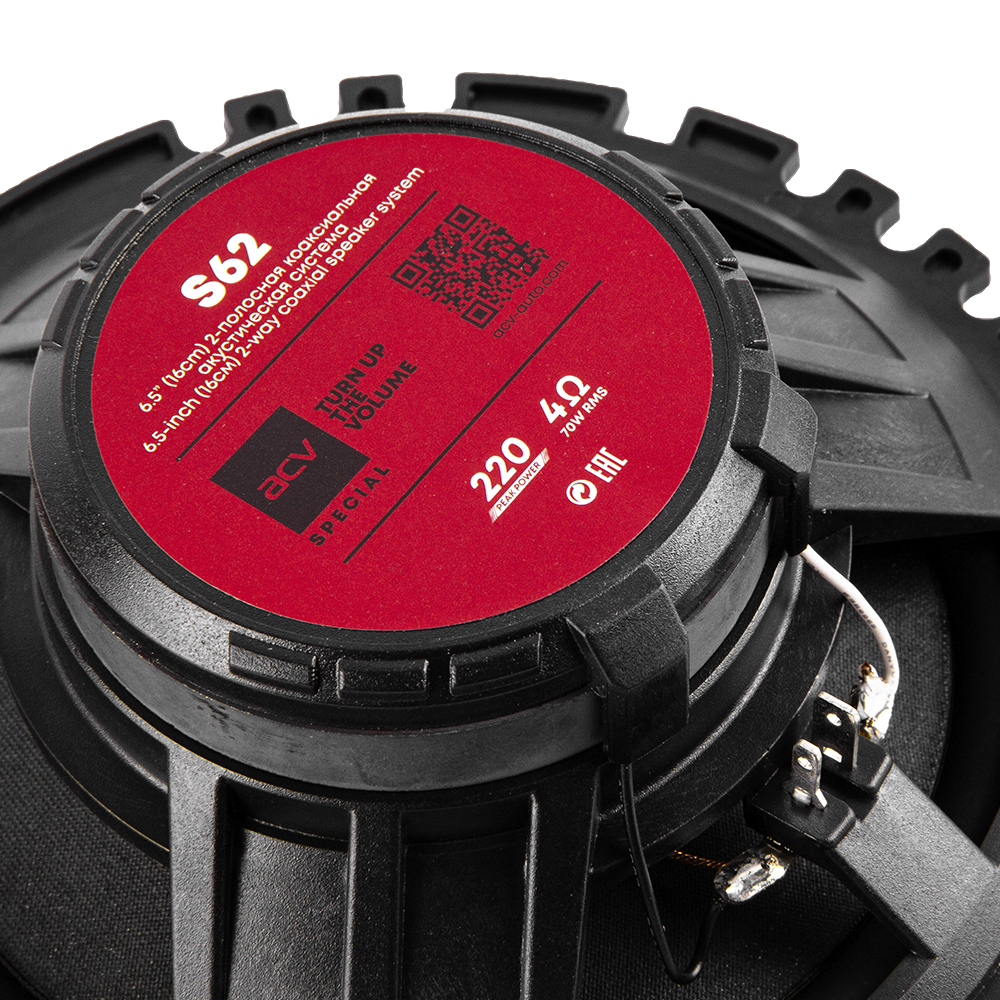

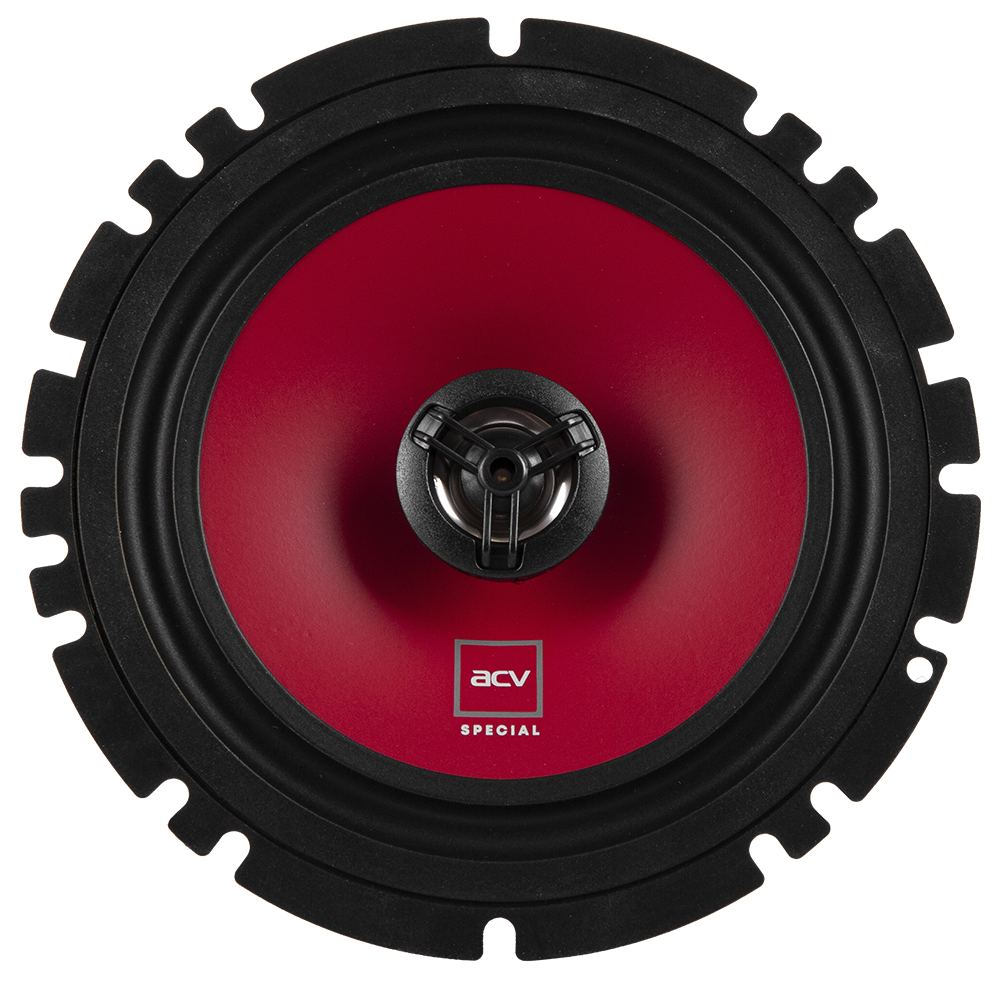

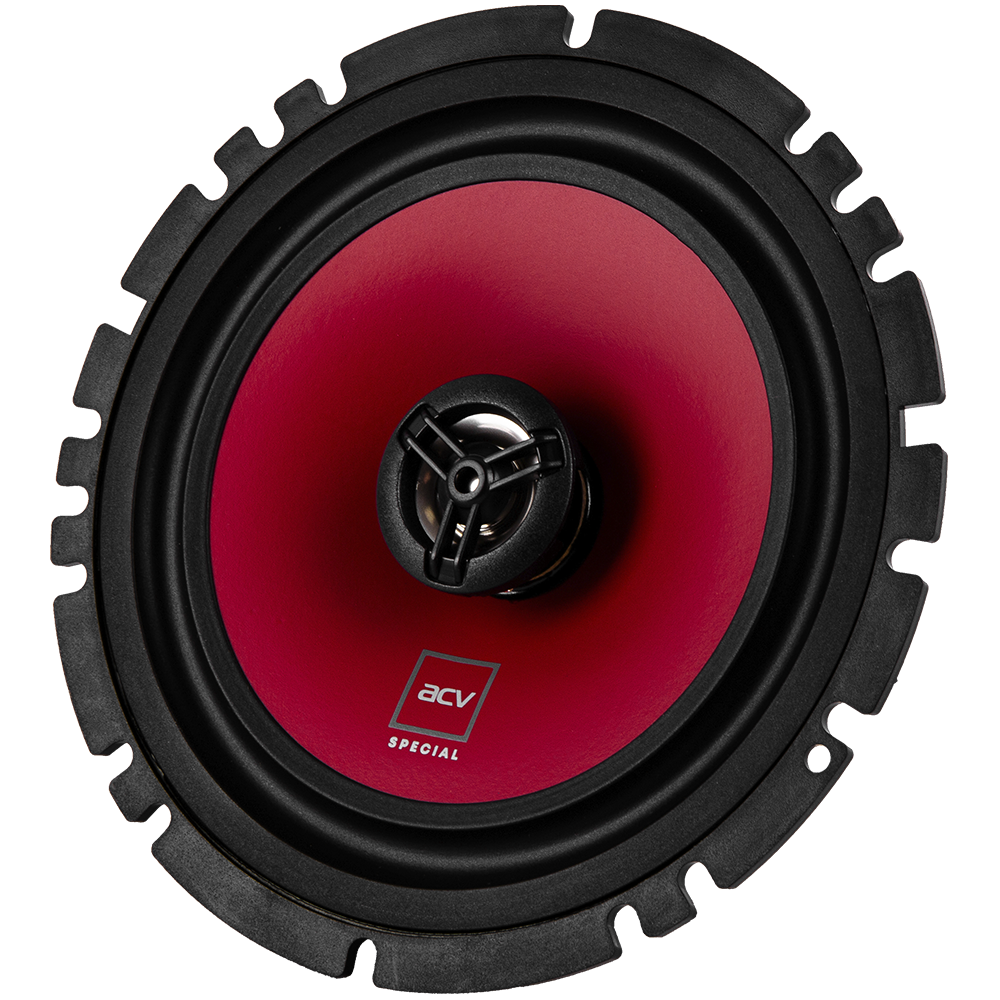

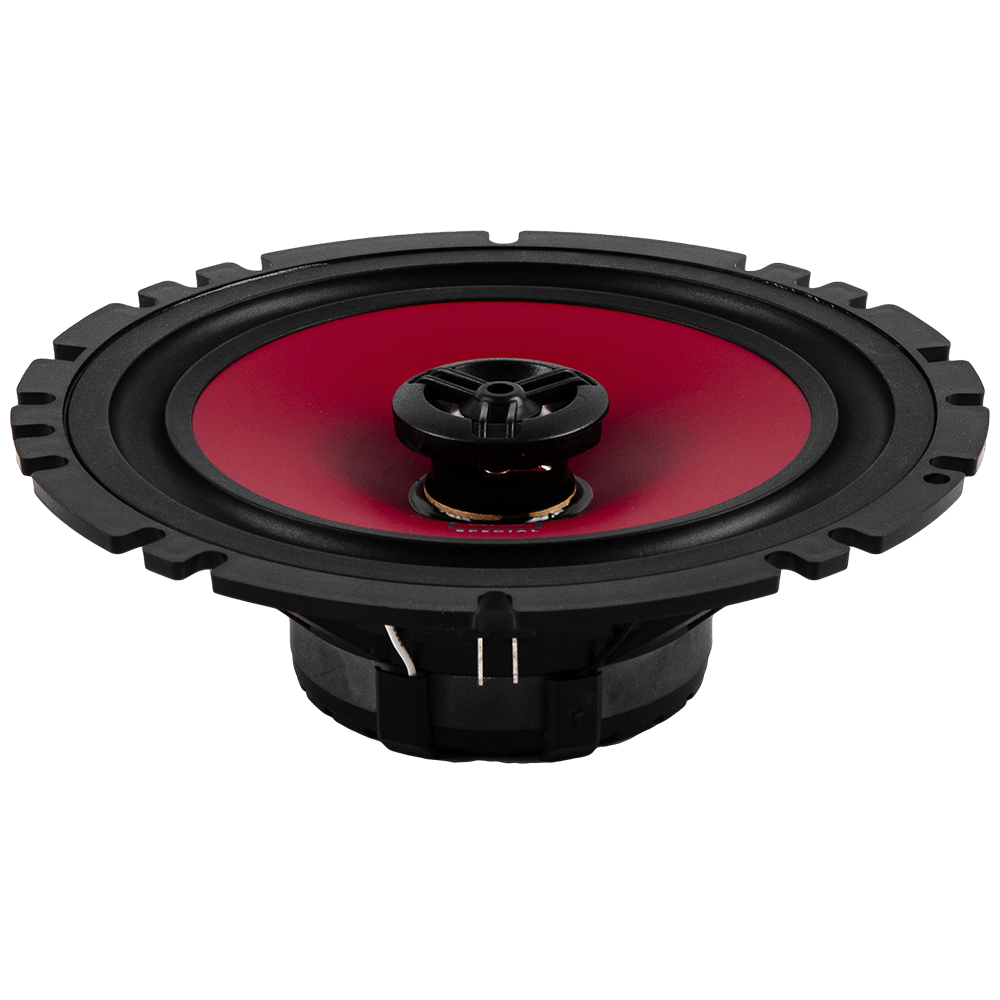

Coaxial acoustics 6.5" 220 W
S62
The SPECIAL series coaxial speakers boast superior sound quality and wide compatibility with a variety of vehicles. These speakers boast easy installation, affordable price, and excellent performance.
The ACV SPECIAL series acoustic system is a high-quality SQ series, created using modern materials and technologies to achieve smooth and accurate sound across the entire frequency range. This series is ideal for quickly and effectively upgrading your car's factory audio system, significantly outperforming most factory systems. Its compact size and wide compatibility make ACV SPECIAL a universal solution for a variety of vehicle models.
The ACV S62 coaxial 2-way 16.5cm speaker system features long-fiber structured cellulose cones with a rubber surround, which ensure rigidity and optimal damping, and also improves reproduction accuracy. Powerful neodymium magnets with Mylar-titanium balanced domes built into the tweeters deliver bright, clear, and detailed sound at any volume. The high-tech polymer basket minimizes resonance and facilitates installation, while the 70W nominal power ensures reliable operation over a wide frequency range from 60 Hz to 20 kHz. By choosing the ACV SPECIAL series of speakers, you get the perfect combination of advanced technology, high-quality sound, and universal compatibility, which guarantees a noticeable improvement in your car's audio system and maximum listening pleasure.

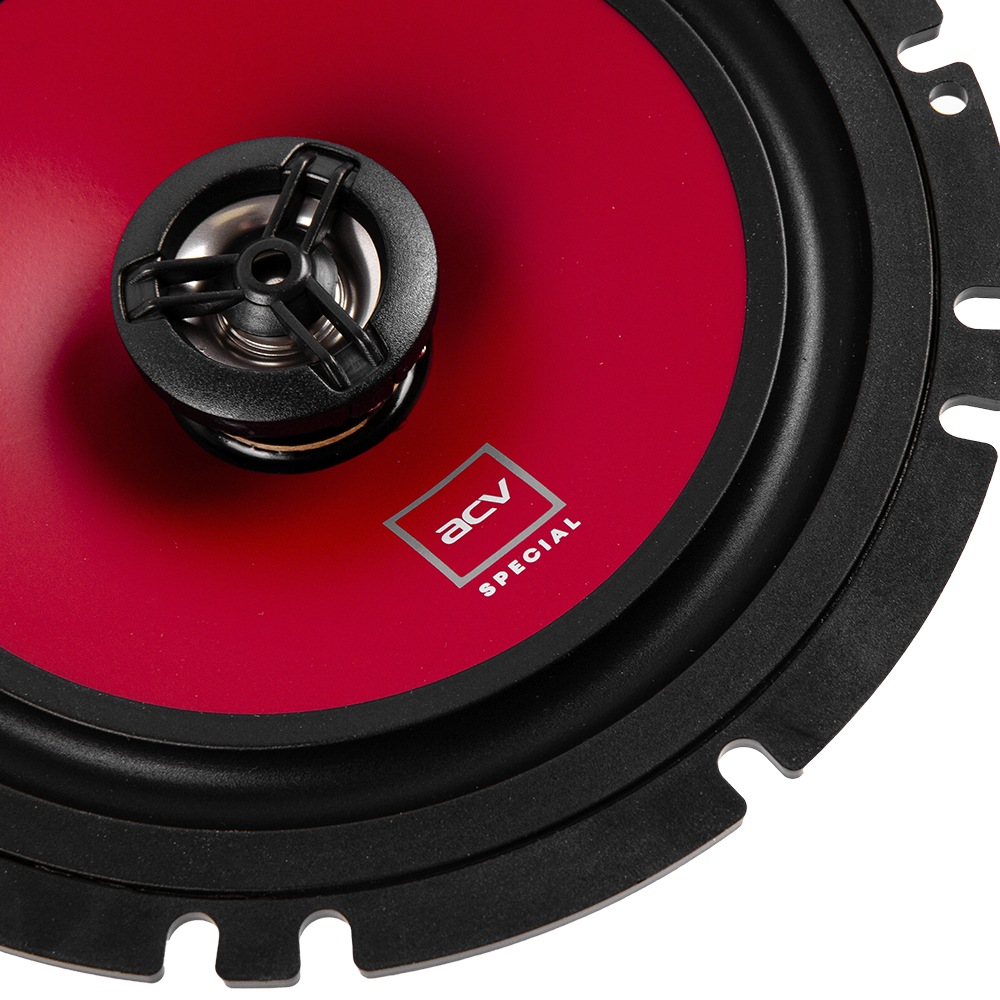

Built-in tweeters with powerful neodymium magnets and Mylar-titanium balanced domes deliver bright, detailed, and clear sound at any volume.
The series' cones are made from long-fiber structured natural cellulose, which makes them rigid and optimizes their internal damping. The result is exceptionally stable, lightweight cones that deliver incredible sound fidelity.

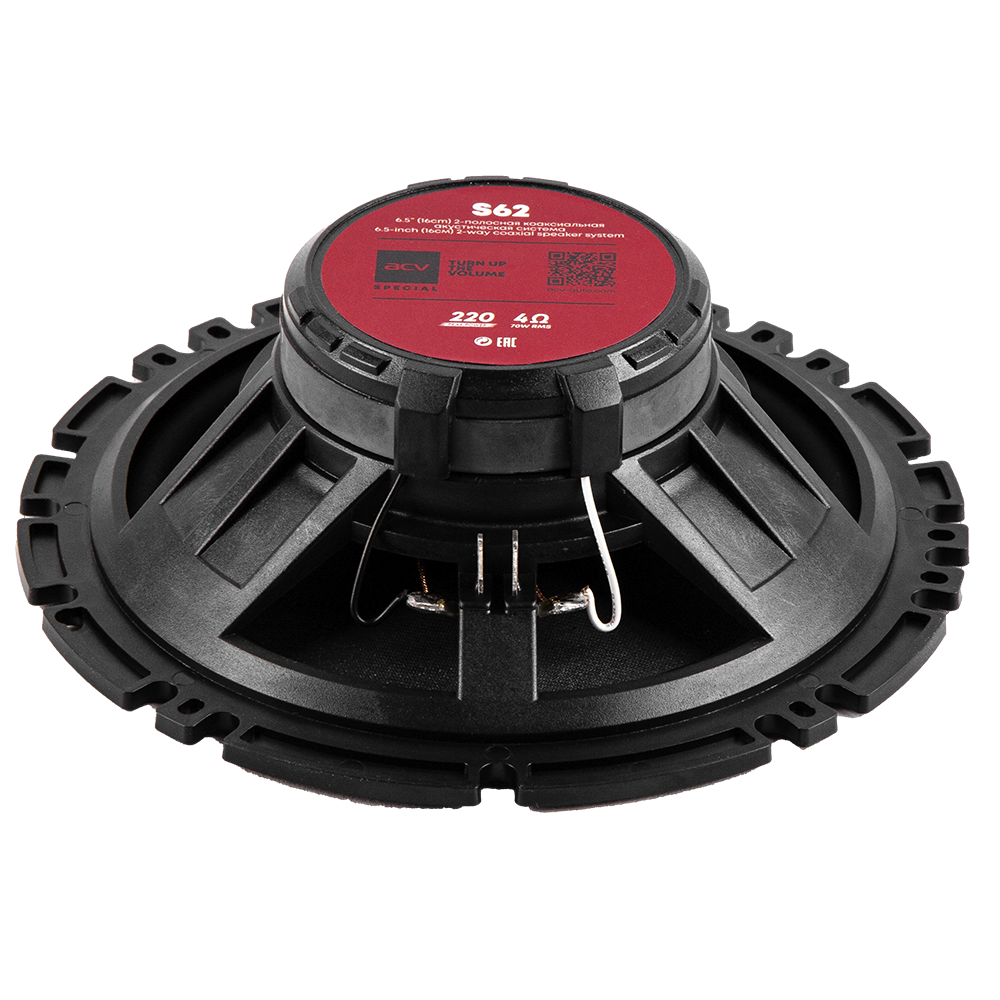

SPECIAL speakers use a state-of-the-art composite basket, which minimizes resonance, increases system stability, and significantly simplifies installation thanks to its compact size.
Wide compatibility with various vehicle brands thanks to the series' compact size.
Specifications
- Size: 6.5inch (16.5cm)
- Type: 2-way
- Rated power (RMS): 70 W
- Rated power (total): 80 W
- Minimum power: 40 W
- Peak power: 220 W
- Impedance: 4 Ohm
- Frequency range: 60 Hz– 20 kHz
- Sensitivity: 92 dB/W/m
- Voice Coil: ⌀25mm, KSV
- Cone material: long-fiber natural pulp with rubber edge
- Magnet material: Woofer: Ferrite; Tweeter: Neodymium
- Tweeter dome: Mylar-titanium balanced cone
- Diameter / Installation Diameter: 165mm / 139mm
- Installation depth: 46,5 mm

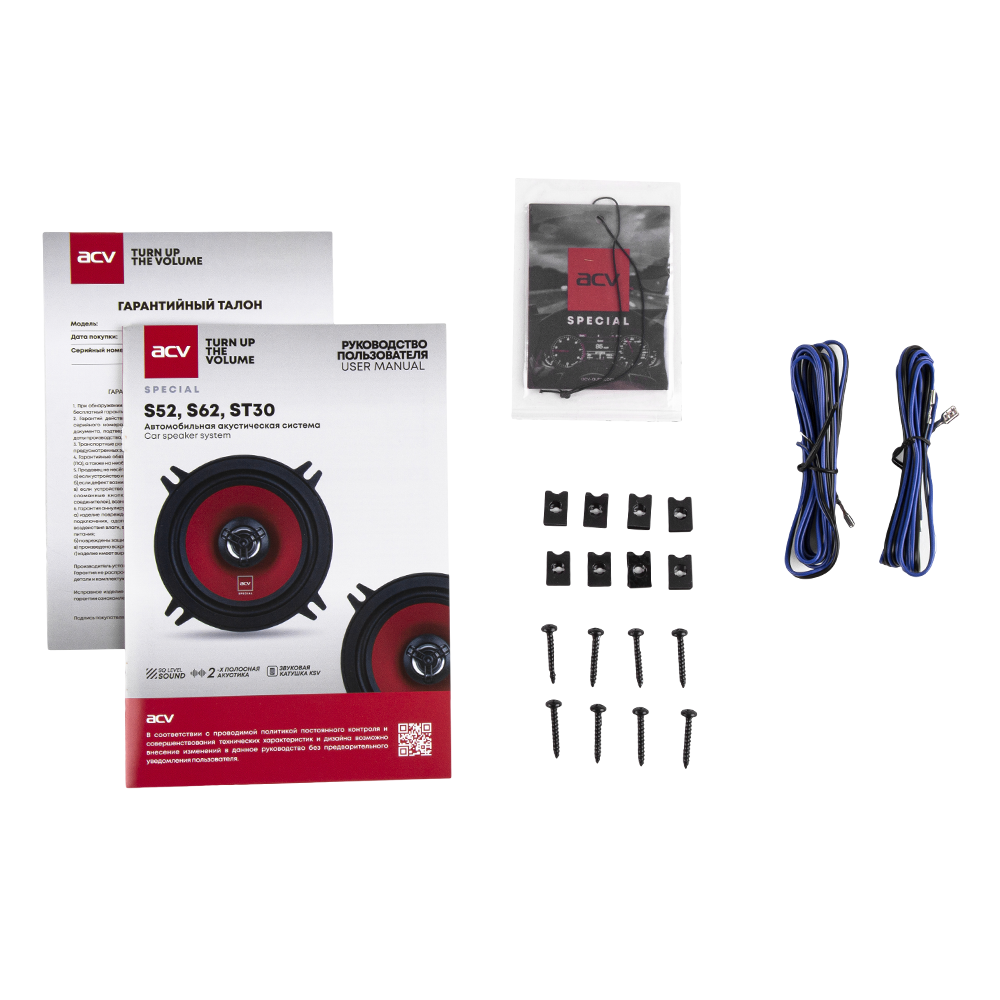

S52, S62 ACV SPECIAL Manual.pdf
