Tweeter 30 mm 280 W
ST30
Compact 30mm tweeters deliver superior sound quality. They feature 13mm voice coils, Mylar-titanium balanced domes, and neodymium magnets. These tweeters deliver clarity, transparency, and detail.
The ACV SPECIAL series high frequency system is an SQ level acoustic system designed using advanced materials and technologies to achieve purity and accuracy of the upper range of audio frequencies. These tweeters are ideal for a quick and high-quality upgrade of your factory audio system, significantly surpassing most factory systems in sound clarity and detail. Thanks to their high quality and innovative solutions, the SPECIAL series delivers unrivaled in-car sound.

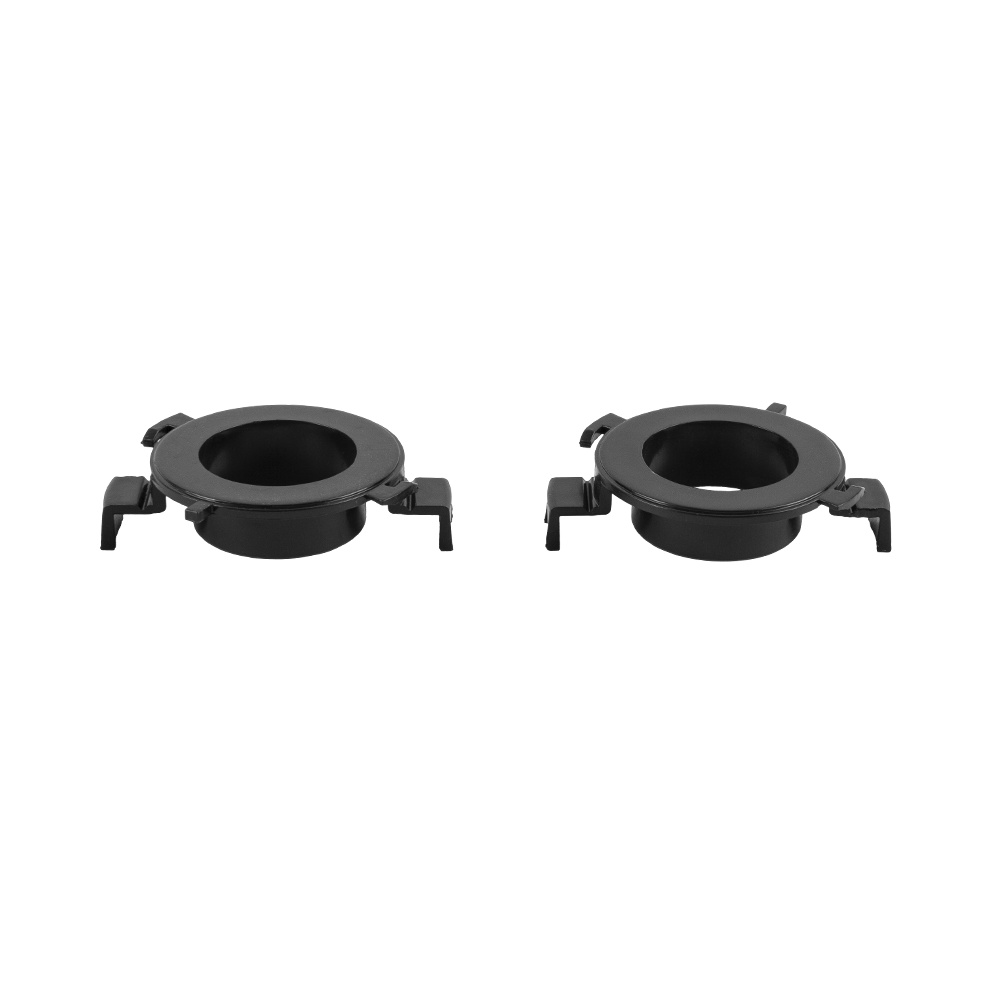

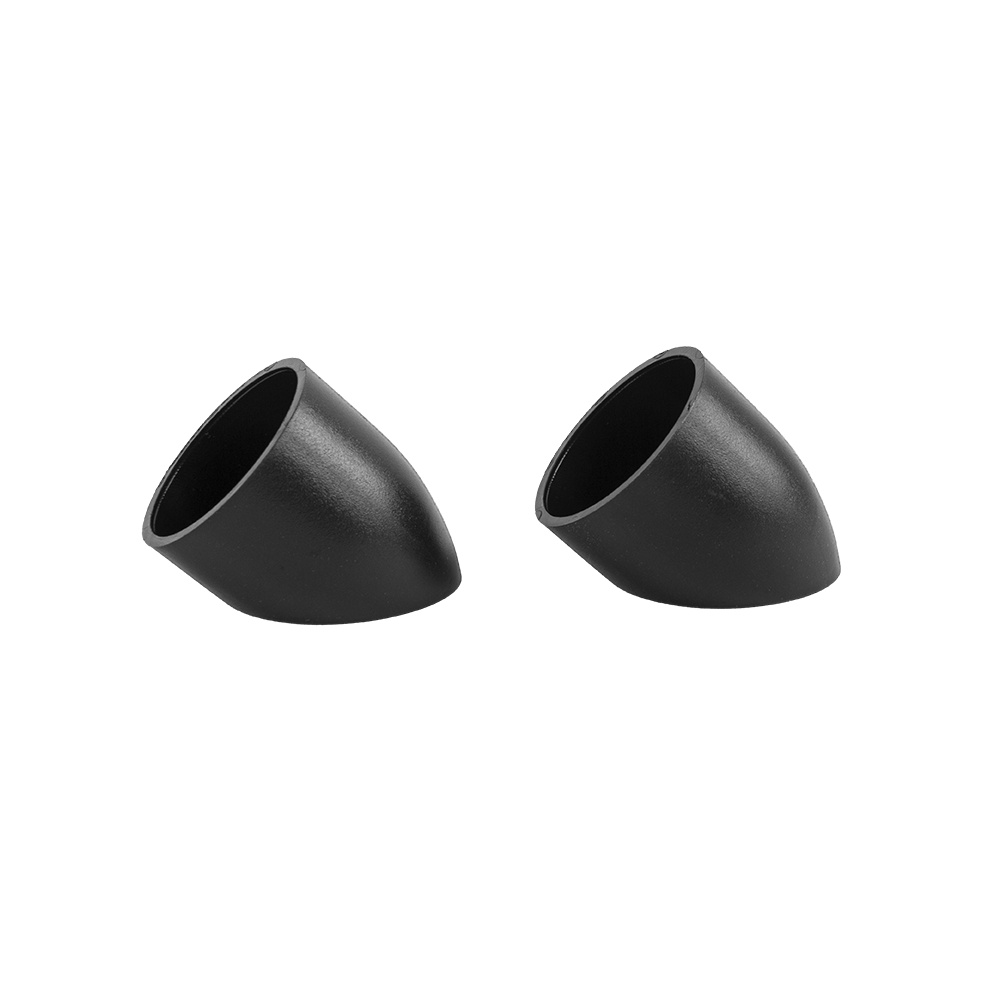

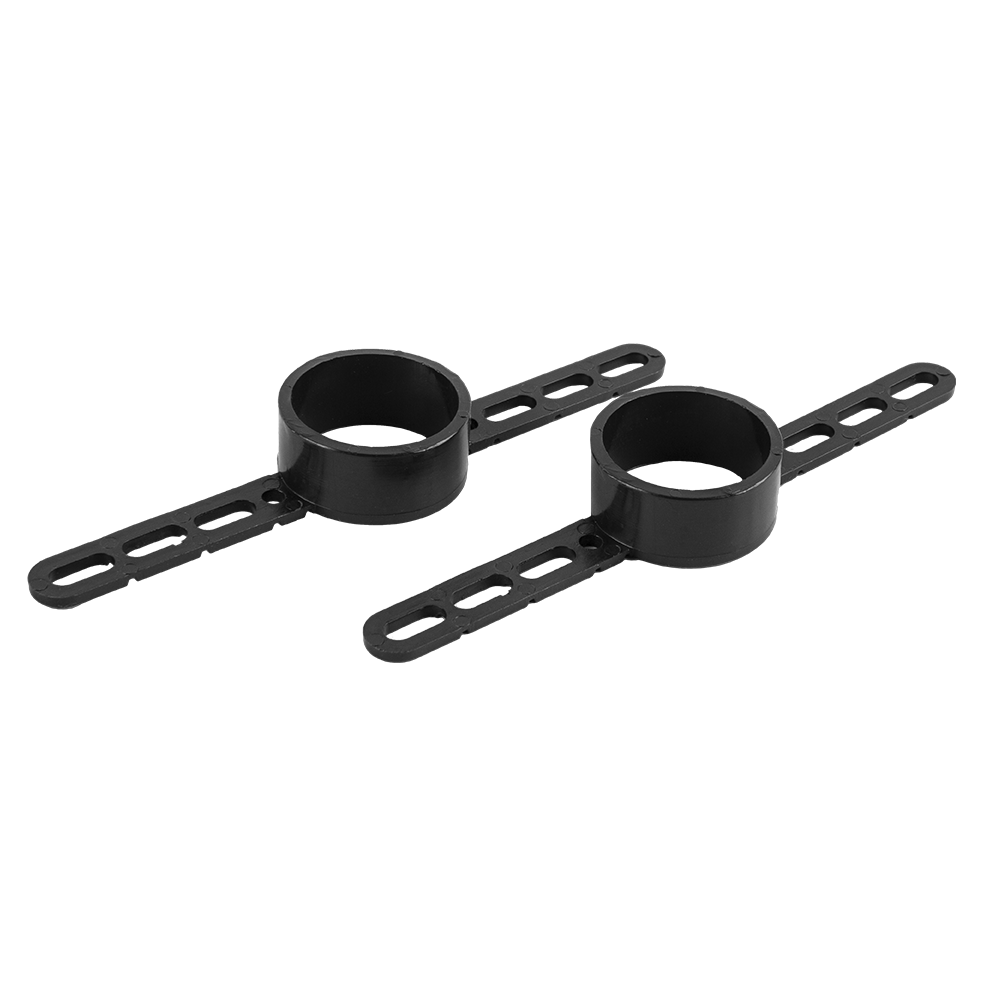

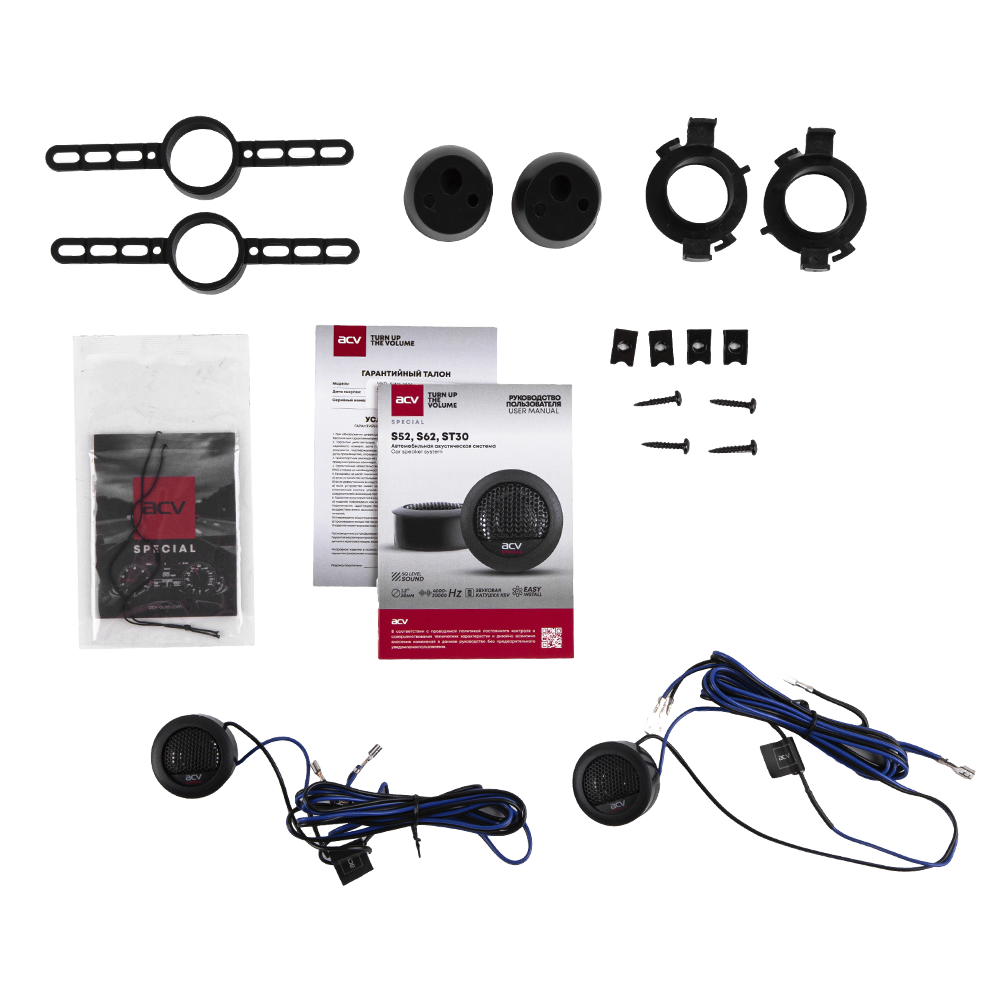

The ST30 tweeters feature Mylar-titanium balanced domes and powerful neodymium magnets, delivering bright, detailed, and clear sound at any volume. Compact dimensions and easy installation thanks to a set of adapters allow them to be installed in almost any car without any difficulty. The high-tech polymer housing minimizes distortion and improves stability, while the built-in passive crossover ensures optimal frequency separation in the 4000–20000 Hz range at a power output of up to 45 W RMS. By choosing ACV SPECIAL ST30 tweeters, you get a compact, technologically advanced, and high-quality solution that will significantly improve the detail and clarity of your car audio system, providing comfortable and accurate reproduction of high frequencies.
Tweeters with Mylar-titanium balanced domes and powerful neodymium magnets deliver bright and accurate sound at any volume.
The tweeters in this series are compact enough to be installed in virtually any vehicle without any extra effort.
SPECIAL speakers use a state-of-the-art composite enclosure that minimizes distortion, increases system stability, and significantly simplifies installation thanks to its compact size.
Specifications
- Size: 1,2-inch (30mm)
- Type: component tweeters
- Dome material: Mylar-titanium, balanced
- Rated power (RMS): 45 W
- Minimum power: 20 W
- Peak power: 280 W
- Impedance: 4 Ohm
- Frequency range: 4000 – 20000 Hz
- Sensitivity: 88 dB/W/m
- Built-in passive crossover (-6dB/oct)
- Magnet: Neodymium
- Voice coil diameter: 13mm
- Installation Diameter: 30mm
- Outside diameter: 30mm
- Installation depth: 17,5 mm
