PB6.2SQ V2 - is the component set of SQ level, equipped with cones of top-notch material, the system has perfect balance of TS parameters. Neodymium silk tweeters of the system have the optimum sound emitting surface, which allows to reproduce high frequencies. The component system can reproduce wind, string instruments, vocal and play deep bass without distortions. PB-6.2SQ V2 was developed in order to any listener can experience a full range of sound frequency with complete details of musical compositions without exceptions. The installation is quite simple and the system will be suitable for most cars. To open full potential of the speaker system it is recommended to use it in tandem with car amplifiers of ACV brand. Component acoustics with high-quality crossovers 12 dB/oct and rated power 60W. With the speaker set you will significantly improve the sound of your car system. When developing the model, current user requests and the latest technologies were taken into account, thanks to which German engineers managed to create a high-quality product at an affordable price in this segment.

CONSTRUCTION FEATURES

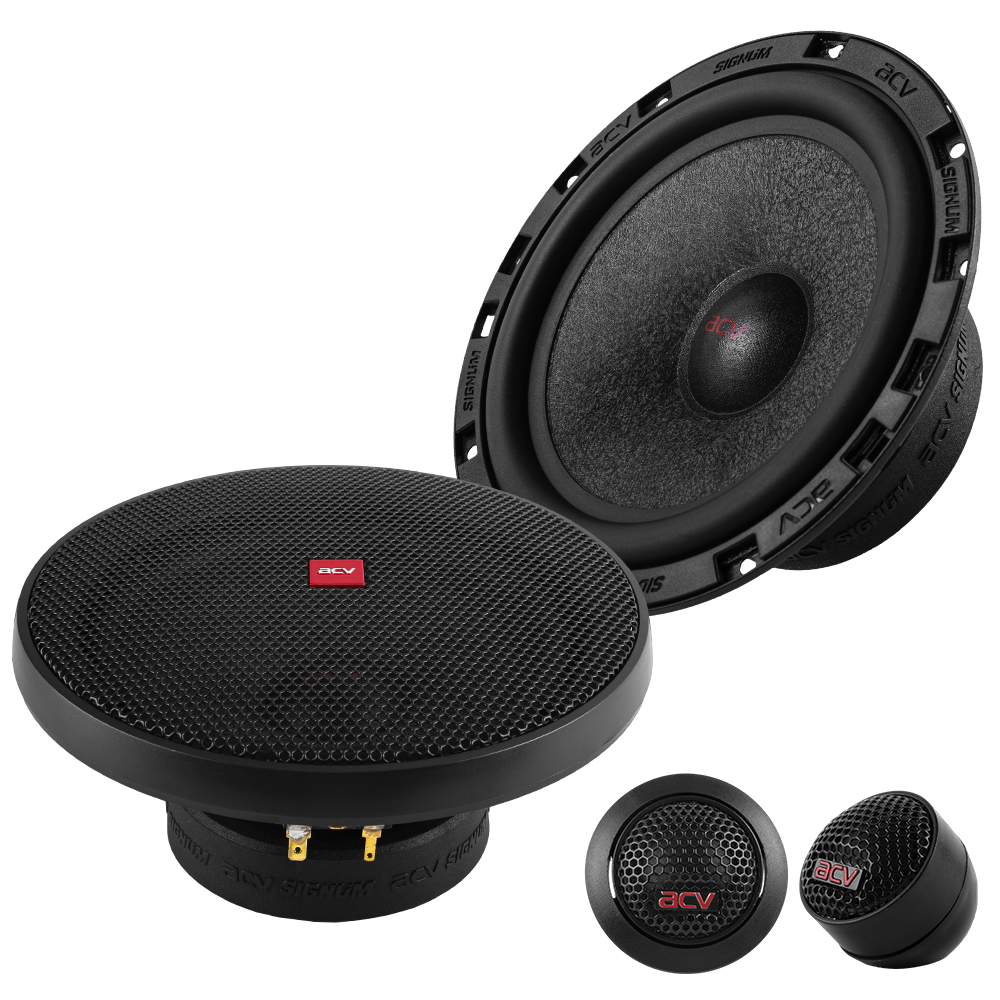

The 6.5-inch component set features midbass speakers, tweeters and crossovers. The premium paper cone with reinforced cotton membrane is equipped with a high-quality butyl rubber surround, a KSV voice coil inside and a high-density Y35 class magnet. The basket is made of steel, robust and reliable. 25mm silk tweeters equipped with high-quality neodymium magnets.

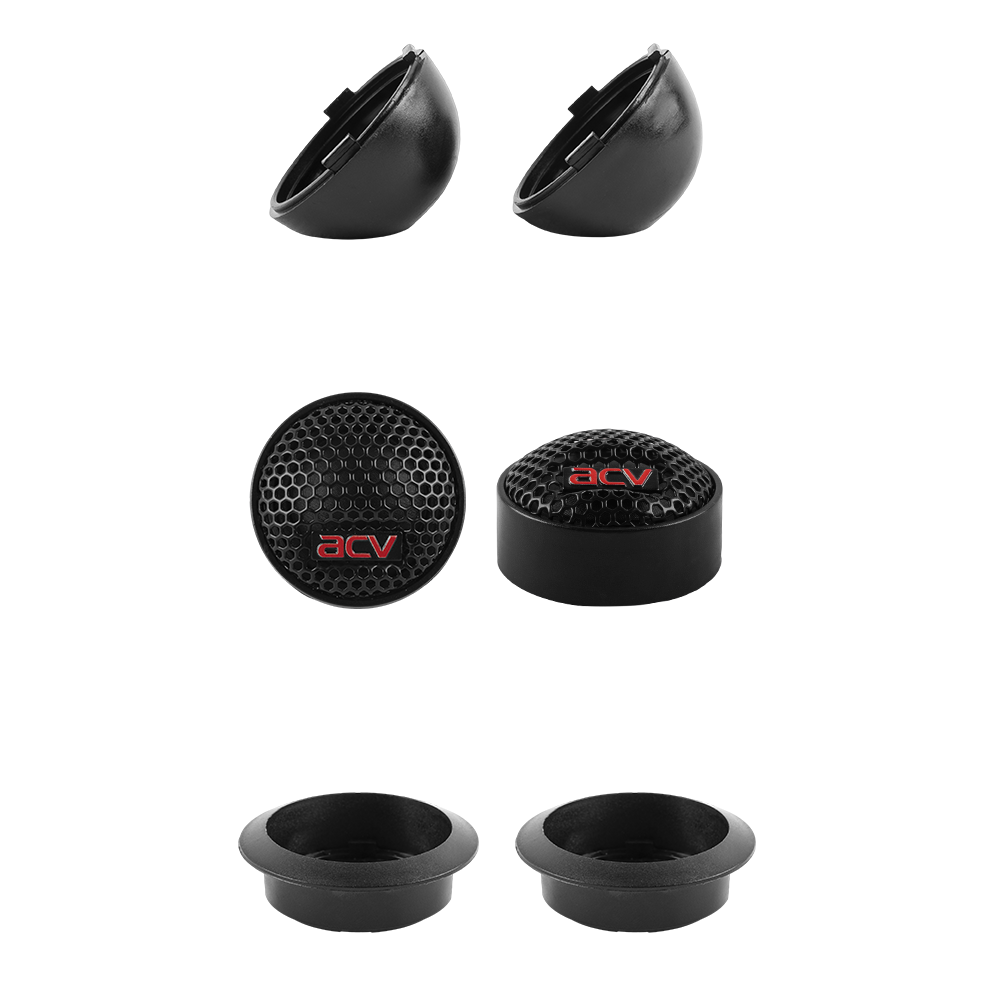

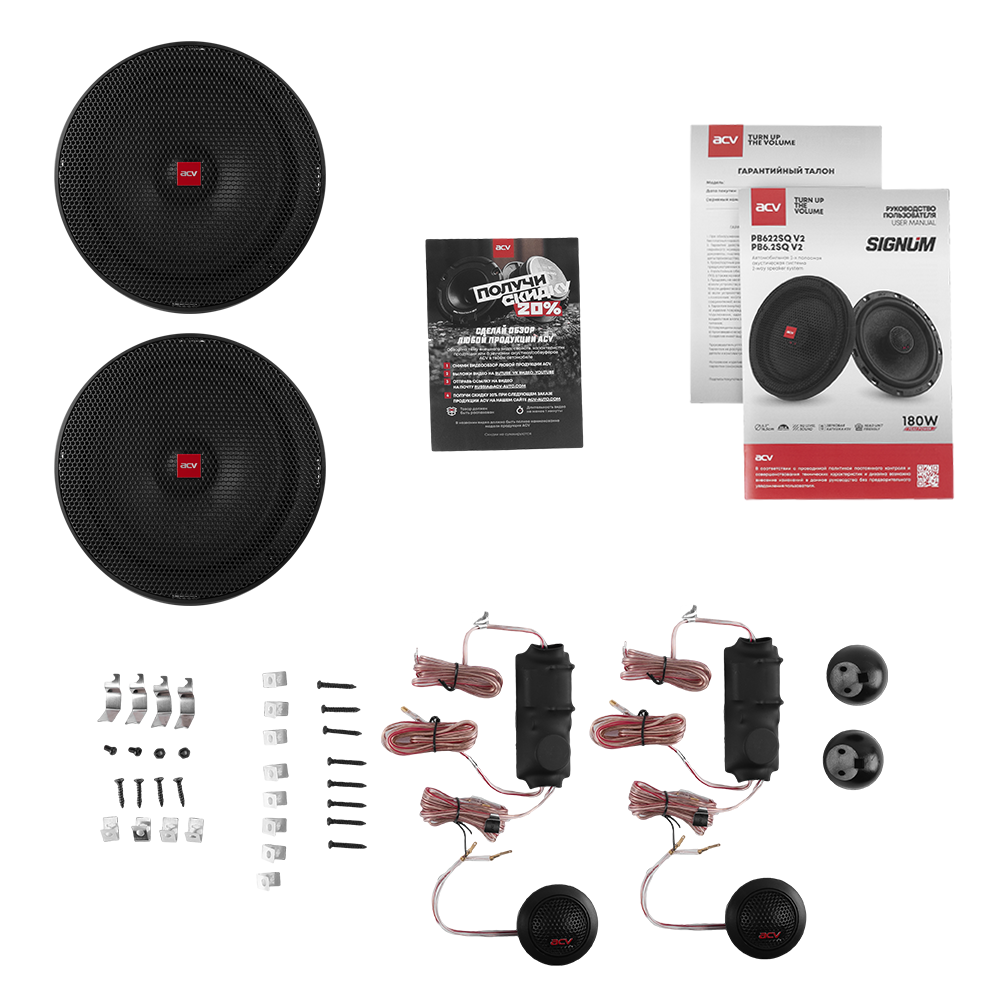

The speakers set reproduces 50Hz-20000Hz frequency range, delivering deep and high-quality sound of any style of music. The speaker system has a good sensitivity of 93dB/W/m, even at low volumes you will feel the acoustic beauty of melodies and songs. The kit includes adapters for possible tweeters installation on surface or angled-mount as well as the user manual with a detailed diagram of connecting the whole set. The speaker system impedance is 3 Ohm which makes it ideal choice if you have an original car head-unit without additional car amplifier.

High Density Flux Ferrite
High-density ferrites are used in the system design. The system mobility, linearity and power are possible due to the premium magnets of class Y35. The parameters of the entire system, including the magnets, were developed and optimized using the high-precision CLIO system (CLIO is Audiomatica's Italian equipment for electro-acoustic measurements and the development of SQ / High-End loudspeaker systems).

Paper cone with Fiber-reinforced membrane
The premium pressed cellulose cone with fiber reinforced membrane provides the perfect balance of weight, stiffness and damping. The structure of the cones allows MF/LF loudspeakers to play very detail, efficient and give maximum comfort and a lot of positive emotions during use.

KSV Voice Coil
The high temperature KSV voice coil greatly increases the performance and life of the speakers. The KSV voice coil allows you to get the best sound possible and high power.

High Volume even from a car head unit
Speakers can play loud even with a car head unit without an extra amplifier.

Specifications

Sound playback

• RMS power: 70 W
• Peak power: 210 W
• Sensitivity: 93dB/W/m
• Impedance: 3 Ohm

Features of the model

• Voice coil: 30,5 mm, KSV
• Cone: pressed paper with reinforced fiber membrane
• Suspension: butyl rubber
• Magnet: Y35 grade high-density ferrite
• Frequency Range: 50Hz ~ 20000Hz

General details

• Number of ways: 2-ways
• Speaker size: 6.5" (16 cm)
• Basket: Steel
• Tweeter: 25 mm (1"), silk dome, neodymium magnet
• Crossover: 12 dB/oct
• Midbass mounting diameter: 143 mm
• Tweeter mounting depth: 65 mm
• Tweeter dome diameter: 25 mm
• Tweeter mounting hole diameter: 46 mm
• Tweeter mounting depth: 19 mm
