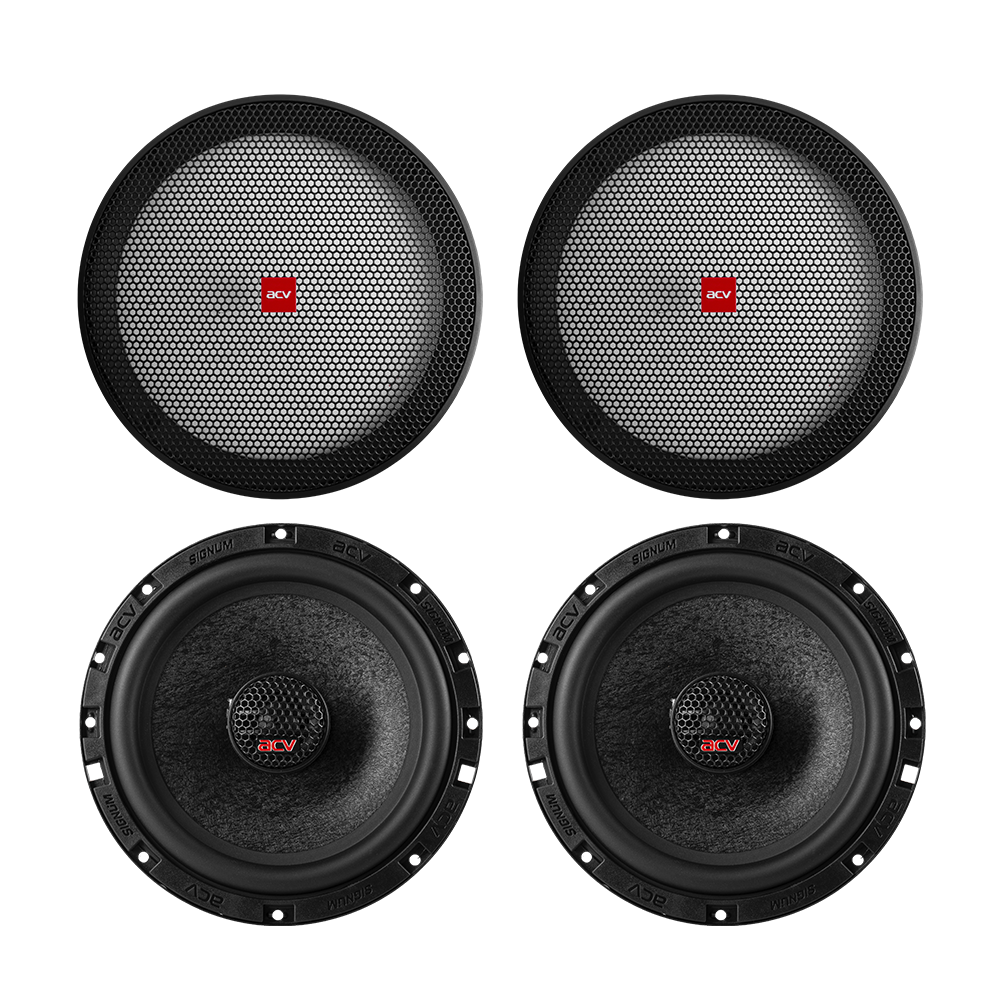

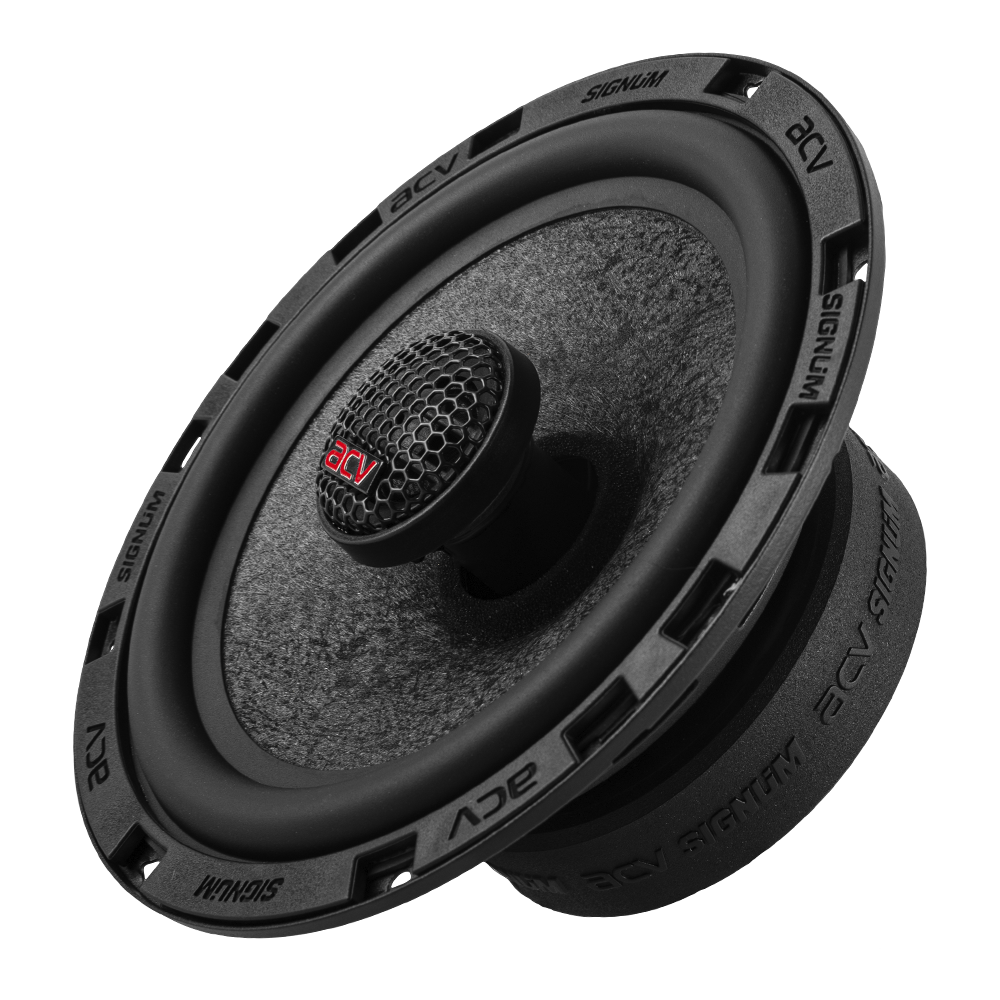

The PB622SQ V2 is a coaxial SQ-level speaker system equipped with next-generation cones for an ideal balance of TS parameters. The system's neodymium silk tweeters have an optimal radiation area, allowing them to reproduce high frequencies at their best. The system superbly conveys the sounds of brass, string instruments, and vocals, and delivers deep, distortion-free bass. The PB622SQ V2 was designed to deliver a full audio spectrum with maximum detail. The standard kit includes two speakers designed for in the front installation, but the coaxial system's applications are far more extensive. If needed, the system can be used in conjunction with component speakers, in which case the speakers can be installed, for example, in the rear doors or on the rear shelf of a vehicle.

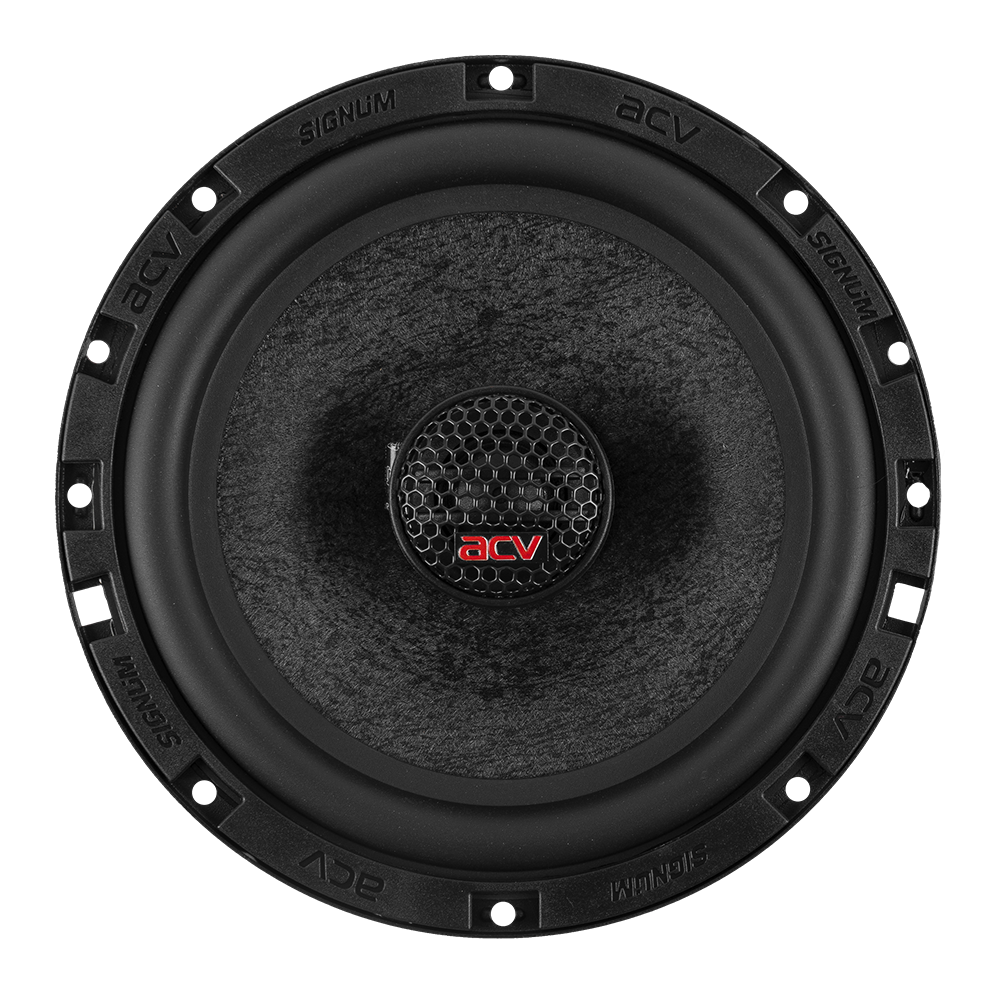

In a 2-way coaxial system, the woofers, midrange, and tweeters are positioned on the same level with the basket. Each speaker reproduces its own sound range, filtered by a built-in crossover. The speakers cover a wide frequency range of 50Hz-20,000Hz and boast a sensitivity of 94dB, excellent for their class.

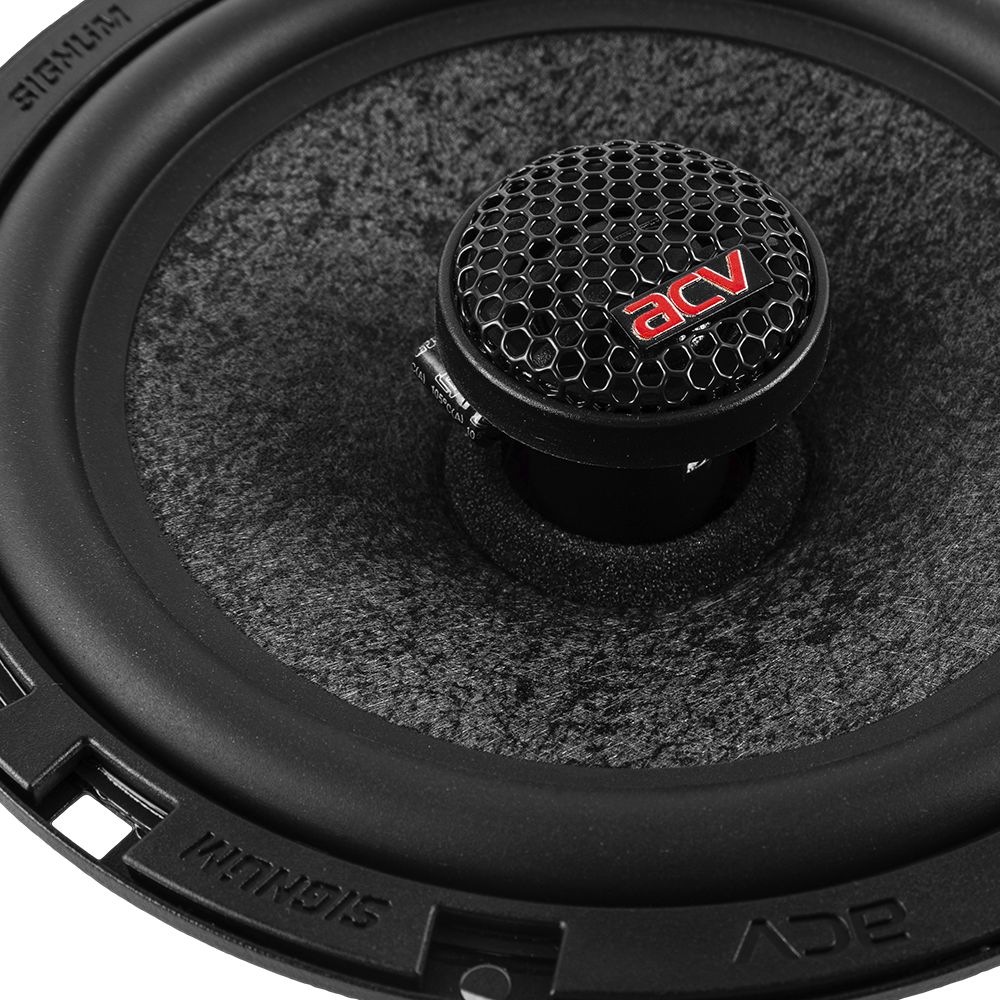

The speakers feature black cones made of premium cotton-fiber-reinforced cellulose, high-quality butyl rubber surrounds that provide sufficient range of motion for transmitting vibrations, a 30.5mm Kapton KSV voice coil, and 28mm silk tweeters. The use of a Kapton KSV voice coil former significantly increases the speaker's performance and lifespan. All components are housed in robust steel baskets. A system impedance of 3 ohms ensures high output when used with factory head units, even without an additional amplifier.

High Density Flux Ferrite
High-density ferrites are used in the system design. The system mobility, linearity and power are possible due to the premium magnets of class Y35. The parameters of the entire system, including the magnets, were developed and optimized using the high-precision CLIO system (CLIO is Audiomatica's Italian equipment for electro-acoustic measurements and the development of SQ / High-End loudspeaker systems).

Paper cone with Fiber-reinforced membrane
The premium pressed cellulose cone with fiber reinforced membrane provides the perfect balance of weight, stiffness and damping. The structure of the cones allows MF/LF loudspeakers to play very detail, efficient and give maximum comfort and a lot of positive emotions during use.

KSV Voice Coil
The high temperature KSV voice coil greatly increases the performance and life of the speakers. The KSV voice coil allows you to get the best sound possible and high power.

High Volume even from a car head unit
Speakers can play loud even with a car head unit without an extra amplifier.

Specifications

Sound playback

• Peak Power: 180 W
• RMS power: 60 W
• Sensitivity: 94 dB/W/m
• Impedance: 3 Ohms

Features of the model

• Voice Coil: 30.5 mm KSV
• Cone: Pressed Pulp with Fiber-Reinforced Diaphragm
• Surround Material: Butyl Rubber
• Magnet: High-Density Y35 Ferrite
• Frequency range: 50 Hz ~ 20,000 Hz
• General details
• Number of Ways: 2-Way
• Speaker Size: 6.5" (16 cm)
• Basket: Steel
• Tweeter: 28 mm (1"), Silk Dome, Neodymium Magnet
