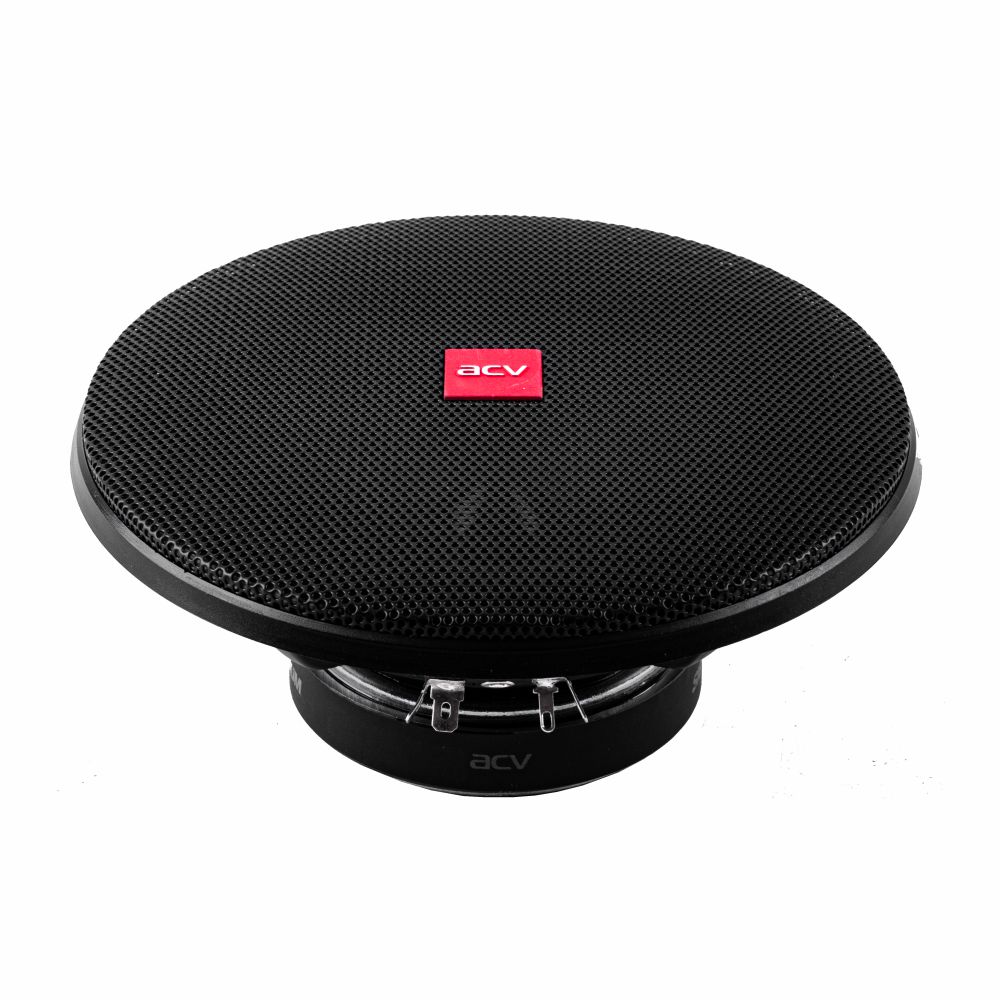

The ACV PB-60 V2 is a high-performance component speaker system equipped with coated paper cones. Its neodymium tweeters offer an optimal radiation area, allowing them to reproduce high frequencies at their best. The design of this speaker system took into account current user demands and modern technologies, allowing engineers to create a high-quality product at a budget price in this segment. The PB-60.2 V2 was developed to provide listeners with a full audio frequency spectrum. Installation is easy and suitable for most passenger cars. To fully utilize the speaker system's capabilities, it is recommended to use it in tandem with ACV amplifiers or car stereos.

Features of the construction

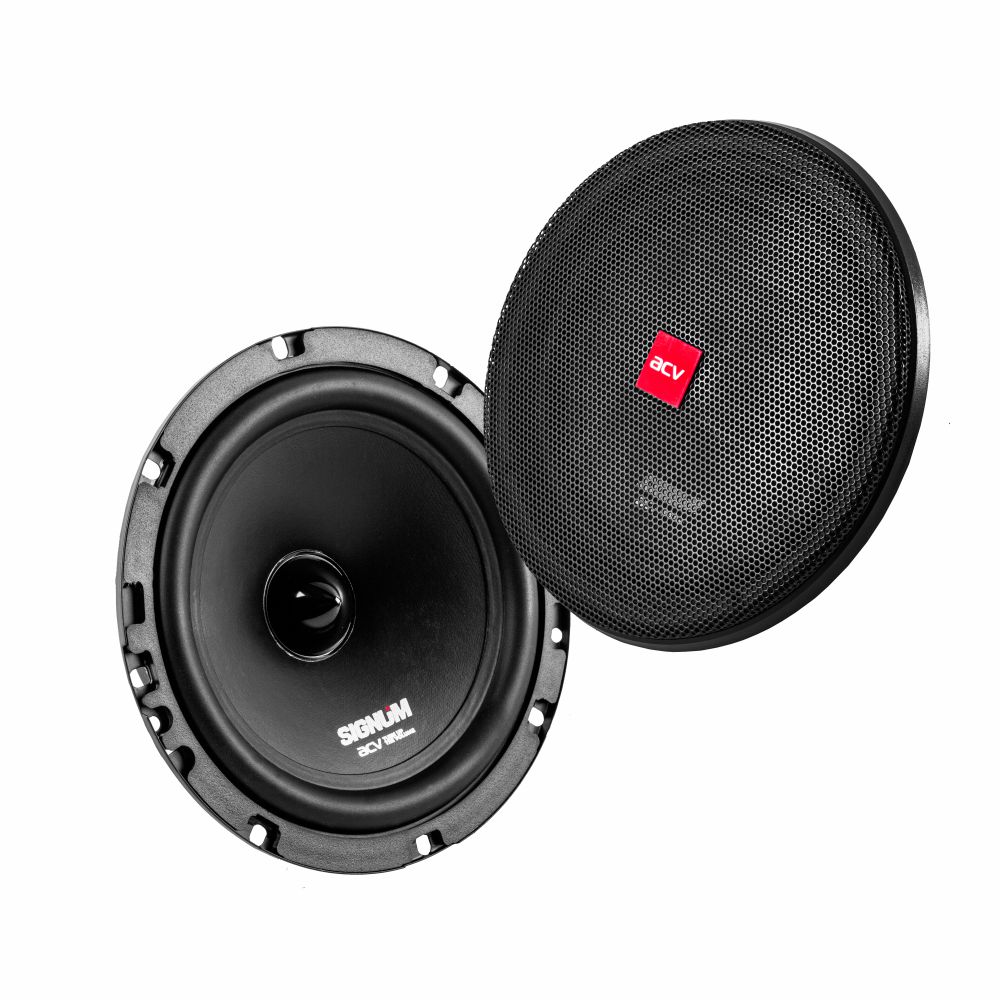

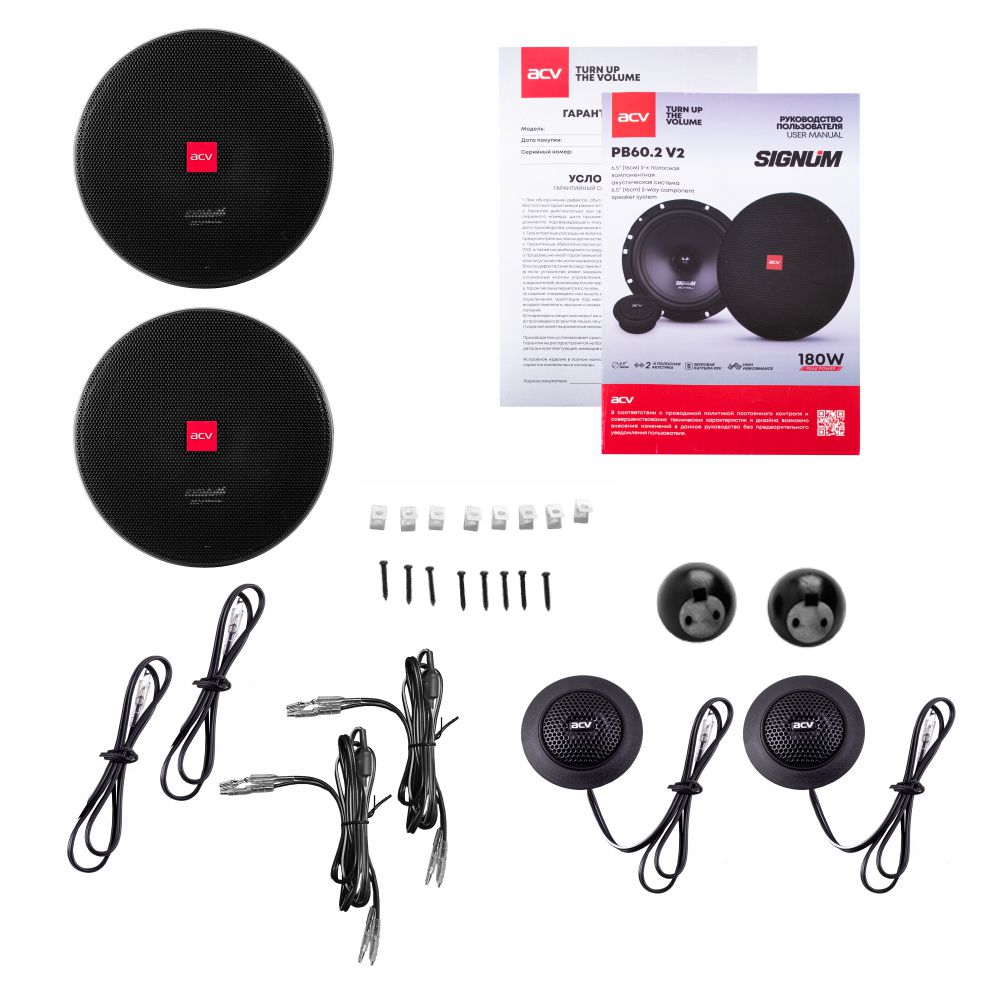

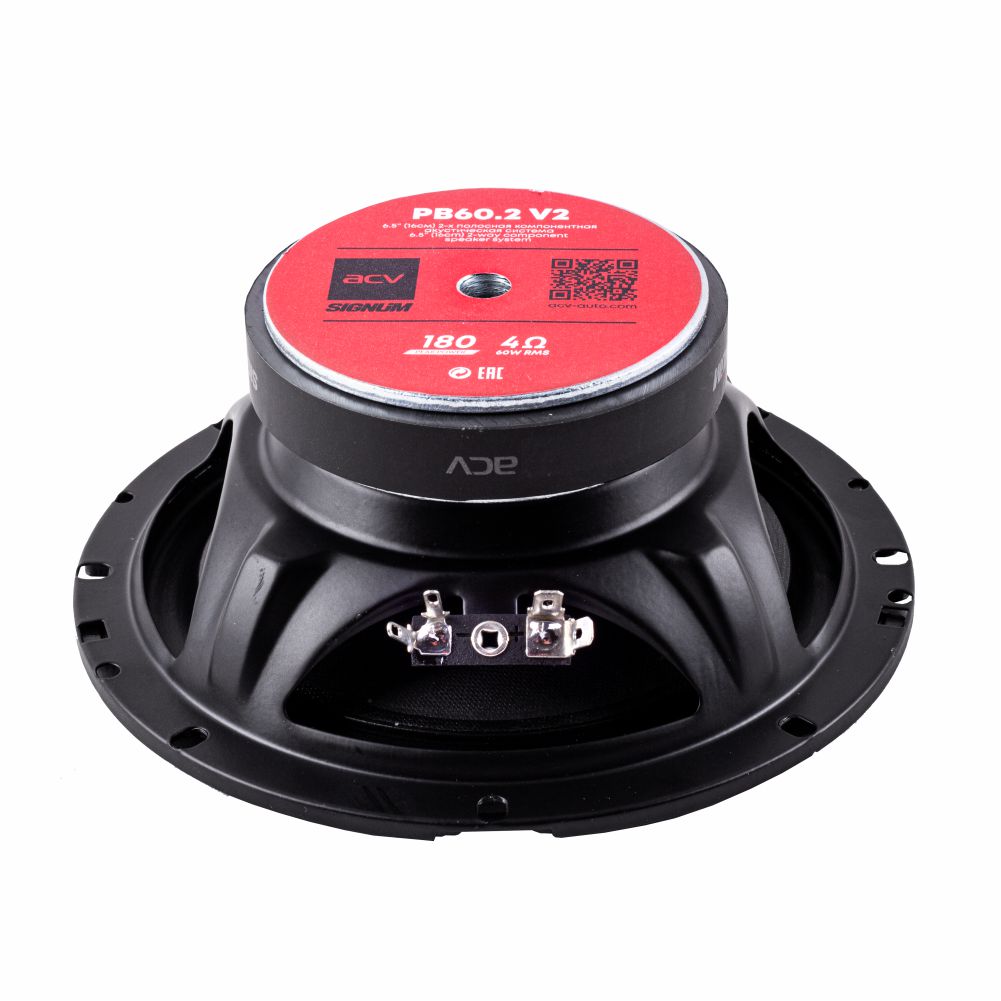

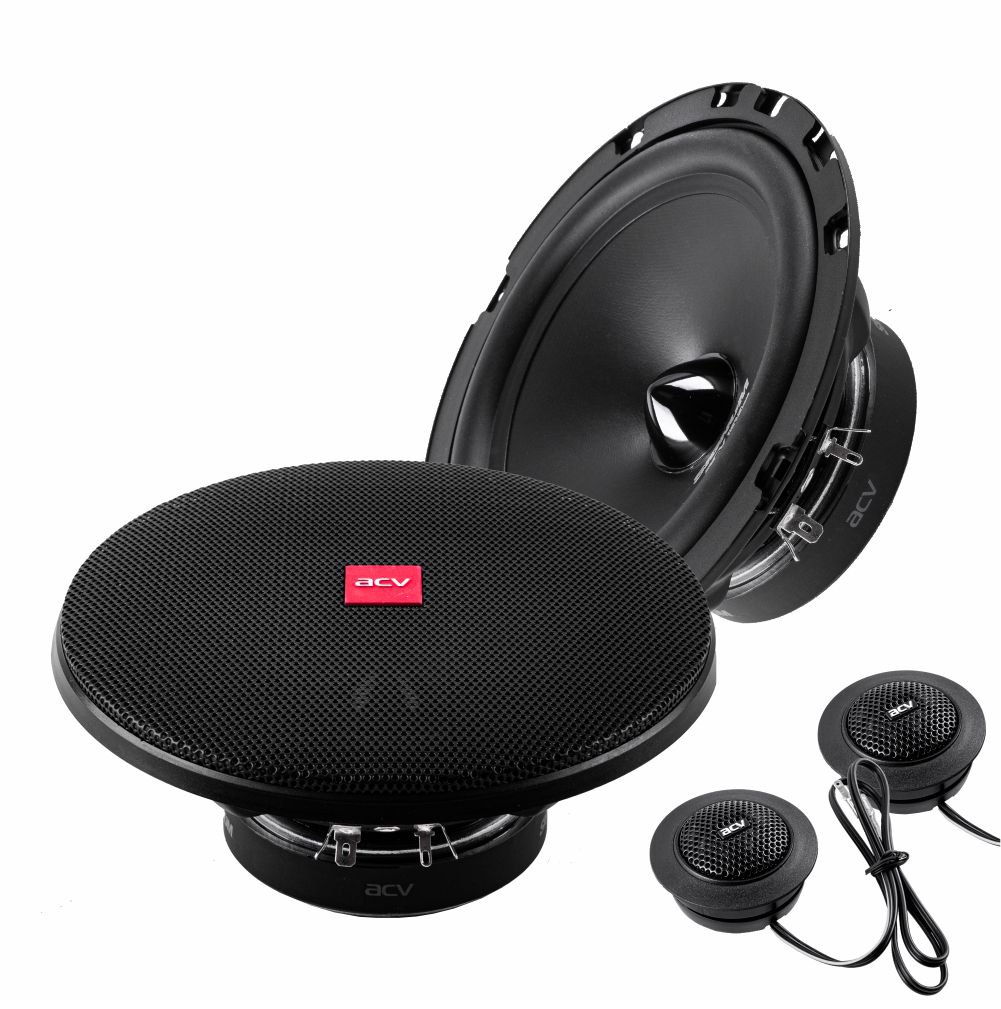

• The 6.5-inch speakers feature a set of woofers, tweeters with mounting adapters, and 3.3 µF capacitors on speaker wire for quick and easy connection. The paper cone is equipped with a rubber surround, a KSV (Kapton) voice coil, and a 10 oz magnet. The steel frame is lightweight and durable, and the polyetherimide tweeters feature neodymium magnets.
• The speakers reproduce a frequency range of 50 Hz to 20,000 Hz, delivering deep, high-quality sound for all styles of music. Version 2 has improved the sound quality of the components, ensuring that even at low volumes you experience the acoustic beauty of melodies and songs even more vividly and fully. A user manual with a detailed wiring diagram is included.

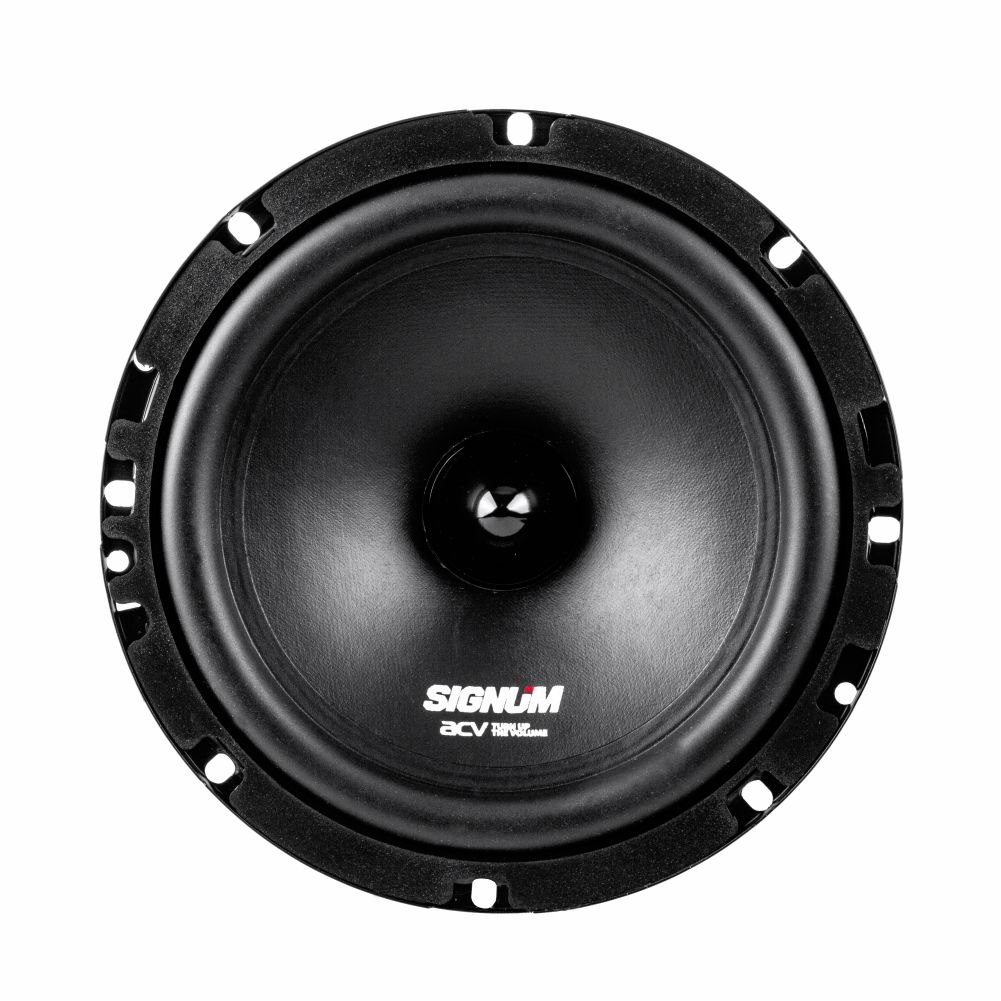

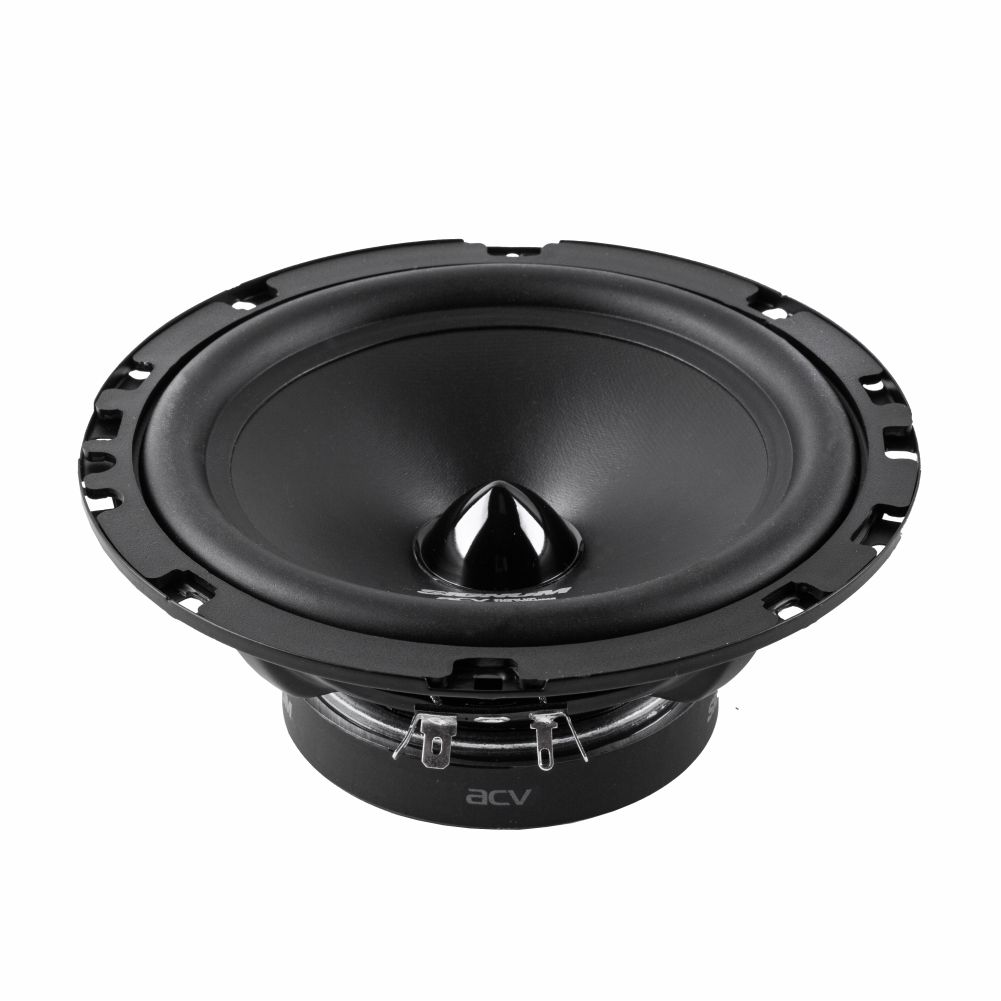

Paper cone with rubber surround
The pressed cellulose cone with rubber surround provides the perfect balance of weight, stiffness and damping. The structure of the cones allows MF/LF loudspeakers to play very detail and efficient.

Soft dome

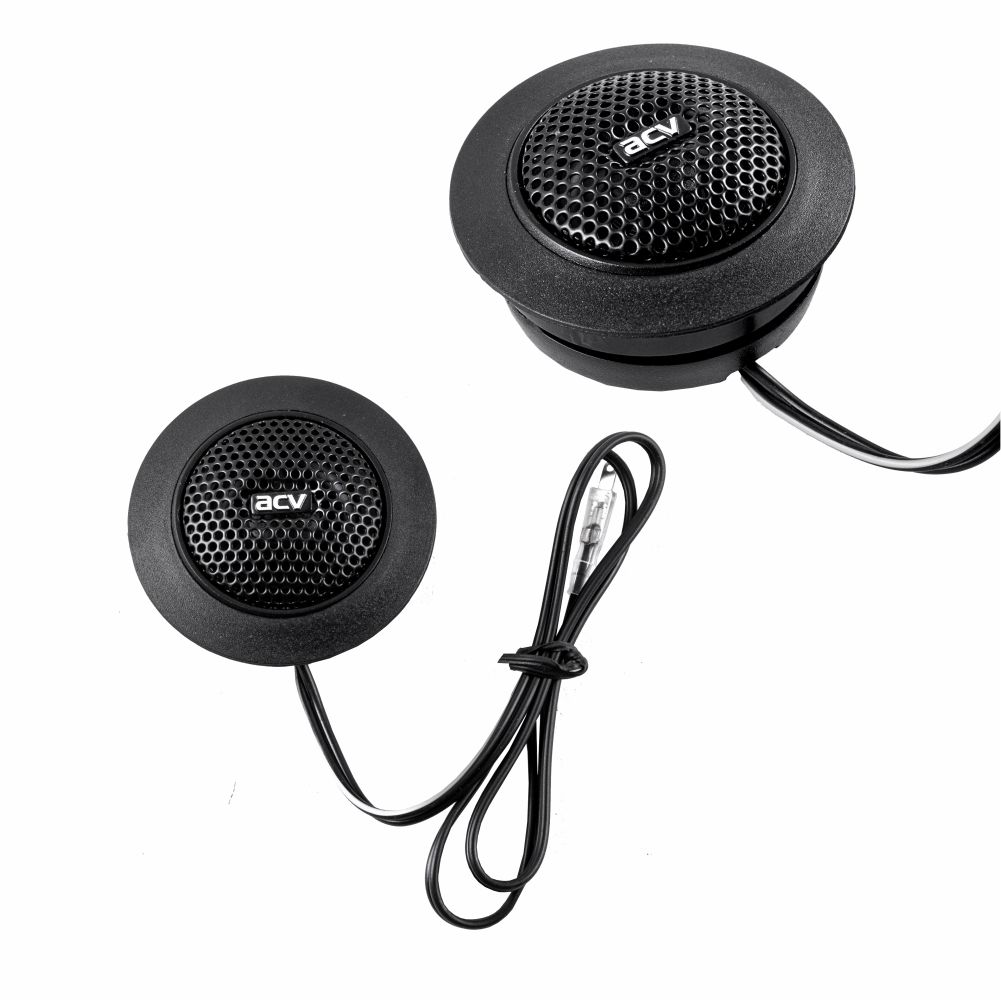

Tweeters with powerful neodymium magnets and polyetherimide diaphragms are capable of delivering bright, detailed, clear sound at any volume.

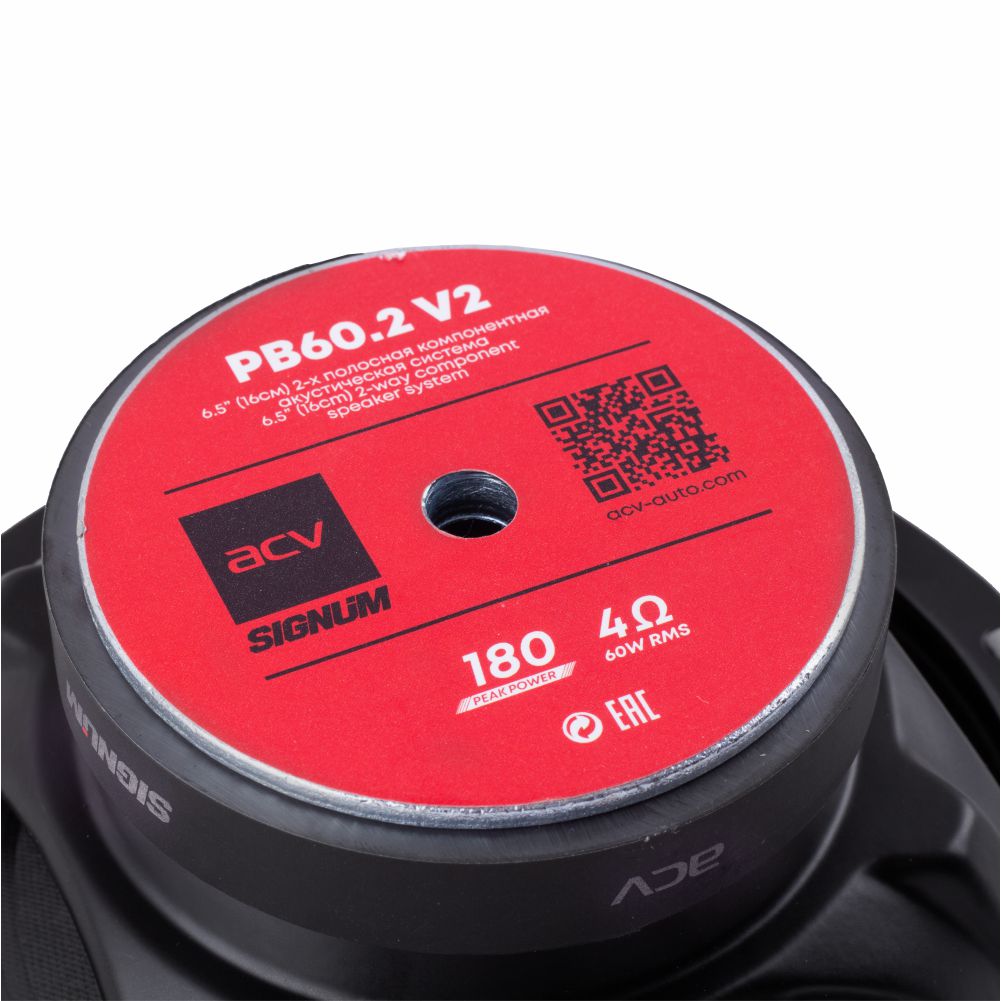

High Density Flux Ferrite
High-density ferrites are used in the system design. The system mobility, linearity and power are possible due to the premium magnets of class Y35. The parameters of the entire system, including the magnets, were developed and optimized using the high-precision CLIO system (CLIO is Audiomatica's Italian equipment for electro-acoustic measurements and the development of SQ / High-End loudspeaker systems).

KSV Voice Coil
The high temperature KSV voice coil greatly increases the performance and life of the speakers. The KSV voice coil allows you to get the best sound possible and high power.

Specifications

Sound playback

• RMS power: 60 W
• Peak Power: 180 W
• Sensitivity: 92 dB/W/m
• Impedance: 4 Ohms

Features of the model

• Voice Coil: 25 mm KSV
• Cone: Black paper cone with foam rubber surround
• Magnet: 10 oz
• Frequency Response: 50 ~ 20,000 Hz

General details

• Speaker Size: 6.5" (16,5 cm)
• Basket: Steel
• HF Driver: 28 mm PEI tweeter with neodymium magnet
