8” Midrange acoustics SPL SHOW
MS-80

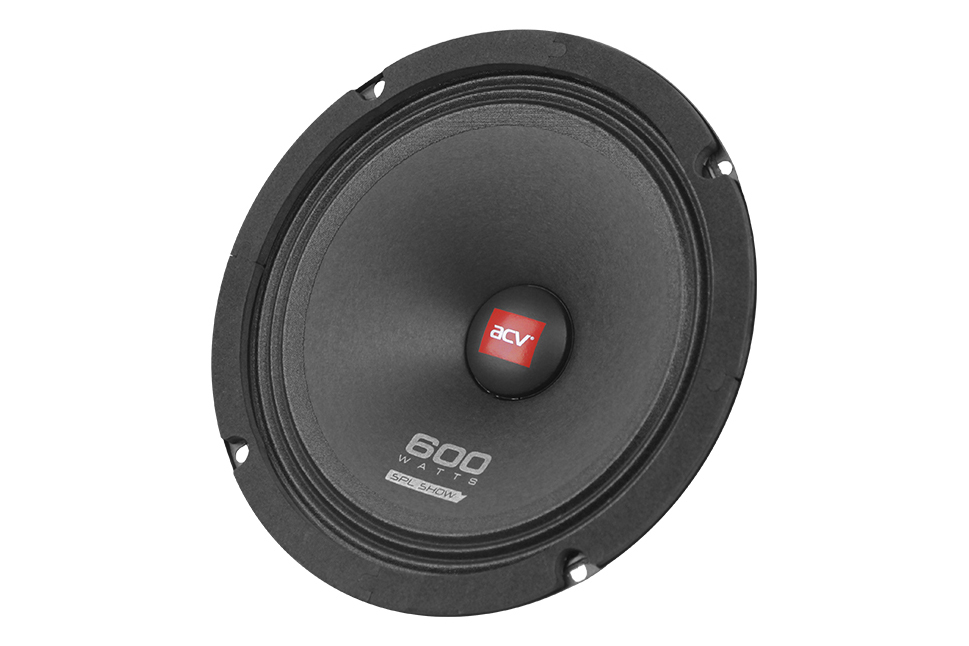

MS-80 is the 8 inches midrange in the SPL SHOW line for car sound systems and high sound pressure. The speaker system are developed for adding a loud front in the car; it has an excellent power reserve and a wide frequency range.
All parameters of this speaker system were selected with great attention to both sound and overall reliability; it is capable to withstand significant loads for a long time. The improved voice coil allows high power to be loaded into the speaker.
Midrange drivers with large ferrite magnets are designed for loud fronts and loud everyday life. The cones are made of medium density paper, traditional for SPL Show fanatics. The material is light, but not very harsh on its own, providing clear sound and good punch.
The speakers are made in stamped steel baskets, they play clean and loud, the sound quality is excellent in its price segment!
TS parameters:
Revc 3.2Ω
F0 85.3Hz
SD 213.8cm2
BL 4.7 Tm
QMS 5.41
QTS 0.63
SPL 95 dB
VAS 24.1 L
CMS 0.38mm / N
KRM 849.327
ERM 0.864
MMS 9.3g
MMD 19.731g
KXM 10.351
EXM 0.654
Features of the model
Cone: Pressed paper with treatment
Suspension Material: Cloth
Magnet: Ferrite (34 Oz)
Frequency range: 80 Hz - 9000 Hz
Parameters:
RMS power: 200W
Peak power: 600W
Minimum Input (RMS): 75W
Sensitivity: 95dB
Impedance: 4 ohm
General details:
Type: 1-way
Speaker size: 8" (20 cm)
Mounting hole diameter: 182mm
Mounting Depth: 67.5mm
Outside diameter: 200mm
