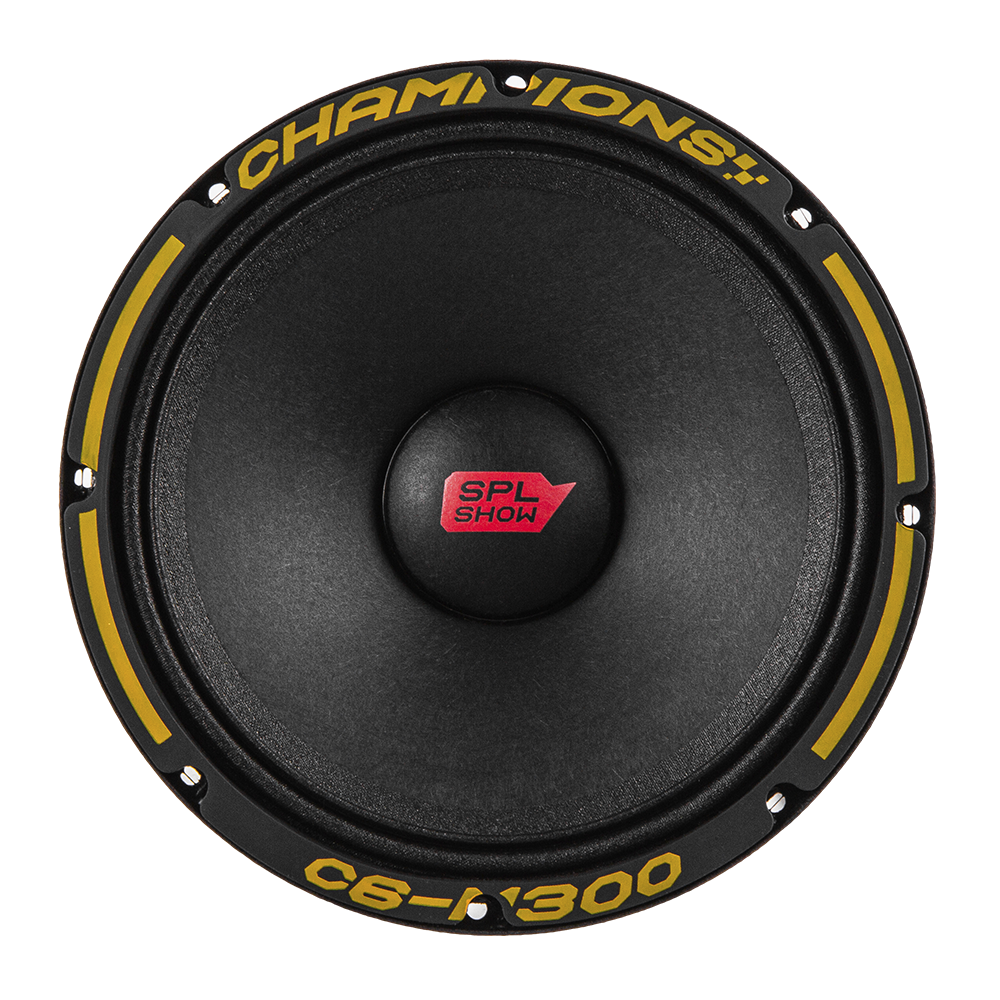

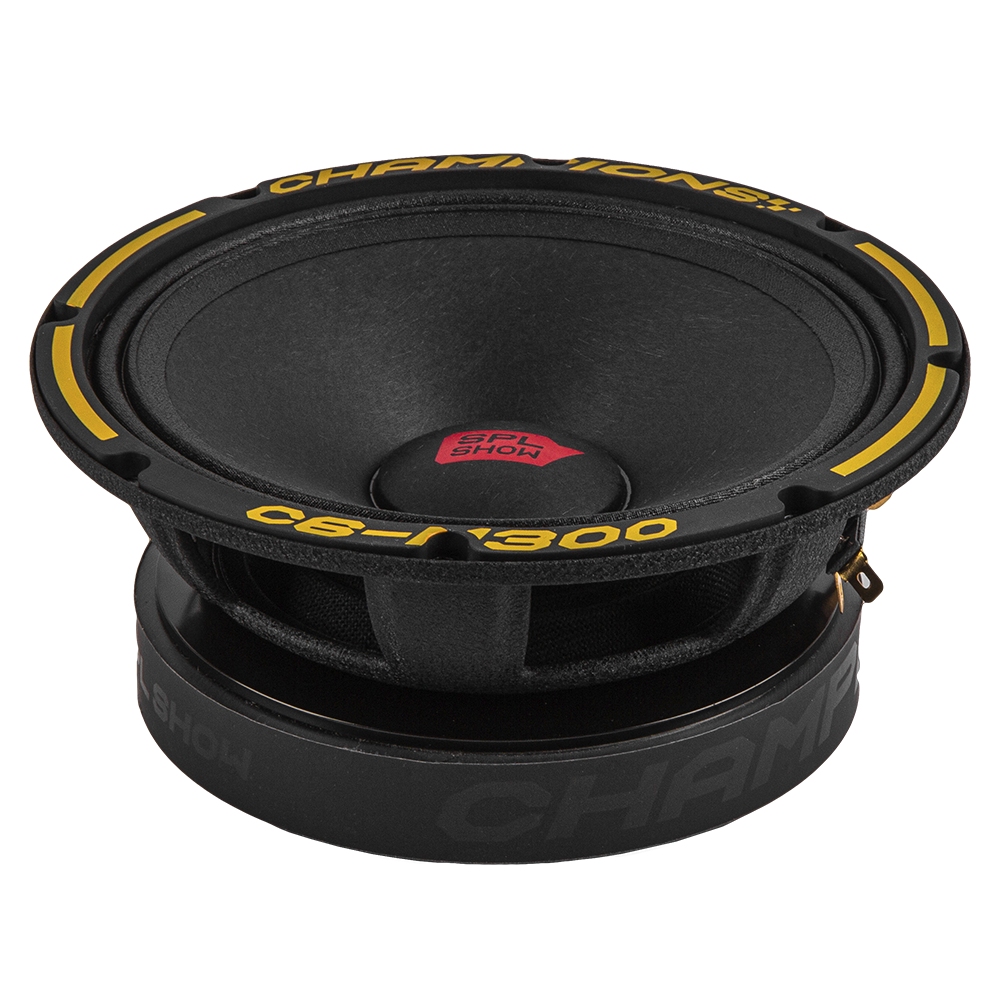

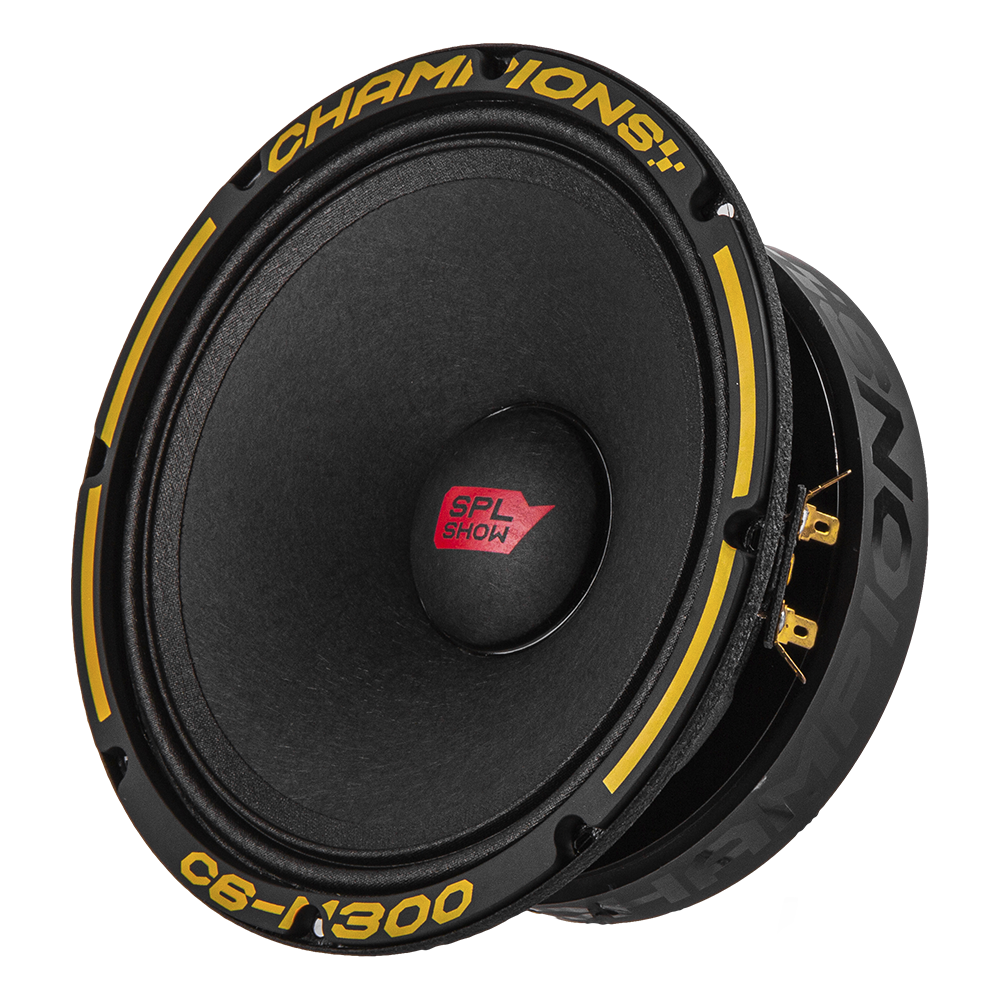

SPL SHOW 6,5" Midrange 300W
C6-M300
SPL SHOW Champions midrange acoustics for car audio systems and high sound pressure. Designed to build a loud front in a car, has an excellent power reserve and a wide frequency range.
SPL SHOW Champions midrange acoustics for car audio systems and high sound pressure. Designed to build a loud front in a car, has an excellent power reserve and a wide frequency range. SPL Show Champions acoustics RMS power is 300 W with sensitivity 98.9 dB, which allows you to get the loudest and clearest sound with a powerful punch. The frequency response varies from 100 Hz to 11 kHz, which makes the acoustics ideal for clean and accurate reproduction of vocals, guitars and other mid-range sounds.
The C6-M300 loudspeakers are created with great attention to sound, reliability and the ability to withstand significant loads for a long time. Gold-plated terminals provide a longer service life, due to their antioxidant properties. The system is equipped with the most powerful ferrite magnets weighing 47 oz, which provide the highest magnetic flux density and maximum effective force in the voice coil. The dual-layer high-temperature voice coil with a diameter of 44.5 mm on a KSV-form provides unprecedented thermal and mechanical capabilities. Heavy-gauge steel baskets with an anti-resonance coating for maximum reduction of resonance, vibrations, which provides the best sound quality.

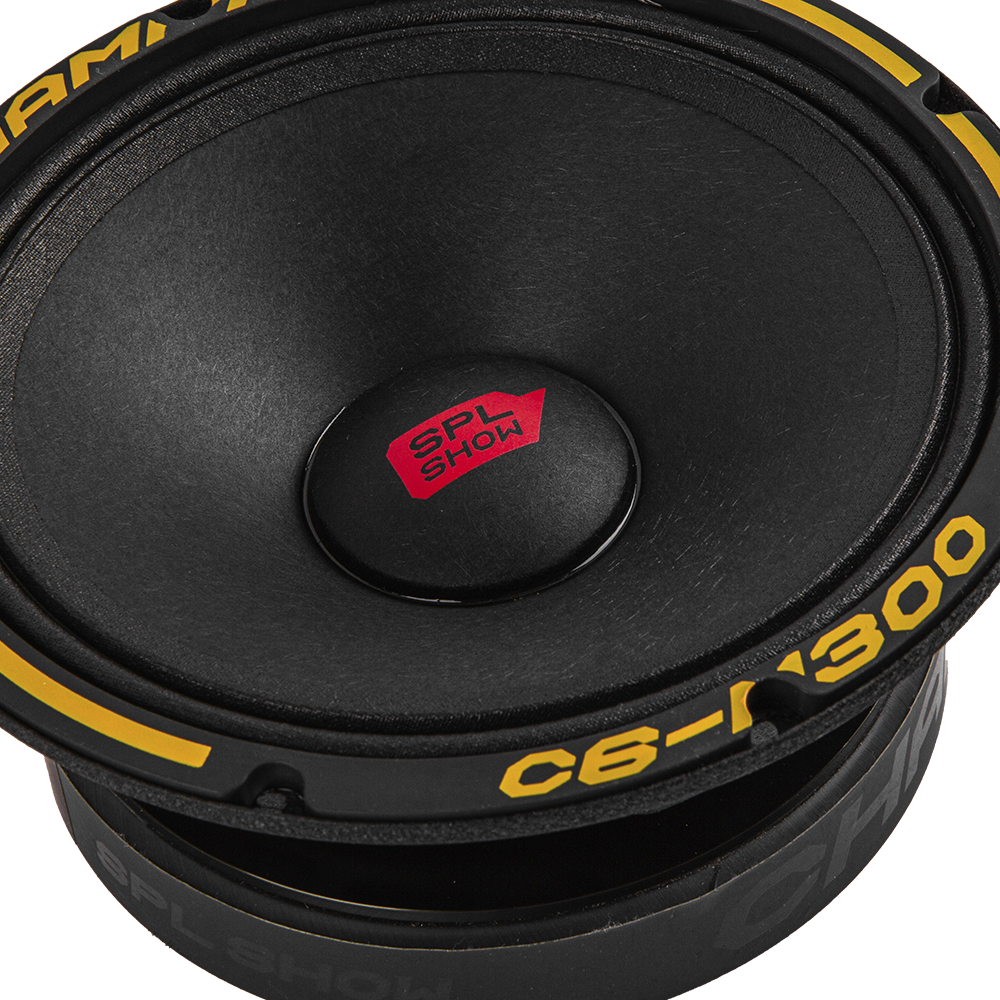

High-efficiency ferrite magnet system is designed to achieve top SPL results. The cone material, made of premium cellulose with the addition of fiberglass, precisely transmits mid and high frequencies. Meanwhile, the elastic fabric surround provides a smooth excursion, which leads to a realistic reproduction of any sound images.
SPL Show Champions speaker system rated power is 300W and high sensitivity, which allows you to get the loudest and clearest sound with powerful punch. The speaker system has a wide frequency response ranges, making it ideal for clear and accurate reproduction of vocals, guitars, and other mid-range sounds.
Double layer high temperature voice coil with diameter 1.75-inches on KSV former for outstanding thermal and mechanical capability.

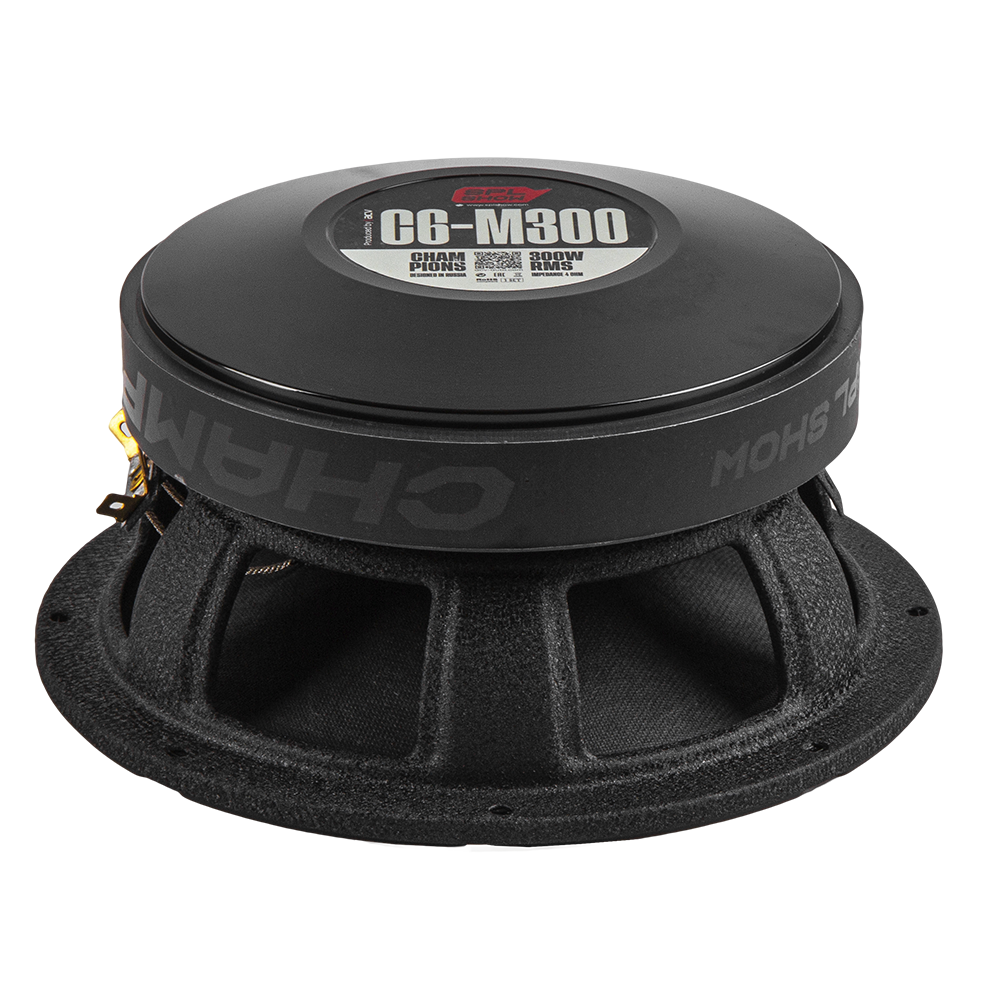

Heavy-gauge, powder-coated steel baskets with gold-plated terminals for enhanced durability, significantly lowered harmonic resonance, vibrations which helps to improve sound quality.

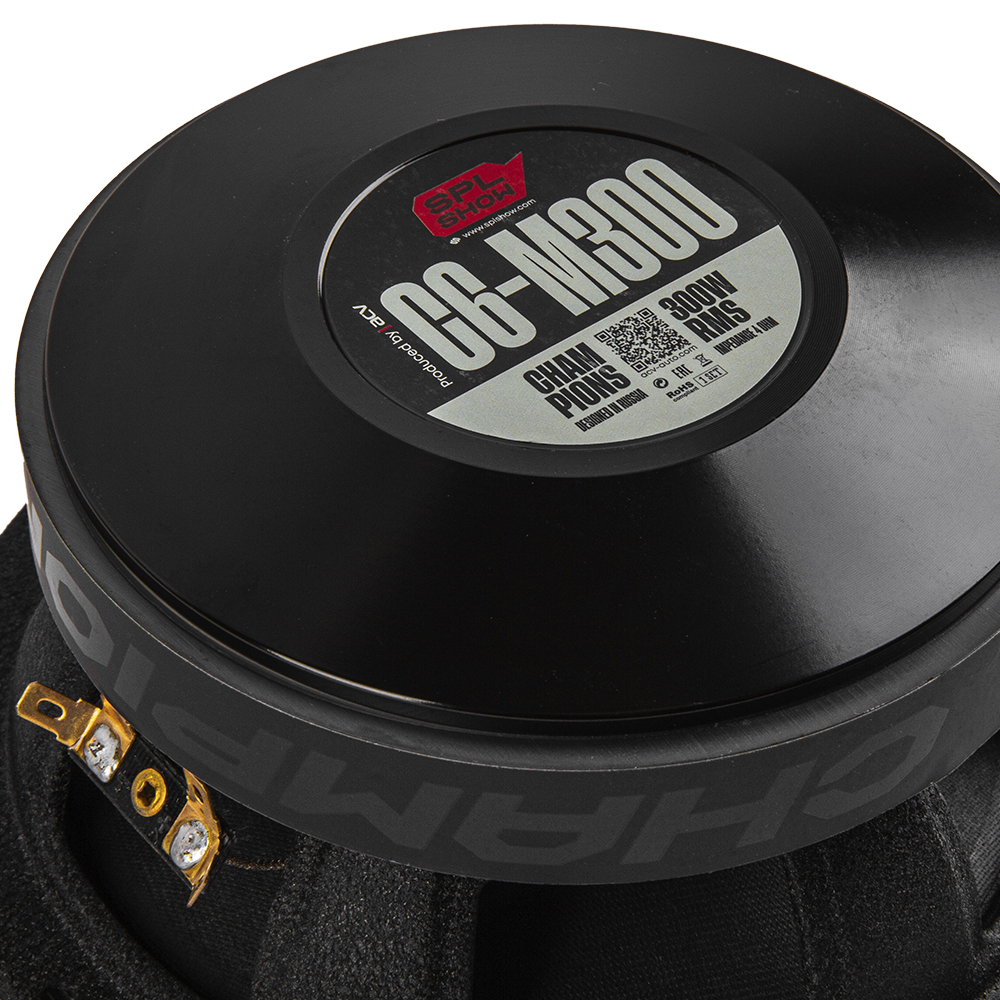

Powerful ferrite magnet with weight 47 ounces provides significant magnet system efficiency at high SPL loads.
Specifications
Specifciations
- Basket material: steel baskets with anti-resonance coating
- Rated power: 300 W
- Sensitivity: 98.9 dB
Model features
- Voice coil size: 1.75" (44.5 mm)
- Cone: Pressed cellulose with glass fiber
- Surround material: Cloth
- Magnet: Ferrite, weight: 1332 g
- Frequency range: 100 -11000 Hz
General details
- Speaker size: 6.5" (173 mm)
- Basket: Stamped steel with anti-resonance coating
- Mounting hole diameter: 150 mm
- Mounting depth: 68 mm
- Total depth: 74 mm
T/S parameters
- Re: 3 Ohm
- FS: 120,1 Hz
- SPL: 97,2 dB
- Qms: 2,77
- Qes: 0,305
- Qts: 0,275
- BL: 8,52 TM
- Mmd: 8,69 g
- Mms: 9,75 g
- Cms: 0,1791 µm/N
- Vas: 5,76 l
- Sd: 151,7 cm²
- Xmax: 1,7 mm
