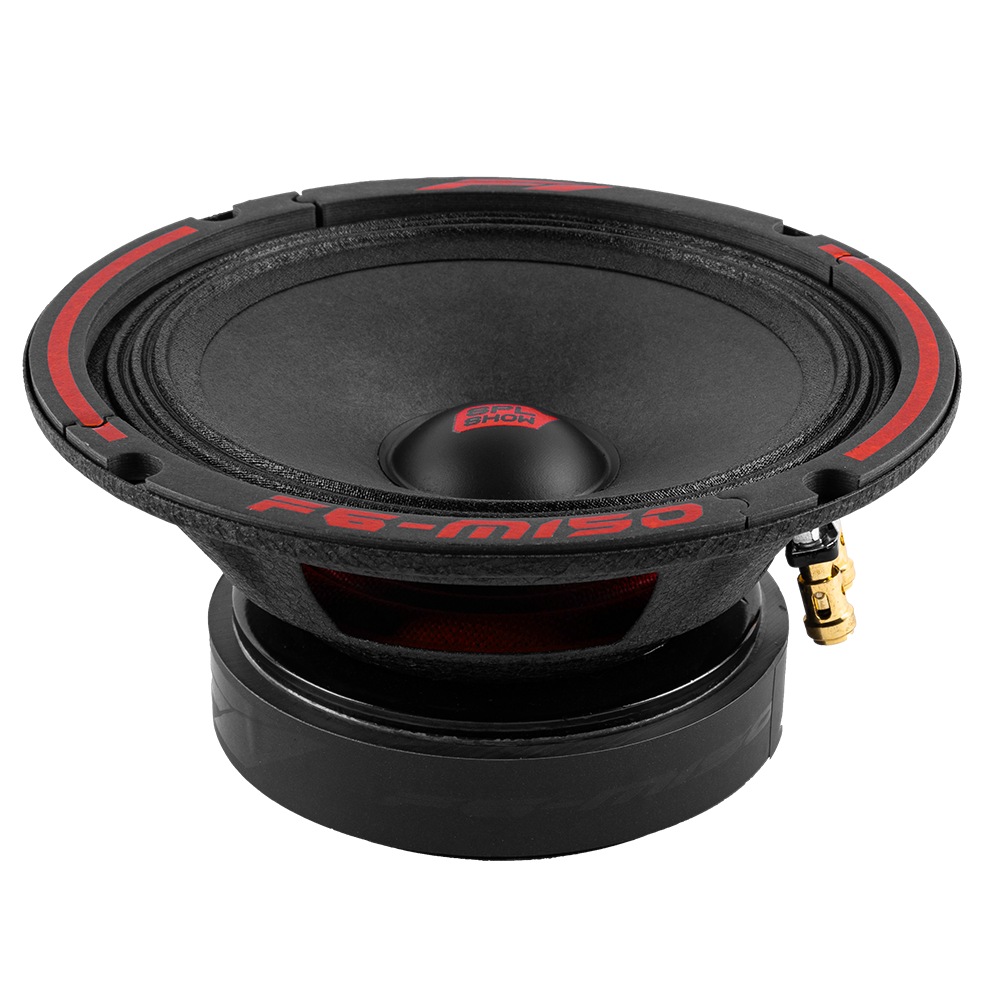

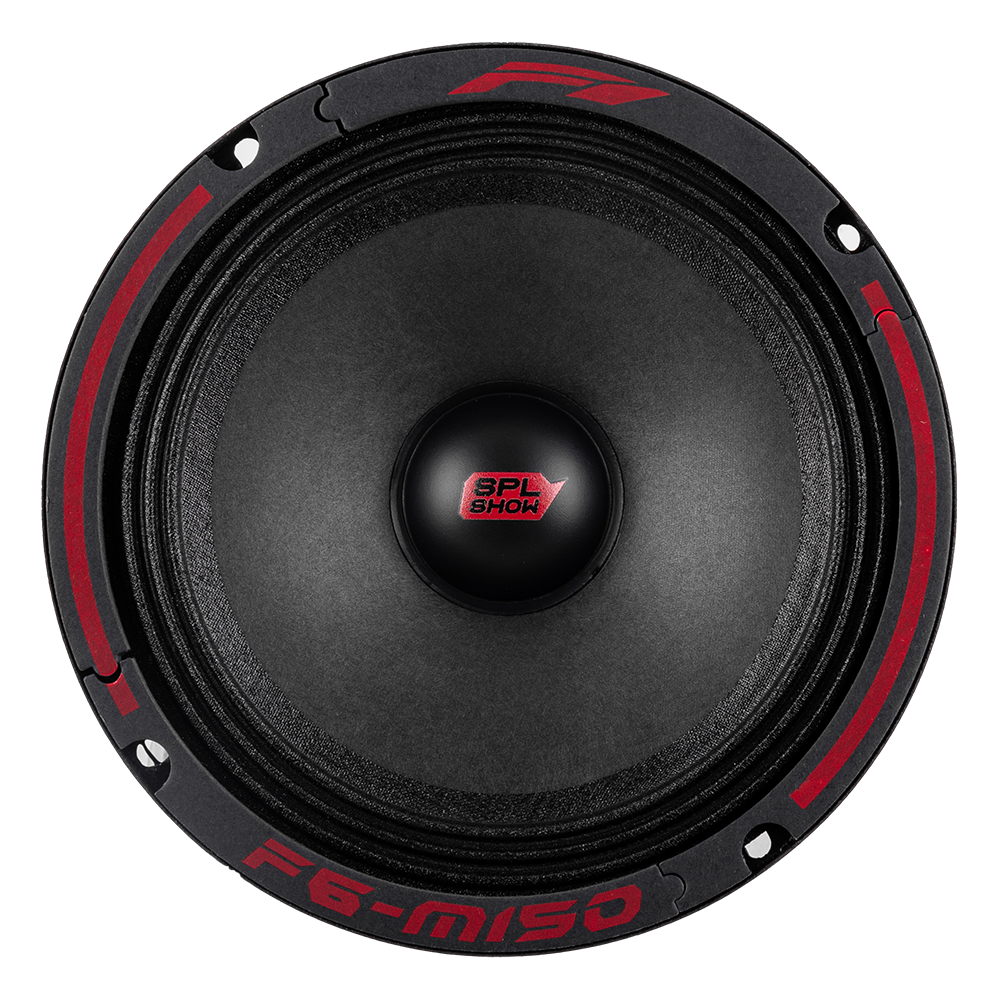

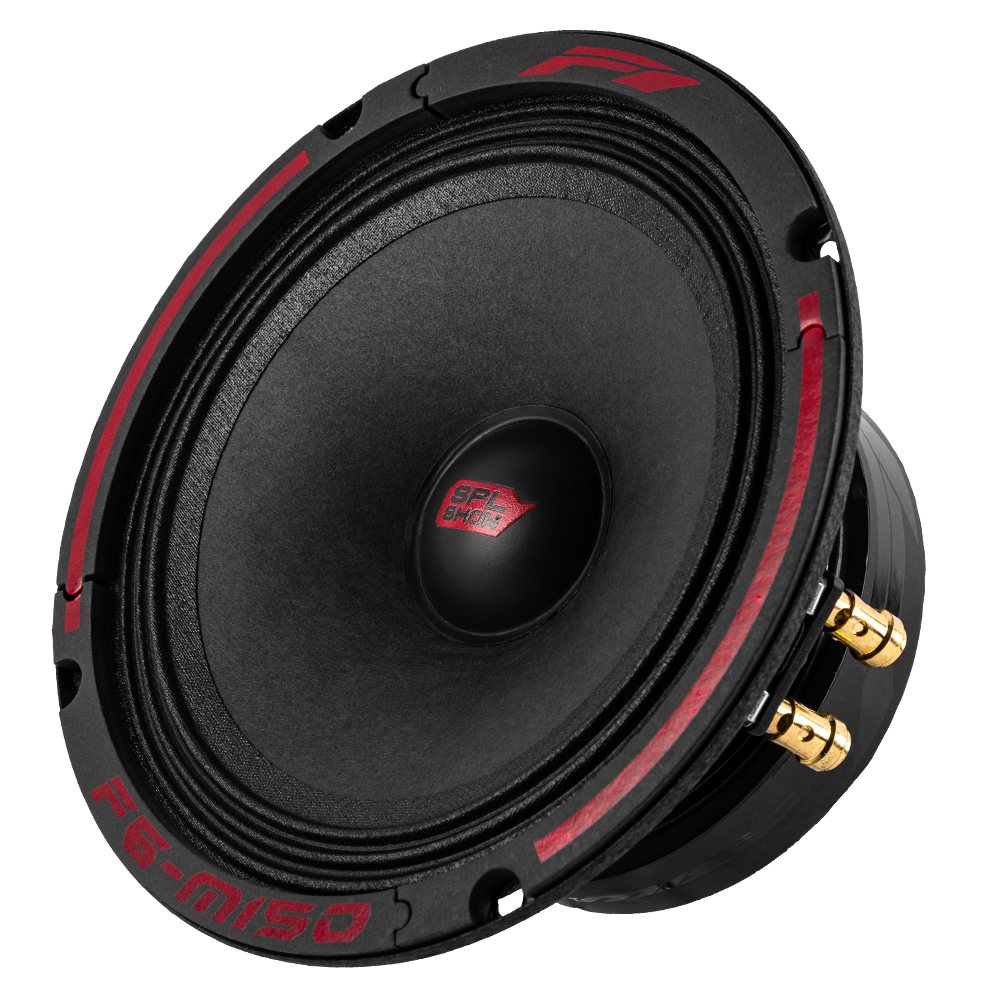

SPL SHOW 6,5" Midrange
F6-M150
SPL SHOW F1 midrange acoustics for car audio systems and high sound pressure. Designed to build a loud front in a car, has an excellent power reserve and a wide frequency range.
SPL SHOW F1 midrange acoustics for car audio systems and high sound pressure. Designed to build a loud front in a car, has an excellent power reserve and a wide frequency range. SPL Show Champions acoustics RMS power is 150 W with sensitivity 97 dB, which allows you to get the loudest and clearest sound with a powerful punch. The frequency response varies from 125 Hz to 12 kHz, which makes the acoustics ideal for clean and accurate reproduction of vocals, guitars and other mid-range sounds.
The F6-M150 loudspeakers are created with great attention to sound, reliability and the ability to withstand significant loads for a long time. Gold-plated spring-loaded terminals provide a longer service life, due to their antioxidant properties. The system is equipped with a highly efficient hybrid magnet system, which provides the highest magnetic flux density and maximum effective force in the voice coil. The dual-layer high-temperature voice coil with a diameter of 1,25" (32 mm) on a KSV-form provides unprecedented thermal and mechanical capabilities. Rigid steel baskets with an anti-resonance coating for maximum reduction of resonance, vibrations, which provides the best sound quality.

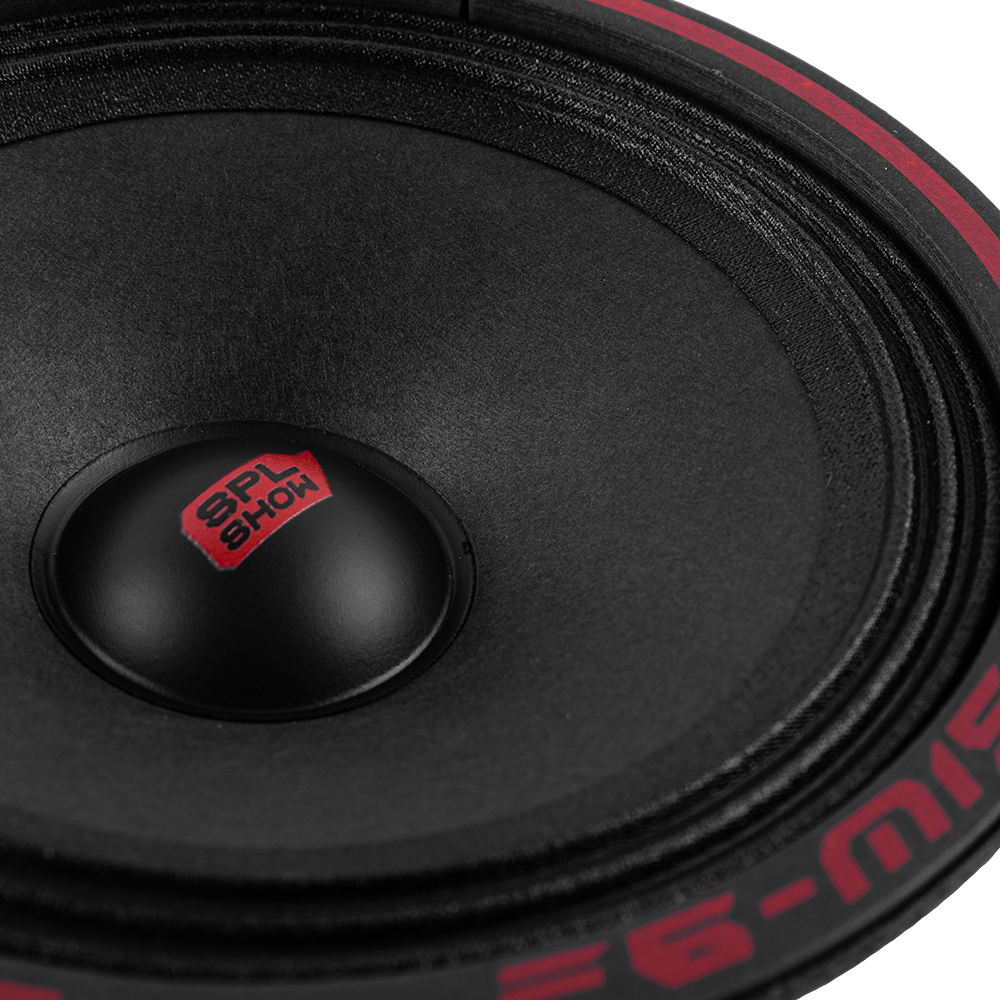

High-efficiency ferrite magnet system is designed to achieve top SPL results. The cone material, made of premium cellulose with special treatment, precisely transmits mid and high frequencies. Meanwhile, the elastic fabric surround provides a smooth excursion, which leads to a realistic reproduction of any sound images.
High efficiency hybrid magnetic system for perfect control under high power and top SPL performance.
High sensitivity and superb punch due to the special speaker construction.

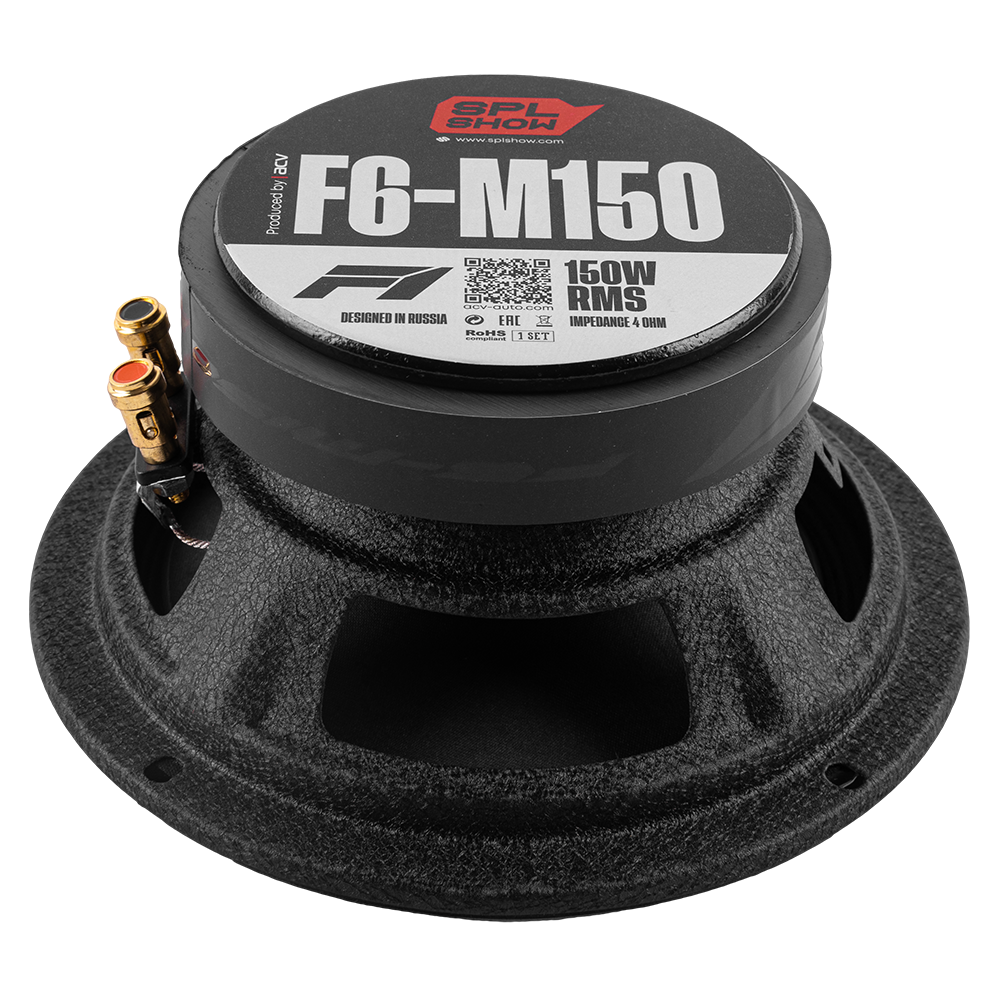

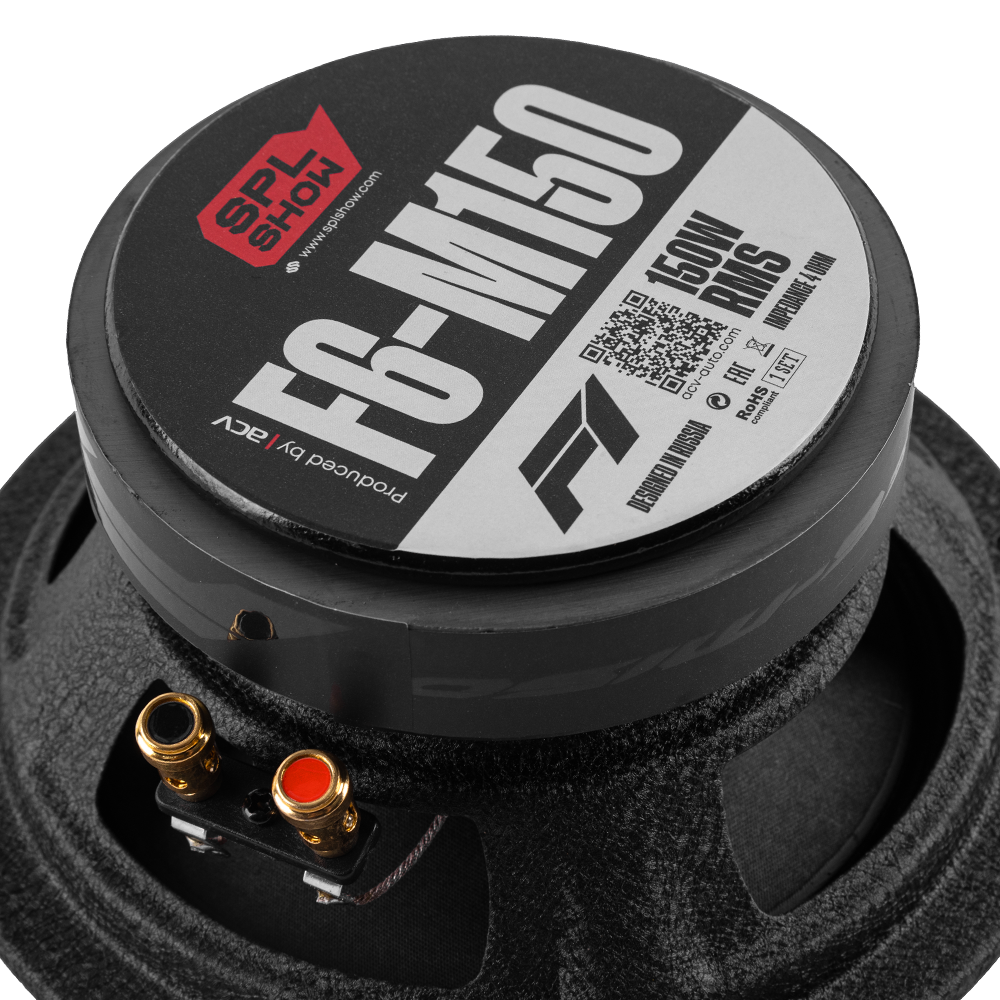

Gold-plated push terminals for durability due to the capability for anti-oxidation.
Double layer high temperature copper voice coil, wound on KSV former for unheard-of thermal and mechanical capability.
Specifications
Sound reproduction
- Rated power: 150 W
- Sensitivity: 97 dB
Model features
- Voice coil size: 1,25" (32 mm)
- Cone: Pressed cellulose with treatment
- Surround material: Cloth
- Magnet: Ferrite + Neodymium (Y35 + N42H)
- Frequency range: 125-12000 Hz
General details
- Speaker size: 6.5" (16.5 cm)
- Basket: Stamped steel with anti-resonance coating
- Mounting hole diameter: 149 mm
- Mounting depth: 76 mm
- Total depth: 82 mm
T/S PARAMETERS
- Fs 125 Hz
- Re 3.4 Ω
- Qms 6.6
- Qes 0.81
- Qts 0.75
- Vas 4.35 l
- Sd 130.69 cm²
- X max 1.8 mm
- Mms 8.8 g
- BI 6.26 Tm
- SPL 97 dB
