If you need high-quality sound, then 6x9 acoustics are perfect for this. All of its parameters have been selected with great attention to both sound and overall system reliability. Mid-range drivers with large ferrite magnets are designed for loud fronts and fierce everyday life. Due to the increased area of ​​the impregnated paper diffuser, the acoustics reproduce a wider range and deliver more power. It has almost no competitors in terms of the area of ​​the diffuser, it gives out expressive and juicy sound with tangible bass.

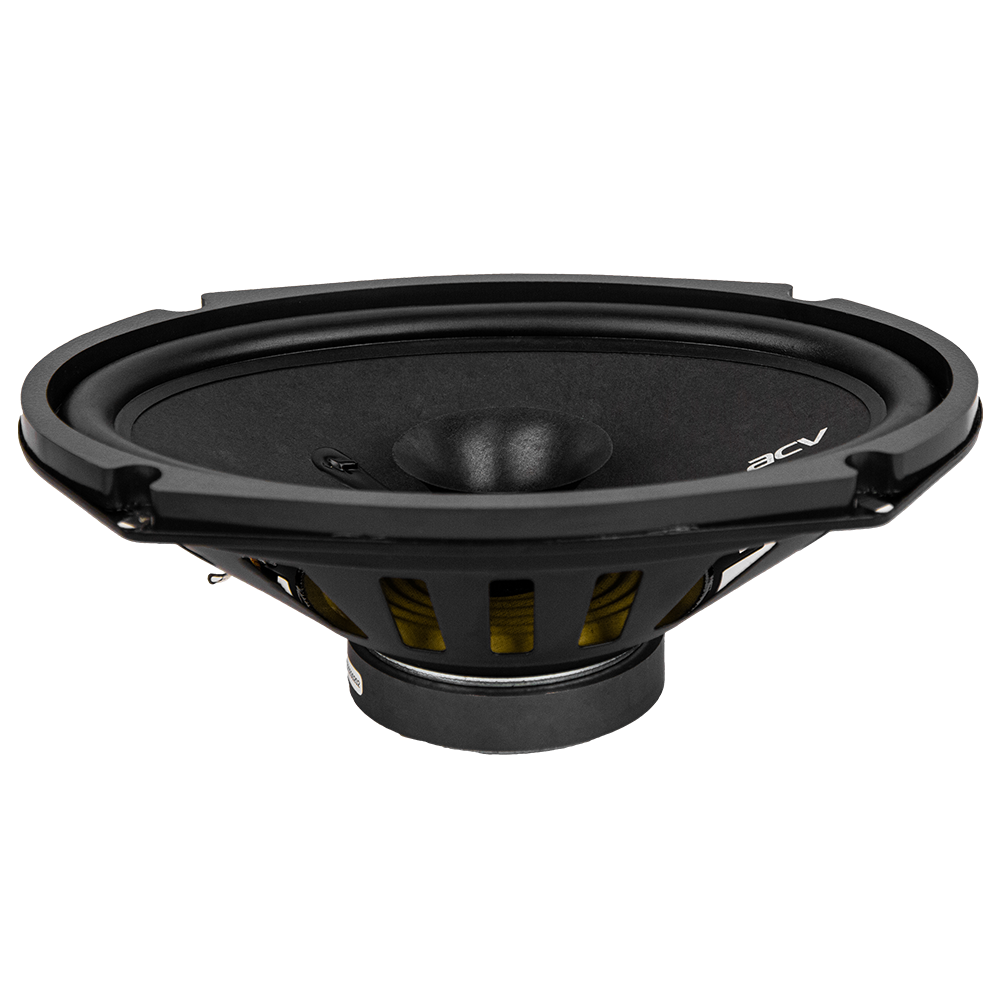

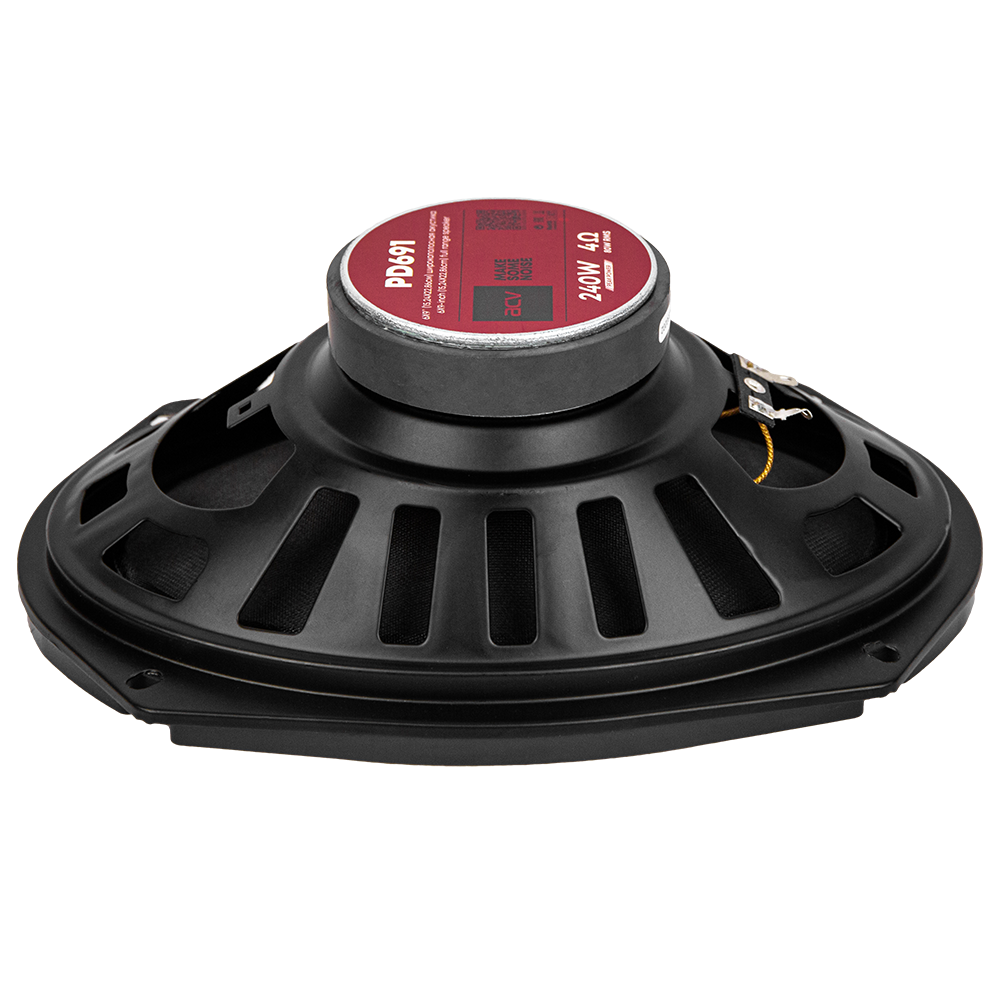

The design uses stamped steel baskets, the diffusers are equipped with rubber suspensions that provide the desired travel amplitude, inside there is a ferrite magnet and a 25 mm voice coil.

Range 70 Hz-25 kHz, play "juicy", and high sensitivity 91 dB allows this speaker to provide the desired sound pressure even at low volume. In its price range, the acoustics is one of the best.

Specifications

Sound Playback

• Nominal Power (RMS): 80 W
• Peak Power: 240 W/4 ohms
• Sensitivity: 91 dB/W/m
• Impedance: 4 ohms

Model Features

• Voice Coil: ASV 25 mm
• Diffuser: Paper
• Surround Material: Rubber
• Magnet: Ferrite, 80x15 mm
• Frequency Response: 70 Hz - 25 kHz

General Specifications

• Number of Ways: 1-Way
• Speaker Size: 6x9" (15x22.5 cm)
• Basket: Stamped Steel
• Mounting Hole Diameter: 219x149 mm
• Overall Depth: 81 mm
• Outer Diameter: 234 x 164 mm
• Operating Temperature Range: -35 to +55°C
