Active subwoofer 10" 2100 W
BС10A
The compact subwoofer with a 10-inch speaker and an enlarged voice coil for incredibly powerful deep bass. It features an ultra-slim bass-reflex enclosure with a built-in digital amplifier.

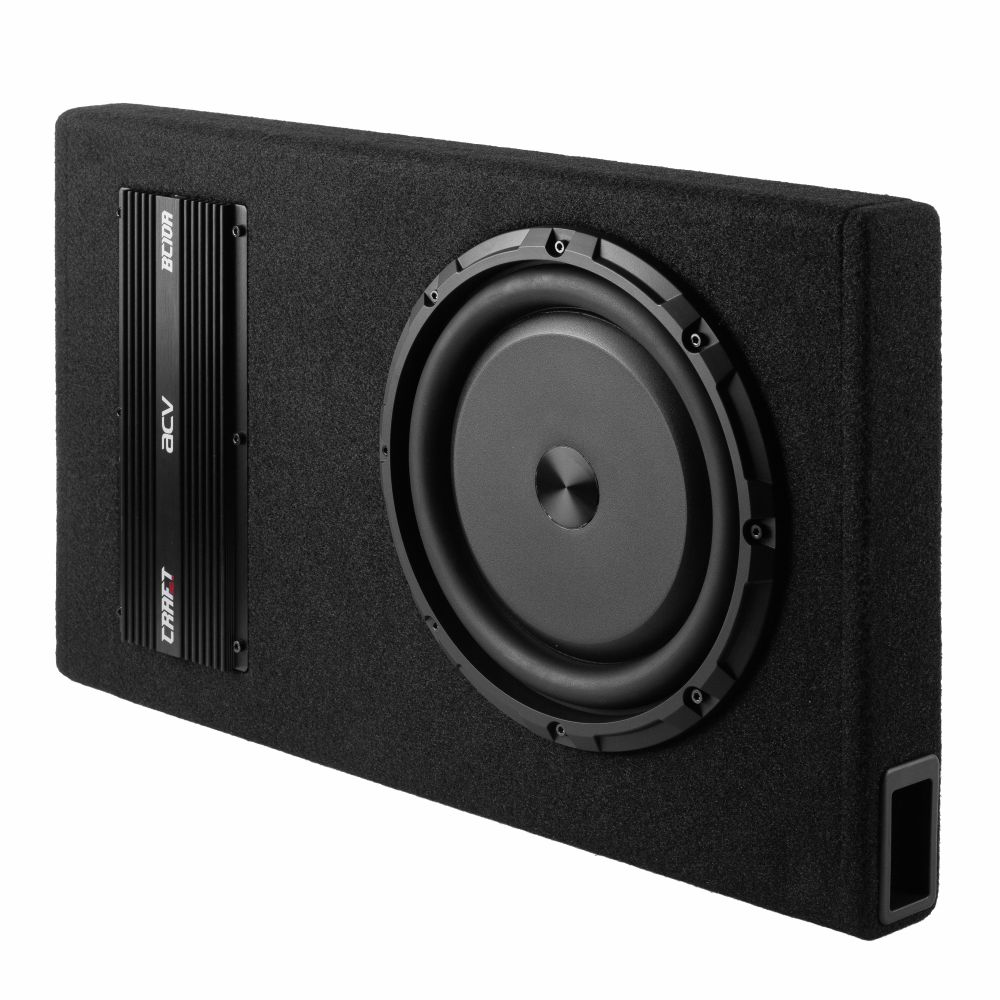

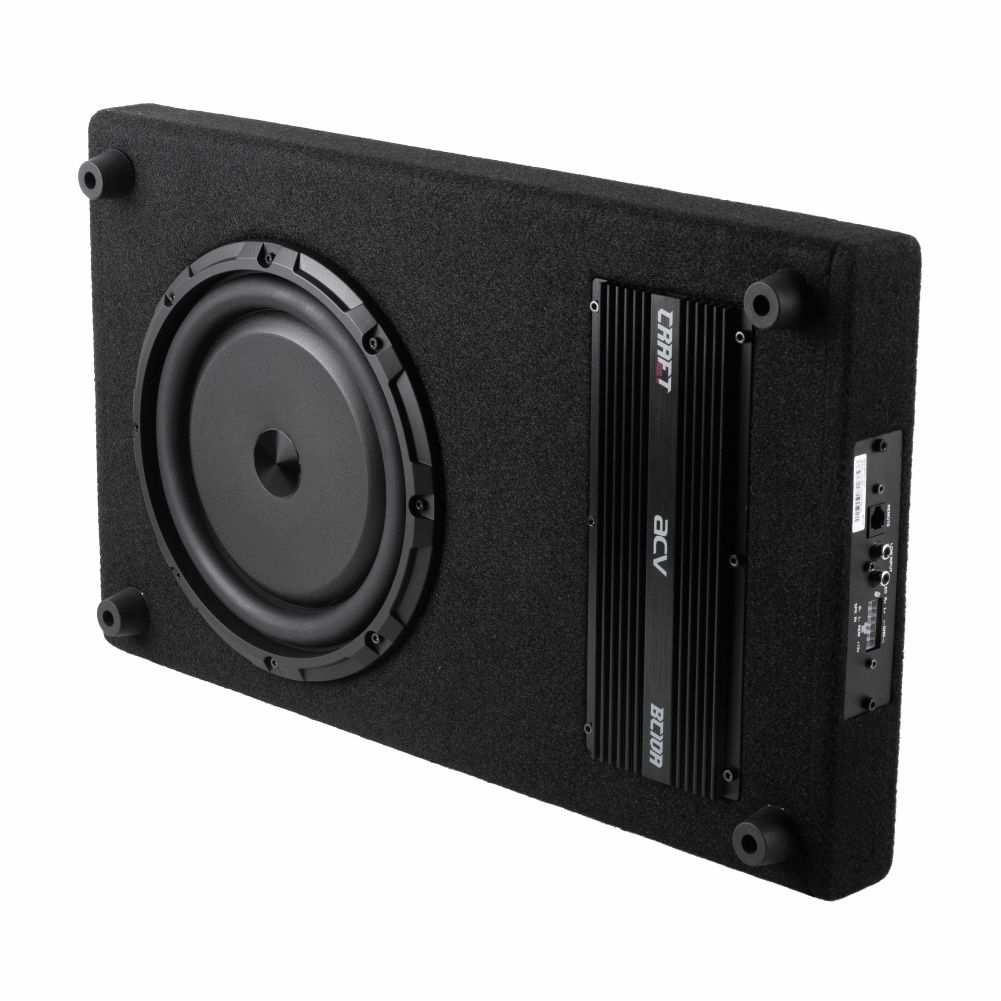

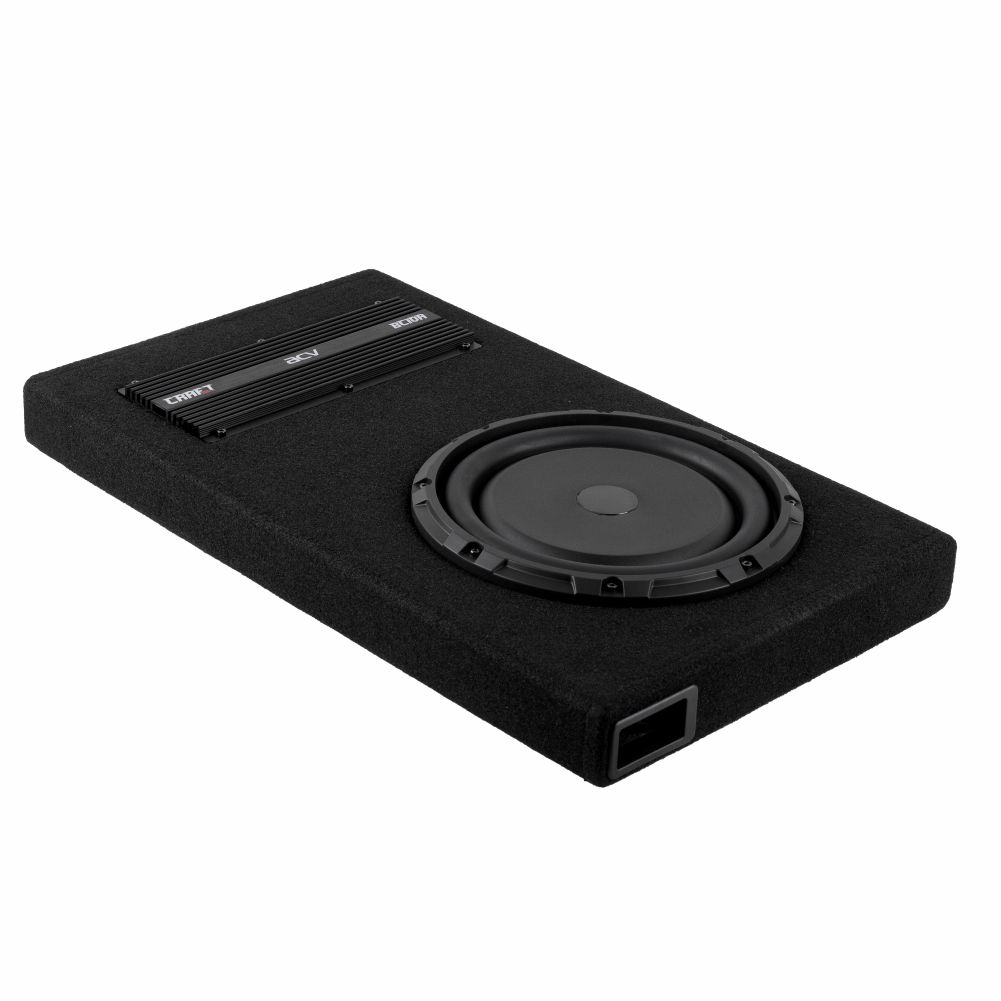

The ACV BC10A is an ultra-compact active enclosed subwoofer featuring a 10-inch driver and a rated power output of 350W. With an enclosure width of just 55 mm and a weight of 7.6 kg, it fits easily into any vehicle while saving space. A remote Bass Boost controller allows for on-the-fly bass level adjustment, while the 0/180° phase switch ensures perfect integration with your audio system. The subwoofer boasts impressive power reserves—delivering 350 W RMS and 2100W PEAK—and is built to handle sustained loads.

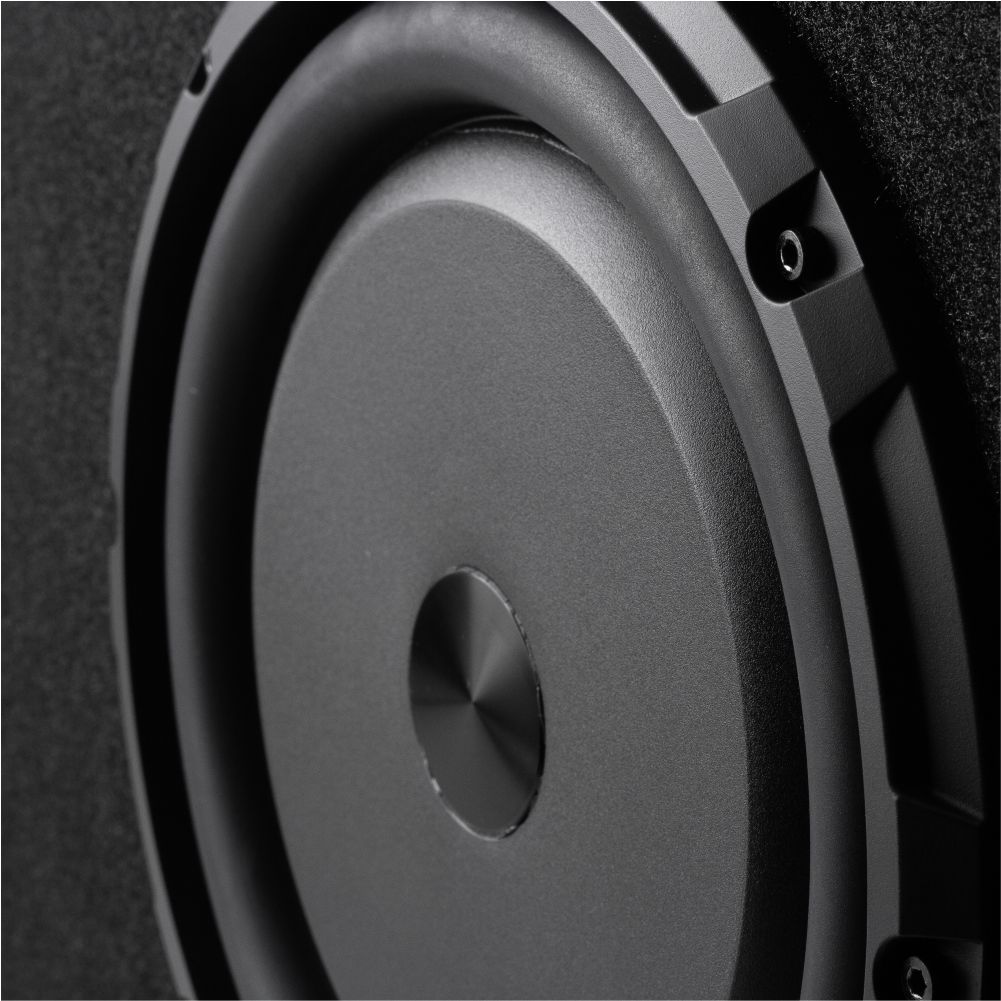

The ACV BC10A features a compact design that saves significant space in the vehicle. Its construction centers on a bass-reflex enclosure precisely engineered for a heavy, robust 10-inch woofer. The subwoofer utilizes an impregnated cellulose cone, while a large rubber surround ensures the necessary excursion range. It is driven by a modern, highly efficient (up to 95%) Class D digital amplifier. The built-in amplifier delivers 350 W of power at 2 ohms, maximizing the unit's performance. Internally, the subwoofer features a high-temperature 1.5-inch dual voice coil (2-ohm impedance), a 38-ounce magnet, and a sensitivity of 89 ±2 dB. This combination of modern components and proven technology enables an SPL output of 109 ±2 dB.
Low-impedance, high-efficiency active subwoofer for stunningly powerful, deep bass.
The amplifier delivers 350 W of power at 2 ohms for superior performance and up to 95% efficiency.
Compact dimensions for maximum space savings.
Filters out high frequencies that the subwoofer cannot reproduce. Adjust the filter to match the subwoofer's frequency response range.
Specifications
Sound reproduction
- Peak power: 2100 W
- Rated power: 350 W
- Sensitivity: 89 ±2 dB
- Impedance: 2 Ohm
Model features
- Voice coil: 1.5" (38 mm), 2 Ohm
- SPL: 109±2 dB/W/m at 1 m
- Cone: Cellulose with water-repellent treatment
- Surround material: Rubber
- Magnet: 38 oz
- Frequency range: 20-300 Hz
General details
- Enclosure type: Trapezoid
- Subwoofer size: 10" (25 cm)
- Enclosure: Bass-reflex enclosure with built-in class D amplifier
- Dimensions: 600*350*55 mm
