Active subwoofer 10" 2200 W
BD10A

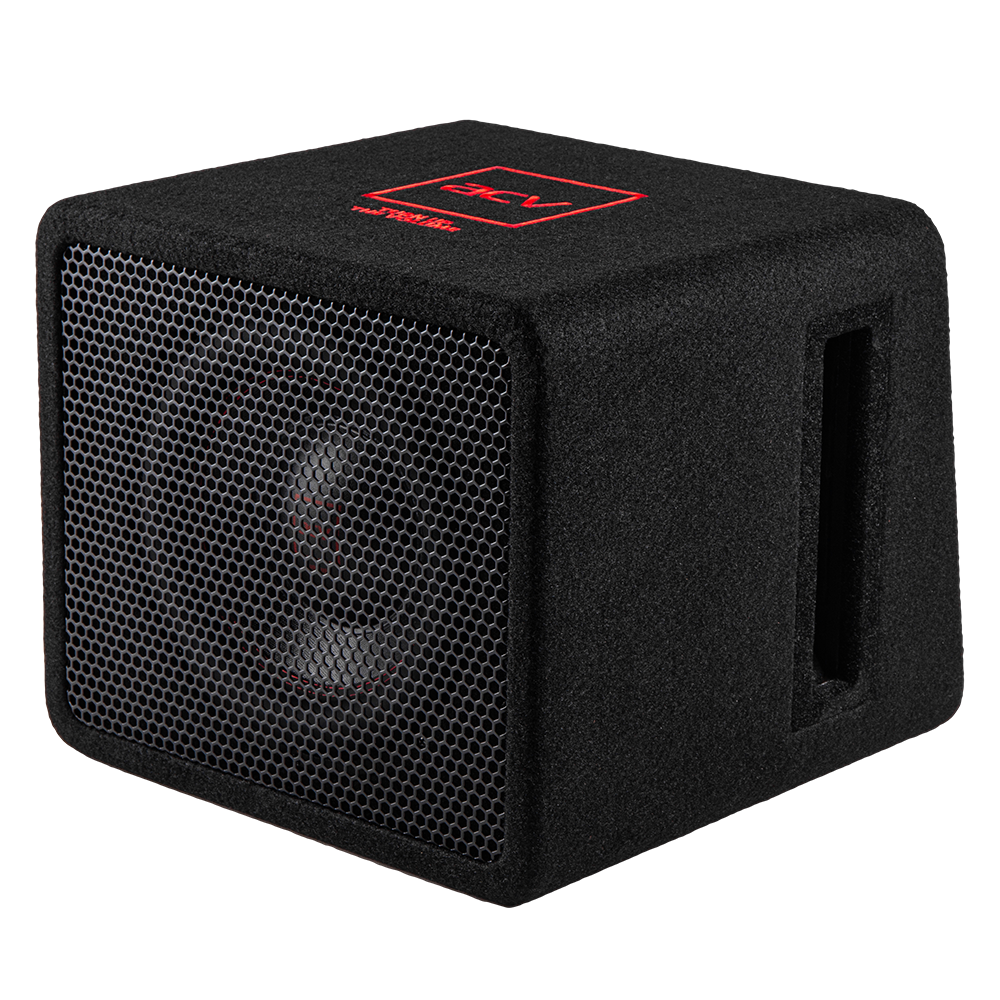

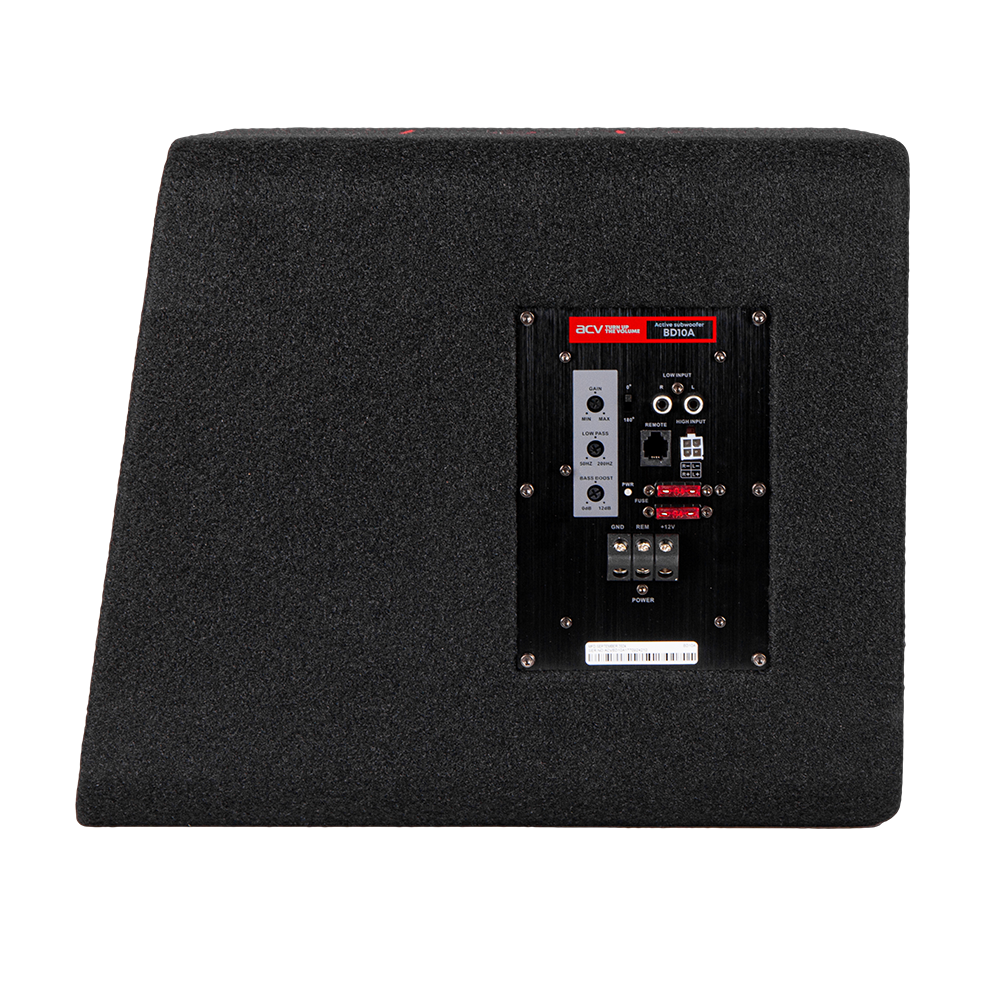

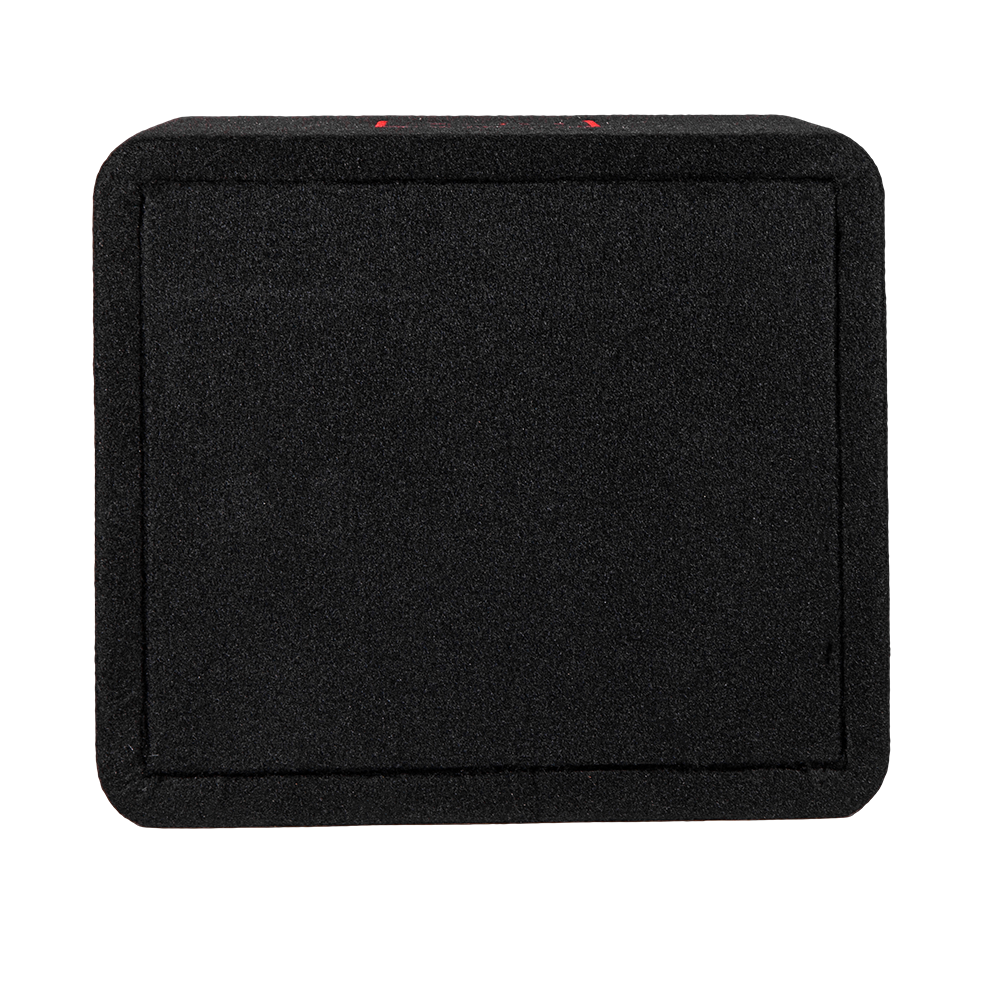

The compact subwoofer with a 10-inch speaker and an enlarged voice coil for incredibly powerful deep bass. It is made in a trapezoid bass reflex case with a built-in amplifier.
Active subwoofer with a maximum power of 2200 W and a 10-inch LF speaker. It produces impressive bass that no music lover can pass by. You will get a really loud everyday, noticeable to everyone around you. The result of a serious approach were no less serious characteristics. The subwoofer has an impressive power reserve, produces 400-2200 W, and copes with long-term loads.
ACV BD10A has a fairly compact size, which will save a lot of space in the car. The design feature is a bass-reflex case, precisely calculated for a powerful 10-inch LF speaker, heavy and massive. Subwoofer cone is made of cellulose with treatment with the large rubber suspension that provides high excursion. Subwoofer is powered by a up-to-date high-efficiency digital class D amplifier, made by HE-LI technology (High Efficiency up to 95% / Low Impedance). The built-in latest low-impedance digital amplifier produces a power of 400 W at 0.25 Ohm, which made it possible to achieve maximum performance of the device. Inside the subwoofer there is a high-temperature dual 2-inch voice coil with a impedance of 1 + 1 Ohm, a 45-ounce magnet, and a sensitivity of 89 ± 2 dB. The tandem of modern components with proven technologies allows demonstrating SPL 109 ± 2 dB.
Low impedance, high efficiency active subwoofer for stunningly powerful, deep bass.
It produces 400W@ 0.25 Ohm for the highest performance and efficiency up to 95%.
Compact dimensions for maximum space saving.

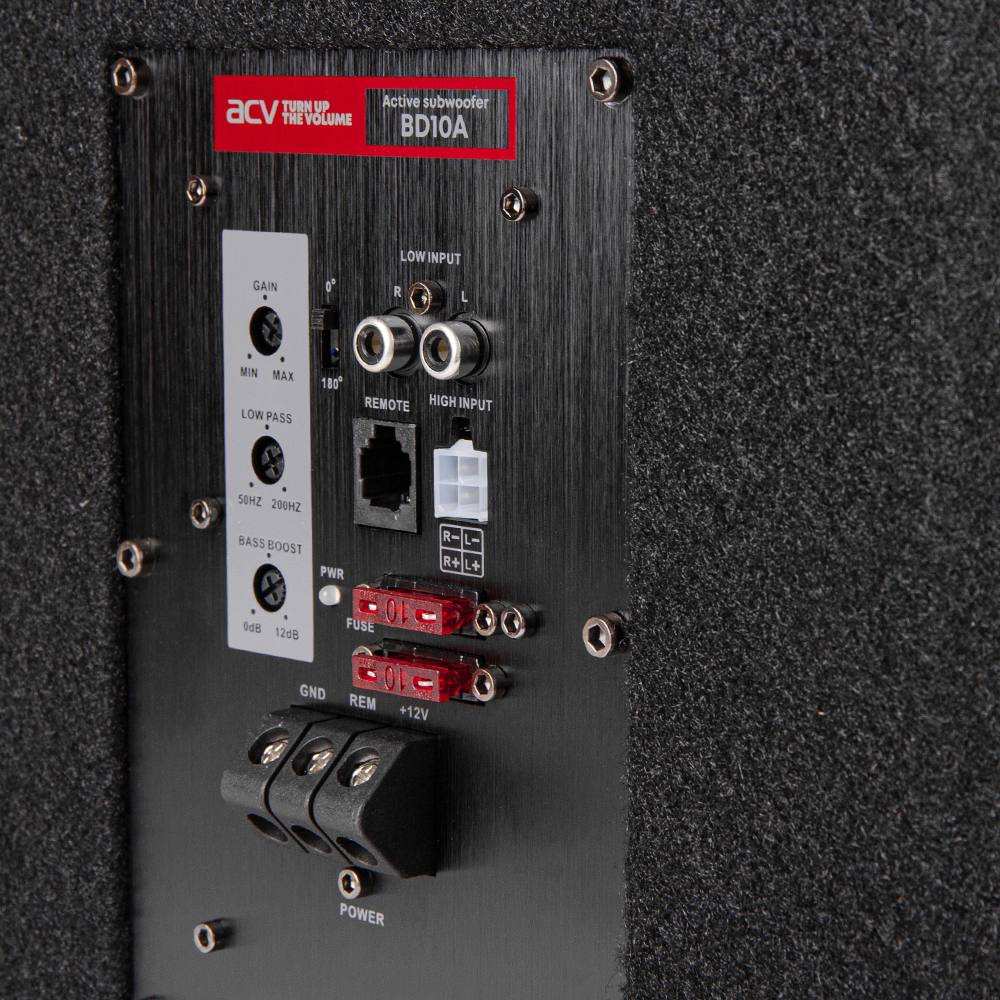

LPF filter cut out high frequencies which subwoofer cannot reproduce. Adjust the filter to match the frequency range of the subwoofer.
Specifications
Sound reproduction
- Peak power: 2200 W
- Rated power: 400 W
- Sensitivity: 89 ±2 dB
- Impedance: 1+1 Ohm (dual voice coil)
Model features
- Voice coil: 2" (51 mm), 1+1 Ohm
- SPL: 109±2 dB/W/m at 1 m
- Cone: Cellulose with water-repellent екуфеьуте
- Surround material: Rubber
- Magnet: 45 oz
- Frequency range: 20-200 Hz
General details
- Enclosure type: Trapezoid
- Subwoofer size: 10" (25 cm)
- Enclosure: Bass-reflex enclosure with built-in class D amplifier
- Dimensions: 355*(325+355)*303 mm
BD10A_manual.pdf
