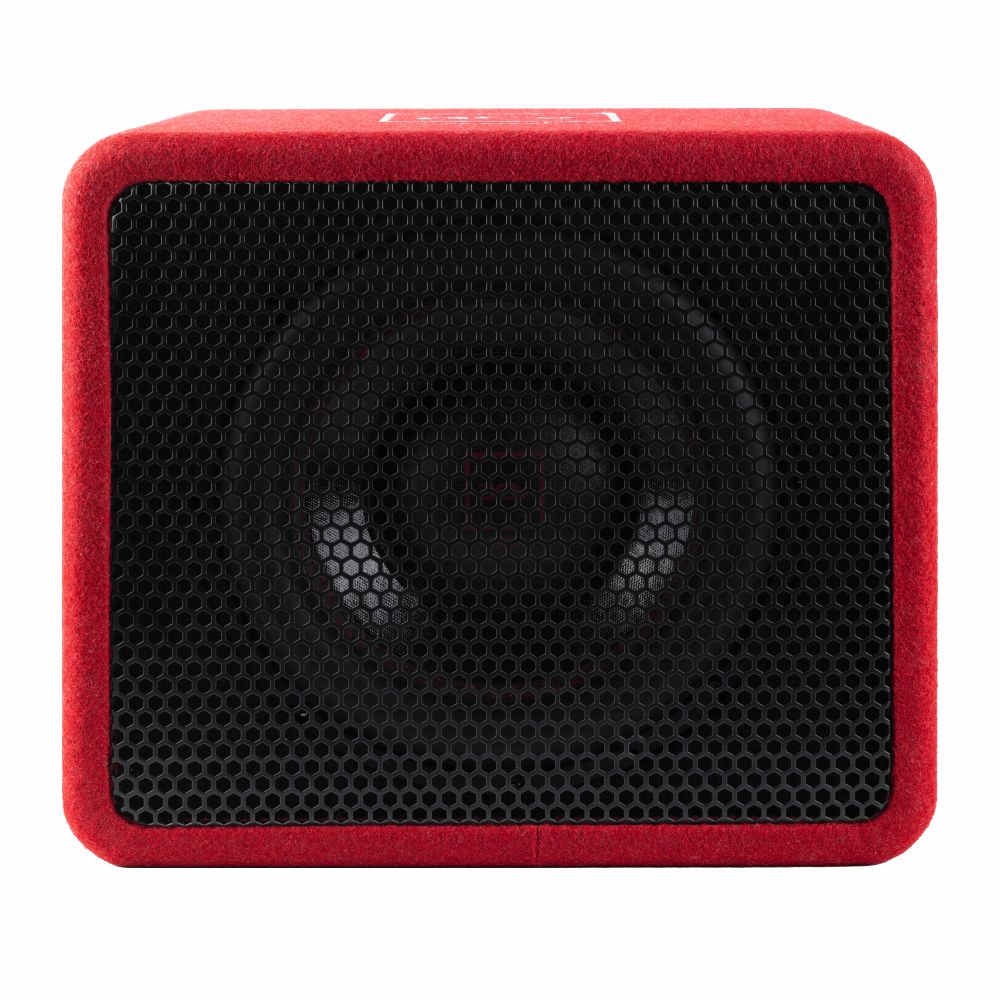

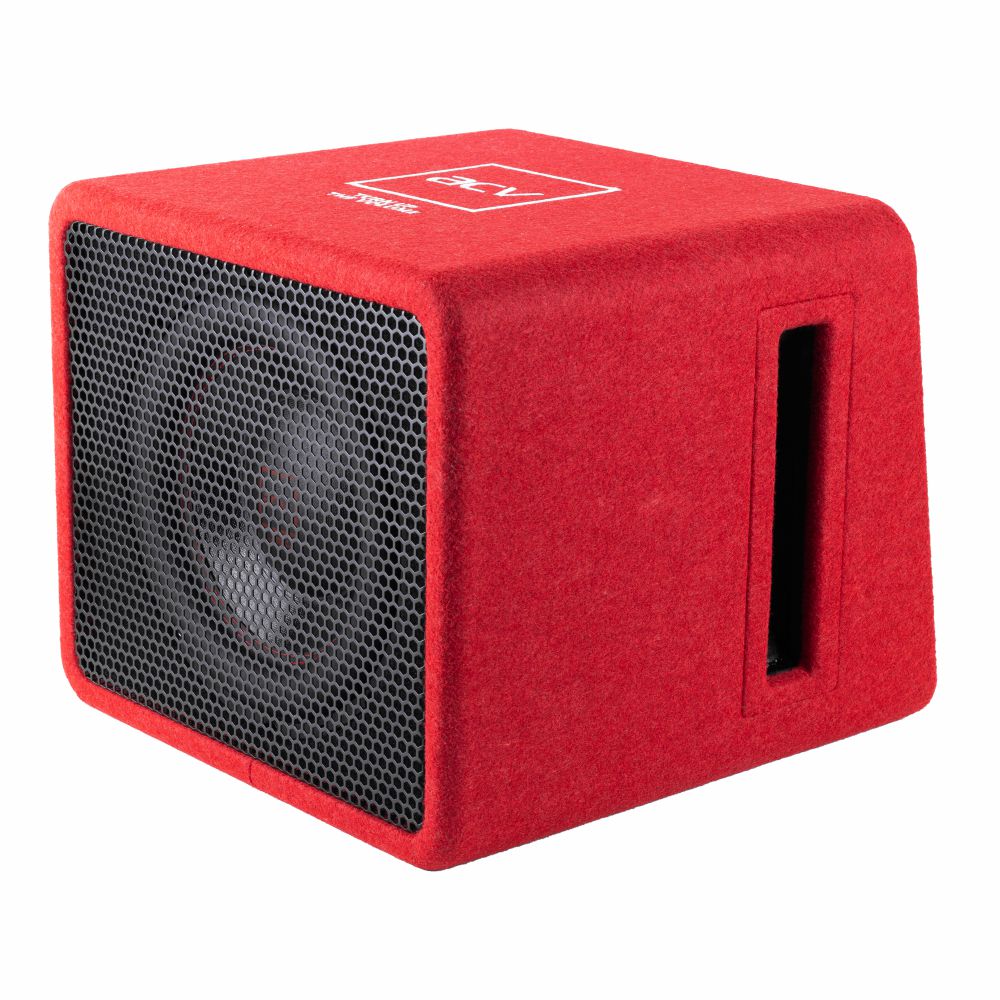

Active subwoofer with a maximum power of 2200 W and a 10-inch LF speaker. It produces impressive bass that no music lover can pass by. You will get a really loud everyday, noticeable to everyone around you. The result of a serious approach were no less serious characteristics. The subwoofer has an impressive power reserve, produces 400-2200 W, and copes with long-term loads.

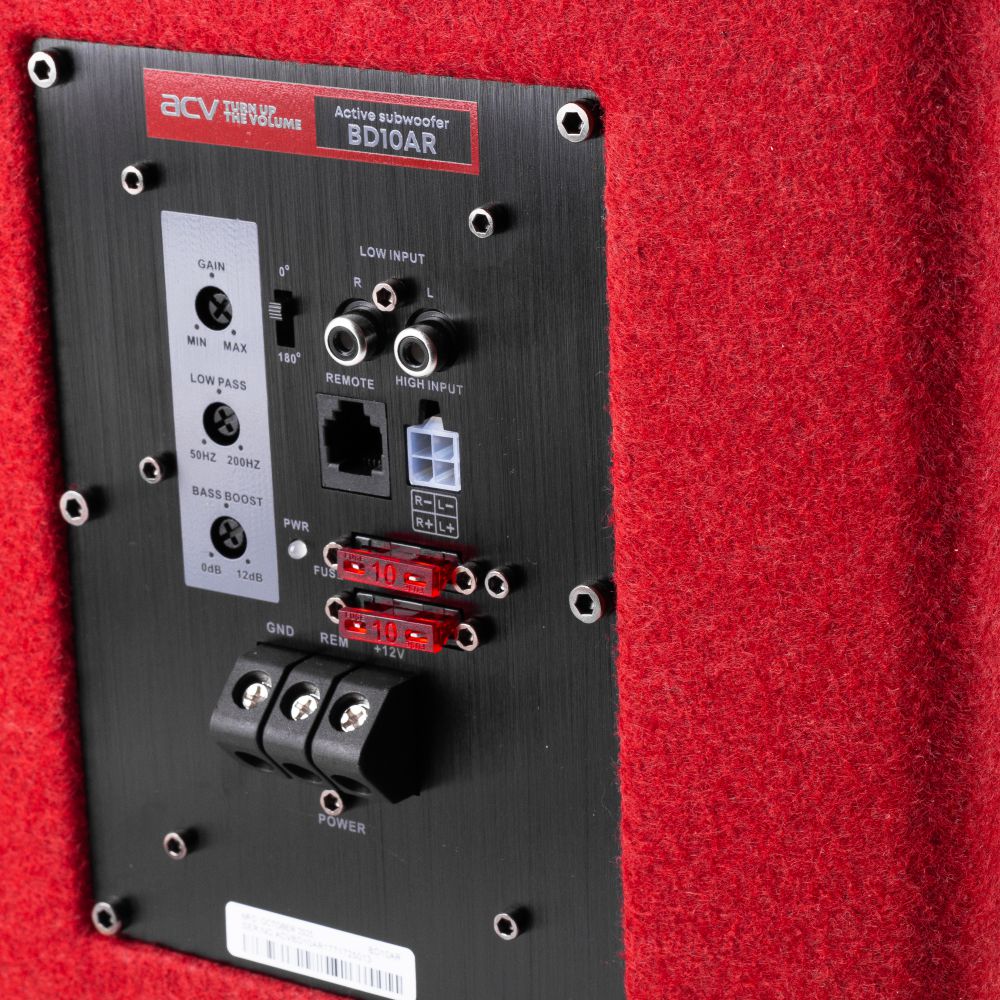

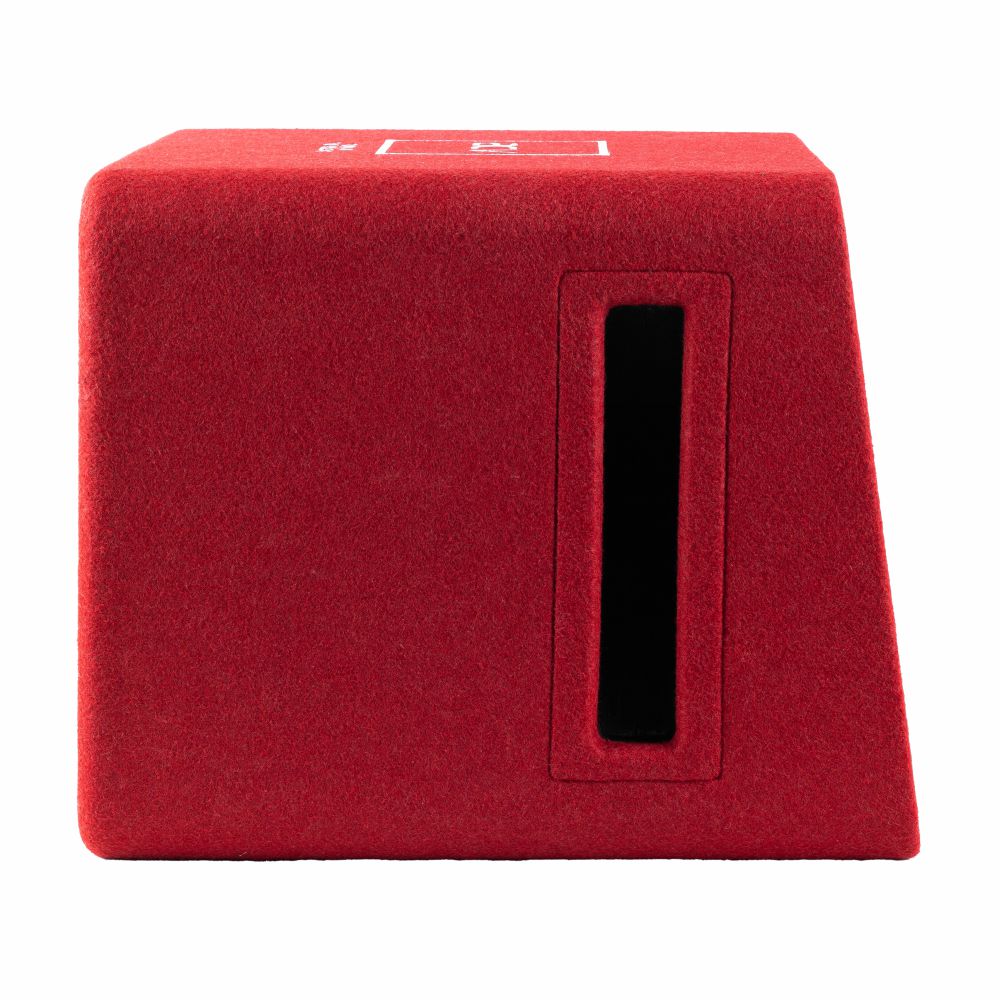

ACV BD10AR has a fairly compact size, which will save a lot of space in the car. The design feature is a bass-reflex case, precisely calculated for a powerful 10-inch LF speaker, heavy and massive. Subwoofer cone is made of cellulose with treatment with the large rubber suspension that provides high excursion. Subwoofer is powered by a up-to-date high-efficiency digital class D amplifier, made by HE-LI technology (High Efficiency up to 95% / Low Impedance). The built-in latest low-impedance digital amplifier produces a power of 400 W at 0.25 Ohm, which made it possible to achieve maximum performance of the device. Inside the subwoofer there is a high-temperature dual 2-inch voice coil with a impedance of 1 + 1 Ohm, a 45-ounce magnet, and a sensitivity of 89 ± 2 dB. The tandem of modern components with proven technologies allows demonstrating SPL 109 ± 2 dB.

Specifications

Sound reproduction

• Peak power: 2200 W
• Rated power: 400 W
• Sensitivity: 89 ±2 dB
• Impedance: 1+1 Ohm (dual voice coil)

Model features

• Voice coil: 2" (51 mm), 1+1 Ohm
• SPL: 109±2 dB/W/m at 1 m
• Cone: Cellulose with water-repellent treatment
• Surround material: Rubber
• Magnet: 45 oz
• Frequency range: 20-200 Hz

General details

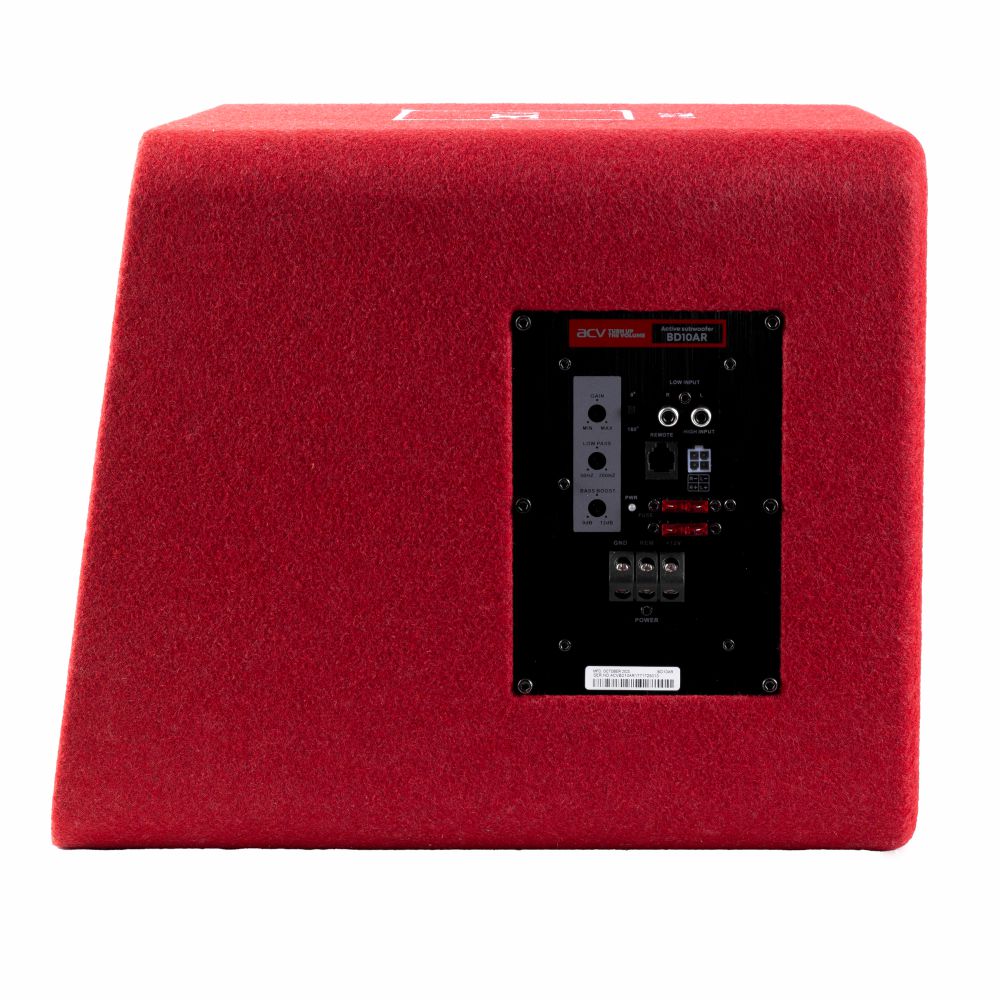

• Enclosure type: Trapezoid
• Subwoofer size: 10" (25 cm)
• Enclosure: Bass-reflex enclosure with built-in class D amplifier
• Dimensions: 355*(325+355)*303 mm
