Car power amplifier 4x130W
LX-4.130
The 4-channel ACV LX-4.130 amplifier is a continuation of the ACV LX-4.100 model, which has become very popular, it has a larger body and increased power compared to its predecessor. Made in the classic design of the brand in a black case. By connecting a subwoofer and better acoustics, you will change the sound of the standard system beyond recognition - for the better, of course.
The design provides 3 fuses 30A. The settings base is quite standard for its class. Built-in low-pass and high-pass filters will make it possible to better tune the system for a subwoofer or for ordinary speakers. Low pass filter: 30 - 300 Hz, High pass filter: 30 - 8 kHz.
Channel options in the system: 4/3/2. It can be either a 4-speaker circuit familiar to everyone, or a pair of speakers with a subwoofer. In the latter case, the woofer is connected via a bridge circuit. This arrangement gives us not 130 W, but 400 W at the output. Unwanted ranges are clipped using filters. The amplifier is equipped with screw terminals, this type of connection is a time-tested classic. A reliable and simple option. .
ACV LX is able to provide transparent and clear sound without distortion. The high power level is complemented by the complete absence of interference.
Features
Stable work at loads: 2 and 4 ohms, stereo
Bass Boost: 0-6-12dB
Fuse rating: 3 x 30A
Frequency range: 10Hz - 30kHz
Parameters
Peak Power: 1800W
Rated power at 4 Ohm: 130W x 4, bridged (MONO): 400W x 2
Rated power at 2 Ohm: 200W x 4
Sensitivity: 200mV-8V
Signal to noise ratio: ≥ 92dB
Harmonic Distortion: (THD) @ 1kHz (40m): 0.15%
Channel separation
Channel separation:> 45dB
Low pass filter: 30 - 300 Hz
High pass filter: 30 - 8 kHz
Number of channels: 4/3/2
General details
Dimensions: 200 x 58 x 332mm

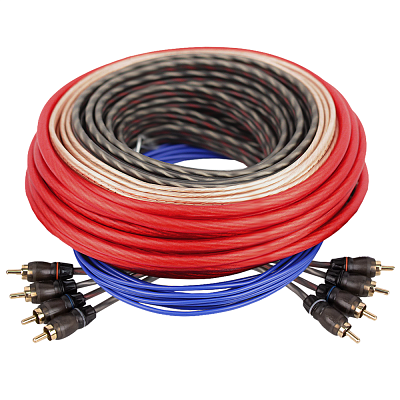

Accessories
