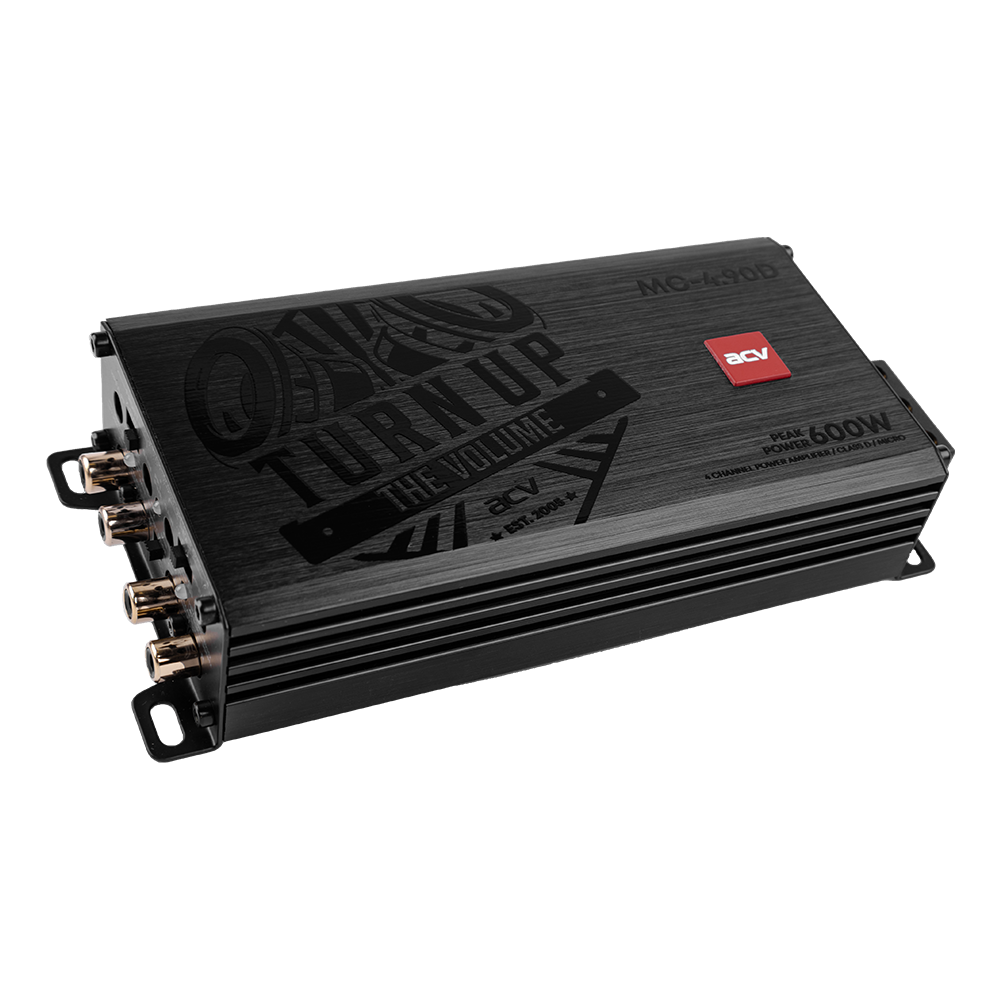

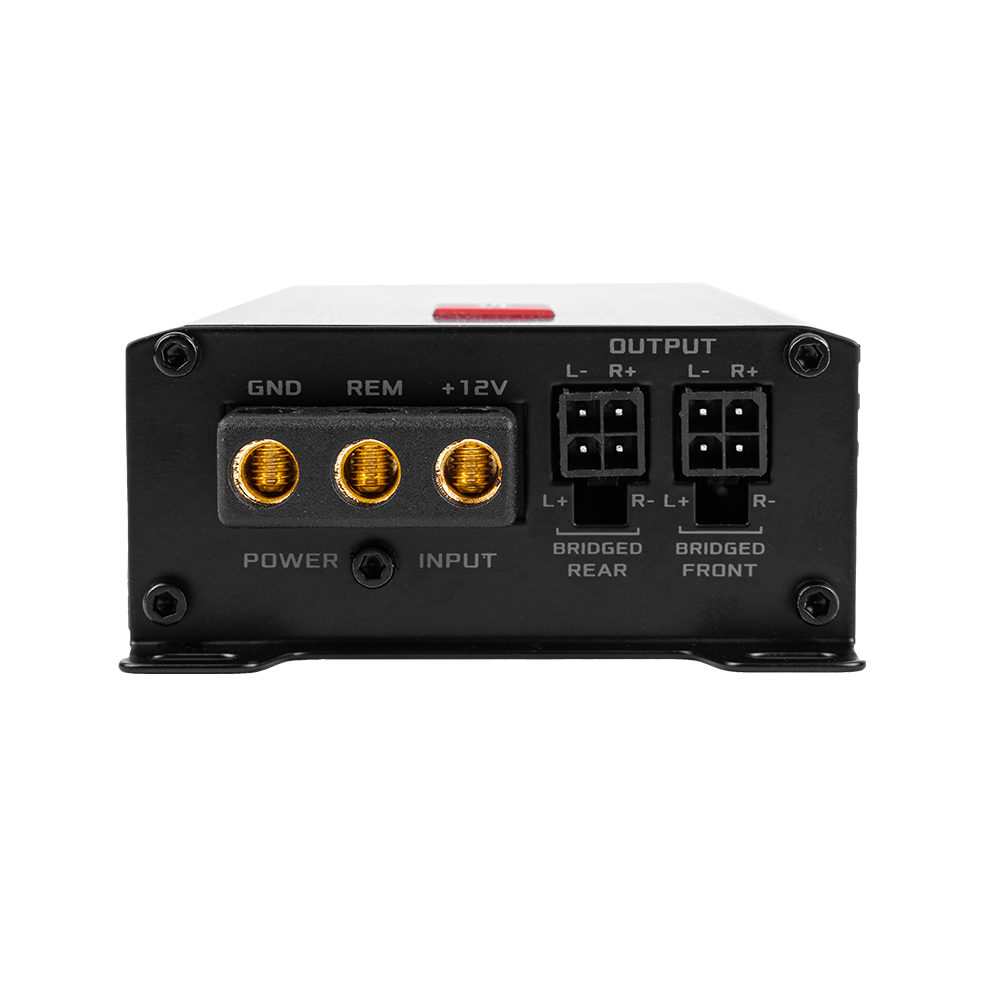

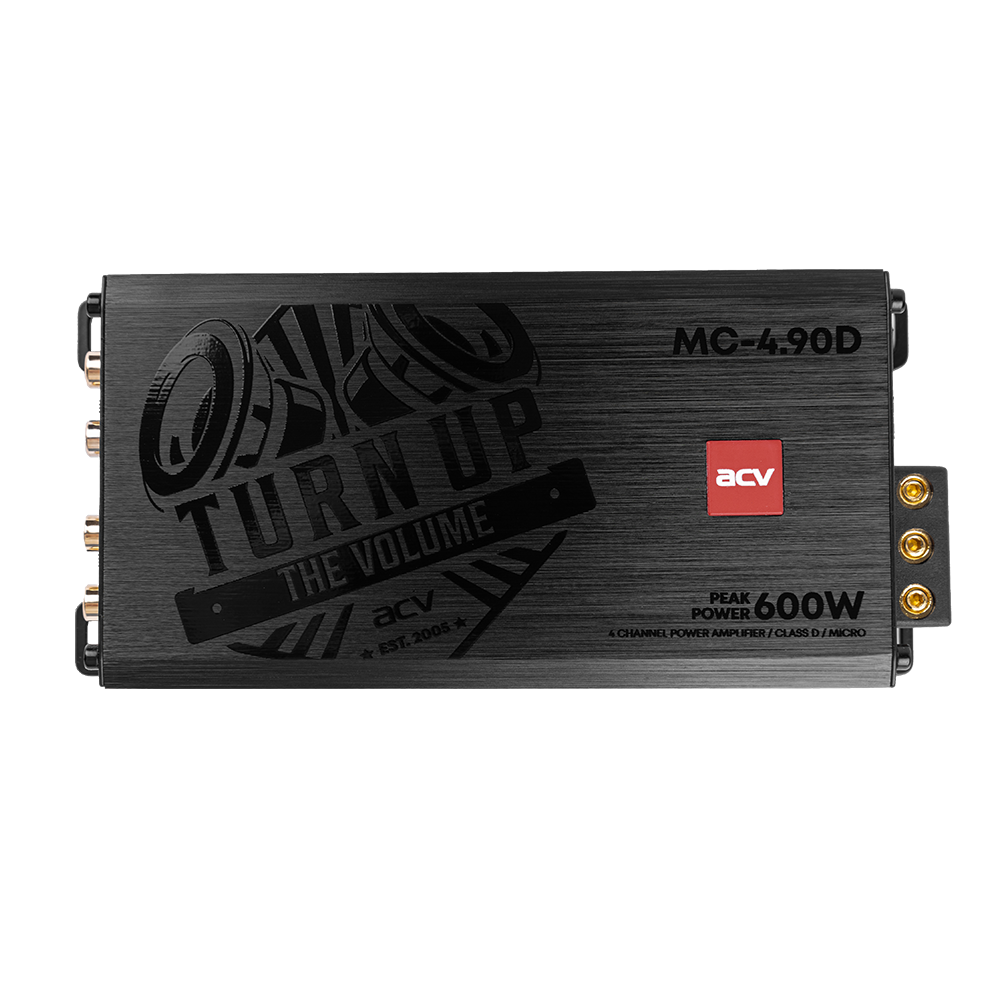

Four-channel amplifier with fully digital circuitry and double-sided PCB, powerful and compact. Designed for true high-quality sound reproduction with very low distortion and wide frequency range. Conveniently positioned speaker and power connectors ensure easy installation and lossless connectivity. The device is made in a compact body, demonstrates stable operation at loads of 2 and 4 ohms. Multilevel system of protection against overheating and care for protection. An amplifier like this is a great way to expand your audio system on a tight budget and get a really decent result!

Device Features:

• Digital Amplifier (Class D)
• Micro size
• Stable operation at a load of 4 Ohm and 2 Ohm
• Latest High Efficiency Circuitry
• FR-4 Double Layer PCB
• Multilevel protection system
• SMD Surface Mount Technology
• External bass boost remote (MC-2.90D, MC-1.500D)
• Expanded filters up to 8kHz (MC-2.90D, MC-4.90D
• Equipped with high-level inputs (MC-2.90D, MC-1.500D)

4 channel amplifier allows you to drive many speakers and even a subwoofer.

Stable operation under 2 Ohm load lets your amplifier work continuosly at high loads and with high performance.

Class D in accordance with the latest technological solutions will allow you to obtain the highest quality sound from any acoustic systems.

Ultra-compact sizes of the device 160x85x38 mm (LхWхH) gives opportunity to save space in your car significantly.

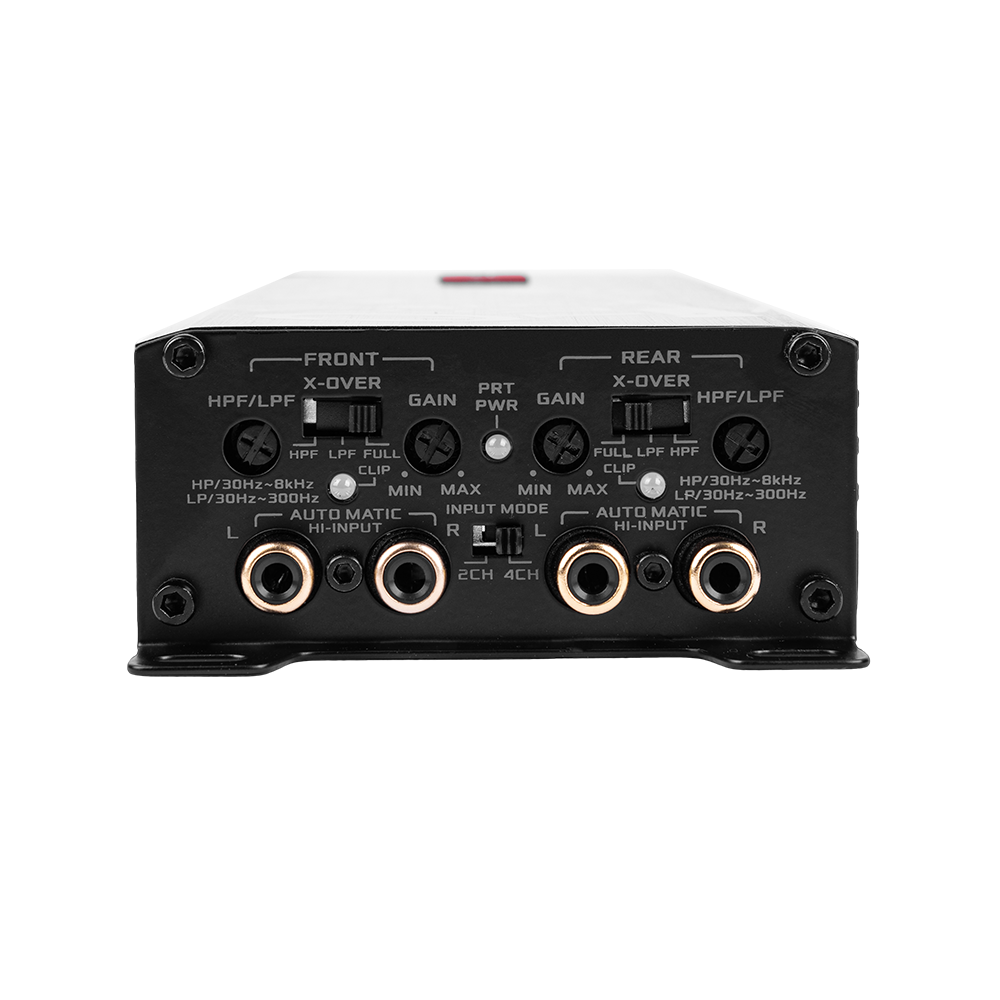

Clip detector - allows you to detect signal distortion when adjusting the sensitivity level Gain.

Specifications

Features of the model

• Stable work at load: 2 and 4 ohms
• Bass Boost: N/A
• Fuse rating: 2 x 30 A
• Frequency range: 10Hz ~ 50KHz
• Input mode switch: 2 channel / 4 channel

Parameters

• Peak power: 600W
• Rated power 4 Ohm: STEREO 90W x 4, bridged (MONO): 300W x 2
• Rated power 2 Ohm: STEREO 150W x 4
• Sensitivity: 200mV
• Signal to noise ratio:> 100dB
• Harmonic Distortion: (THD) @ 1 kHz (4 ohms) 0.05%

Channel separation

• Channel separation:> 66dB
• Low pass filter: 30 Hz ~ 300 Hz
• High pass filter: 30 Hz ~ 8 kHz
• Number of channels: 4/3/2

General details

• Dimensions: 160x85x38 mm

Power supply

• Working voltage: 12V - 16V DC
