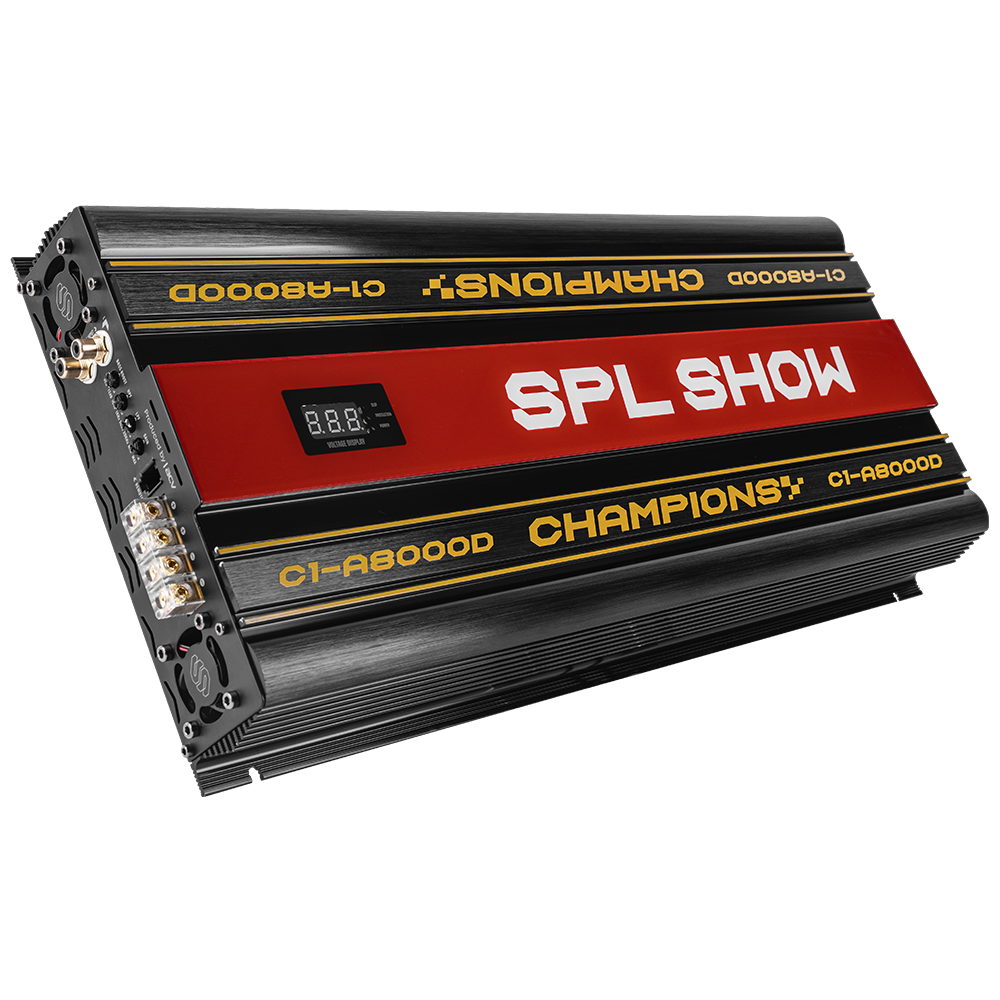

Super-powerful full-range 1-channel amplifier C1-A8000D in the Champions line of the SPL SHOW brand, made on the basis of updated and modern Brazilian circuitry. The built-in HPF regulator with an extended adjustment range makes it possible to connect powerful midrange, high-frequency, low-frequency acoustics and participate in car audio competitions. The best engineering solutions allow the monoblock to be used under long-term intensive loads. Thanks to the power supply, the device is capable of delivering high power at low and high voltage.

Innovative Brazilian circuit design allows achieving efficiency up to 90%. The C1-A8000D compact digital amplifier is a great way to make the sound in your car really loud! Device features.

Updated PCBA design
Full-range competition-Grade Class D Amplifier Experience the unrivaled efficiency and power of a premium digital amplifier circuit that delivers impressive 8000W.The device was engineered meticulously for optimal sound accuracy, energy efficiency and stable operation.

Enhanced Performance Dual cooling fans
The amplifier design features a progressive solution for effective heat dissipation due to dual cooling fans. The amplifier also has built-in multi-protection against overheating, short circuit, low & over voltage, which significantly extends the service life of the device, ensuring its durability.

CLIP-LIMIT LED
The amplifier is equipped with a built-in CLIP-LIMIT indicator. The function allows you to quickly detect a clipped signal, which helps prevent damage to the speakers. The clip LED indicator will light when it detects a distortion of the harmonic waveform, which occurs when the amplifier is overloaded.

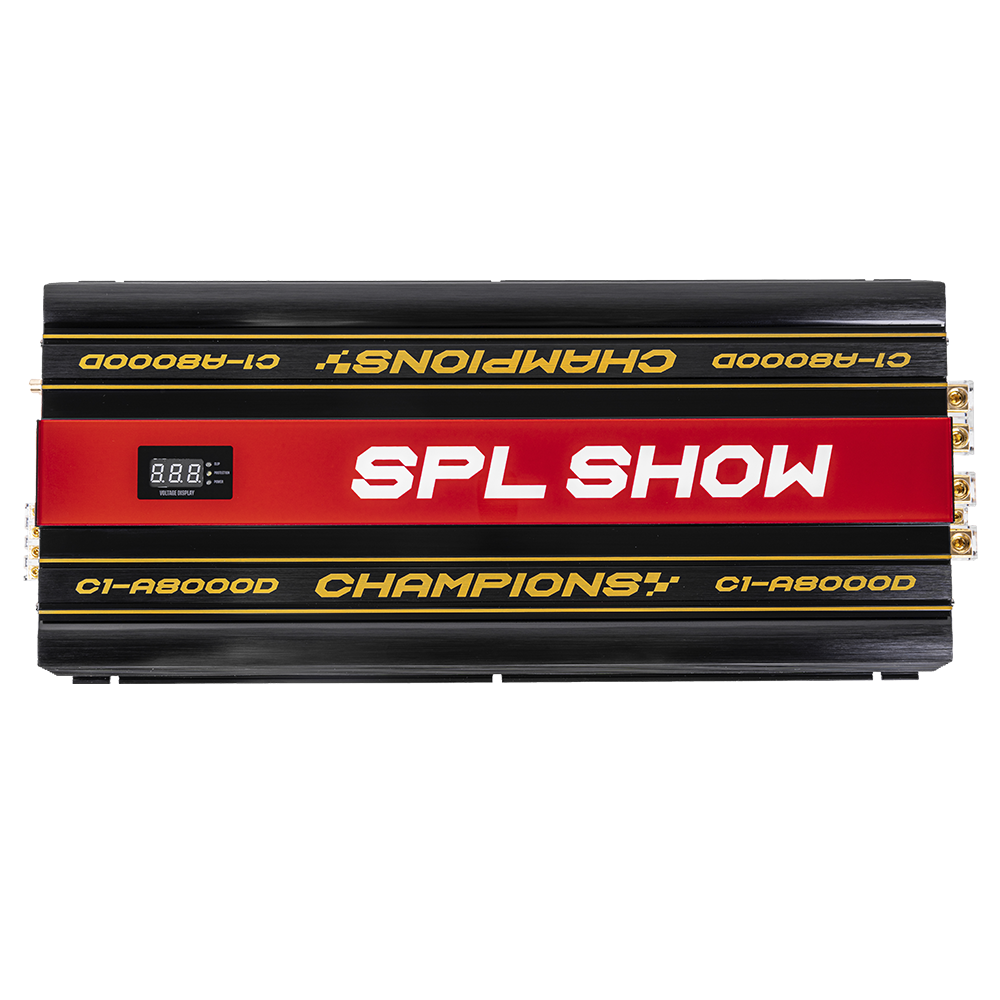

LED logo plate and Voltmeter display
The amplifier is equipped with incredibly stylish backlighting in the signature SPL SHOW style and an exclusive built-in digital voltmeter, which allows you to monitor energy consumption more accurately in real time.

Specifications

Sound reproduction

• Rated power 4 Ohm: MONO 3000W x 1
• Rated power 2 Ohm: MONO 5200W x 1
• Rated power 1 Ohm: MONO 8000W x 1

Model features

• Amplifier class: D
• LPF adjustment range: 50 - 20000 Hz
• HPF adjustment range: 10 - 1000 Hz
• Stable operation on loads: not lower than 1 Ohm
• CLIP LED indicator: yes
• Voltmeter on the heatsink: built-in
• Crossover slope: 12 dB / oct
• Frequency range: 10 ~ 20000 Hz
• Signal-to-noise ratio: ≥95 dB
• Total harmonic distortion coefficient (THD): <0.1%
• Availability of low-level signal output: Yes

General details

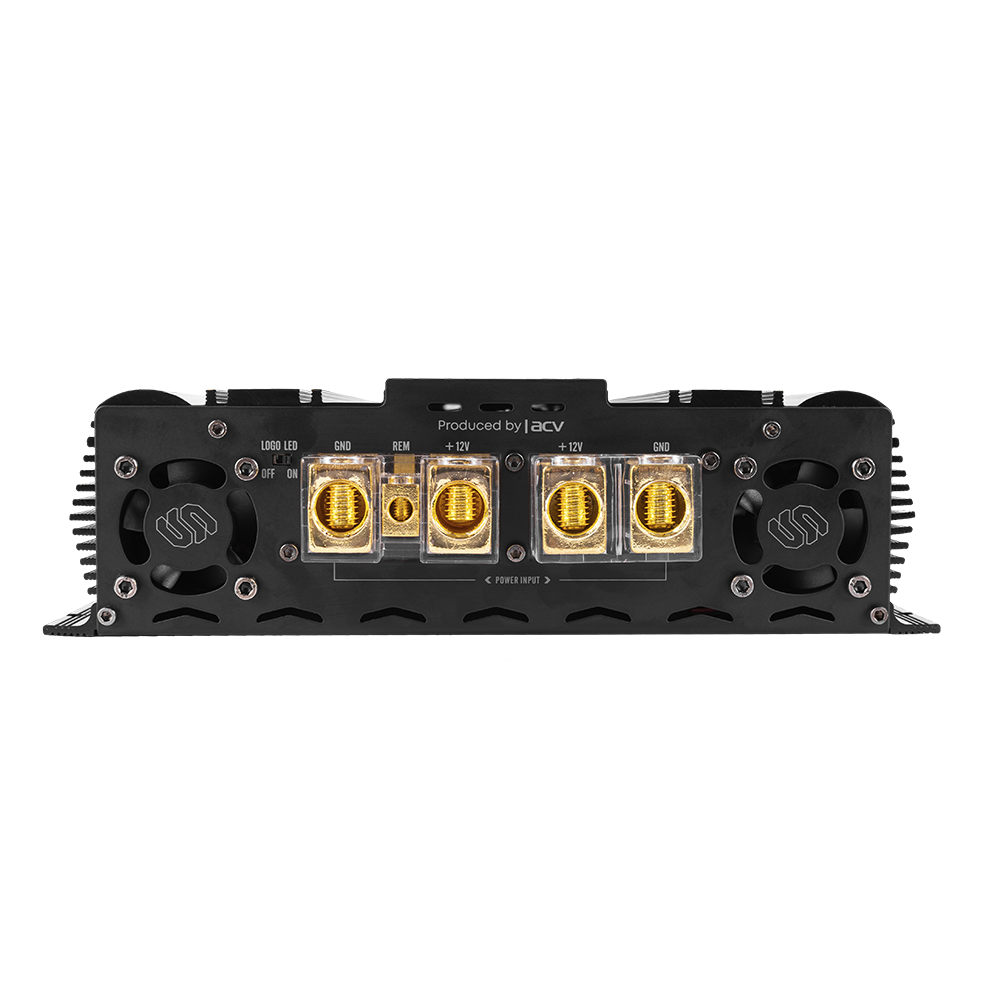

• Power terminals (Ga / mm²): 0 / 53.5
• Speaker terminals (Ga / mm²): 8/8,35
• Speaker terminals (Ga / mm²): 4 / 21.2

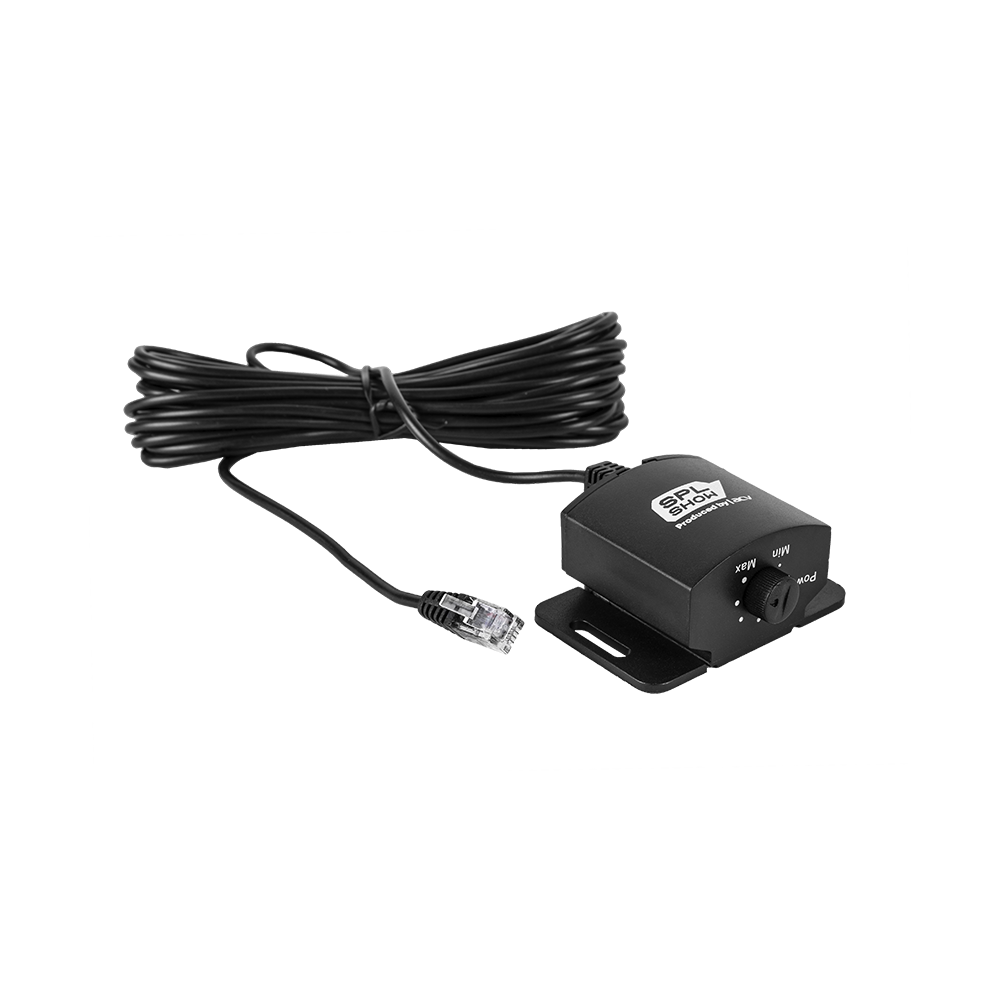

• Remote control for input sensitivity adjustment (GAIN): included
• Bass boost control (smooth): 0 - 12dB
• Sensitivity: 0.3–6V
• Working temperature range: from -15°C to +45°C
• Number of channels: 1
• Dimensions (LxWxH): 550 x 245 x 68 mm
• Operating voltage: 10 ~16V
