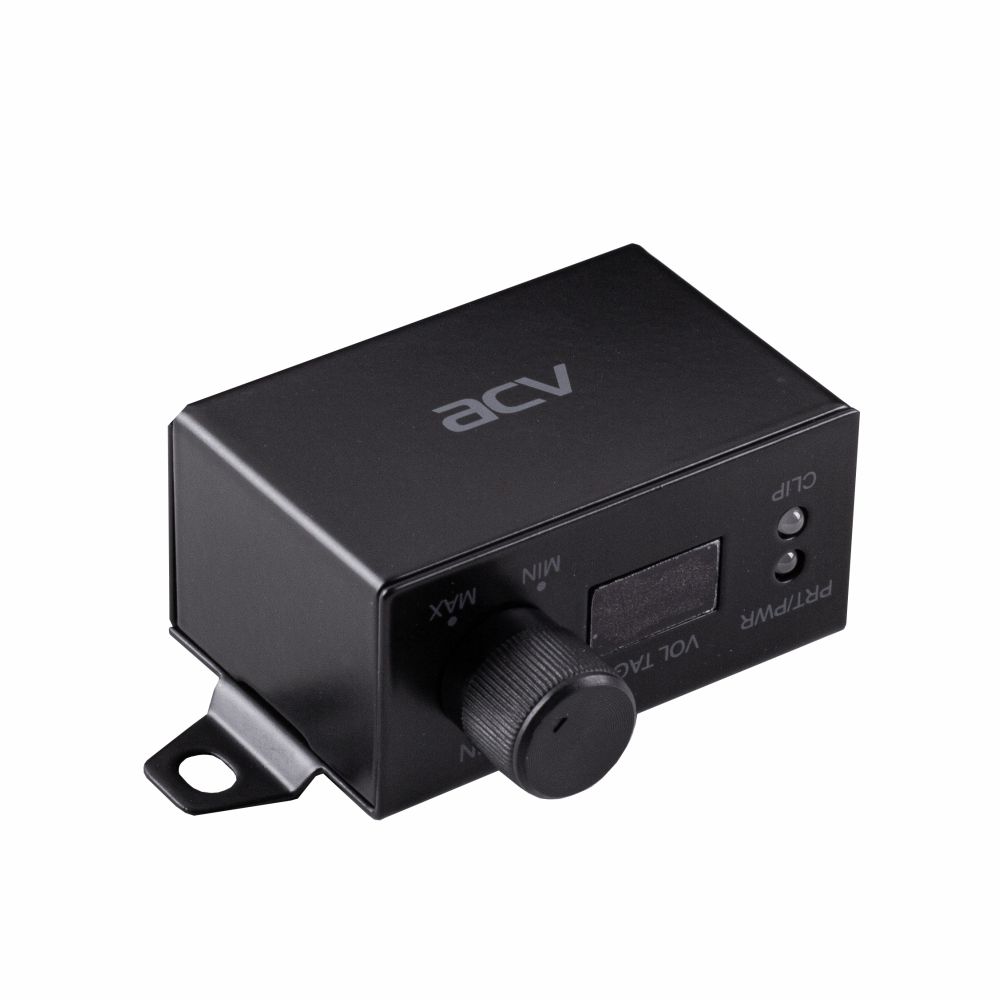

A built-in voltmeter in the bass control panel allows remote monitoring of the input voltage while the amplifier is operating. Power supply stability monitoring is essential for proper operation. If the voltage drops too low (for example, due to a discharged battery) or rises above normal (for example, due to overloads or malfunctions), the user can take action promptly, such as turning off the amplifier and promptly troubleshooting the on-board power supply.

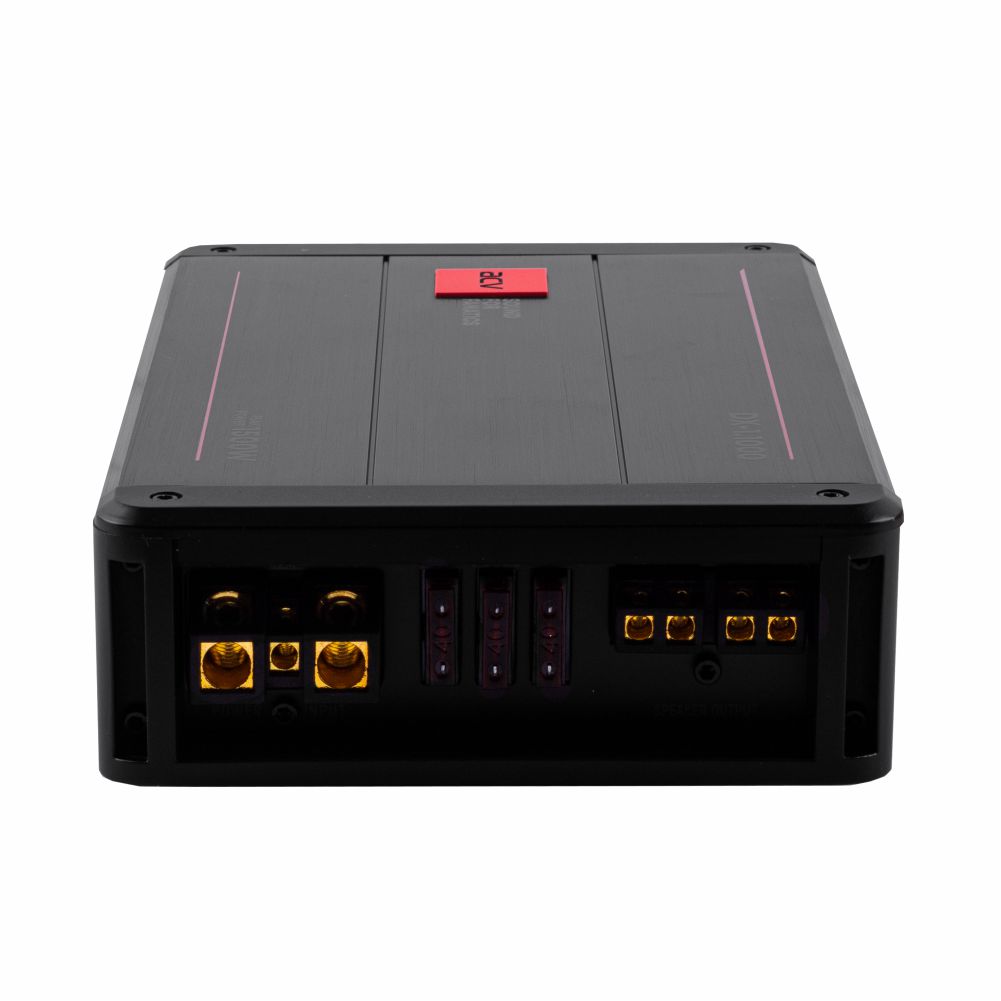

This powerful monoblock delivers impressive bass and delivers high performance. It has all the necessary features for this, including the ability to operate at 1, 2, and 4 ohms and a reliable cooling system. The dual-amplifier feature allows you to connect a second DX-1.1000 monoblock speaker for double the output power when driving into 2 ohms. A single-channel amplifier allows you to connect a subwoofer to add low-frequency range to the soundstage.

FEATURES

Digital amplifier (Class D)
Ultra-compact enclosure
Stable operation at 1 Ohm load
Cutting-edge high-efficiency circuit design
Dual-layer FR-4 printed circuit board
Multi-level protection system
SMD surface mount technology
External bass boost (V1, V2, V3, V4)
High-level inputs (V1, V2, V3, V4)

1 channel amplifier allows you to drive a subwoofer to add LF frequency range in sound scene.

Stable operation under 1 Ohm load lets your amplifier work continuously at high loads and with high performance.

Class D in accordance with the latest technological solutions will allow you to obtain the highest quality sound from any acoustic systems.

Clip detector - allows you to detect signal distortion when adjusting the sensitivity level Gain.

Specifications

Features

• Stable work under load: 1 Ohm
• Bass Boost: 0-12dB (smooth)
• Frequency range: 10Hz ~ 300Hz
• Remote control with voltmeter and clip indicator
• Master/Slave bridge mode

Parameters

• Rated power at 4 Ohm: 500W x 1
• Rated power at 2 Ohm: 750W x 1
• Rated power at 1 Ohm: 1000W x 1
• Sensitivity: 200mV-6V
• Signal to noise ratio: >102dB
• Harmonic Distortion: (THD): 0.15%

Channel separation

• Low pass filter: 35 - 250Hz
• Subsonic filter: 10 – 50Hz
• Number of channels: 1

General details

• Dimensions: 234x145x52mm
