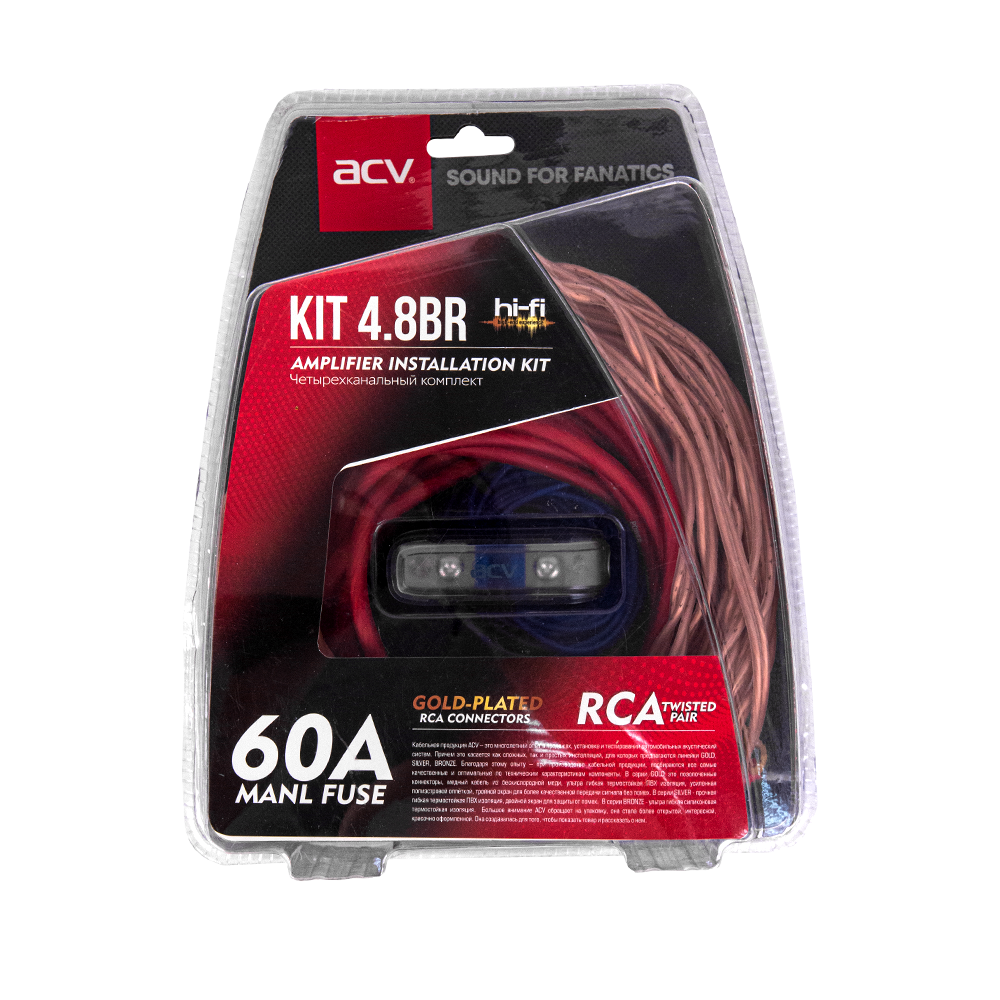

ACV cable products are the result of many years of experience in the sales, installation and testing of car speaker systems. Moreover, this applies to both complex and simple installations, for which the GOLD, BRONZE and SILVER lines are offered. In the production of amplifier kits, all the highest quality and optimal components in terms of technical specs are selected.

Thanks to such a serious approach, the installation kits do an excellent job of their tasks, while remaining affordable for a wide range of consumers.

The BRONZE series features ultra flexible silicone heat-resistant insulation. ACV pays great attention to packaging, it has become more open, interesting, colorfully decorated. It was created in order to show the product and tell about it.

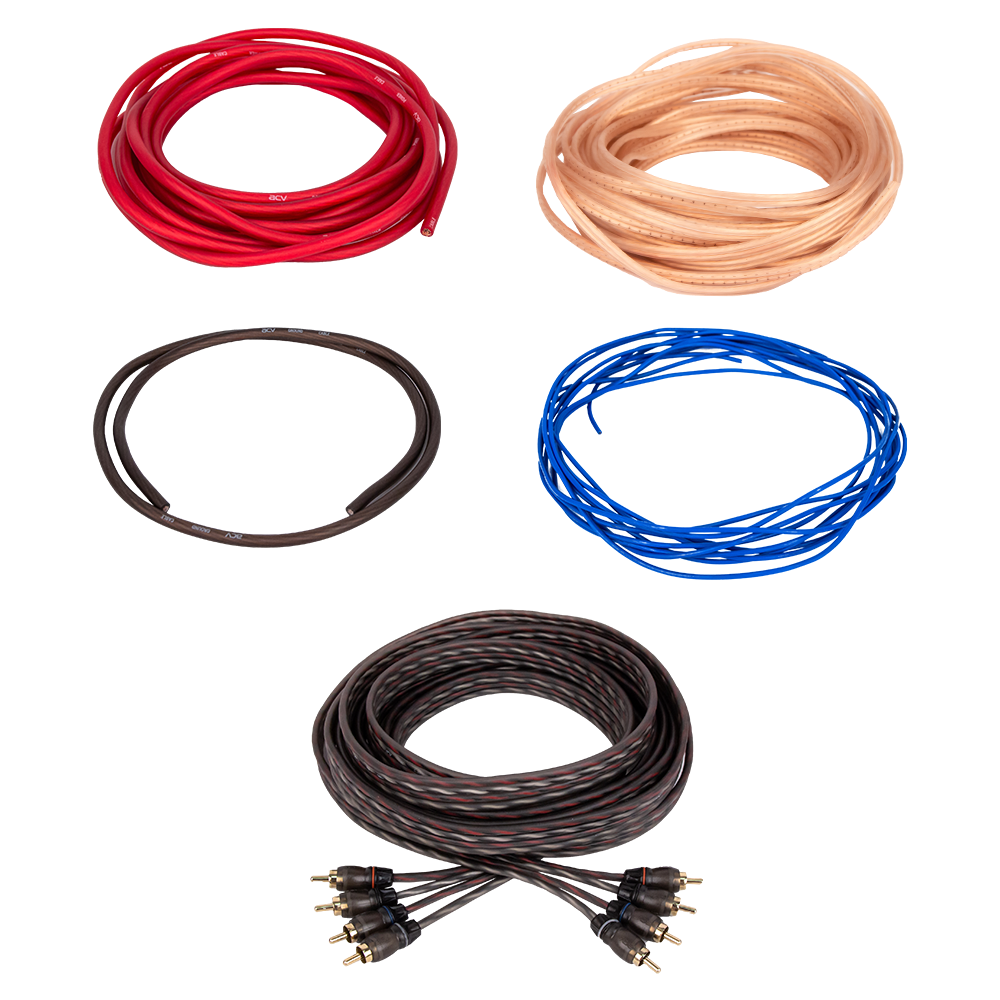

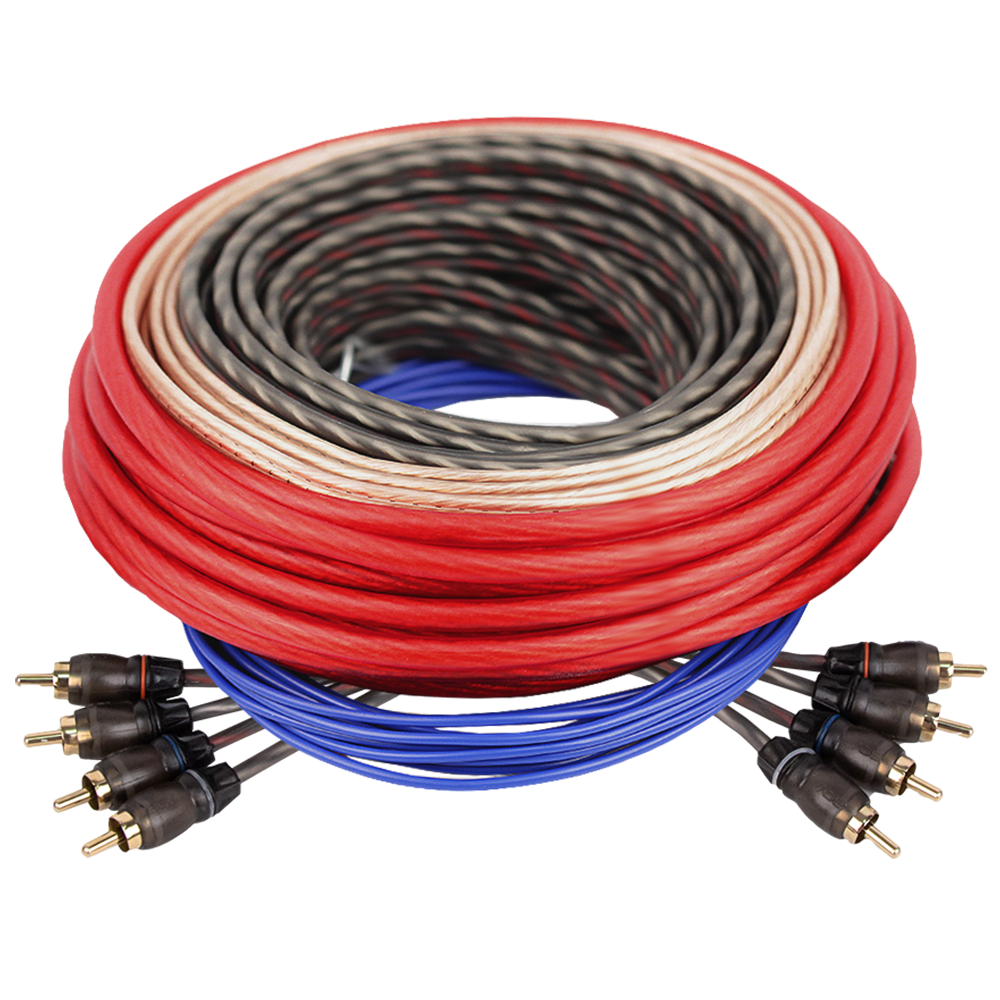

Specifications

General characteristics

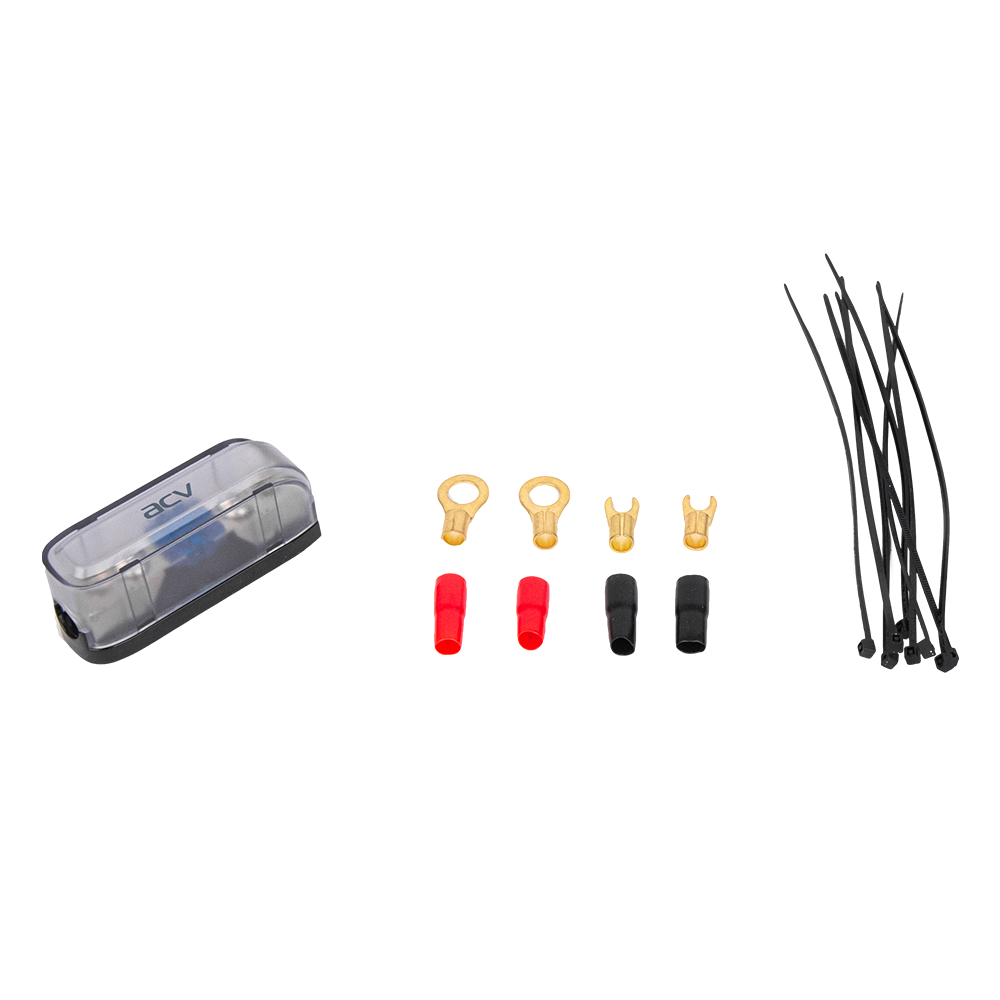

• Ties: 6" wire ties (10 pcs)
• Terminals: ring 8AWG - 2 pcs, spade 8AWG - 2 pcs
• Fuse holder: Mini ANL + Mini ANL 60A fuse
• Operating temperature range: -40°С...+65°С

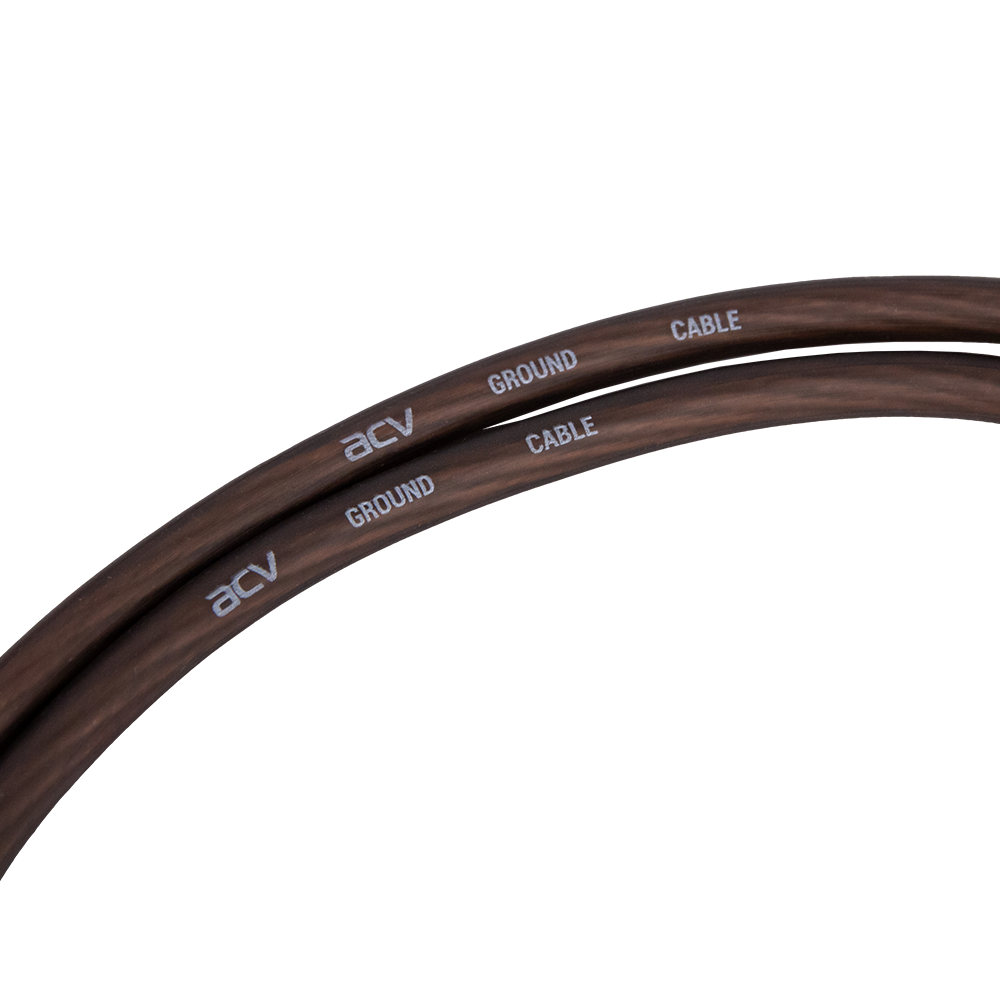

Grounding cable

• Grounding cable wire diameter: 8AWG, in transparent black insulation
• Grounding cable material: copper-clad aluminum
• Grounding cable length: 1 m
• Grounding cable core thickness: 0.20*27 mm
• Grounding cable outer diameter: 6.5 mm
• Grounding cable strand thickness: 0.20 mm

Power cable

• Power cable outer diameter: 6.5 mm
• Power cable wire diameter: 8AWG, in transparent red insulation
• Power cable length: 5 m
• Power cable core thickness: 0.20 x 27 mm
• Power cable strand thickness: 0.20 mm

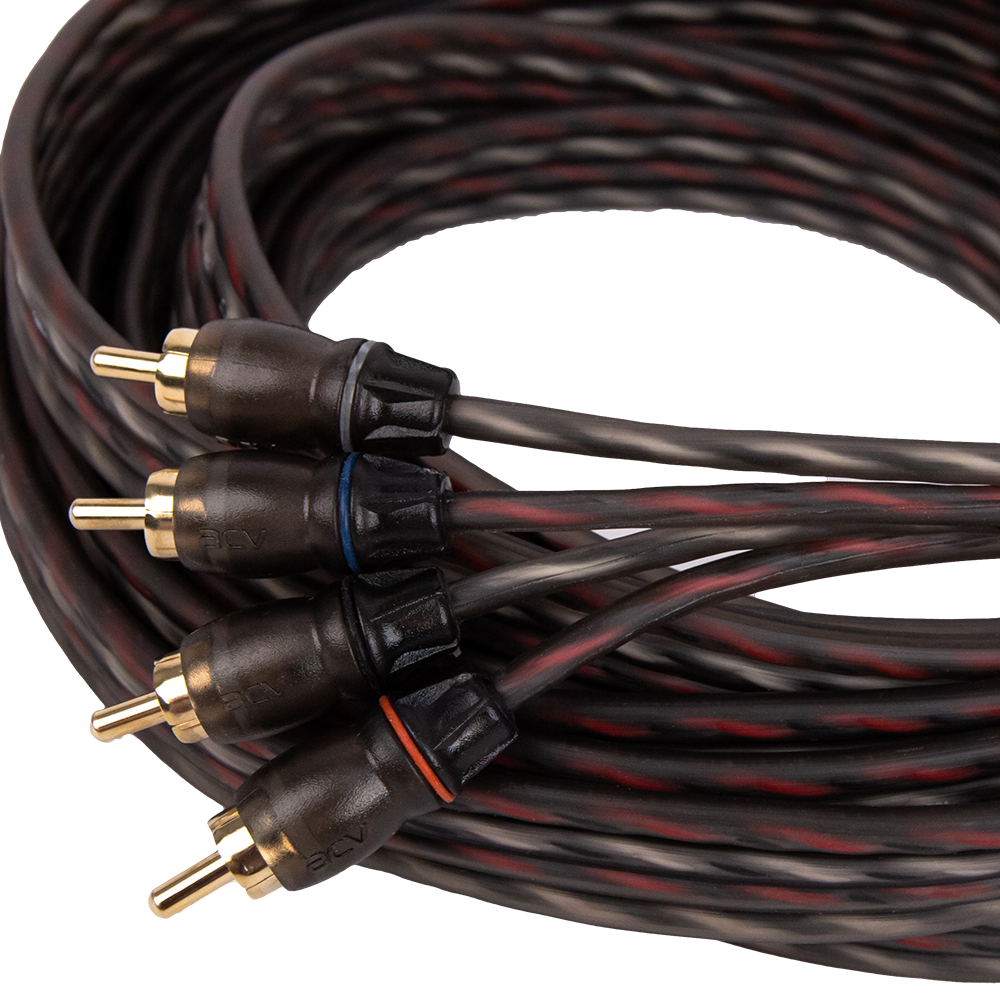

Interconnection cable

• Interconnection cable material: copper-clad aluminum
• Interconnection cable: 4 channel RCA
• Interconnection cable length: 5 m, in transparent black insulation with control cable
• Interconnection cable core thickness: 0.12 x 30 mm
• Interconnection cable strand thickness: 0.12 mm
• Interconnection cable outer diameter: 3.8 mm

Speaker cable

• Speaker cable wire diameter: 15AWG, in transparent insulation
• Speaker cable core thickness: 0.20*30 mm
• Speaker cable strand thickness: 0.20 mm
• Speaker cable outer diameter: 3.0*6.5 mm
• Speaker cable length: 10 m

Control cable

• Control cable length: 5m
• Control cable wire diameter: 18AWG, blue insulation
