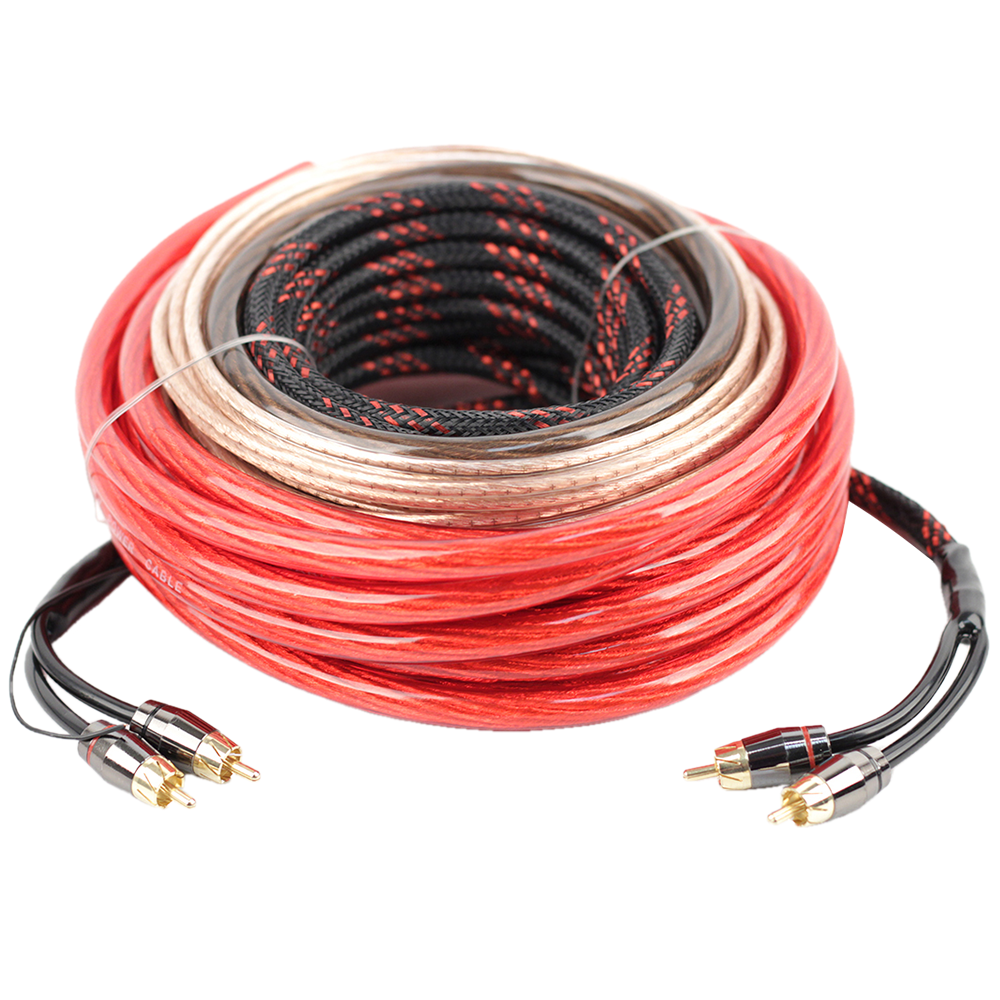

ACV cable products have many years of experience in the sales, installation and testing of car speaker systems. And this applies to both complex and simple installations.

In theGOLD series, these are gold-plated connectors, oxygen-free copper cable, ultra-flexible heat-resistant PVC insulation reinforced with polyester braid, triple shield for better signal transmission without interference.

Gold plated RCA connectors allow for increased conductivity. The signal-transmitting cable is protected by a triple shield made of PVC insulation and aluminum foil.
Heat-resistant, abrasion-resistant polyester outer braid.
Cable material - oxygen-free copper.
Improved interference suppression due to twisted pair design.
Includes ring ties, length 150 mm - 10 pcs

Specifications

General characteristics

• Ties: 6" wire ties (10 pcs)
• Terminals: ring 4AWG – 2 pcs, spade 4AWG – 2 pcs
• Fuse holder: Mini ANL + AGU 60A fuse
• Operating temperature range: -40°С...+65°С

Grounding cable

• Grounding cable wire diameter: 4AWG, in transparent black insulation
• Grounding cable material: copper-clad aluminum
• Grounding cable length: 1 m
• Grounding cable core thickness: 0.20/10 x 7 x 7 mm
• Grounding cable outer diameter: 9.8 mm
• Grounding cable strand thickness: 0.20 mm

Power cable

• Power cable outer diameter: 9.8 mm
• Power cable wire diameter: 4AWG, in transparent red insulation
• Power cable length: 5 m
• Power cable core thickness: 0.20/10 x 7 x 7 mm
• Power cable strand thickness: 0.20 mm

Interconnection cable

• Interconnection cable material: copper-clad aluminum
• Interconnection cable: 2 channel RCA
• Interconnection cable length: 5 m, in transparent black matte insulation with control cable
• Interconnection cable core thickness: 0.12 x 60 mm
• Interconnection cable strand thickness: 0.12 mm

Speaker cable

• Speaker cable wire diameter: 12AWG, in transparent insulation
• Speaker cable core thickness: 0.20/2*7*9 mm
• Speaker cable strand thickness: 0.20 mm
• Speaker cable outer diameter: 4*8 mm
• Speaker cable length: 10 m
