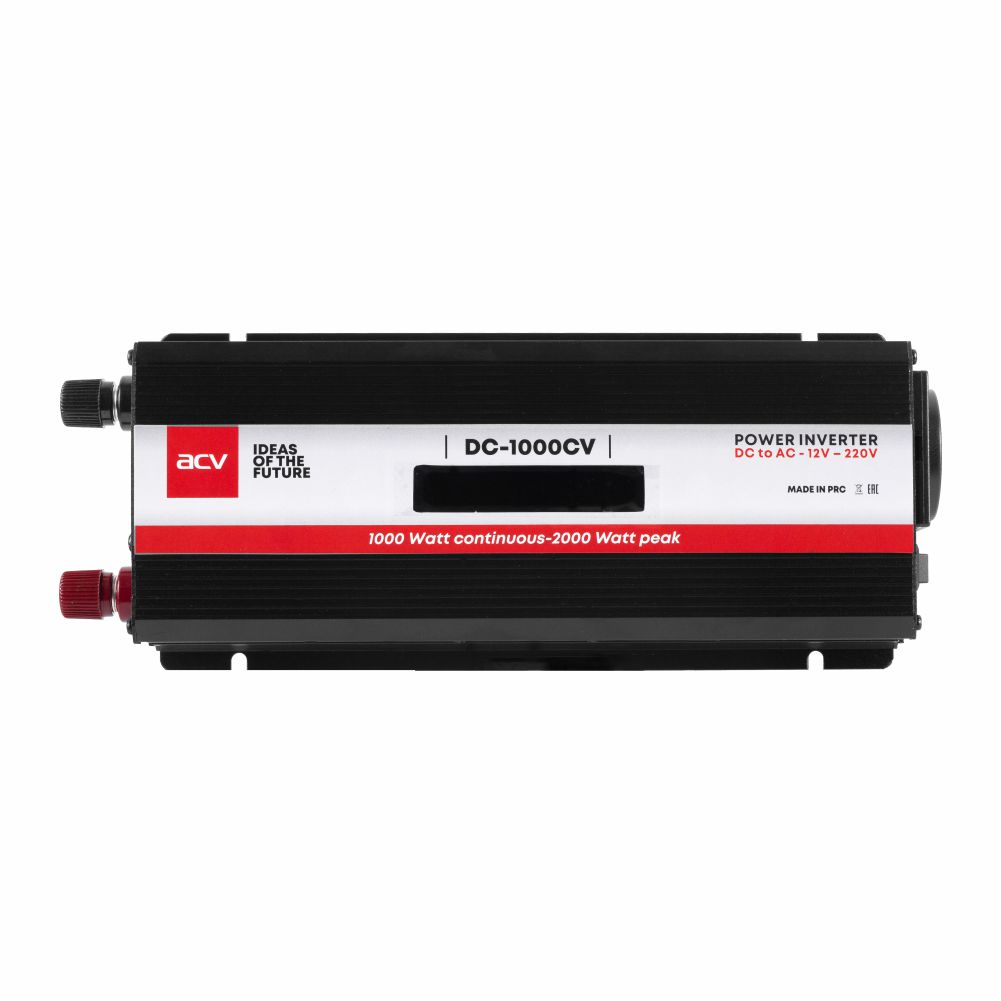

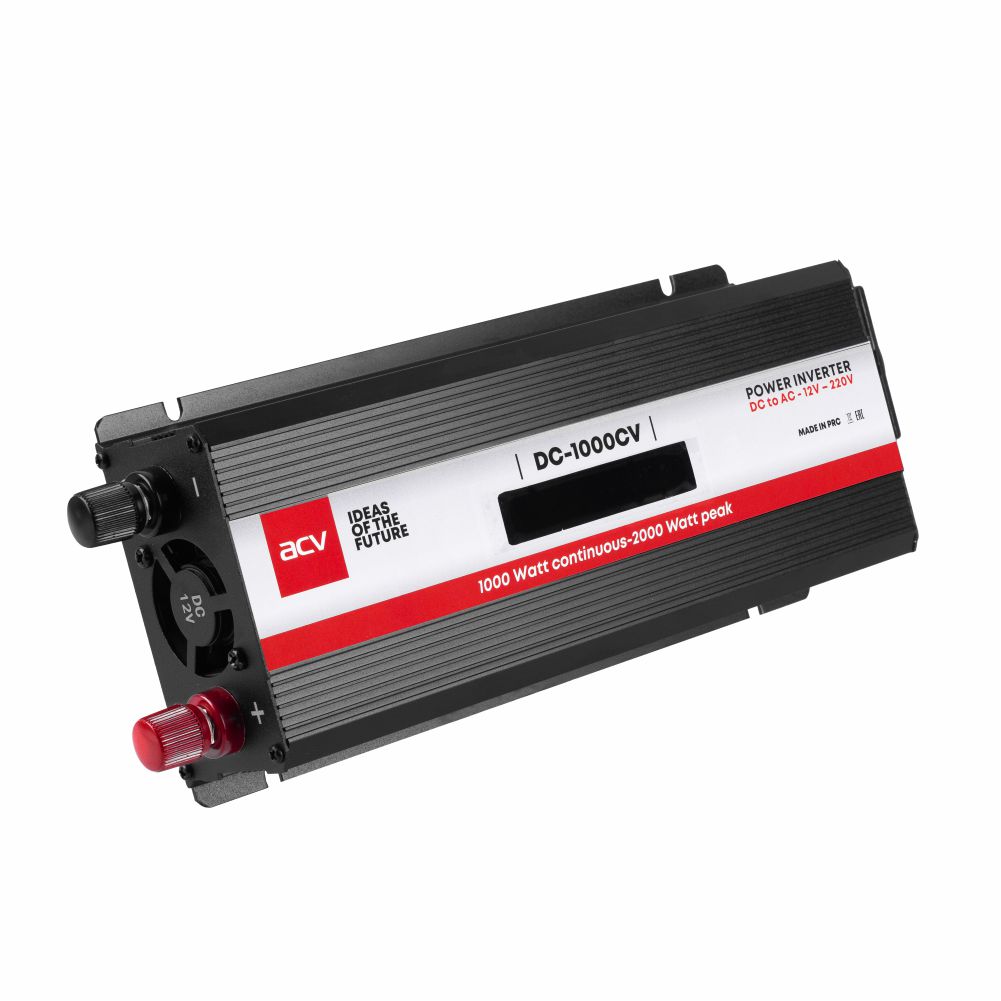

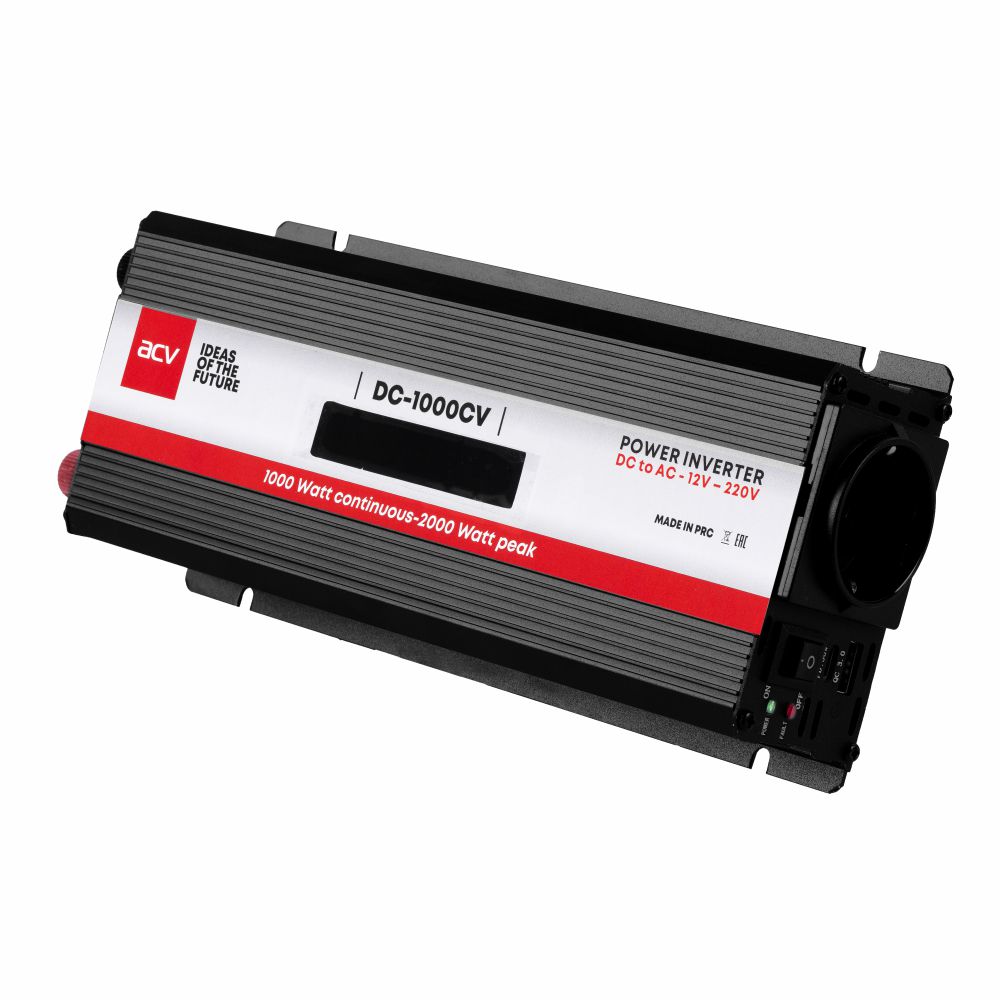

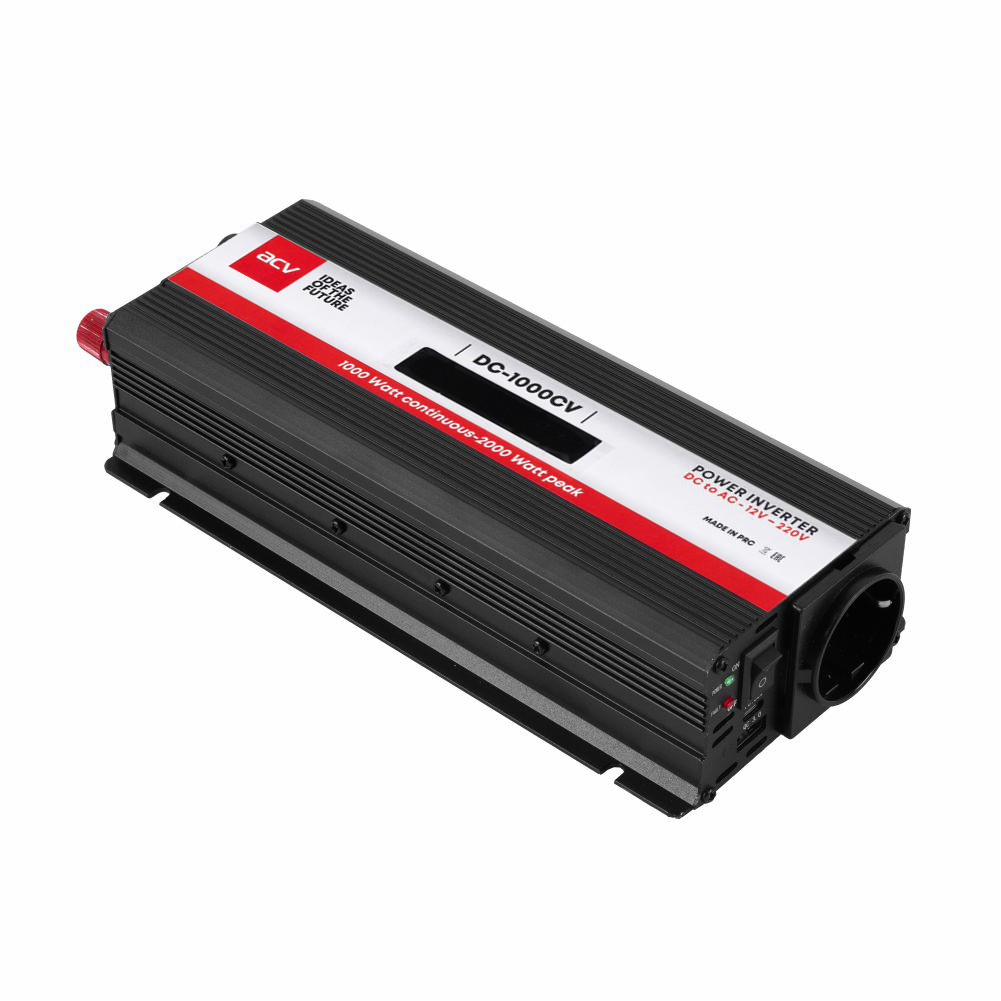

A high-efficiency, 1000W power inverter that enables the use of various useful 220V appliances inside your vehicle.

Each model in this inverter lineup is a reliable, high-tech device. While they vary in size, weight, and power output, they are all compatible with any vehicle featuring a 10–15V electrical system.

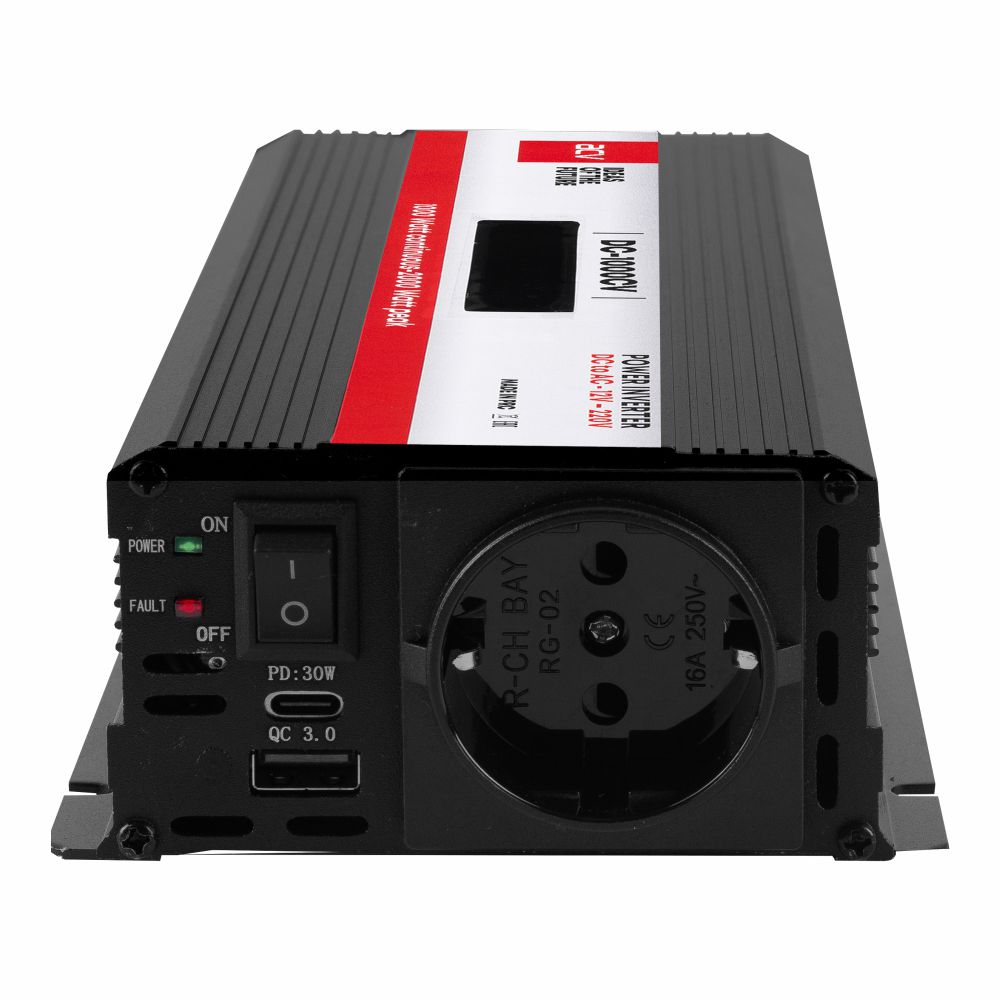

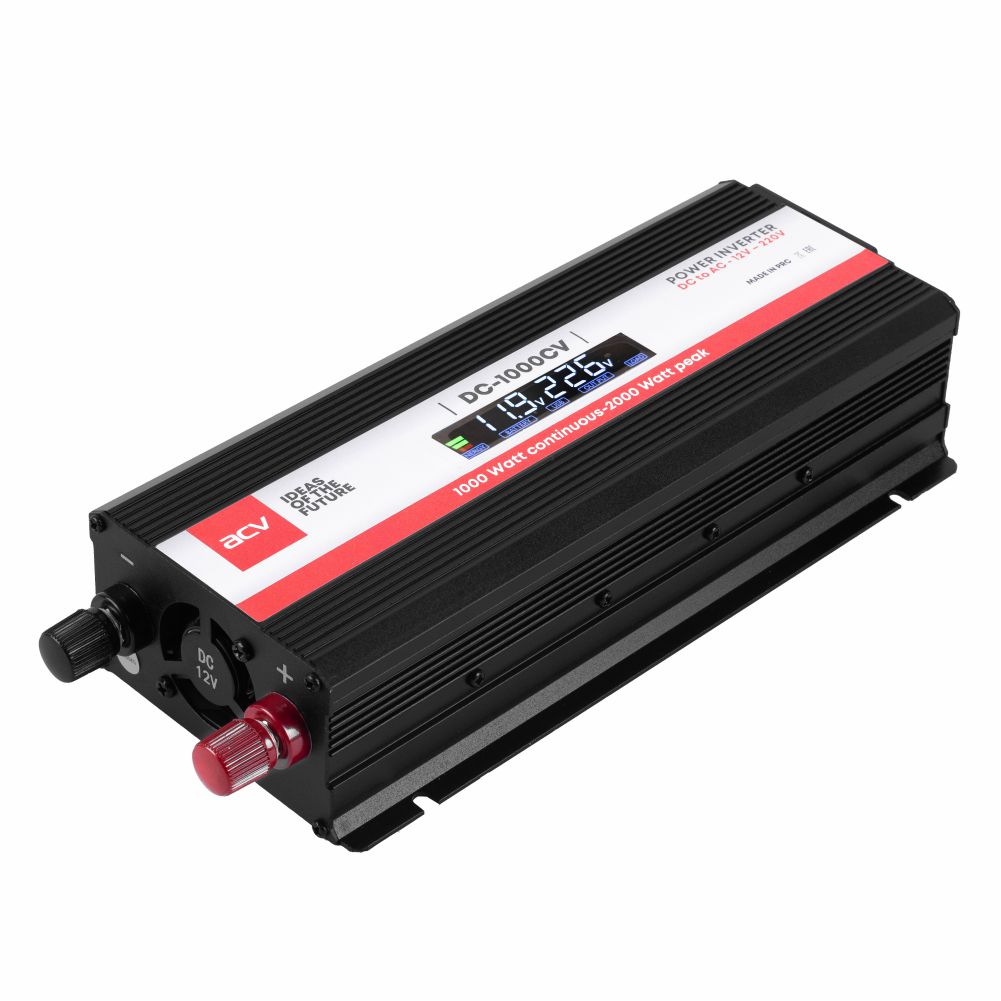

These inverters are purchased to enhance vehicle comfort. They allow you to use standard 220V outlets—and thus any appliance requiring that voltage—during long trips or picnics. The unit features a voltmeter function to display input and output voltage, a 220V socket, USB-C PD (30W) and USB-A QC3 (18W) ports for charging gadgets, and the ON/OFF switch.

Operational Safety

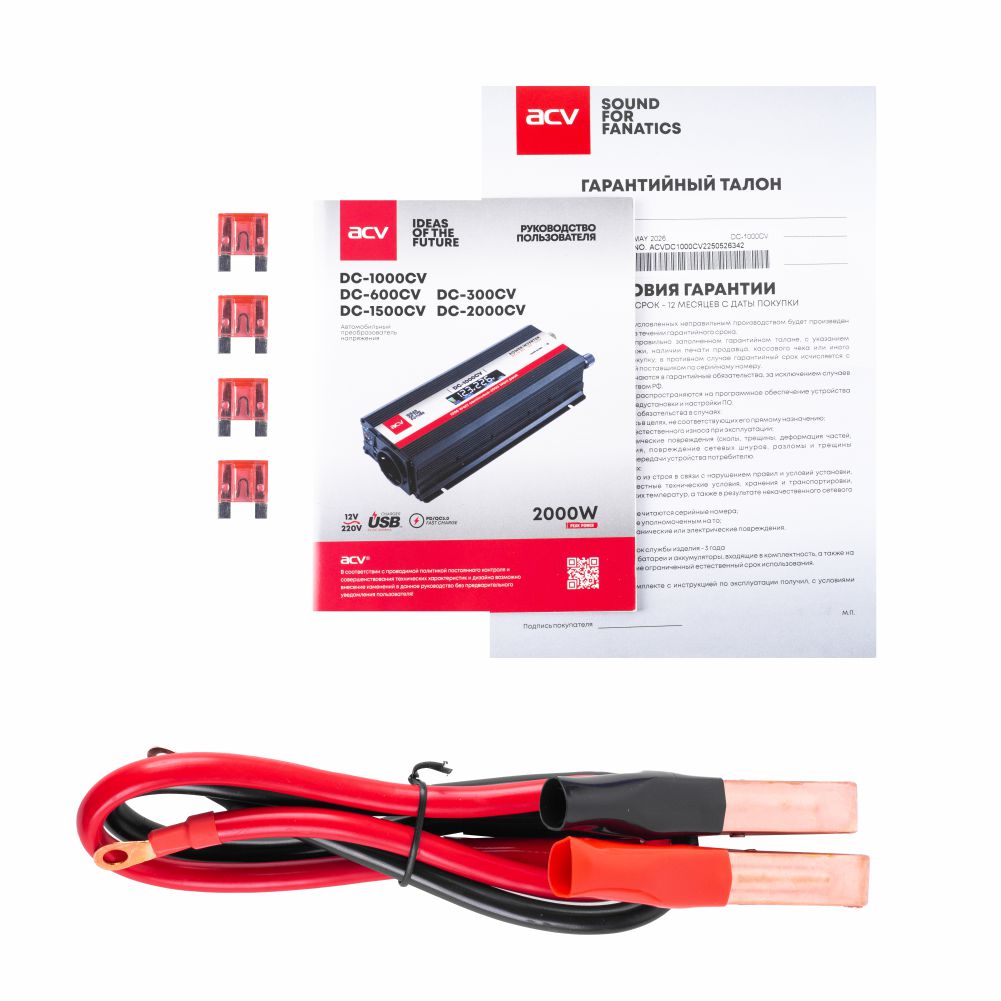

With 100% input/output protection, along with its robust design and advanced technology, this inverter is highly reliable and resistant to voltage spikes, short circuits, and overheating. It is equipped with a cooling fan and four 40A fuses. A voltage sensor continuously monitors the vehicle's electrical system and battery charge; the system alerts the user if the voltage drops to 10.5V. If the battery charge falls below 10V, the device shuts down to prevent damage to the power source. A standard battery typically lasts 1–2 hours, depending on the load. It is recommended to start the engine every hour to maintain the necessary battery charge.

A built-in temperature sensor monitors the unit's casing temperature. The device shuts down at 65°C and can be used again once it has fully cooled down.

Specifications

Model Features

• Continuous power: 1000 W
• Output waveform: Modified sine wave
• Peak surge power: 2000 W
• Low-voltage alarm: 10.5 ± 0.5 V DC
• Automatic shutdown: 10.0 ± 0.5 V DC

General details

• Efficiency: 95%
• No-load current: <0.3 A
• USB output voltage: 5 V / 9 V / 12 V DC
• USB output current: 3000mA max.
• Weight: 0.95 kg
• Dimensions: 240 x 115 x 55 mm
• Input voltage: 10–15V DC
• Output voltage: 220V AC

Power

• Thermal shutdown: 65°C
• Overload protection: Automatic reset
• Short-circuit protection: 40A fuse (4pcs)
• Power consumption: 0.3 A (idle mode)
