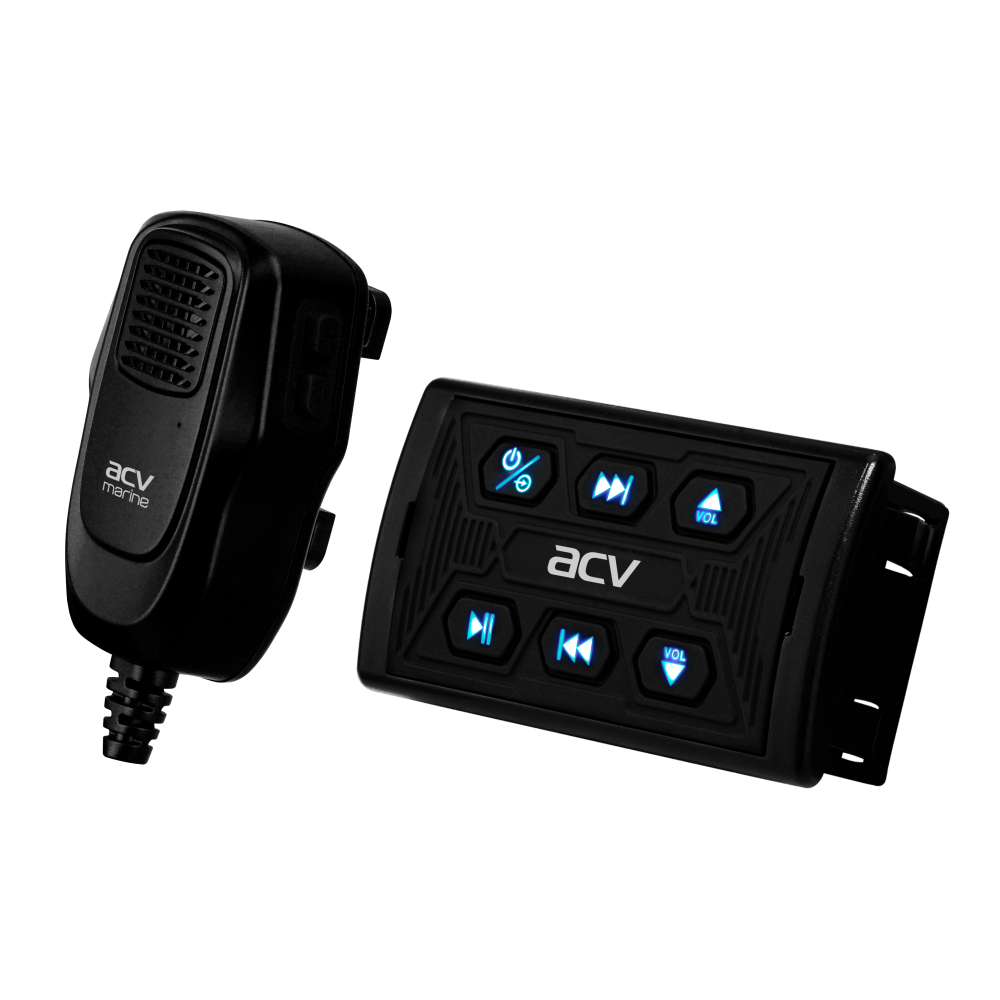

Universal waterproof Bluetooth Audio receiver with controls and the wired microphone
UMBR-2MIC
A versatile waterproof Bluetooth audio receiver with a handheld microphone, ideal for yachts and ATVs. Providing a stable connection, bright illumination and convenient control, it allows you to easily play music and make announcements in any weather conditions thanks to its compact design and reliable IPX6 protection.
Discover new horizons of marine adventures with ACV MARINE SUPREME - the perfect solution for your marine transport. All ACV MARINE SUPREME products are designed with an emphasis on water resistance and reliability!
The SUPREME series is the top premium quality series of the ACV MARINE brand, which guarantees high quality and durability in all conditions.
ACV MARINE SUPREME is your reliable partner at every stage of the adventure!
BENEFITS
Universal solution for built-in and advanced wireless communication functions
Waterproof Bluetooth receiver/remote control with rubberized "Soft Touch" buttons and backlight provides convenient control of an external sound source with maximum comfort of use in any weather conditions. Built-in Bluetooth V5.3 with a range of up to 30 meters allows you to easily play audio from external devices, and the compact body is easy to install on yachts and ATVs.
The device is equipped with a 3.5 mm AUX input, linear RCA output and the function of playing music from USB drives in high quality, which expands the possibilities of connecting to various sound sources. Built-in LED button illumination ensures easy control at any time of day.
Comfort and safety of use

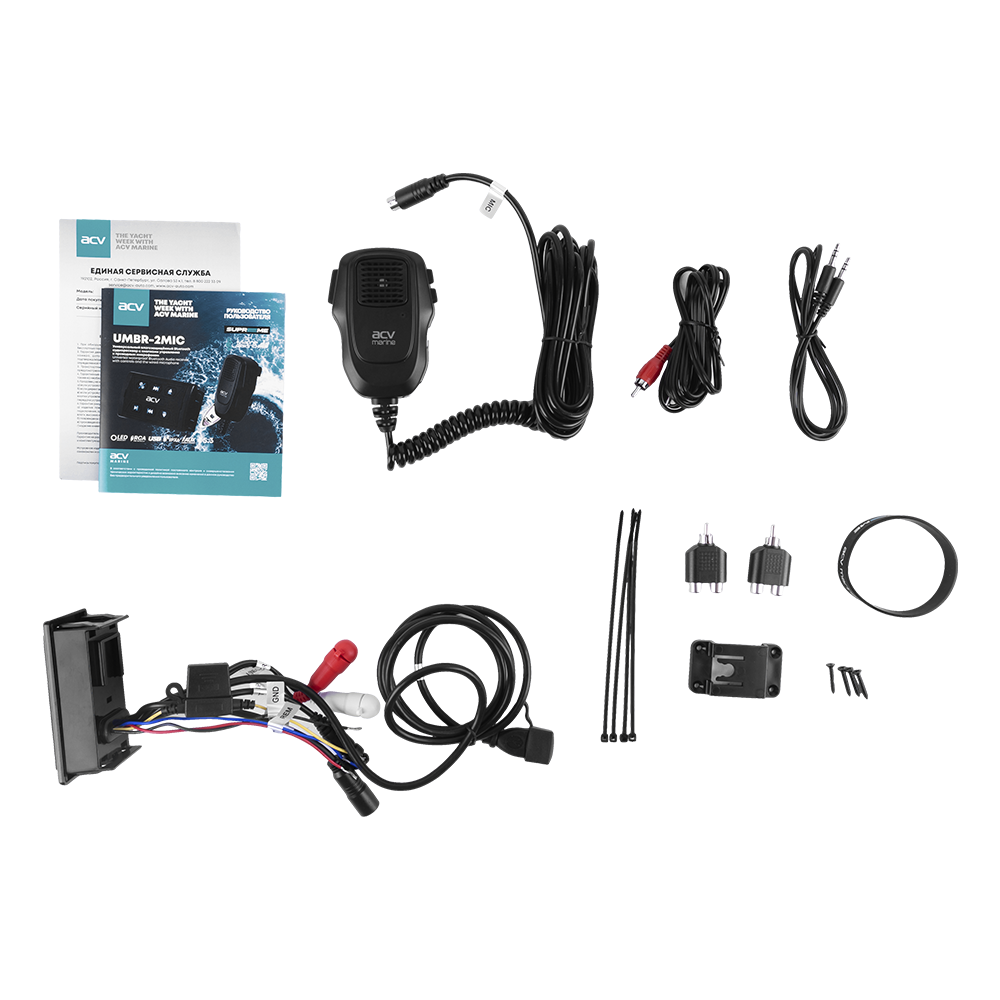

The kit includes a handheld CB-style microphone with an ergonomic design and a 4-meter coiled cable for making announcements and voice commands. Volume control is carried out using convenient buttons on the body, which makes use as simple and functional as possible.
The device can be used as a source unit or controller of the functions of an external audio source via Bluetooth when connected to an external audio amplifier or head unit via a line input. The Bluetooth audio receiver has the IPX6 waterproof rating that makes it suitable for use on a yacht, ATV, motorcycle, and other vehicles.
Built-in Bluetooth V5.3 for wireless connection with working distance up to 30 meters. Any Bluetooth-compatible device can be used as a sound source, which simplifies the connection scheme. Quick and easy pairing of compatible Bluetooth devices (smartphones, tablets, etc.)
AUX input 3.5mm - for connecting external sound sources: MP3 player, mobile phone, and tablet.
RCA pre-outputs 2.5V for connecting an external amplifier, a head unit and other source units.
Built-in LED backlight for increased comfort of use. Thanks to the bright backlight of the buttons, the control of the device is convenient and fast with any light conditions.
The device is protected against splashes and jets of water.

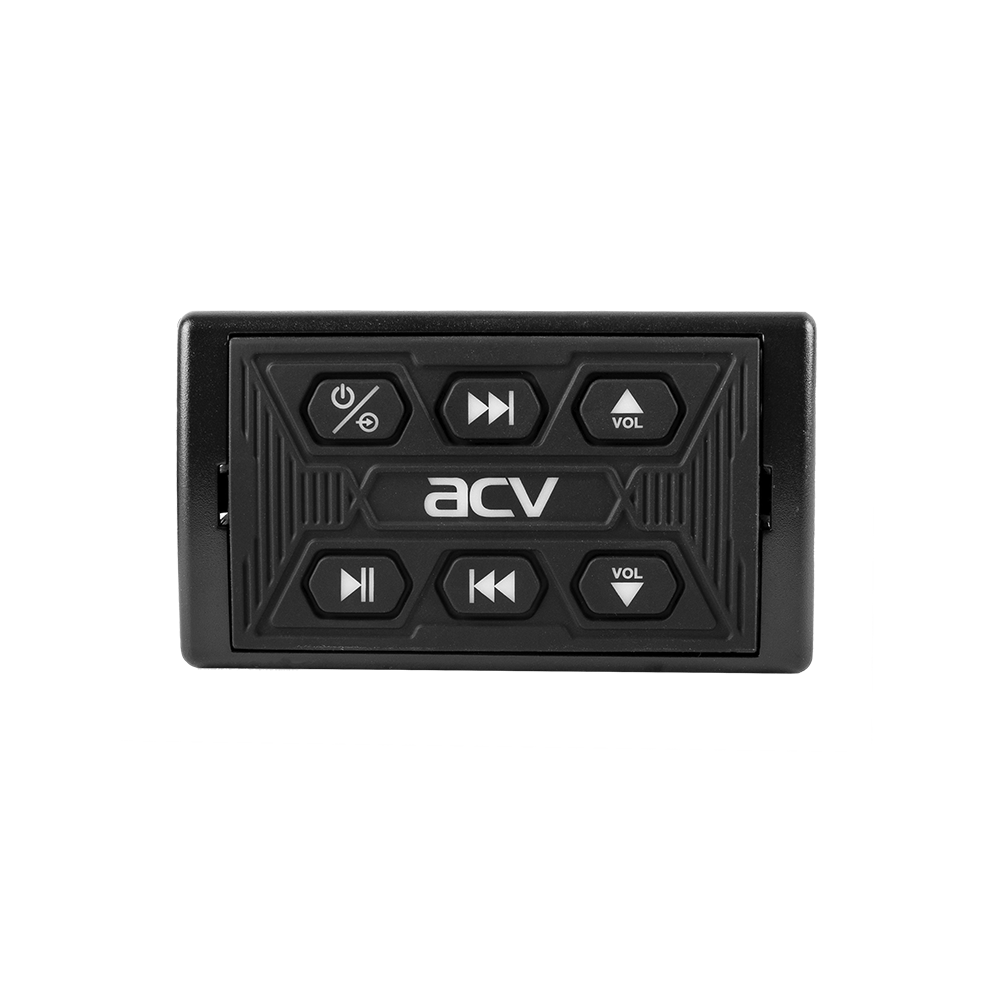

Ergonomic "Soft Touch" control buttons with backlight for ease of use.
The device body has quite compact sizes, which makes possible to install it in almost any transport and save a lot of space.

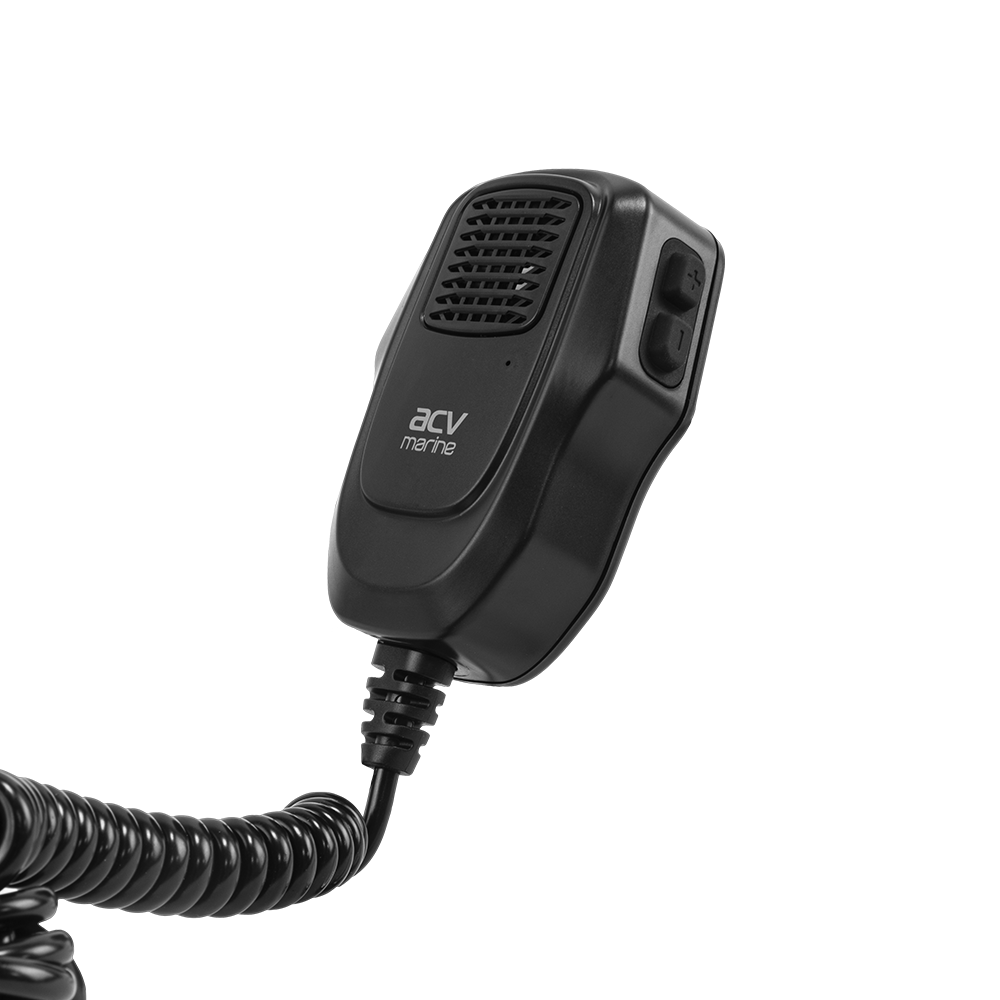

The Bluetooth remote control features a super-sensitive CB-style handheld microphone with ergonomic controls and a 4-metre long spring cable. This allows you to make announcements with ease from different areas of the transport. The microphone is connected via a quick-connect Mini DIN connectors. While using the microphone, you can adjust the volume using the convenient buttons on the body.
The function of playing music from a USB storage device with ideal quality.
Specifications
- Number of physical buttons: 6
- Built-in Bluetooth V5.3
- Bluetooth range: up to 30 meters
- AUX input: supports
- USB port: external USB port on a wire (1 meter) for connecting a USB drive and MP3/WMA audio playback (Supports memory up to 32 GB)
- RCA audio stereo output: 2 (when connecting RCA splitters: 4), 2.5V
- Waterproof standard: IPX6
- Mounting method: flush mounting
- Button backlight: yes (blue)
- Frequency range: 20 - 20000 Hz
- Signal-to-noise ratio: ≧80 dB
- Total harmonic distortion (THD): 0.1%
- Bluetooth compatibility: iOS & Android
- Channel separation: ≧60dB
- Cable with microphone jack: Mini DIN 6-pin, 20cm
- Working voltage: 12-14.4V
- Housing material: ABS plastic, rubber
- Mounting hole size: 50.7 x 85 mm
- Working temperature: -20°C to +60°C
- Device dimensions (LxWxH): 97 x 55.8 x 37.4 mm
Specifications of the wired microphone:
- Frequency range: 500 - 5000Hz
- Microphone sensitivity: -58dB (±2dB)
- Load impedance: 1.1 kOhm
- Current consumption: 500mA
- Cable with plug: Mini DIN 6-pin, 4 meters
- Housing material: ABS plastic
- Working temperature: -20°C to +60°C
- Waterproof standard: IPX6
- Device dimensions (LxWxH): 67*31.3(with fasteners: 40.5mm)*110mm
