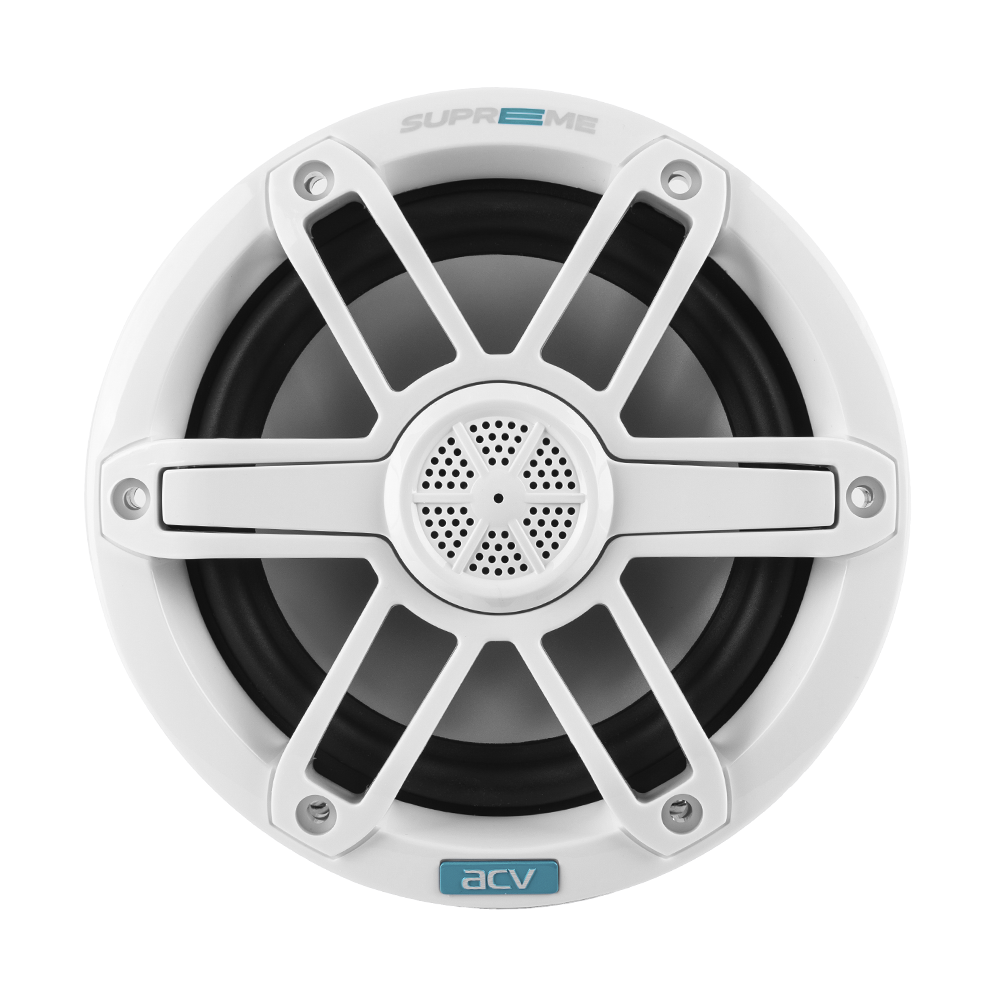

Waterproof acoustics 6.5" 80 W
SMC6WL
Waterproof 16cm (6.5”) speakers with a wide frequency range and excellent sound quality. Durable construction and moisture resistance allow you to use them even in extreme conditions.
Open new horizons of sea adventures with ACV MARINE SUPREME - the perfect solution for your marine transport. All ACV MARINE SUPREME products are designed with an emphasis on water resistance and reliability!
The SUPREME series is the top premium quality series of the ACV MARINE brand, which guarantees high quality and durability in any conditions.
ACV MARINE SUPREME is your reliable partner at every stage of the adventure!
Top coaxial acoustics for yachts and boats, with which music will become an excellent companion for any trips and sea walks. This coaxial acoustic system has a high level of moisture protection IPX6, which ensures reliable operation in conditions of high humidity and marine environment. The system is constructed from durable ASA composite with UV protection, which guarantees durability and resistance to external influences. The diffusers are made of matrix moisture-resistant polypropylene with the addition of mica, which increases mechanical strength, moisture resistance and acoustic parameters of the speakers. The series features 165mm (6.5 inches) and 200mm (8 inches) drivers available in white (WL) and graphite (GL) colors, capable of reproducing a wide range of frequencies, providing rich and clear sound. High sensitivity allows for loud and high-quality sound with moderate amplifier power.

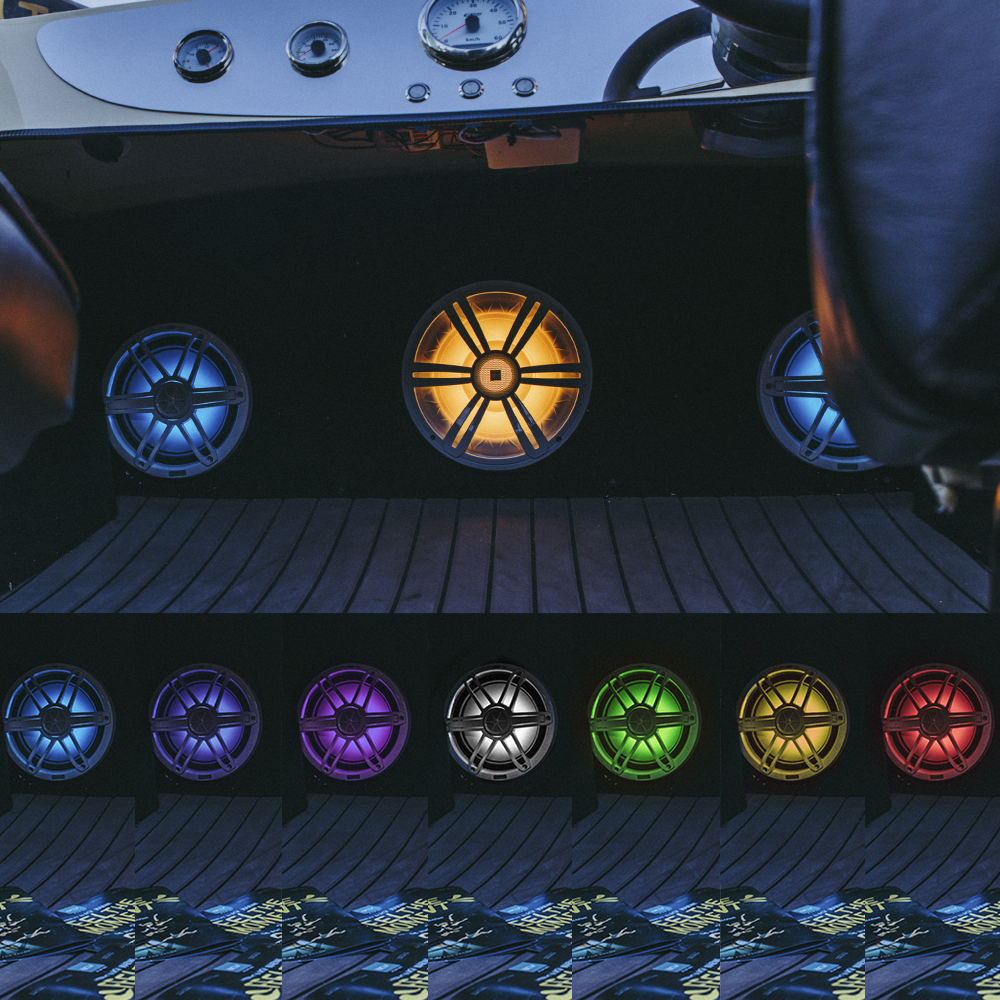

Built-in adjustable RGB lighting creates spectacular lighting scenarios that highlight the atmosphere of any space or event. The use of synthetic rubber for speaker suspensions ensures their durability and flexibility in conditions of humidity and mechanical loads. 40mm polyetherimide dome tweeters complement the woofers, extending the frequency response and improving sound quality. The compact size allows the system to be easily integrated into various designs without losing its seal.
This combination of technical features makes this speaker system a reliable solution for sea cruises, yachting events or any conditions requiring waterproof equipment with modern lighting capabilities and excellent sound.
The acoustic system is made using DMA technology (“Dynamic Motor Analysis”). Thanks to this approach, it was possible to achieve maximum linearity of the stroke, significantly reduce distortion, add detail to the entire frequency response with incredibly dense, clean and powerful bass.
The acoustic system has premium-level speakers with cones made of matrix moisture-resistant polypropylene with the addition of mica for maximum efficiency in the mid and low frequencies.
The device is protected against splashes and jets of water.
High performance marine acoustic system reproduces incredibly loud and clear sound that can be heard far beyond the marine transport.

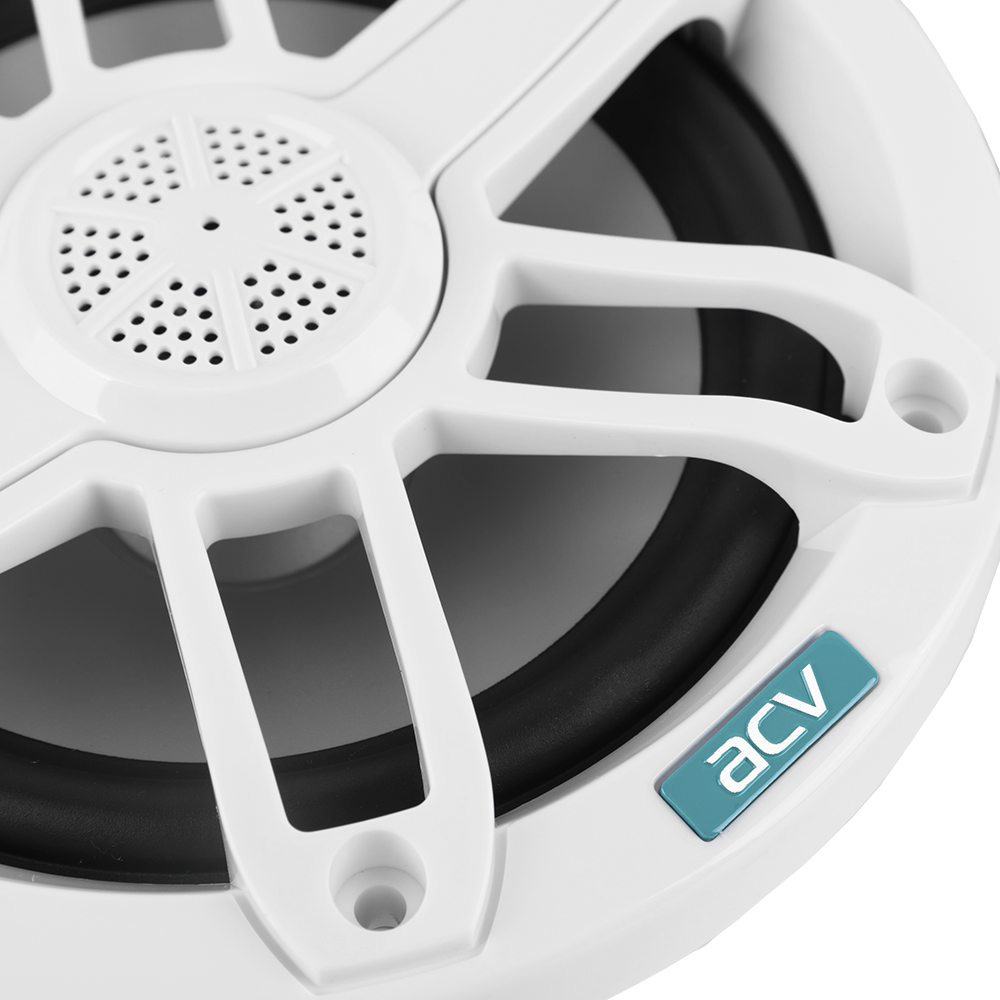

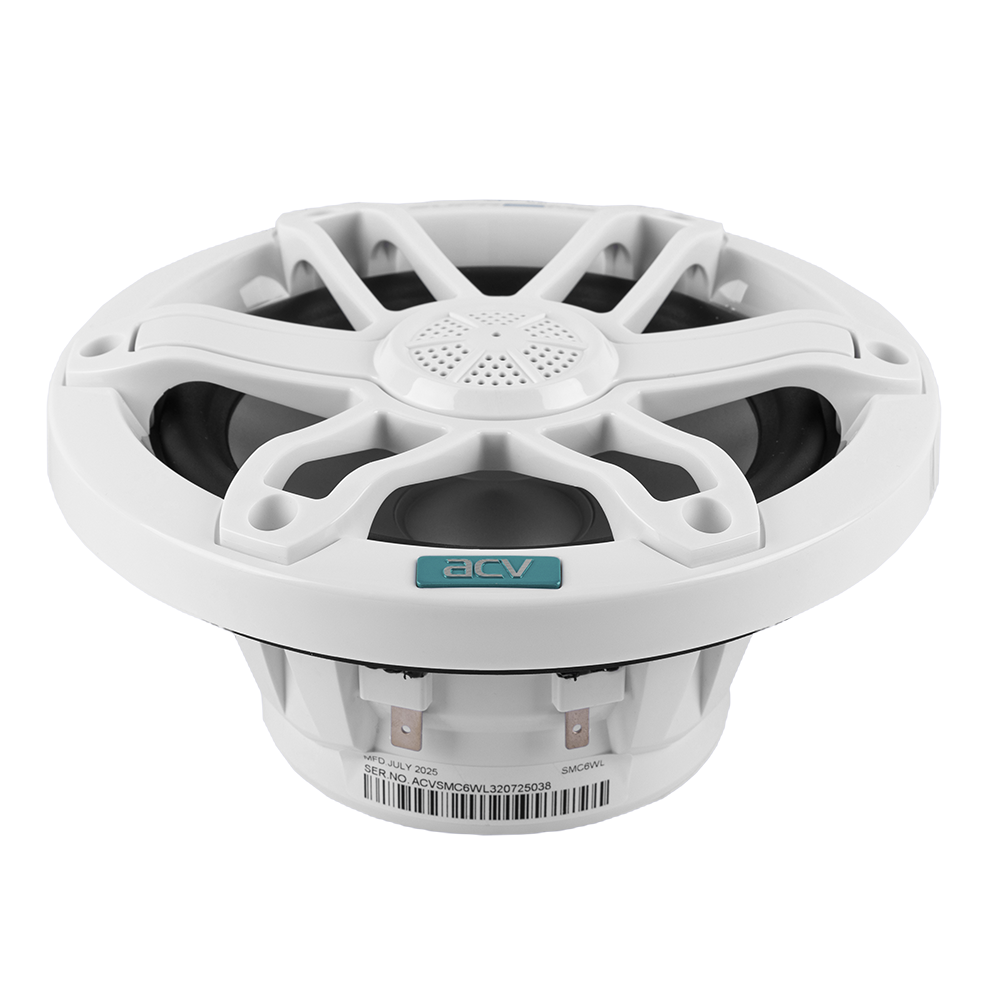

Impact resistant ASA composite construction with UV protection.

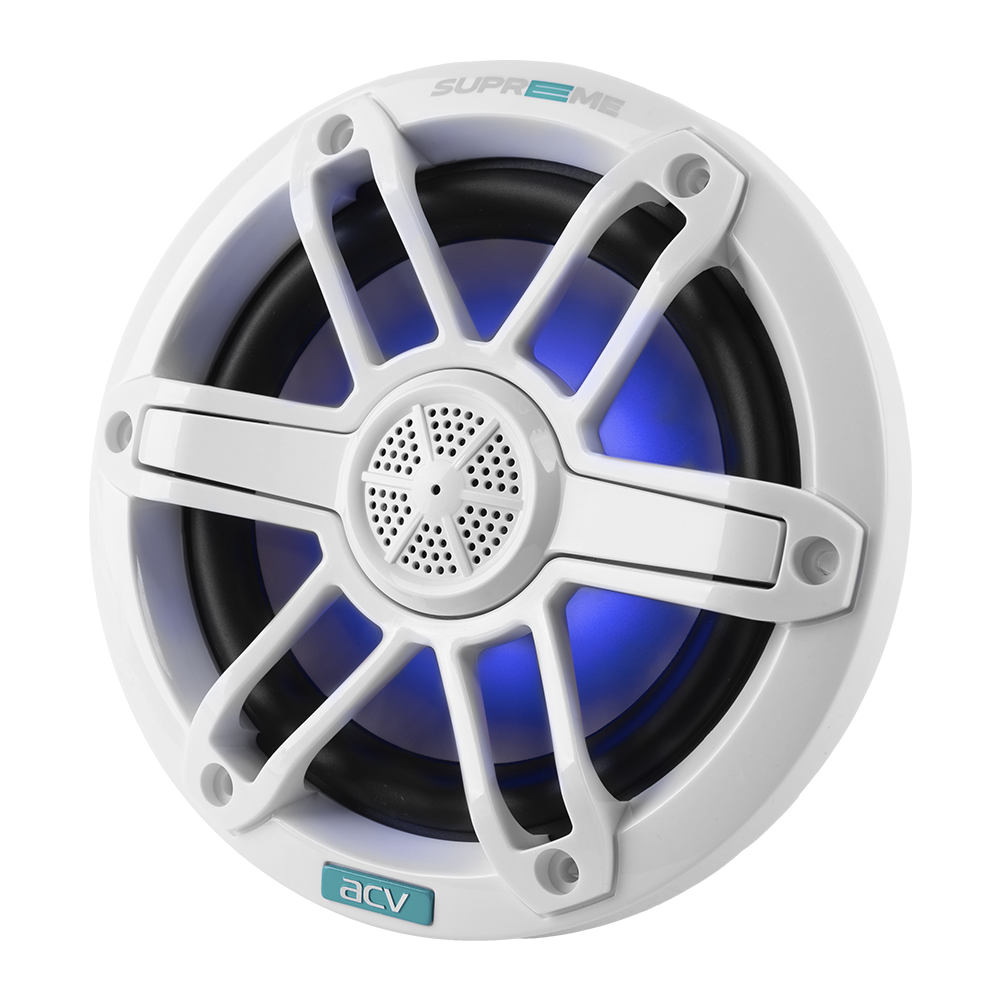

RGB function will let you to add a unique and dynamic music atmosphere.

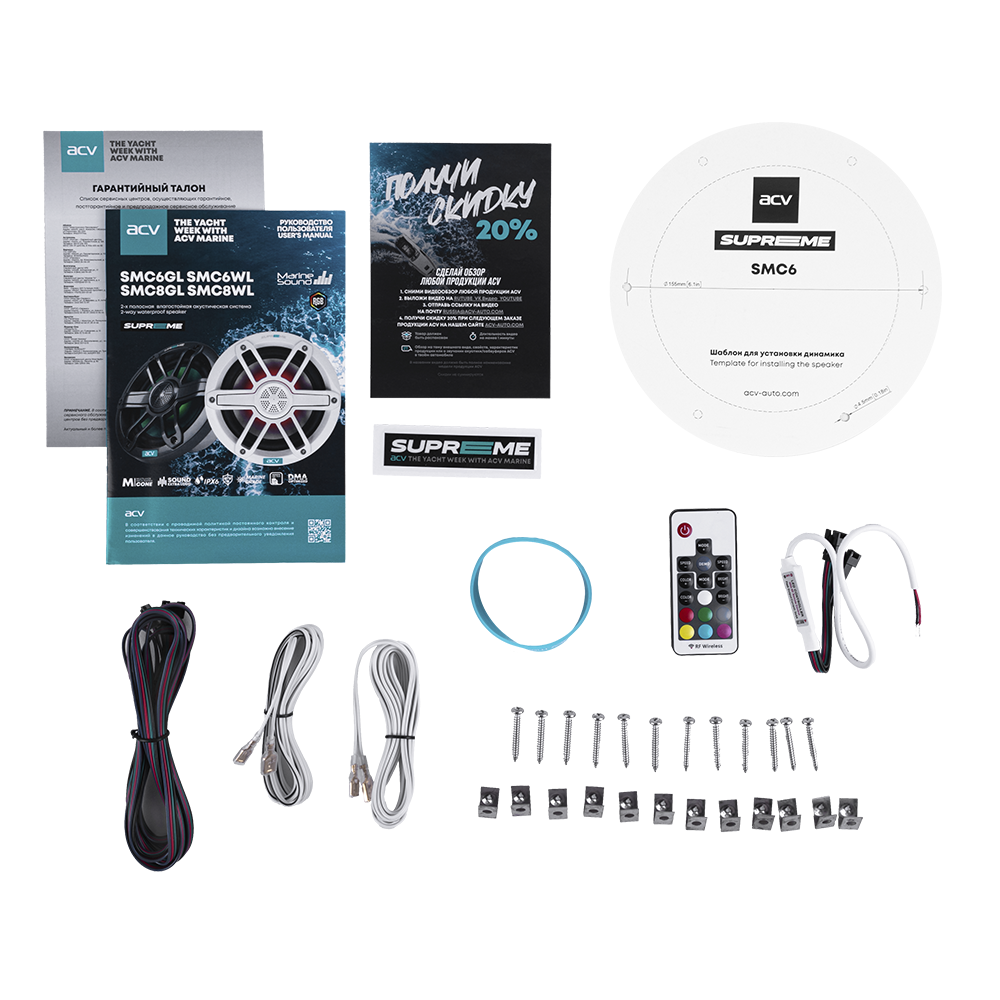

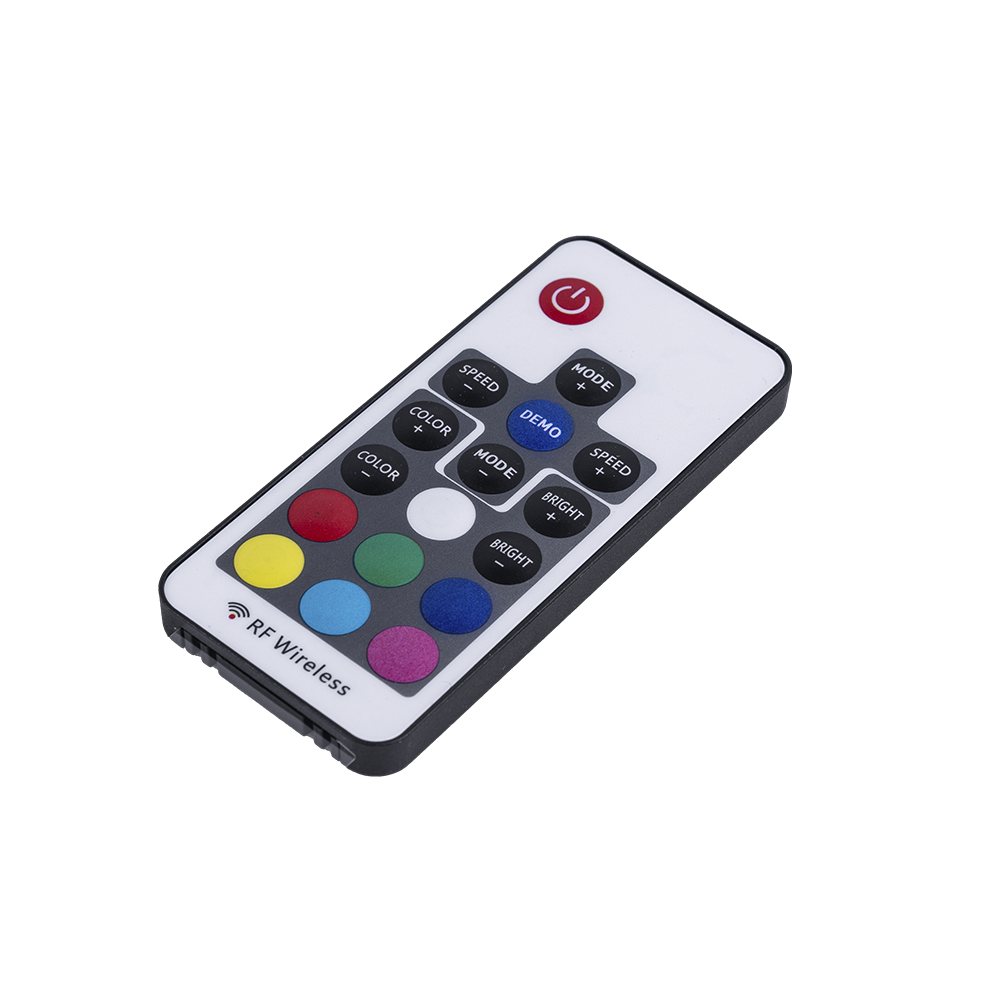

Compact and convenient remote let you adjust RGB light fast and easy.
Specifications
- Type of acoustics: Waterproof acoustic system
- Configuration: 2-way
- Speaker size: 165 mm (6.5 inches)
- Minimum power (RMS): 50 W
- Nominal power (RMS): 80 W
- Peak power: 160 W
- Tweeter size/material: 40 mm/PEI dome
- Mounting depth: 60 mm
- Mounting hole diameter: 129 mm
- Sensitivity (1W/1m): 97.2 dB
- Frequency response: 45 - 20000 Hz
- Impedance: 4 Ohm
- Cone material: polypropylene (Injection molding) with mica addition
- Surround material: synthetic rubber
- Grille and basket material: ASA composite with UV protection
- Voice coil diameter: 30.5 mm (1.2-inches)
- Voice coil material: KSV
- Qts: 0.646
- Vas: 6.37 l
- BL: 5.66
- RGB backlight function: yes
- Waterproof standard: IPX6 (NOT for submersion)
- Magnet material: Ferrite
- Magnet weight: 15 Oz (425 g)
