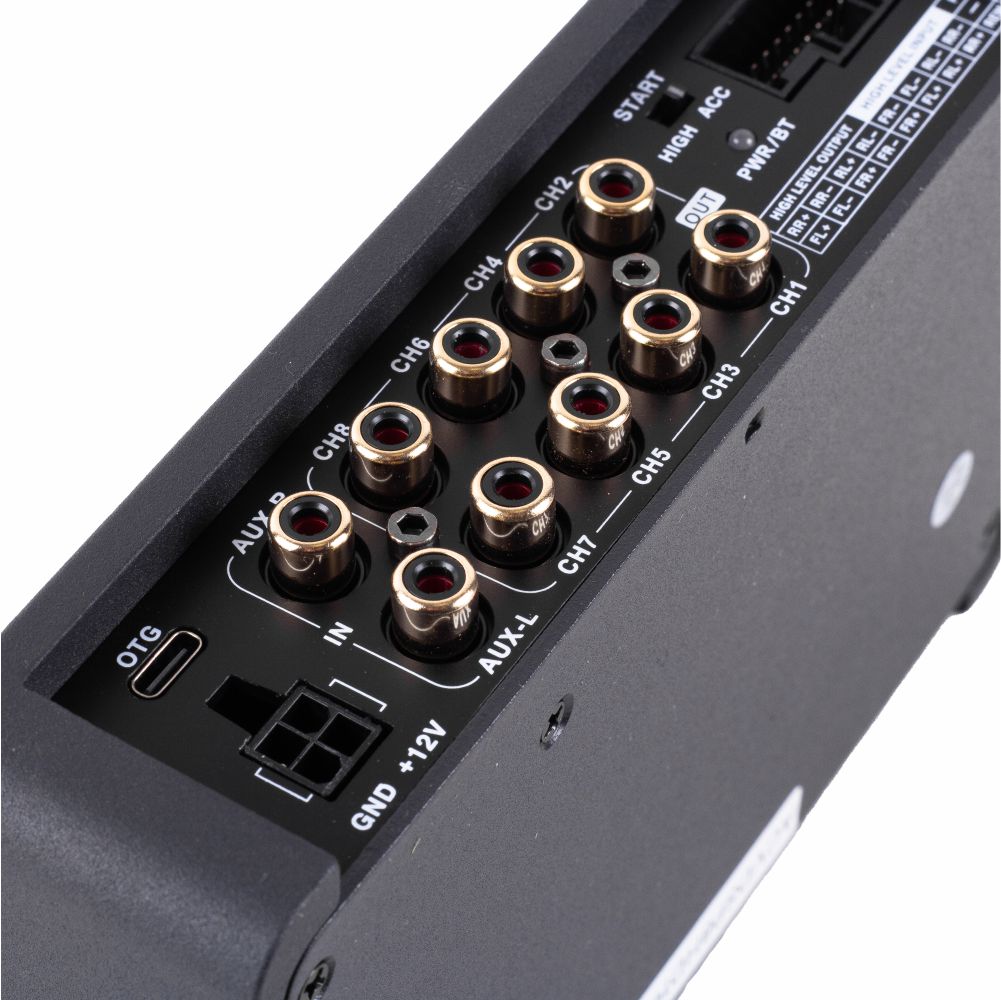

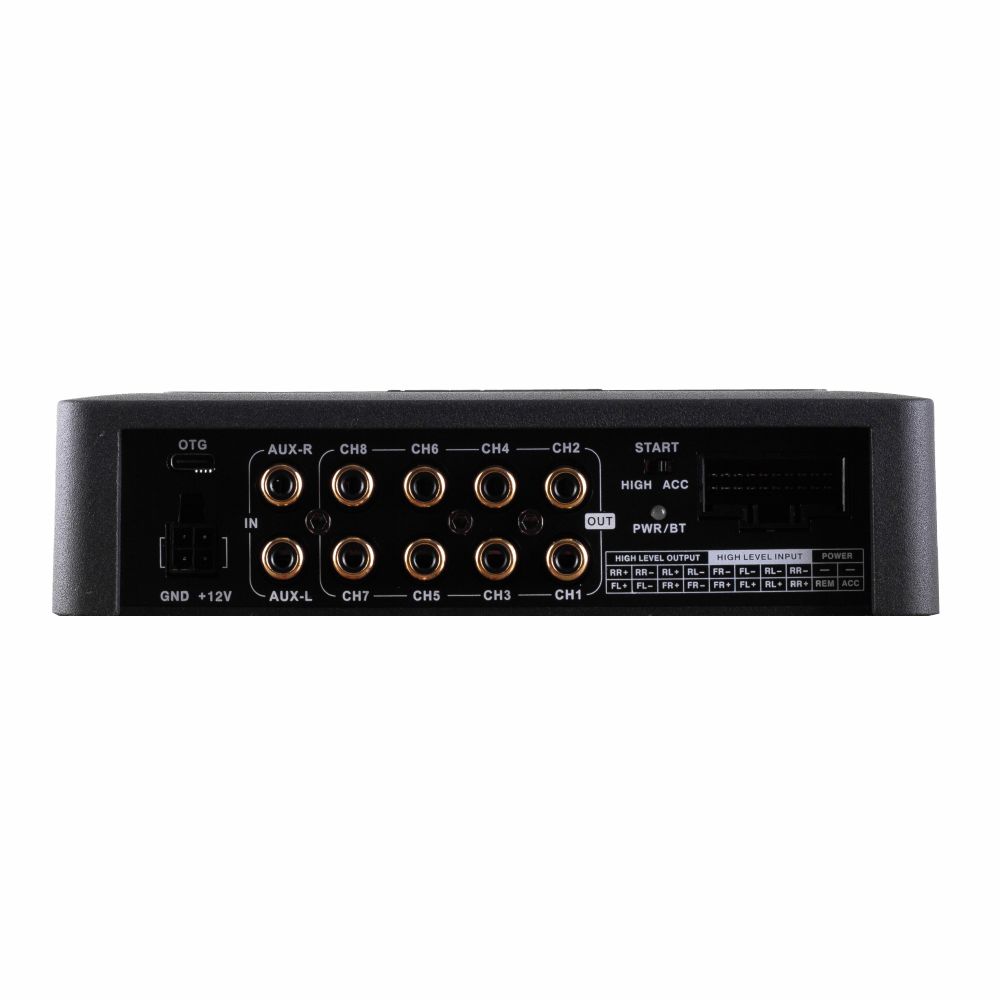

The processor has 4 high-level inputs, one pair of AUX (RCA type), USB and OTG inputs, and an optical input; 4 high-level outputs; and 4 pairs of RCA outputs.

Compact dimensions of 173 x 116 x 42 mm ensure easy installation.

The integrated Bluetooth V.5.1 AptX HD module from Qualcomm ensures high-quality wireless audio file transfer. The Bluetooth function allows pairing the processor with Bluetooth-equipped mobile devices.

Time Delays

Channel-by-channel time delay adjustments in 1 cm increments allow for:

• Concert hall presence
• Sound quality close to the original instruments
• High-quality sound reproduction at any volume

A crossover high-pass and low-pass filter with a choice of Butterworth, Bessel, or Linkwitz-Riley characteristics, with a slope of up to 48 dB/octave, allows you to achieve maximum performance from your car's audio system.

Channel-by-channel time delay adjustment in 1 cm increments allows for:

• a concert hall-like experience;
• sound quality close to the original instruments;
• high-quality sound reproduction at any volume.

31-band parametric equalizer with +15 dB boost and -15 dB cut in 0.1 dB steps for each band and adjustable Q factor.

4 pairs of RCA line audio outputs.

The presence of an optical input for implementing Hi-Res audio in the car.

The processor is equipped with a modern Qualcomm Bluetooth module with support for the AptX HD codec, which ensures playback of streaming audio files in Hi-Res quality.

The USB player function allows you to connect a USB drive or smartphone to listen to FLAC, ACC, APE, WAV, WMA, MP3 files with a resolution of up to 192 kHz.

The compact housing size of 173x116x42 mm ensures ease of installation and saves space in the car.

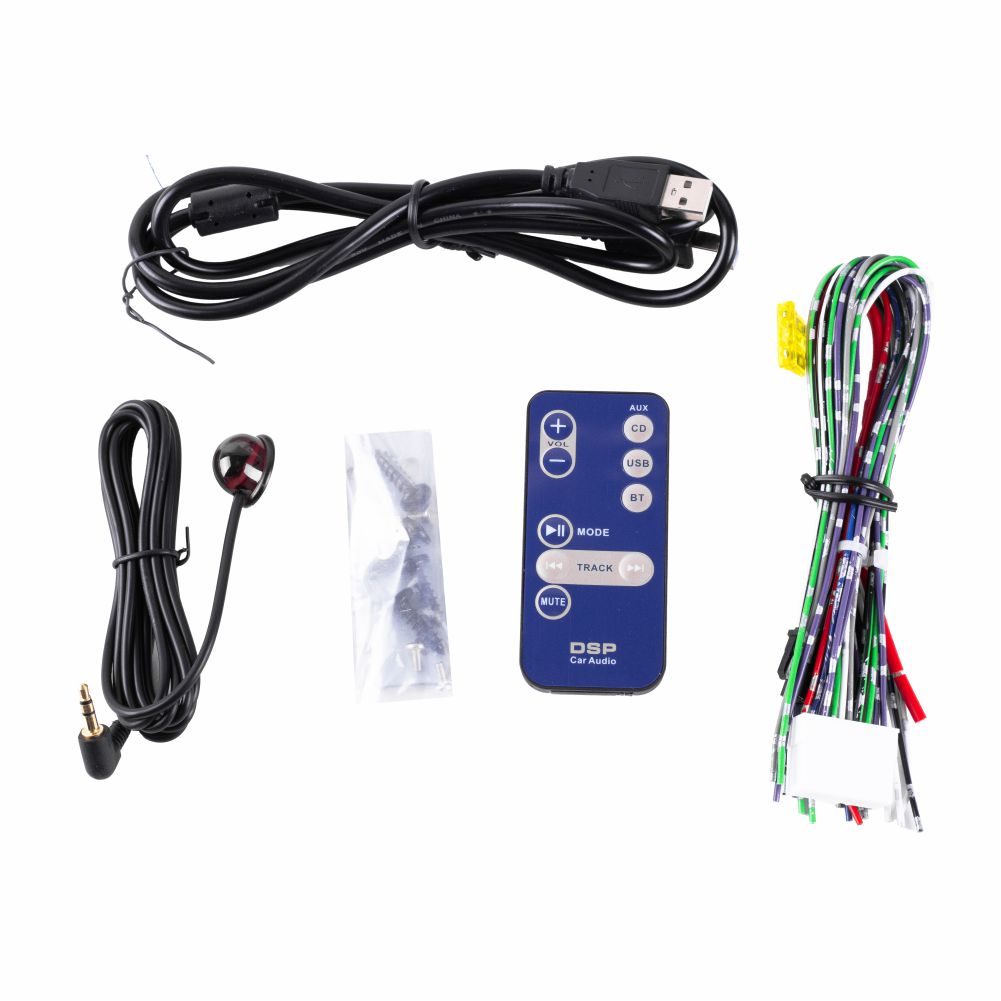

Package Contents

• DSP Processor
• USB Cable for PC Connection
• Power/Speaker Harness
• IR Receiver
• Wireless Remote Control

Specifications

Sound Playback

• Maximum Power: 4x100 W
• Nominal Power @ 4 Ohms: 4x50 W
• Nominal Power @ 2 Ohms: 4x100 W
• Equalizer: 31-band parametric, ±15 dB, Q (quality factor) 0.3-50

Model Features

• Maximum Current Consumption: 20A
• Remote Output Current Consumption for External Devices: 300 mA or Less
• Sampling Frequency: 24-bit/192 kHz
• Filter Types: Butterworth/Bessel/Linkwitz-Riley
• Slope: Off/6 dB/12 dB/18 dB/24 dB/30 dB/36 dB/42 dB/48 dB per Octave
• Phase Adjustment: 0/180 degrees
• Fuse: 20A
• Frequency Response: 20 Hz – 20 kHz

Media Player

• Supported Audio Formats: FLAC, ACC, APE, WAV, WMA, MP3

General Specifications

• Idle Current: 0.67A
• Crossover: Off/HP/LP/Bandpass

Power

• Operating Voltage: 14.4 V (10.1-15.1 V)

Inputs/Outputs

• AUX Input, RCA type: 1 pair; Rin - 14 kOhm; Uin rms max - 550 mV; galvanic isolation of each channel
• OTG Input (USB player with OTG function): 24-bit/192 kHz resolution
• USB Input: Yes
• Optical Input: Yes
• High-Level Input: 4 pairs; Rin - 7 ohms with decoder; Uin max - 9.3 V
• RCA Line Outputs: 4 pairs; Rout - 100 ohms; Uout rms - 1.8 V

Bluetooth

• Bluetooth Version: V5.1
• Supported Bluetooth codecs: aptX, aptX HD, SBC, AAC
