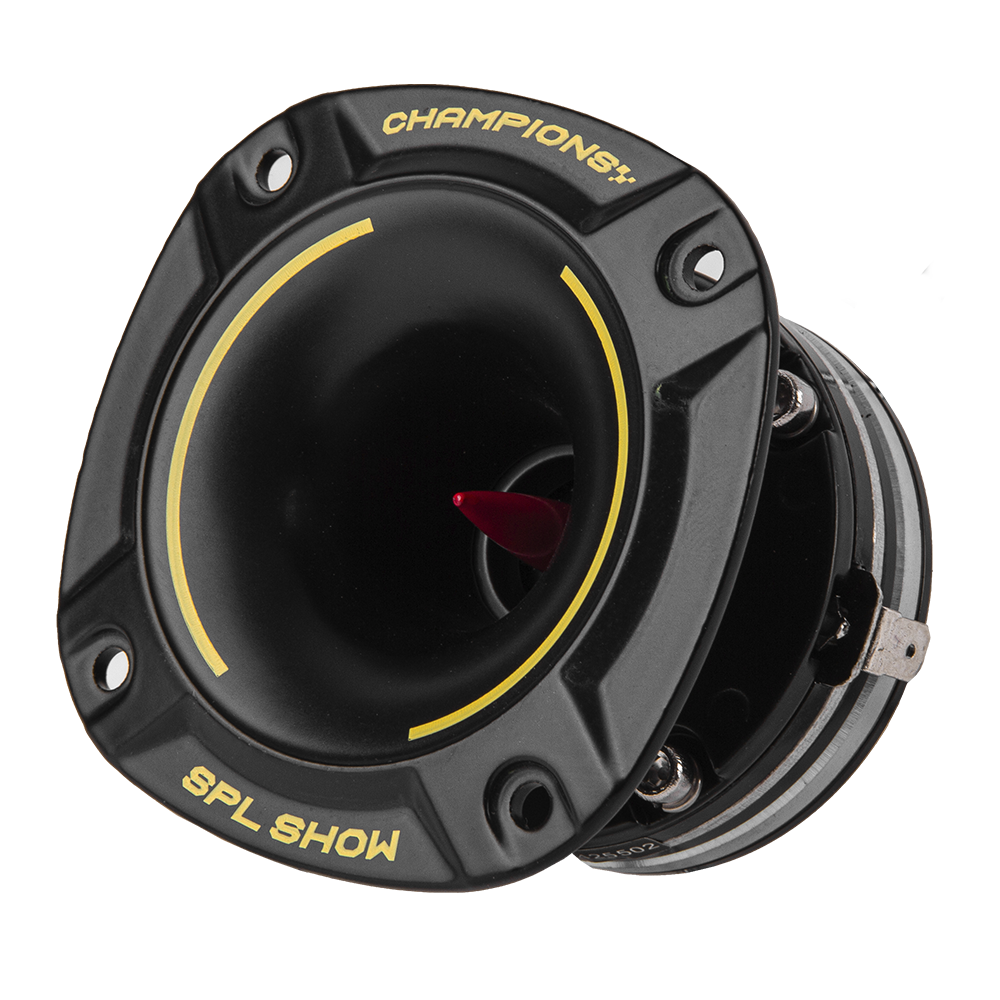

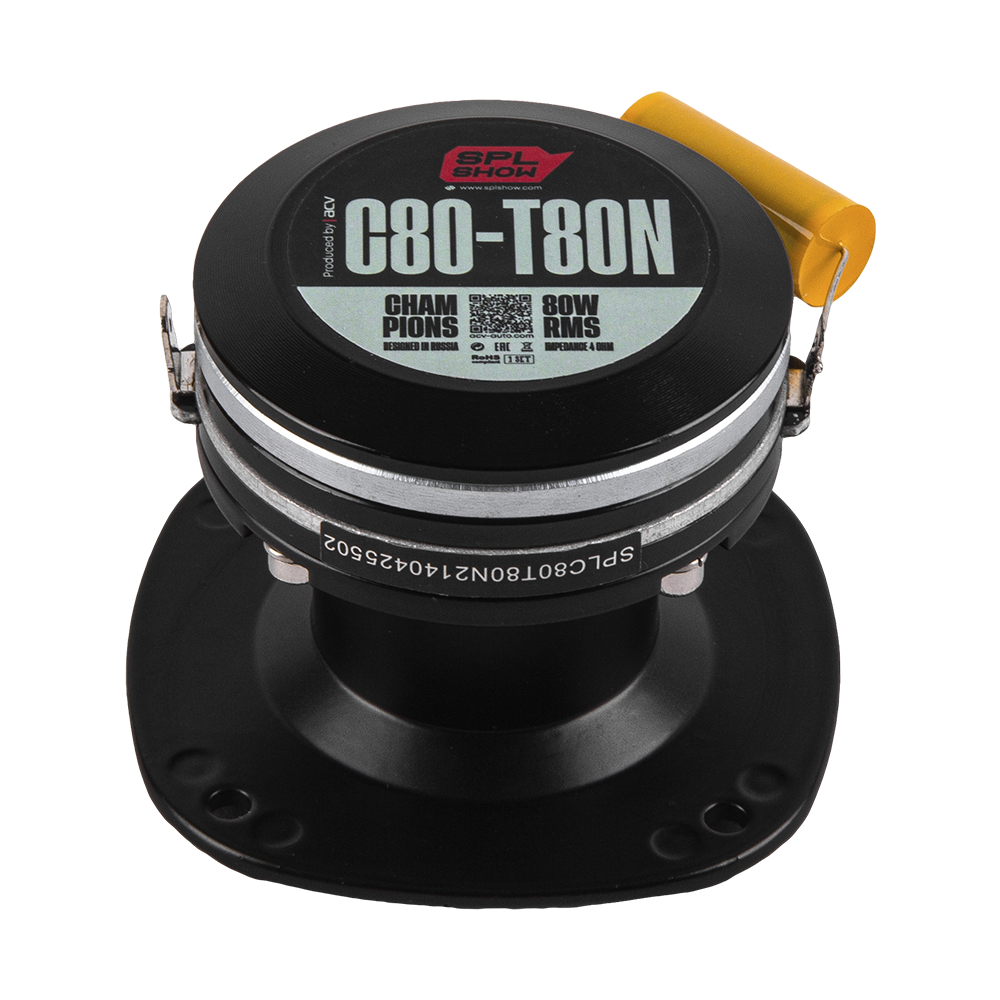

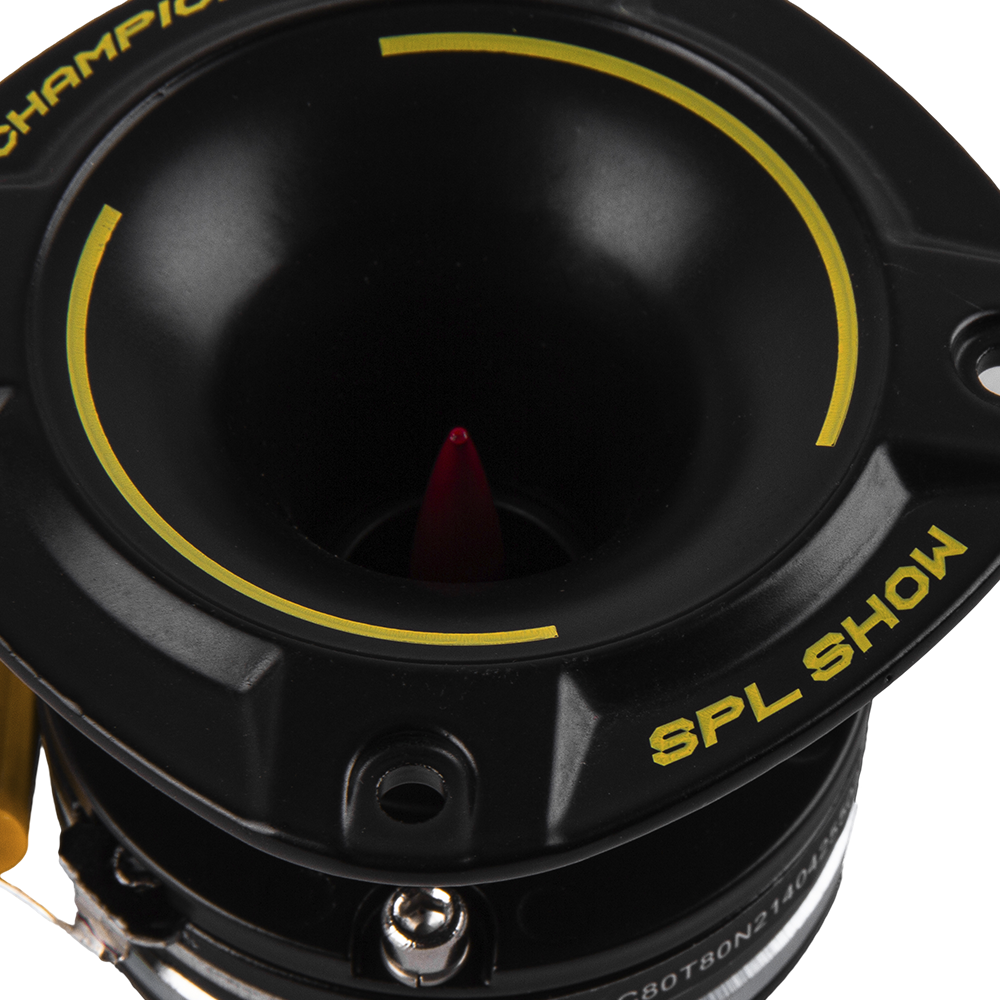

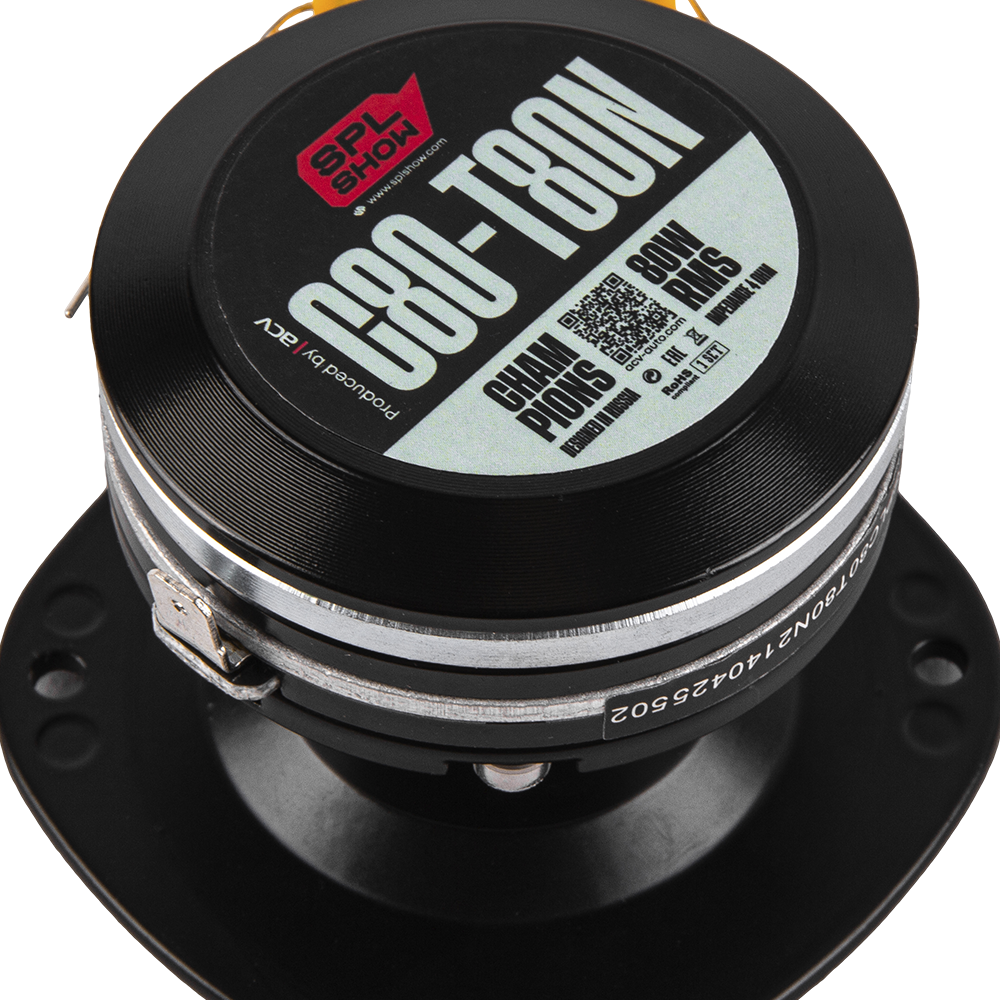

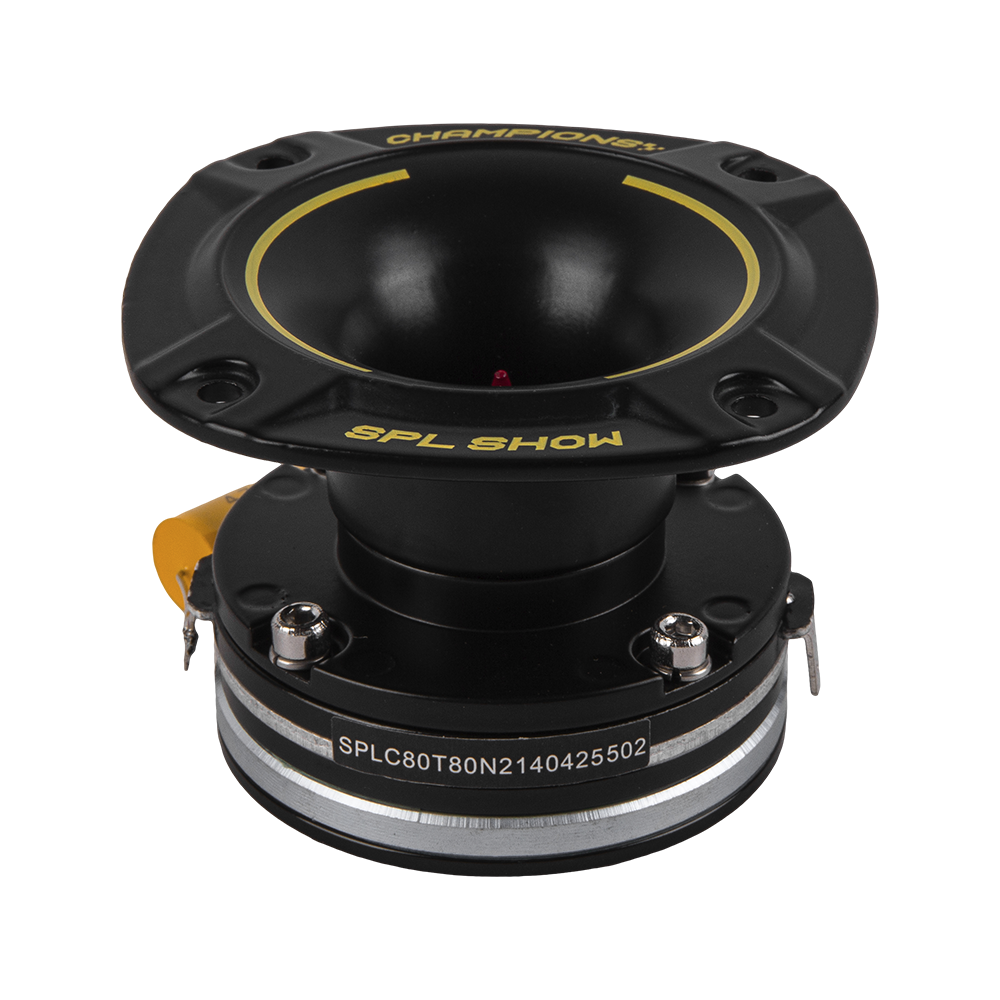

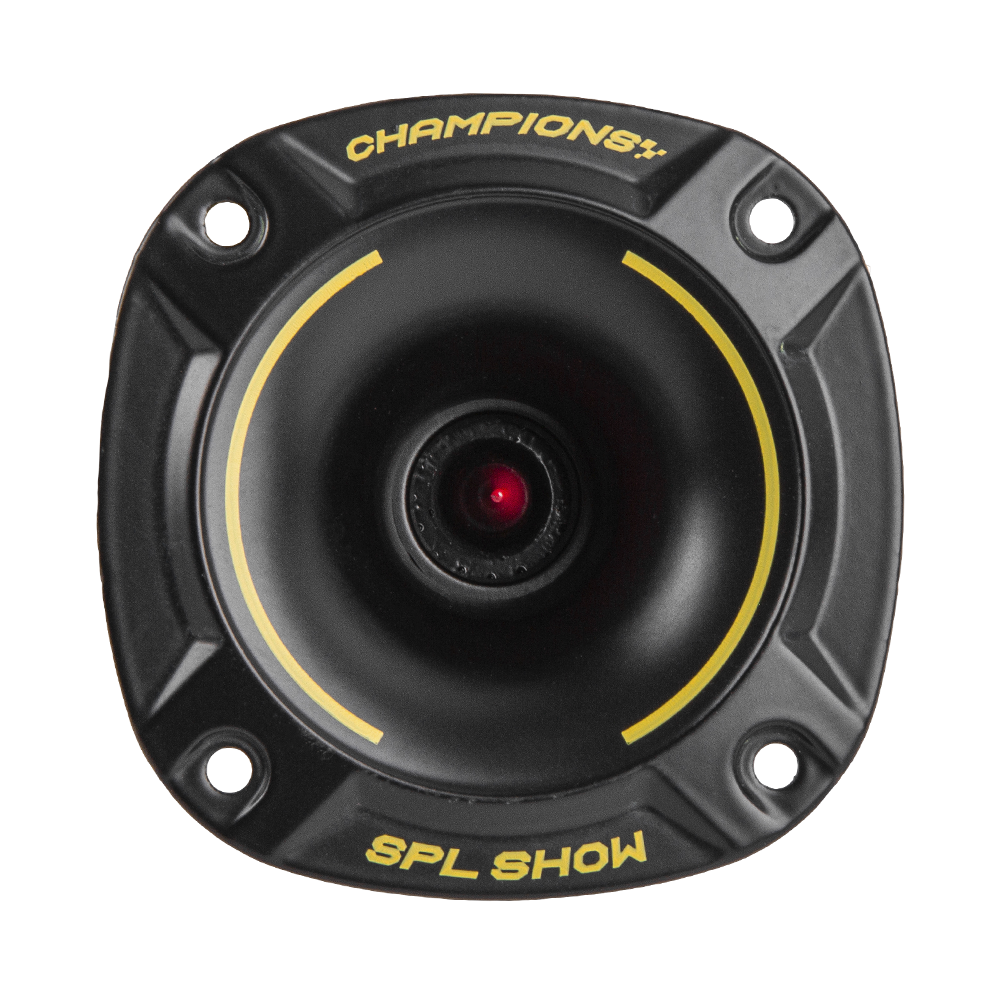

SPL SHOW 3.15" HF speaker
C80-T80N
High-class powerful horn tweeters 3.15" on neodymium magnets for SPL competitions and fierce everyday life. This is the loudest HF speaker in the SPL Show line - 115 dB!
Real volume for those who do not need compromises!
Flagship powerful horn HF speakers SPL SHOW C80-T80N Champions-series are designed specifically for competitions in sound pressure level, their amazing power leaves behind any competitors.
The horn speakers C80-T80N use top materials that make them unique on the market: each speaker is equipped with the most powerful neodymium magnets of class N38, which provide the highest magnetic flux density and the most effective magnetic force in the voice coil. A two-layer high-temperature voice coil with a diameter of 38 mm wound with aluminum wire on a KSV frame provides unprecedented thermal and mechanical properties. The high-strength die-cast aluminum body is corrosion-resistant, it does not lose its stability at high temperatures, which contributes to high-quality reproduction of the entire spectrum of high frequencies without distortion.
SPL Show Champions speakers have a rated power of 80 watts and a sensitivity of 115 dB, which allows you to get an unrivaled loud and ultra-clear sound. The frequency response varies from 1200 Hz to 20 kHz, which makes the acoustics ideal for clean and detailed reproduction of any high-frequency sound.
Acoustics C80-T80N features the most powerful neodymium magnets of N38 grade available, delivering ultimate magnetic flux density and maximum effective voice coil force.
Double layer high temperature voice coil with diameter 1.5-inches on KSV former for outstanding thermal and mechanical capability.
High-strength material that is not subject to corrosion, which retains its stability at high temperatures and contributes to high-quality reproduction of the entire high-frequency spectrum without distortion.
High sensitivity and volume due to the special speaker construction.
Specifications
Sound reproduction
- Rated power: 80 W
- Sensitivity: 115 dB
- Impedance: 4 Ohm
Model features
- Voice coil: KSV 2-layer wound with aluminum wire (KSV), Ø38 mm (1.5 inches)
- Diaphragm: Polyimide
- Magnet: Super strong neodymium N-38H
- Frequency range: 1200 - 20000 Hz
General details
- Installation depth: 56.5 mm
- Speaker size: 3.15" (8.0 cm)
- Basket: Die-cast aluminum
- Mounting hole diameter: 70 mm
- Mounting depth: 56.5 mm
- Total depth: 61.5 mm
- Outer diameter: 80 mm
SPL SHOW C80-T80N Manual.pdf
