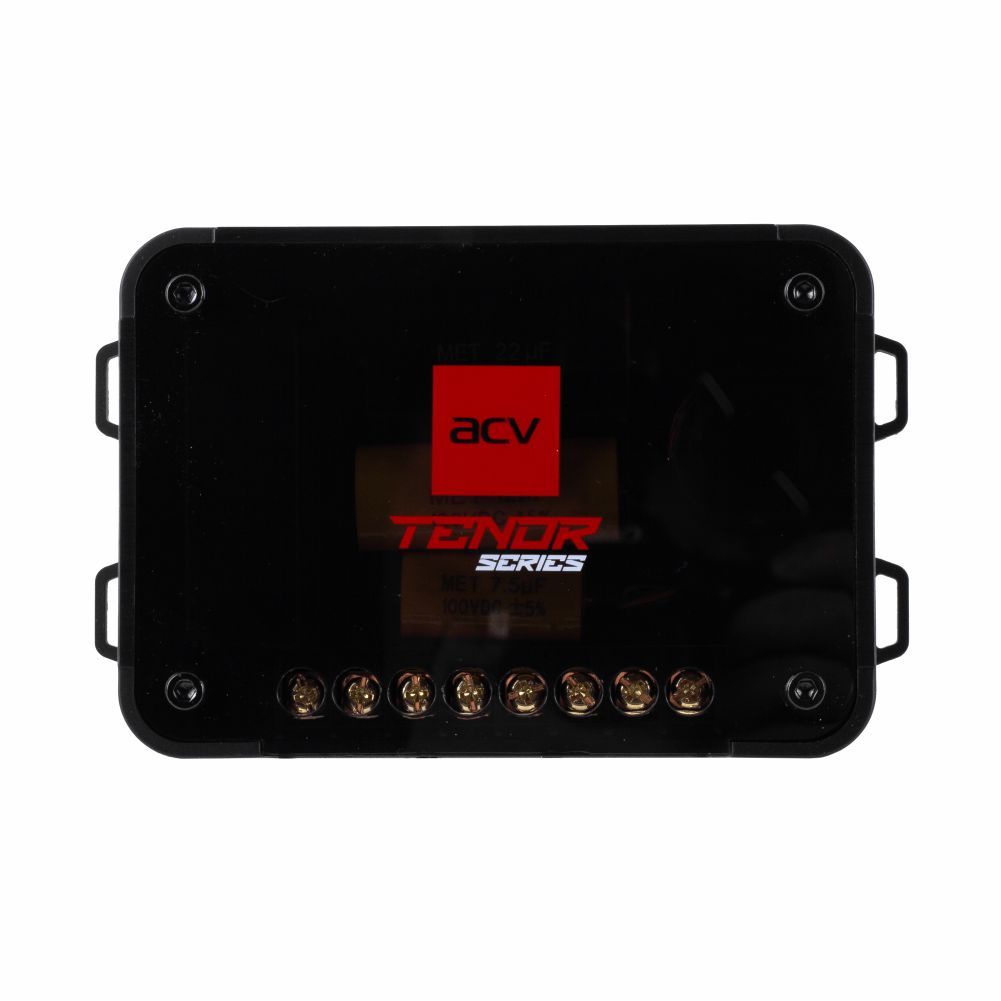

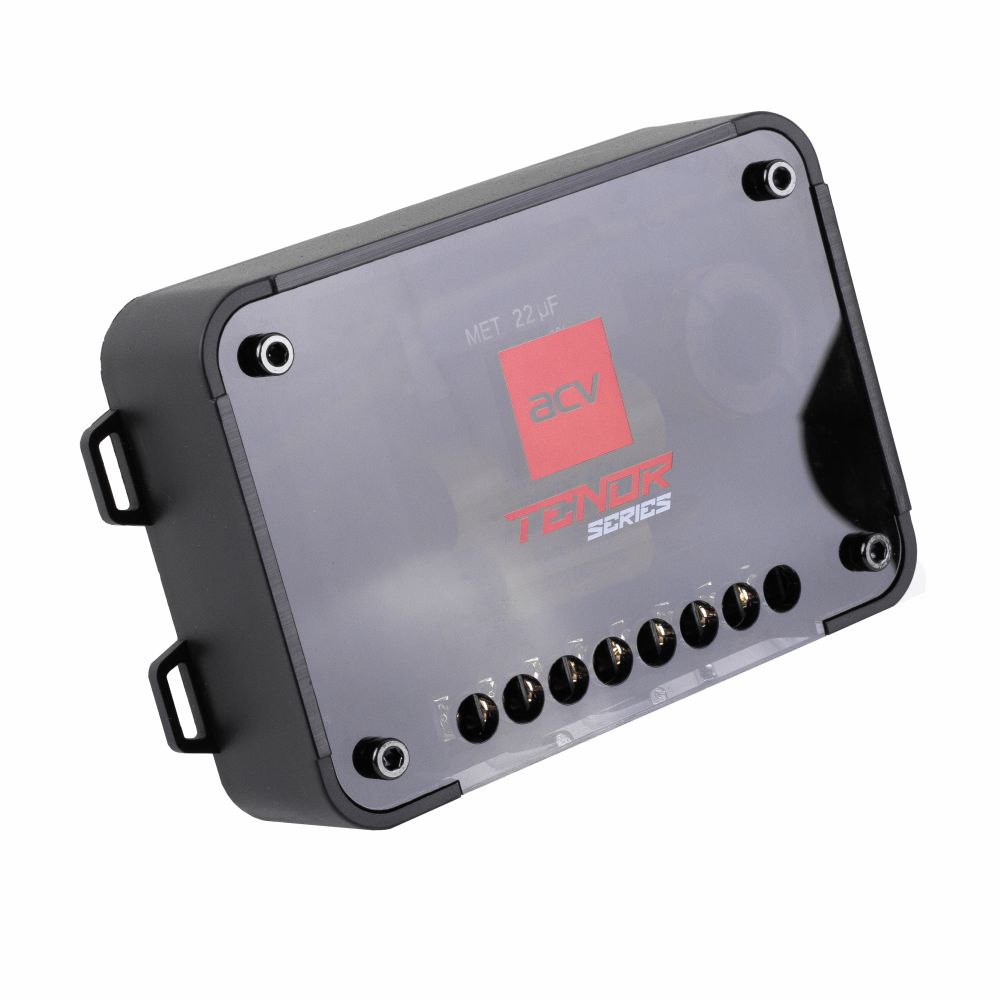

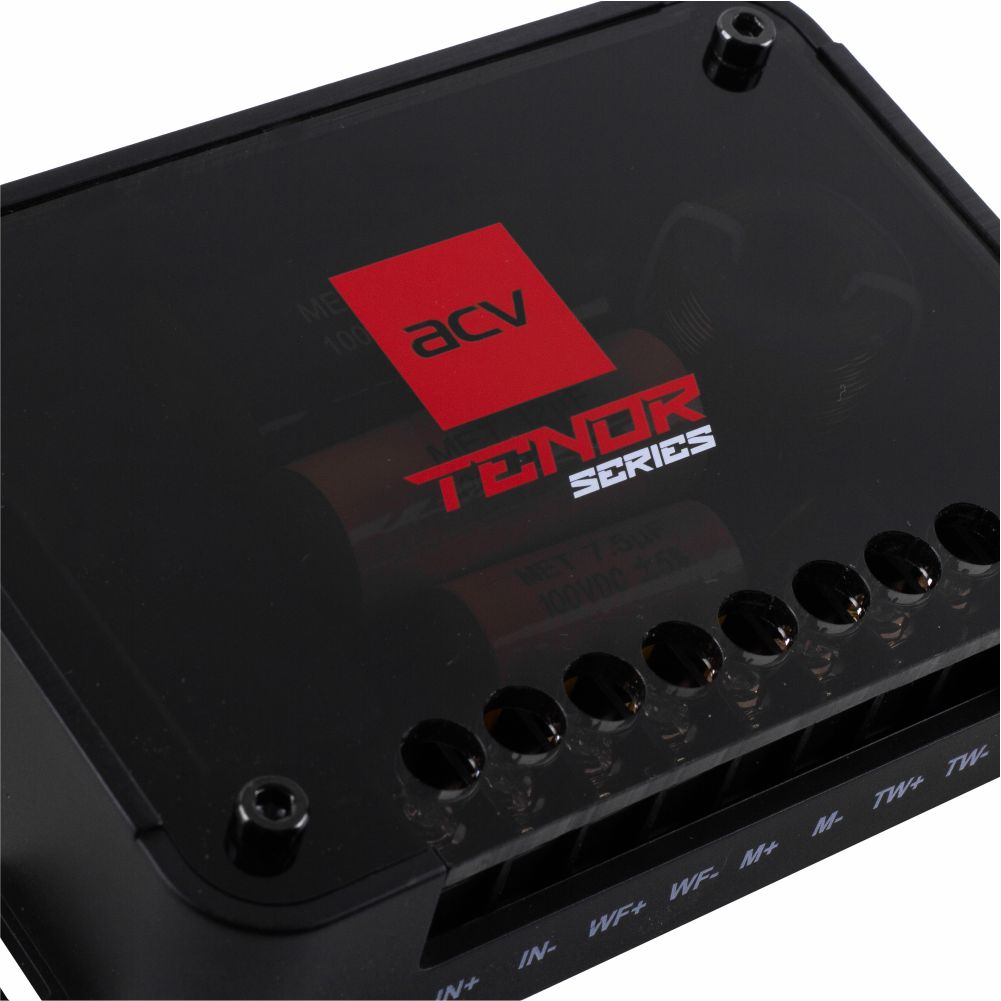

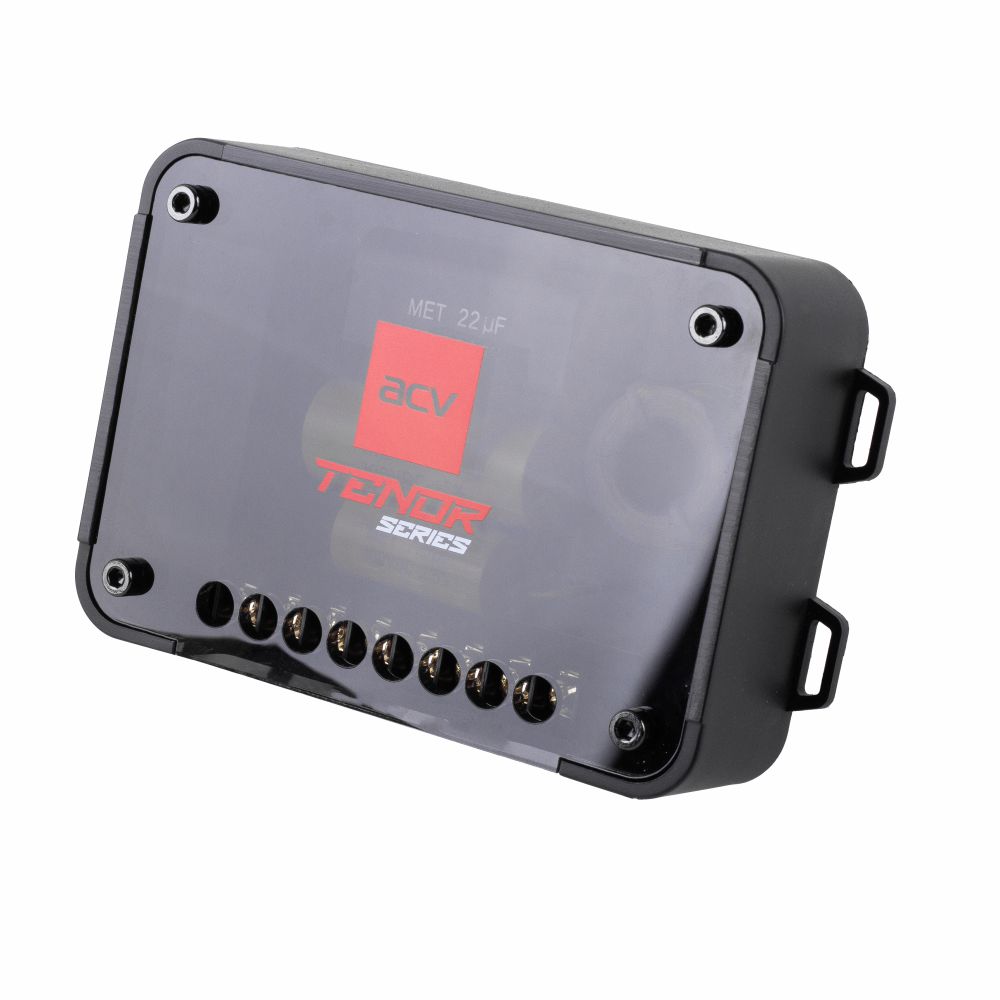

The ACV TENOR TCROSS3 is a high-quality passive crossover specifically designed for the TENOR series of component audio systems. This crossover divides the audio signal into three bands—high, mid, and low—allowing each driver to operate in its optimal range. The result is cleaner, more natural, and more vibrant sound.

The TCROSS3 benefits from the use of top-of-the-line components: pure copper coils ensure minimal loss and high reliability, while ultra-low-loss film capacitors guarantee the most transparent and natural sound.

This crossover is suitable for speakers up to 300W and offers a wide range of connection options, making it an excellent choice for building high-quality component systems. Optimized for use with TENOR series speakers, it helps achieve the most accurate and balanced music reproduction.

Specifications

• Crossover for 3-way system
• Power: 300W
• Resistance: 4 Ohm
• Number of bands: 3-way
• Slope: -6dB Woofer /-12dB Midbass / -6dB Tweeter

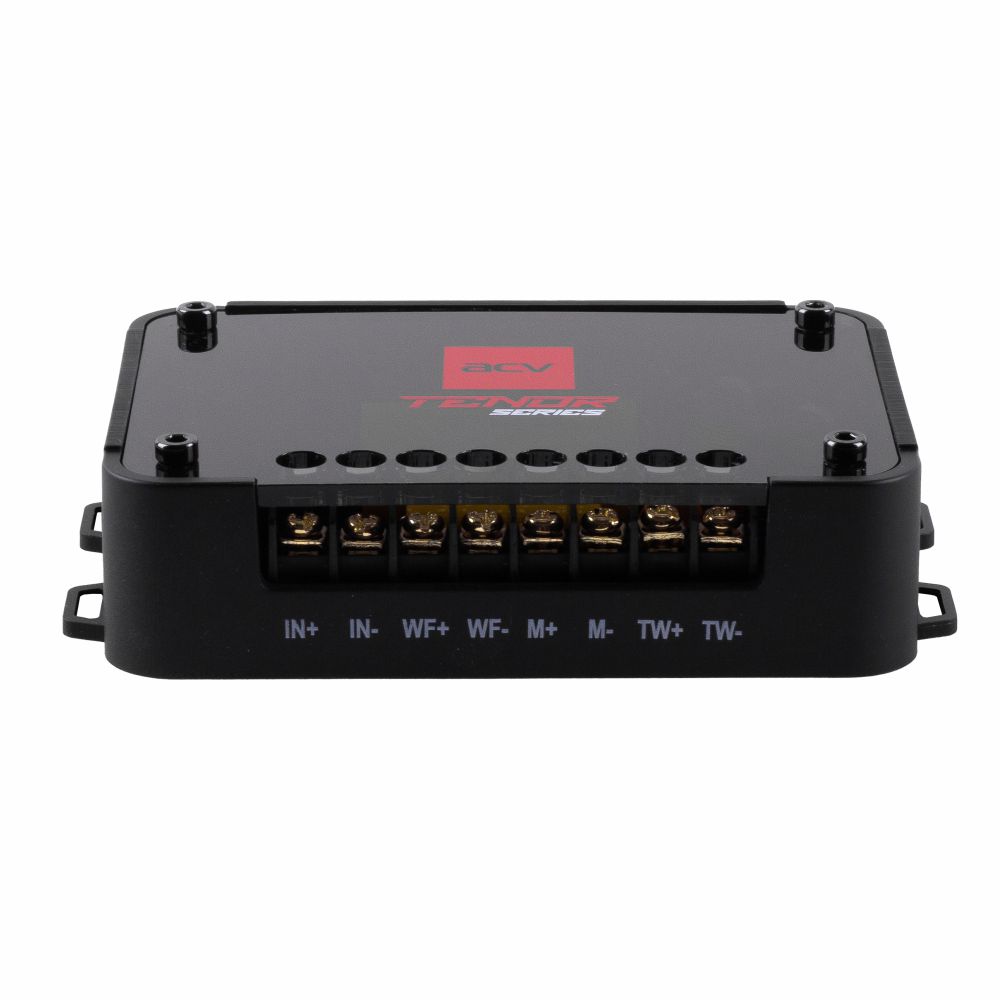

• Speaker terminals: up to 12GA (3.31 mm²)
• Crossover point: Woofer 1kHz, Midbass 6800Hz, Tweeter 6800Hz
